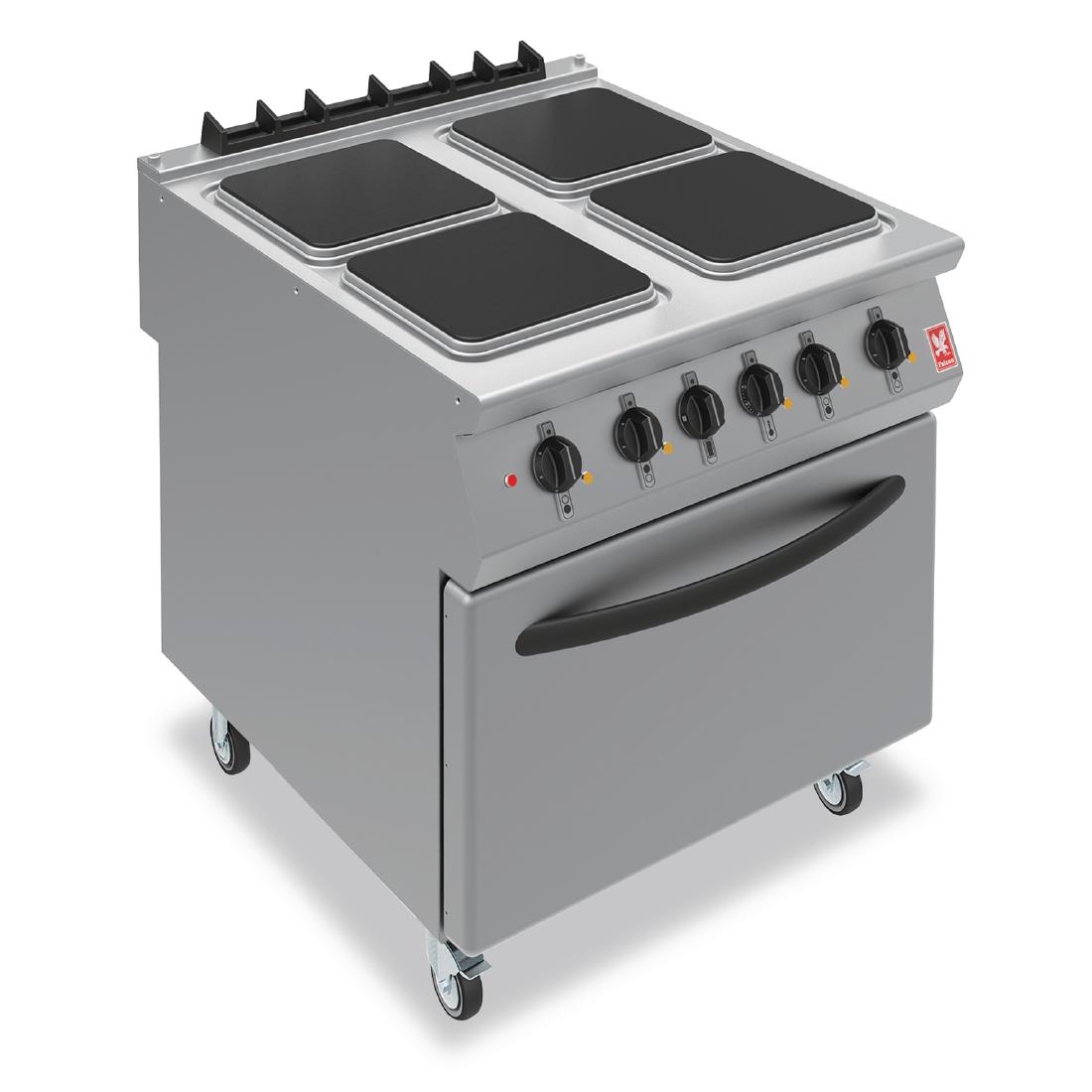

Falcon F900 Four Hotplate Electric Oven Range on Castors E9184 HC088

£5,538.49

+vat

Availability: 999 in stock

- +

Brand:

SKU: HC088

Product summary

22.3kW. 4 hotplates. Single or 3 phase

Product description

The E9184 features four high performance 4kW cast iron hotplates. The deep drawn pressed wells in the one piece hob contain spillages and wide raised corners prevent grease and grime build up and are easy to clean and keep clean. The hotplates are 300mm square and have 6 heat positions. 2mm thick 304 culinary grade stainless steel construction provide robustness and longevity. The laser cut hob enables edge to edge joining of equipment, providing the benefits of a cooking suite with the advantages of separate units. The large 2/1 gastronorm compatible oven features five shelf positions, with two shelves supplied as standard and metal to metal door seal, to ensure heat is retained exactly where it is needed – in the oven chamber. This unit is IPX5 rated and is supplied on adjustable castors.

Square hotplates offer fast heat up and large surface area
IPX5 rated for deep cleaning
Available in 400V three phase, L1: 34.6, L2: 34.6, L3: 27.6 or 230V single phase 98A
DLS compatible so can be seamlessly linked to any other Falcon F900 model
Supplied on adjustable castors (front two braked)
5 positions, 1 shelf supplied
Pressed hob wells contain spillages and are easy to clean
Large 2/1 GN oven makes it easy to transfer trays to and from other kitchen or serving equipment
Oven features metal to metal door seal to retain heat

Downloads

SPECIFICATION 22 facts · tap for all Width800 mmDepth900 mmGross weight134 kgVoltage230/240VTemperature range+80 to +280 °CMaterialStainless Steel & Cast Iron

Identity6

Brand Falconsite
Extended warranty 1 Year Parts & Labour Commercial Only Warrantycatalogue
Product code HC088site
Range / series F900 Seriescatalogue
Type Electric Rangescatalogue
Warranty 2 Year Parts & Labour Commercial Only Warrantycatalogue

Size & weight5

Depth 900 mmcatalogue
External (W×D×H) 900 × 800 × 900 mmcatalogue
Gross weight 134 kgcatalogue
Internal (W×D×H) 300 × 565 × 730 mmcatalogue
Width 800 mmsite

Capacity2

Gastronorm size 2/1 GN doublecatalogue
Shelves 2catalogue

Performance1

Temperature range +80 to +280 °Ccatalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 22300 Wcatalogue
Voltage 230/240Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steel & Cast Ironcatalogue

Other stated facts3

Electrical safety notice Yescatalogue
Mobility Castorscatalogue
Output per hour 22.3kWcatalogue
THE WORKING VIEW

Why this electric range earns its place

The E9184 is the all-in-one: four 4 kW cast iron hotplates up top, a full-size 2/1 gastronorm oven below with five shelf positions (two supplied as standard), and enough electrical grunt to run it all at once. Whether you're searing meat on the hobs, roasting vegetables, and baking bread simultaneously, this range handles it without breaking sweat. The 230/240V three-phase supply powers 22.3 kW, making it practical for service-driven kitchens—cafés running breakfast with side roasts, pubs cooking à la carte, takeaways with integrated baked goods.

The cast iron hotplates are built for durability. Each sits at 300 mm square, with six heat positions per plate, deep drawn wells to contain spillages, and raised corners that shed grease without creating trap-points for grime. One-piece hob construction, pressed and finished to avoid crevices. The oven chamber sits substantial: five shelf positions with two shelves in the box means you've got real flexibility—batch baking, roasting, or holding service plating—and the metal-to-metal door seal keeps heat locked where it matters. Temperature range of +80 to +280°C covers everything from gentle warming to hard roasting. The oven sits IPX5-rated, meaning spray-downs don't kill it.

Build runs 2 mm 304 culinary-grade stainless with cast iron hobs—a proven combination for years of service. The laser-cut edges on the hob let you join it edge-to-edge with other F900 kit for a seamless cooking suite. Mobile on adjustable castors, it slots into kitchens where layout flexibility matters or where service equipment needs repositioning during quiet hours.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

800 × 900 × 900 mmstated W × D × H134 kg
THE CRITICAL ANSWERNarrowest straight opening800mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS900 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

Yes, but realistically 22.3 kW across four hobs and an oven means prioritization. In practice, if you're roasting hard in the oven, you'll run hobs at 80–90% to avoid tripping the supply. Most service styles don't need all-maximum at once—it's the flexibility to do four different things that matters. Run what your menu demands.

Five shelf positions total, two supplied. Each shelf holds a full 2/1 gastronorm tray. So you could run two roasting pans on one shelf, or mix—trays, sheet pans, whatever fits. Real flexibility for batch work.

+80 to +280°C. Preheating from cold to roasting temperature (around 200°C) takes roughly 20–25 minutes depending on ambient conditions. The metal-to-metal seal means heat retention is excellent once there.

Yes—cast iron wells, 300 mm square each, designed to stay flat and heat evenly. Clean food residue off; don't leave wet overnight. Cast iron darkens with use—that's normal and doesn't affect performance. Wipe spill-oil while warm, avoid shocking with cold water straight on hot iron.

Three-phase 230/240V only. Most commercial kitchens have three-phase; check with your electrician that capacity exists during installation. There's no single-phase alternative.

The laser-cut hob edges let you connect it edge-to-edge with other F900 units—pans, fryers, other hob equipment—building a continuous cooking line with no gaps. If you need repairs or servicing, contact Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Falcon F900 Four Hotplate Electric Oven Range on Castors E9184 HC088 Product Data

Brand Falcon
Type Electric Ranges
Range F900 Series
Dimensions 900(H) x 800(W) x 900(D)mm
Material Stainless Steel & Cast Iron
Colour / Finish Silver
Temperature Range 80°C to 280°C
Number of Shelves 2
Power Electric
Voltage 230/240V
Fuel / Supply Three Phase
Warranty 2 Year Parts & Labour Commercial Only Warranty
Weight 134kg
Manufacturer Ref E9184
If you have any questions about the Falcon F900 Four Hotplate Electric Oven Range on Castors E9184 HC088 then please get in touch.
