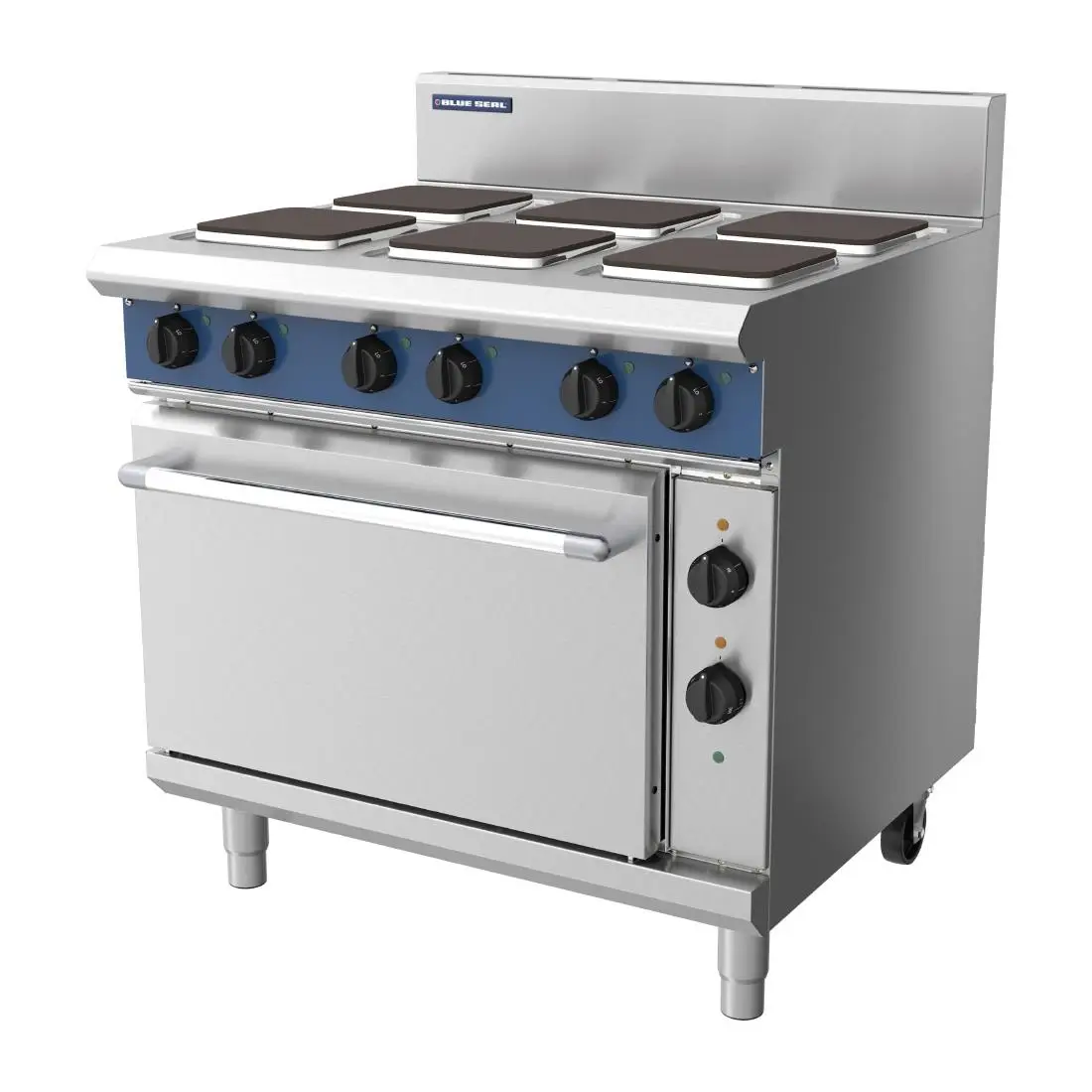

Blue Seal 6 Plate Static Oven Range 22.1kW E506S DX746

£4,347.19

+vat

Availability: 999 in stock

- +

Brand:

SKU: DX746

Product summary

Width: 900mm. 22.1kW. 6x cooking plates with 2/1GN static oven

Product description

The E506S Blue Seal 6 plate static oven range is a fantastic choice for kitchens which need a flexible cooking station. Designed for everyday reliability and performance, the Blue Seal provides both in abundance – with six powerful hob plates on top, alongside a high capacity 2/1GN compatible static oven in the base.

The hob features simple dial temperature controls – just select a setting and each of the elements deliver up to 2.6kW of power. The generously-sized plates accommodate most pots and pans, giving you the flexibility to fry, boil, simmer and saut√© dishes with ease.

Below, the oven has two main elements – a 4.5kW bottom element and a 2kW top element, so you can easily tailor your cooking depending on the dish.

The modular design of the Blue Seal hob makes it easy to suite with other Blue Seal countertop and free standing appliances. And thanks to its strong stainless steel construction, it’s highly durable and easy to clean too – essential considerations for any appliances in a busy professional kitchen.

Time-saving easy-clean stainless steel construction
6x 2.6kW cast iron hot plate elements and 8.7kW main oven
Heavy duty design – built for professional kitchens
Modular – suites perfectly with other Blue Seal Evolution Series appliances
2/1 Gastronorm tray capacity with 4 rack positions (GN pans sold separately)
Vitreous enamelled control panel with durable dials
Static main oven with cast iron sole plates
Fully welded and vitreous enamelled oven liner

Downloads

SPECIFICATION 19 facts · tap for all Width900 mmDepth812 mmHeight915 mmGross weight195 kgVoltage400/415VMaterialStainless Steel

Identity5

Brand Blue Sealsite
Extended warranty 1 Year Parts & Labourcatalogue
Product code DX746site
Type Electric Rangescatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 812 mmcatalogue
External (W×D×H) 915(H) x 900(W)mmcatalogue
Gross weight 195 kgcatalogue
Height 915 mmcatalogue
Width 900 mmsite

Capacity1

Gastronorm size 2/1 GN doublecatalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 22100 Wcatalogue
Voltage 400/415Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts3

Electrical safety notice Yescatalogue
Mobility Feetcatalogue
Undershelf Nocatalogue
THE WORKING VIEW

Why this electric range earns its place

The Blue Seal E506S DX746 is a 6 plate static oven range built for kitchens that need one dependable cooking station to do several jobs well. It combines six hob plates on top with a high-capacity static oven in the base, giving you both hob cooking and oven cooking in one stainless steel unit.

Each hob plate has simple dial temperature controls and delivers up to 2.6kW of power. The generously sized plates are made to take most pots and pans, so the range can handle frying, boiling, simmering and sautéing without fuss.

In the base, the oven is 2/1GN compatible and uses two main elements: a 4.5kW bottom element and a 2kW top element. That gives you a straightforward way to tailor the heat to the dish, whether you are finishing, baking or holding food through service.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

900 × 812 × 915 mmstated W × D × H195 kg
THE CRITICAL ANSWERNarrowest straight opening812mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS915 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

It is a static oven range with a 2/1GN compatible oven in the base.

Six hob plates, each with simple dial temperature controls.

Each element delivers up to 2.6kW of power.

It runs on 400/415V three phase power with a rated input of 22,100W.

The unit is stainless steel with a silver finish.

The product page lists a 2 year parts and labour warranty and an extended 1 year parts and labour warranty.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Blue Seal 6 Plate Static Oven Range 22.1kW E506S DX746 Product Data

Brand Blue Seal
Type Electric Ranges
Dimensions 915(H) x 900(W)mm
Material Stainless Steel
Colour / Finish Silver
Power Three Phase
Voltage 400/415V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 195kg
Manufacturer Ref UKE506S
If you have any questions about the Blue Seal 6 Plate Static Oven Range 22.1kW E506S DX746 then please get in touch.
