Lincat Opus 800 Electric Oven Range OE8016 DM515

£3,939.64

+vat

Availability: 999 in stock

- +

Brand:

SKU: DM515

Product summary

Power: 21.6kW (3 Phase) | 6 Plates

Product description

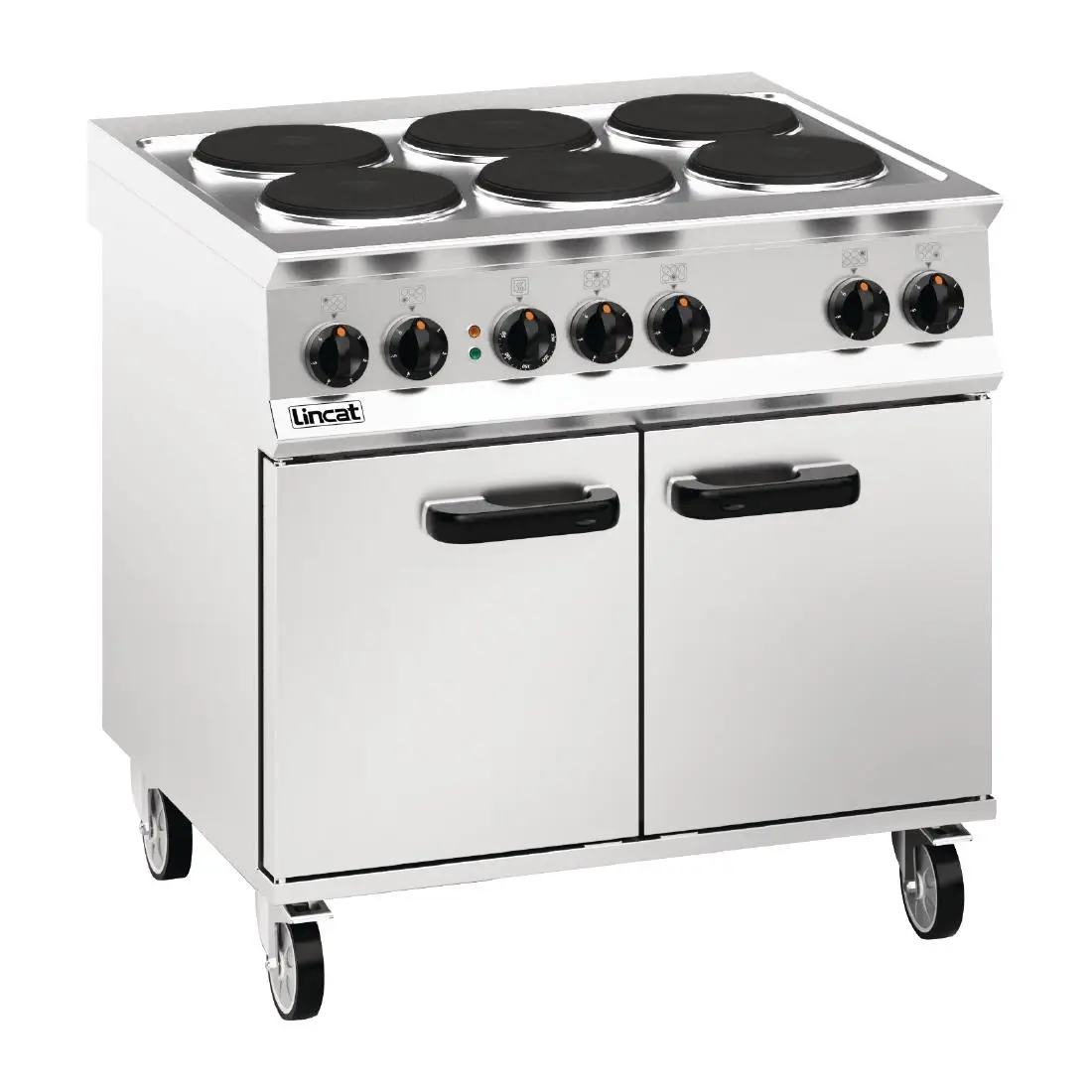

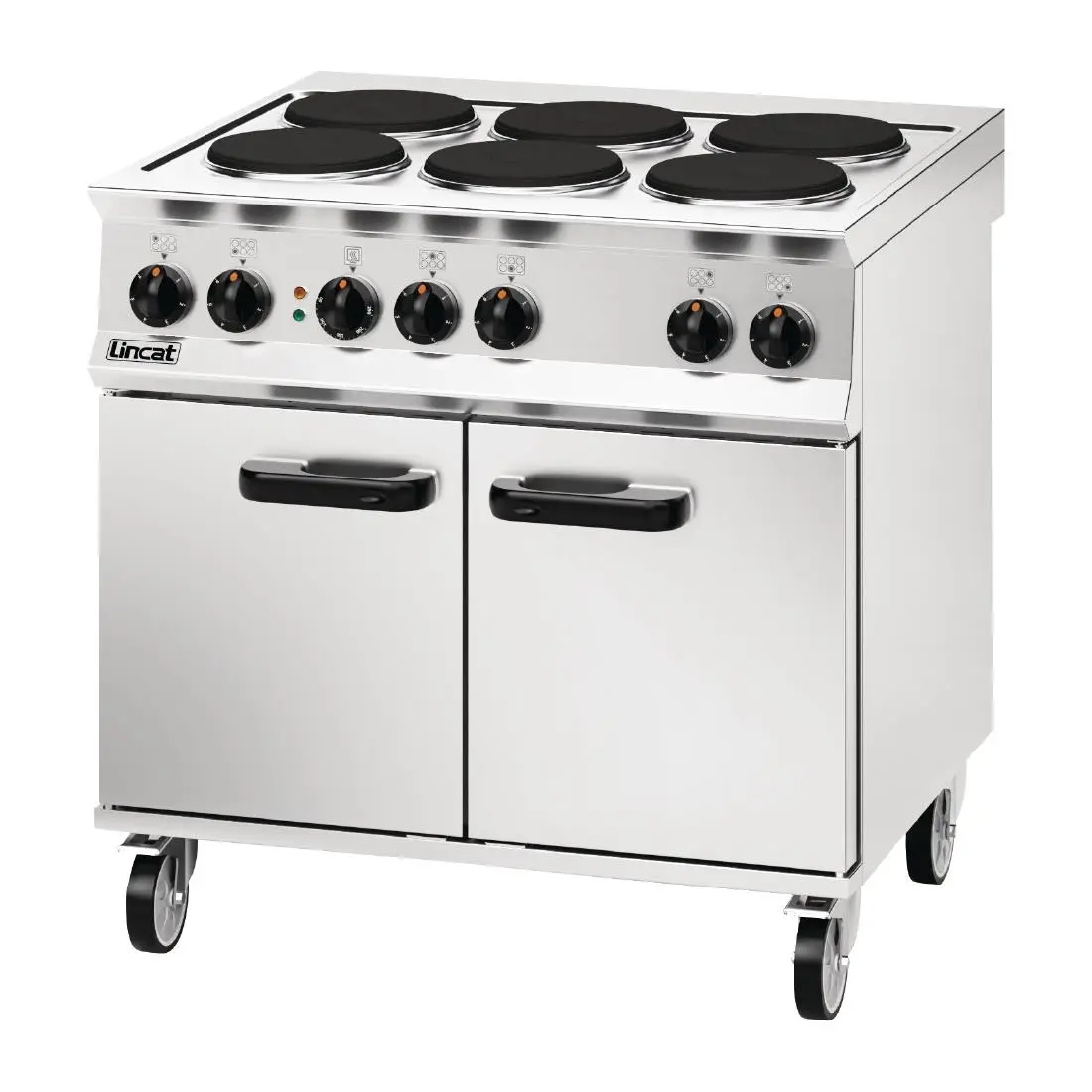

The OE8016 is a highly versatile electric range with six heavy-duty cast iron high speed round hot plates and a fully pressed sealed hob. The fan assisted electric oven delivers uniform heat and consistent cooking results across the interior which can easily accomodate 6 x GN1/1.

Heavy duty cast iron 2.6kW hot plates deliver fast, responsive heat
4kW fan-assisted oven for uniform heat and consistent cooking results
Precise thermostatic control from 130°C to 265°C
Large capacity 3x 1/1 GN compatible oven
Three shelves and five shelf positions maximise oven space
Removable oven base is easy to clean and maintain
Double insulation improves efficiency and reduces running costs
Recessed back allows the unit to be placed directly against the wall, saving space
Choice of round or square hotplates (square version DM510)
Fully pressed sealed hob for easy cleaning
Low flue to allow use of the complete hob top

Downloads

SPECIFICATION 25 facts · tap for all Width900 mmDepth800 mmHeight925 mmGross weight129.4 kgVoltage400VTemperature range+130 to +265 °C

Identity7

Brand Lincatsite
GTIN / EAN 5.05611E+12catalogue
Product code DM515site
Range / series Opuscatalogue
Seo name Lincat Opus 800 Oven Rangecatalogue
Type Electric Rangescatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 800 mmcatalogue
External (W×D×H) 925 × 900 × 800 mmcatalogue
Gross weight 129.4 kgcatalogue
Height 925 mmcatalogue
Width 900 mmsite

Capacity3

Capacity 3 X 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue
Shelves 3catalogue

Performance1

Temperature range +130 to +265 °Ccatalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 21600 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts4

Electrical safety notice Yescatalogue
Mobility Castorscatalogue
Output per hour 21.6kWcatalogue
Undershelf Nocatalogue
THE WORKING VIEW

Why this electric range earns its place

The OE8016 is a versatile electric range built around six heavy-duty cast iron high-speed round hot plates and a fully pressed sealed hob. It is a strong fit for kitchens that want multiple top-plate positions alongside a full commercial oven.

The fan-assisted electric oven is designed to deliver uniform heat and consistent cooking results across the interior. The manufacturer states that the oven can easily accommodate 6 x GN1/1, giving this range the capacity to support busy service.

This model is specified at 925 x 900 x 800 mm and weighs 129.4 kg gross. It runs on 400V three phase power, has a rated input of 21.6 W, a listed output of 21.6kW, and comes with a 2 years parts and labour warranty.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

900 × 800 × 925 mmstated W × D × H129 kg
THE CRITICAL ANSWERNarrowest straight opening800mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS925 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

It has six heavy-duty cast iron high-speed round hot plates.

The oven can accommodate 6 x GN1/1.

It measures 925 x 900 x 800 mm.

It runs on 400V three phase power.

Yes. The manufacturer states that it has a fully pressed sealed hob.

Call 01792 732702 for service support.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Lincat Opus 800 Electric Oven Range OE8016 DM515 Product Data

Brand Lincat
Type Electric Ranges
Range Opus
Dimensions 925(H) x 900(W) x 800(D)mm
Capacity 3 X 1/1 GN
Material Stainless Steel
Colour / Finish Silver
Temperature Range 130°C to 265°C
Number of Shelves 3
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 129.4kg
Manufacturer Ref OE8016
If you have any questions about the Lincat Opus 800 Electric Oven Range OE8016 DM515 then please get in touch.
