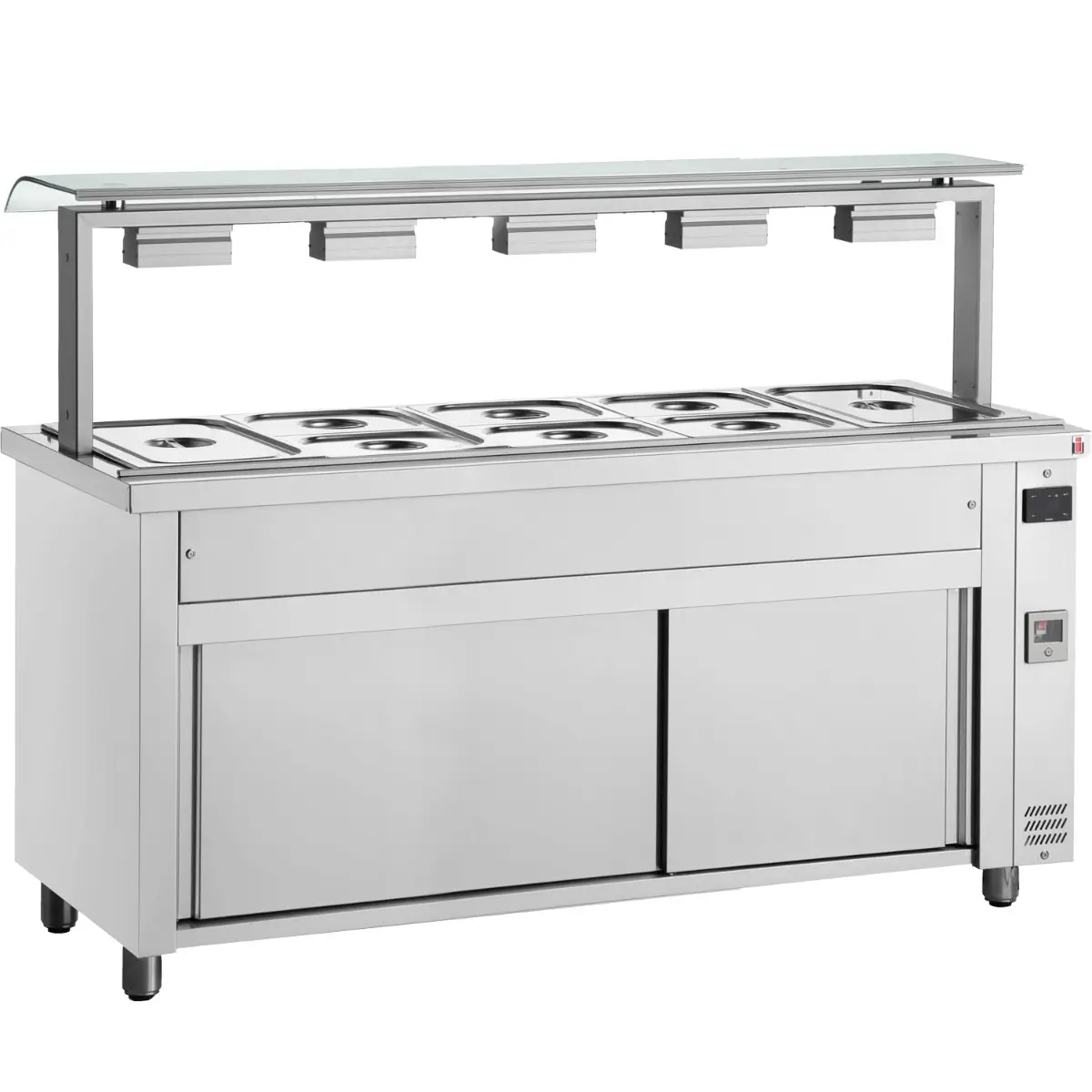

INOMAK Bain Marie With Heated Cupboard And Sneeze Guard 5x GN1/1 MJV718

£2,156.44

+vat

Brand:

SKU: MJV718

Product summary

Size: 1795 x 700 x 1310

Product description

  • High grade AISI 304 stainless steel exterior & interior
  • Wet well bain marie with easy access drain tap
  • Wet well accepts GN1/1 upto 150mm depth (not supplied)
  • Sneeze guard with 130w halogen lamps
  • Fan assisted
  • <span style=”font-size: 16px;”>Digital controller with temperature display</span>
  • <span style=”font-size: 16px;”>Ergonomically designed double ‚Äì walled sliding doors, insulated with polyurethane foam.</span>
  • <span style=”font-size: 16px;”>Versatile showcase design with conversion capability depending on the use & 8mm thick glasses.</span>
  • <span style=”font-size: 16px;”>Heater protection against low water level in the tank</span>
  • <span style=”font-size: 16px;”>Robust construction</span>
  • <span style=”font-size: 16px;”>Wet-well operation</span>
  • <span style=”font-size: 16px;”>Height adjustable stainless-steel legs</span>

A wide-format freestanding bain marie with five GN1/1 wells and a heated cupboard underneath, designed for high-volume service with integrated warm storage.

SPECIFICATION 18 facts · tap for all External W × D × H1795 x 700 x 1310Width1795 mmDepth700 mmHeight1310 mmGross weight116 kgVoltage / frequency5100w

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700804site
Product code MJV718site
Type Wet Well Free Standing Bain Mariescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1795 × 700 × 1310 mmcatalogue
External W × D × H 1795 x 700 x 1310site
Gross weight 116 kgcatalogue
Height 1310 mmsite
Width 1795 mmsite

Performance2

Controller Digital controller with temperature displaysite
Temperature range Bain Marie Max. +90C / Heated Cupboard Max.+72Csite

Power & energy3

Input power 30amp supplysite
Rated input 5100 Wcatalogue
Voltage / frequency 5100wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this wet well free standing bain marie earns its place

The MJV718 is the heavyweight choice for kitchens that serve continuously and need both hot food display and warm holding capacity built into a single unit. At nearly 1.8 metres wide, it holds five GN1/1 pans at depths up to 150 mm, each lit by halogen lamps and kept at consistent temperature by fan-assisted heat. Below the display is a heated cupboard — a second compartment that keeps plated items, sauces, or backup dishes warm at temperature without drying them out.

The twin insulated sliding doors (top and cupboard) are ergonomically designed with double walls and polyurethane foam, reducing heat loss and protecting staff from contact. A digital controller monitors and displays the well temperature, allowing precise control. Stainless steel construction throughout (AISI 304, interior and exterior) ensures years of service in a busy kitchen, resisting stains and corrosion. The cupboard drains easily via a tap, and the height-adjustable stainless steel legs let you level the unit on any floor. At 116 kg, this is a serious installation — once placed, it stays put, designed to anchor a long service counter.

This is engineered for high-rotation kitchens where you need more than just display: you need active holding capacity for plates, accompaniments, and backup ingredients. The 5-pan top handles the main rotation, while the heated cupboard absorbs the surge of plated items during peak service. It's an investment in throughput and consistency.

BEFORE YOU BUY

Questions, answered straight

Five GN1/1 pans in the display well, each up to 150 mm deep. The heated cupboard below provides separate storage. Pans are not supplied.

The cupboard underneath the well is heated and insulated. Use it for holding plated items, backup ingredients, or extra pans during peak service — everything stays at safe holding temperature without direct contact with water.

Yes. The digital controller displays the actual well temperature and allows you to set the holding temperature precisely. The fan-assisted system maintains even heat across all five pans.

At 1,795 mm wide by 700 mm deep, this is a substantial piece — it's designed to anchor or dominate a service counter, not tuck into a small space. Measure your kitchen before ordering.

The cupboard has an access drain tap at the base. Drain this at the end of service, allow it to cool, and rinse it clean daily.

The stainless steel surfaces are wiped daily after service. Drains should be cleared of debris regularly. The halogen lamps should be inspected weekly. Sliding doors require periodic checks for smooth operation. For a detailed maintenance plan suited to your kitchen, contact 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1795 x 700 x 1310

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Input Power: 30amp supply
Voltage / Frequency: 5100w

Measures and Content

Design and Material

Exterior Finish: Stainless Steel

INOMAK Bain Marie With Heated Cupboard And Sneeze Guard 5x GN1/1 MJV718 Product Data

If you have any questions about the INOMAK Bain Marie With Heated Cupboard And Sneeze Guard 5x GN1/1 MJV718 then please get in touch.
