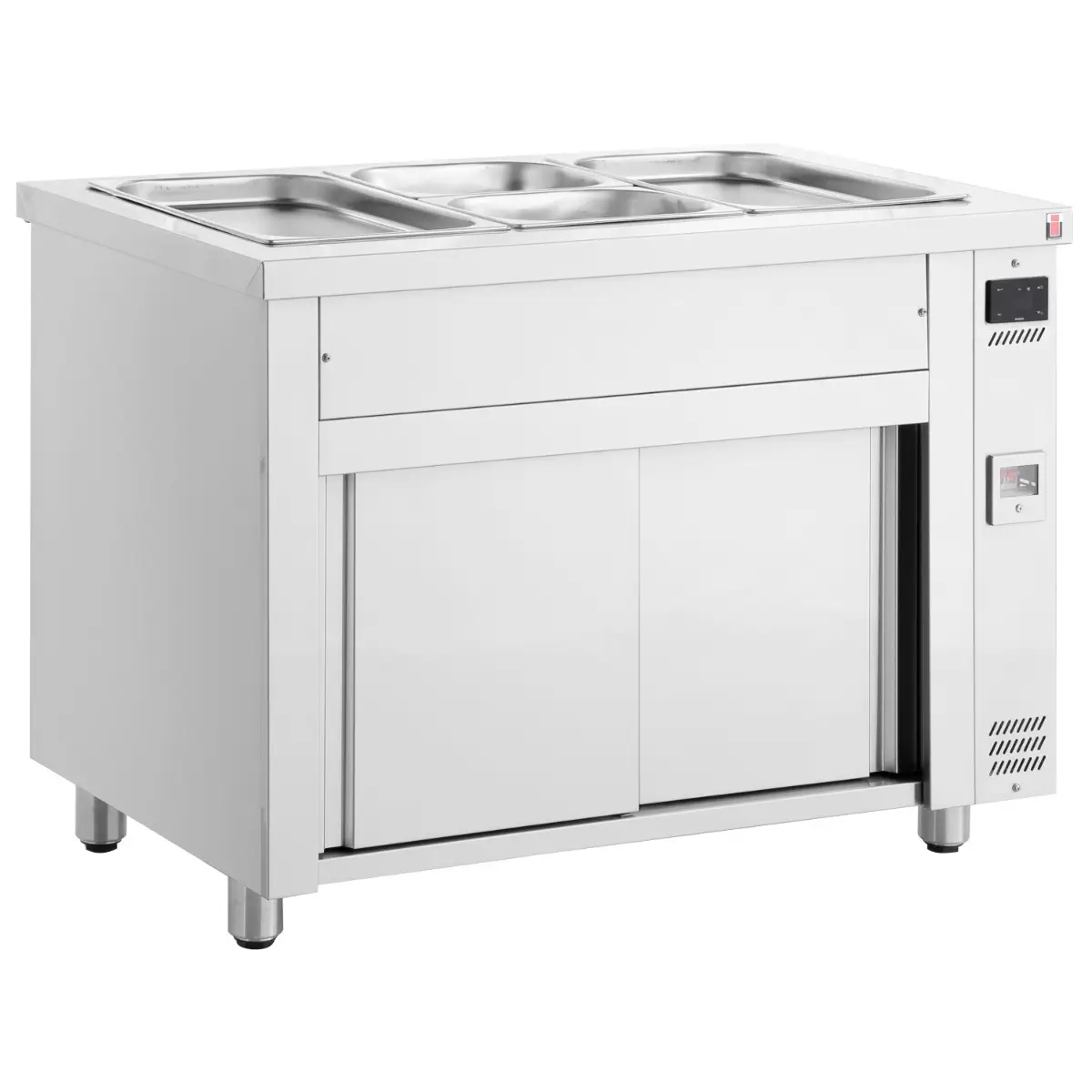

INOMAK Bain Marie with Heated Cupboard 3x GN1/1 MHV711

£1,244.10

+vat

Brand:

SKU: MHV711

Product summary

Size: 1105 x 700 x 860

Product description

  • High grade AISI 304 stainless steel exterior & interior
  • Open type

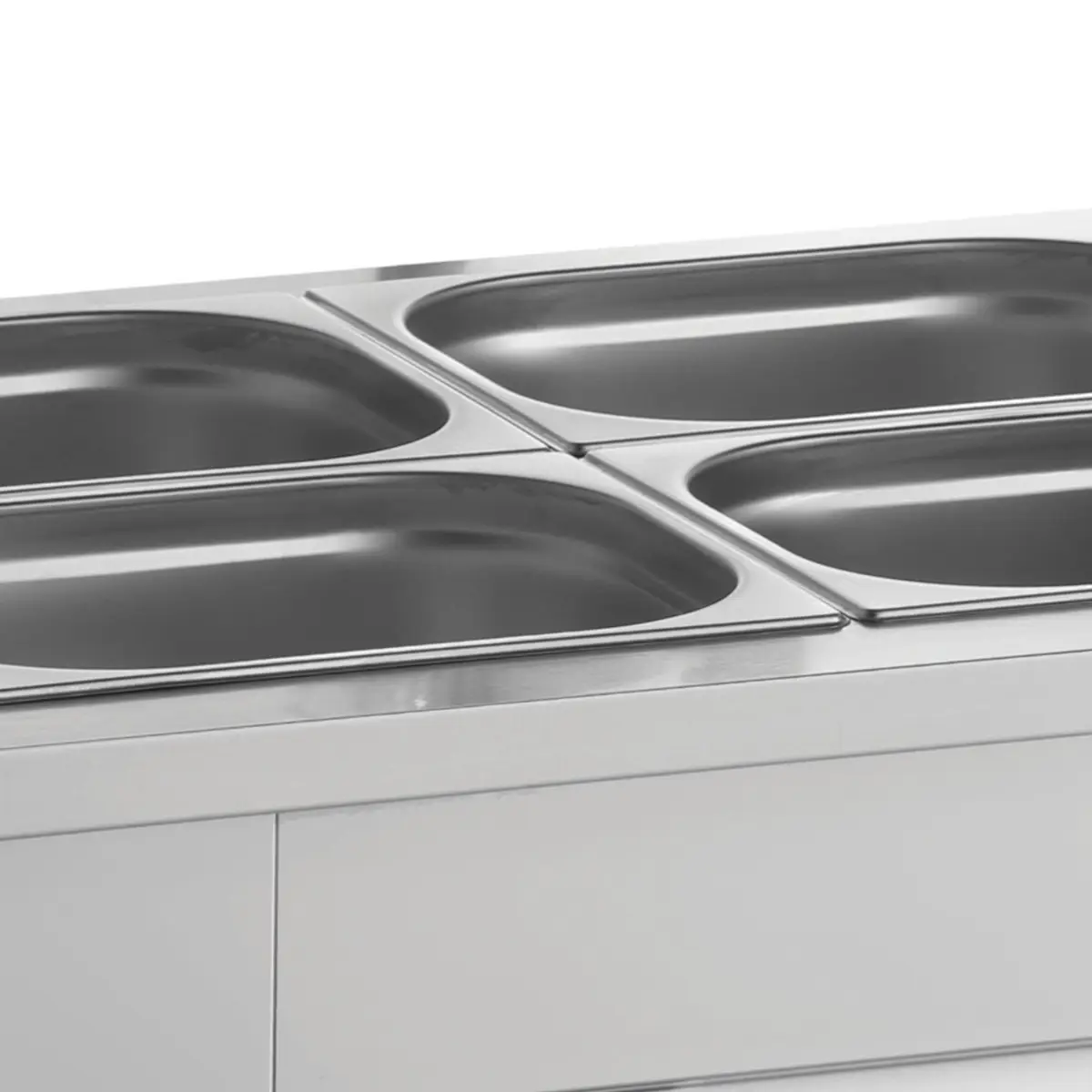

  • Wet well accepts GN1/1 upto 150mm deep (not supplied)
  • Digital controller with temperature display
  • Fan assisted
  • Wet well bain marie with easy access drain tap¬†
  • Heater protection against low water level in the tank
  • Robust construction
  • Height adjustable stainless-steel legs
  • Tempered Glass Vitrines

A compact 3-pan wet bain marie with dedicated heated cupboard below, built from grade AISI 304 stainless steel with digital temperature control for reliable hot holding.

SPECIFICATION 18 facts · tap for all External W × D × H1105 x 700 x 860Width1105 mmDepth700 mmHeight860 mmGross weight74 kgVoltage / frequency3850W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700736site
Product code MHV711site
Type Wet Well Free Standing Bain Mariescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1105 × 700 × 860 mmcatalogue
External W × D × H 1105 x 700 x 860site
Gross weight 74 kgcatalogue
Height 860 mmsite
Width 1105 mmsite

Performance2

Controller Digital controller with temperature displaysite
Temperature range Bain Marie Max. +90C / Heated Cupboard Max.+72Csite

Power & energy3

Input power 25amp supplysite
Rated input 3850 Wcatalogue
Voltage / frequency 3850Wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this wet well free standing bain marie earns its place

The MHV711 is a straightforward, freestanding wet bain marie designed for kitchens that need reliable food holding without excess footprint. It holds three GN1/1 pans (up to 150 mm deep) in the open wet well above, while the heated cupboard underneath provides space to keep backup pans at service temperature—critical for avoiding the cold-pan changeover on a busy service.

Construction is AISI 304 stainless steel throughout, inside and out, with tempered glass visuals so customers can see what's available. A digital controller maintains precise temperature with fan assistance, and the easy-access drain tap makes emptying and cleaning straightforward. Height-adjustable stainless legs accommodate slight floor unevenness and simplify cleaning underneath.

At 1105 mm wide and 860 mm tall, it fits neatly into most kitchen layouts without dominating the pass. The robust build is rated for daily commercial use across cafés, takeaways, pubs and smaller contract kitchens where every pan counts and consistency matters.

BEFORE YOU BUY

Questions, answered straight

A: GN1/1 pans up to 150 mm deep. These are catering standard, widely available and simple to swap. The well is open-type, so you can see at a glance what's in service.

A: You supply a water jacket—the bain marie uses wet-well heating (water surrounding the pans) rather than direct gas or electric. This is gentler on delicate items and more cost-effective to run. Check the manual or contact our team for water supply requirements.

A: No, this is freestanding only. It's designed to sit on the pass at working height (860 mm tall). The height-adjustable legs give you about 50 mm of play for uneven floors.

A: Wet bain maries benefit from an annual professional service to check the heating circuit and drain system. Call our team on 01792 732702 to arrange that. Daily: empty and clean the well, check the water level (the heater has protection against running dry, but regular checks save trouble).

A: 1105 mm wide, 700 mm deep, 860 mm tall. It's roughly the footprint of a single oven, which makes it fit into existing pass layouts or small counter arrangements.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1105 x 700 x 860

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Input Power: 25amp supply
Voltage / Frequency: 3850W

Measures and Content

Design and Material

Exterior Finish: Stainless Steel

INOMAK Bain Marie with Heated Cupboard 3x GN1/1 MHV711 Product Data

If you have any questions about the INOMAK Bain Marie with Heated Cupboard 3x GN1/1 MHV711 then please get in touch.
