INOMAK Bain Marie With Heated Cupboard And Sneeze Guard 3 x GN1/1 MJV711

£1,623.71

+vat

Brand:

SKU: MJV711

Product summary

Size: 1105 x 700 x 1310

Product description

  • High grade AISI 304 stainless steel exterior & interior
  • Wet well bain marie with easy access drain tap
  • Wet well accepts GN1/1 upto 150mm depth (not supplied)
  • Sneeze guard with 130w halogen lamps
  • Fan assisted
  • Ergonomically designed double ‚Äì walled sliding doors, insulated with polyurethane foam.
  • Versatile showcase design with conversion capability depending on the use & 8mm thick glasses.
  • Heater protection against low water level in the tank
  • Robust construction
  • Wet-well operation

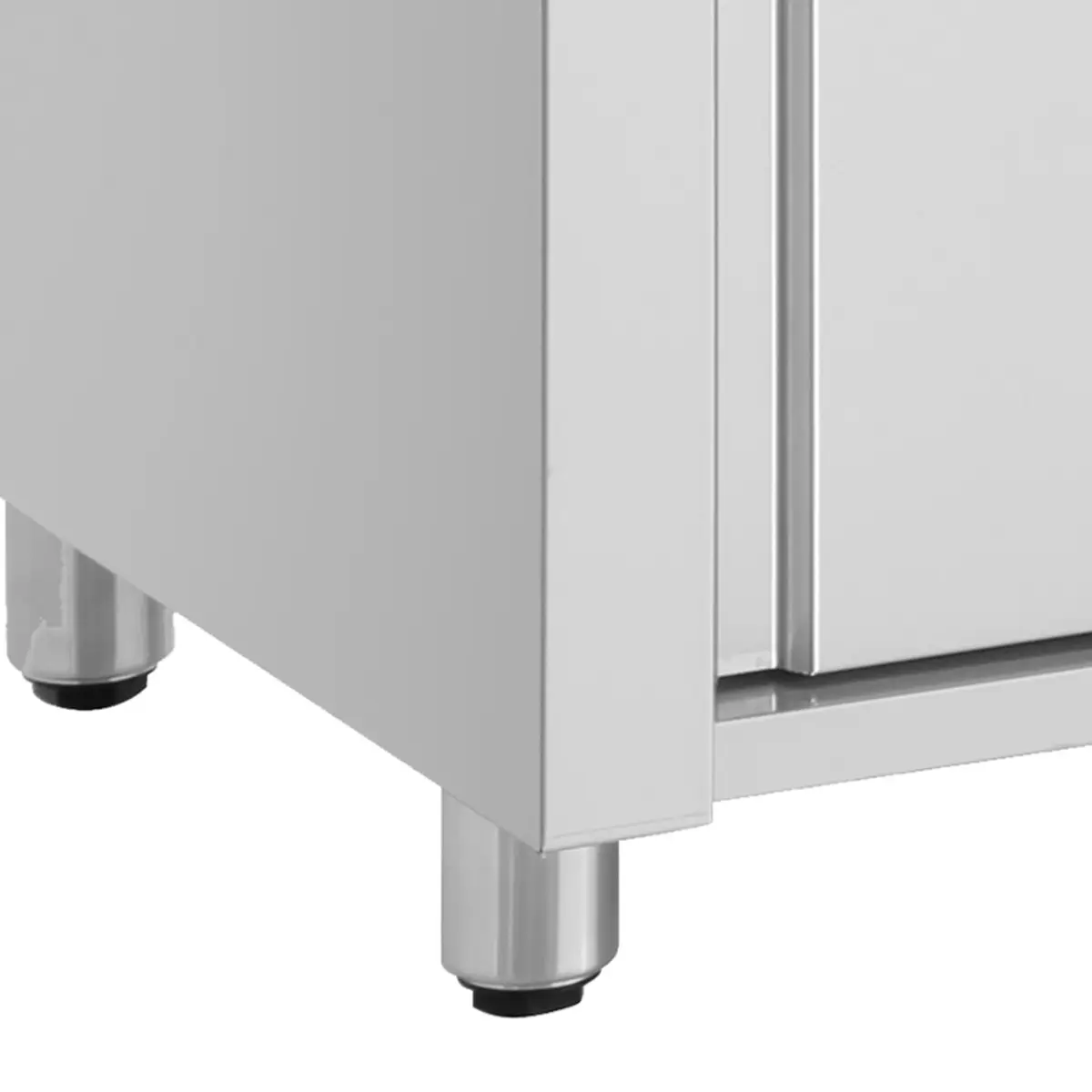

  • Height adjustable stainless-steel legs

A compact freestanding bain marie with three GN1/1 wells and an integral heated cupboard, balancing display capacity with warm storage in a narrow footprint.

SPECIFICATION 18 facts · tap for all External W × D × H1105 x 700 x 1310Width1105 mmDepth700 mmHeight1310 mmGross weight81 kgVoltage / frequency4240W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700781site
Product code MJV711site
Type Wet Well Free Standing Bain Mariescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1105 × 700 × 1310 mmcatalogue
External W × D × H 1105 x 700 x 1310site
Gross weight 81 kgcatalogue
Height 1310 mmsite
Width 1105 mmsite

Performance2

Controller Digital controller with temperature displaysite
Temperature range Bain Marie Max. +90C / Heated Cupboard Max.+72Csite

Power & energy3

Input power 25amp supplysite
Rated input 4240 Wcatalogue
Voltage / frequency 4240Wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this wet well free standing bain marie earns its place

The MJV711 combines the slim profile of a three-pan display with the thermal advantage of an integrated heated cupboard underneath — the best of both for kitchens that want warm holding capacity without a wide footprint. At 1,105 mm wide and 700 mm deep, it fits comfortably into narrow service lines or galley kitchens whilst offering 1,310 mm of height. The three GN1/1 wells accept pans up to 150 mm deep, each illuminated by halogen lamps and kept at consistent temperature by fan-assisted heat.

Below the display is a heated and insulated cupboard — perfect for holding plated items, sauces, or backup pans during service without drying them out. Double-walled sliding doors on both the well and cupboard are insulated with polyurethane foam, minimising heat loss and protecting staff from contact. The frame is high-grade AISI 304 stainless steel inside and out, designed for years of daily use. Height-adjustable stainless steel legs allow you to level the unit precisely on any kitchen floor, and drain taps on both well and cupboard make emptying quick and straightforward. At 81 kg, the MJV711 is solid and stable without requiring a full installation footprint.

This is the smart choice for kitchens that need more than a basic bain marie but work in tight space. Three pans handle the core rotation, the cupboard absorbs surge and plated items, and the footprint respects your kitchen's layout.

BEFORE YOU BUY

Questions, answered straight

Three standard GN1/1 pans in the display well, each to a maximum depth of 150 mm. The heated cupboard below provides separate holding space. Pans are not supplied.

The cupboard underneath is heated and insulated. Use it during service to hold plated items, backup pans, sauces, or any dish you want to keep warm without direct water contact.

Yes. The fan-assisted heat distribution ensures all three pans in the well stay at the same holding temperature. Temperature is held automatically once you set the controller.

At 1,105 mm wide by 700 mm deep, the MJV711 fits comfortably into tight spaces whilst standing 1,310 mm tall to maximise the vertical footprint. Measure your available space before ordering.

Both sections have easy-access drain taps at the base. Open them at the end of service to drain and cool the unit, then rinse clean.

Wipe stainless steel surfaces daily after service. Empty and rinse both the well and the cupboard. Check sliding doors weekly for smooth operation and clear any food debris from around the door seals. For help with a detailed servicing schedule, contact 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1105 x 700 x 1310

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Input Power: 25amp supply
Voltage / Frequency: 4240W

Measures and Content

Design and Material

Exterior Finish: Stainless Steel

INOMAK Bain Marie With Heated Cupboard And Sneeze Guard 3 x GN1/1 MJV711 Product Data

If you have any questions about the INOMAK Bain Marie With Heated Cupboard And Sneeze Guard 3 x GN1/1 MJV711 then please get in touch.
