INOMAK 1800mm Wet Well Bain Marie With Heated Cupboard & Double Gantry MHVW-DHG18

£2,536.69

+vat

Brand:

SKU: MHVW-DHG18

Product summary

Size: 1795 x 700 x 1632

Product description

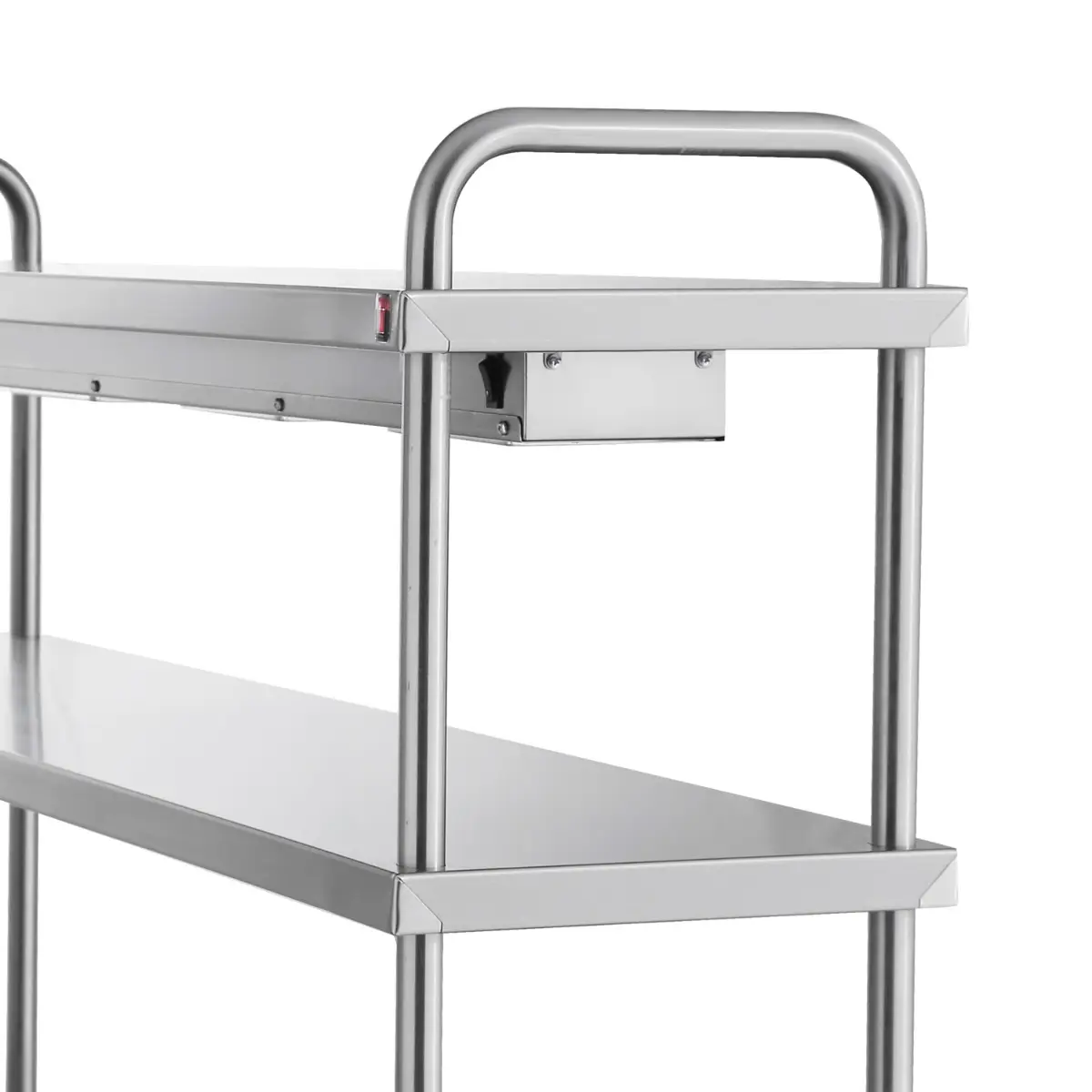

  • Double shelf gantry
  • 1 Halogen heated box mounted to top shelf – 5 Lamps
  • High grade AISI 304 stainless steel exterior & interior
  • Open type

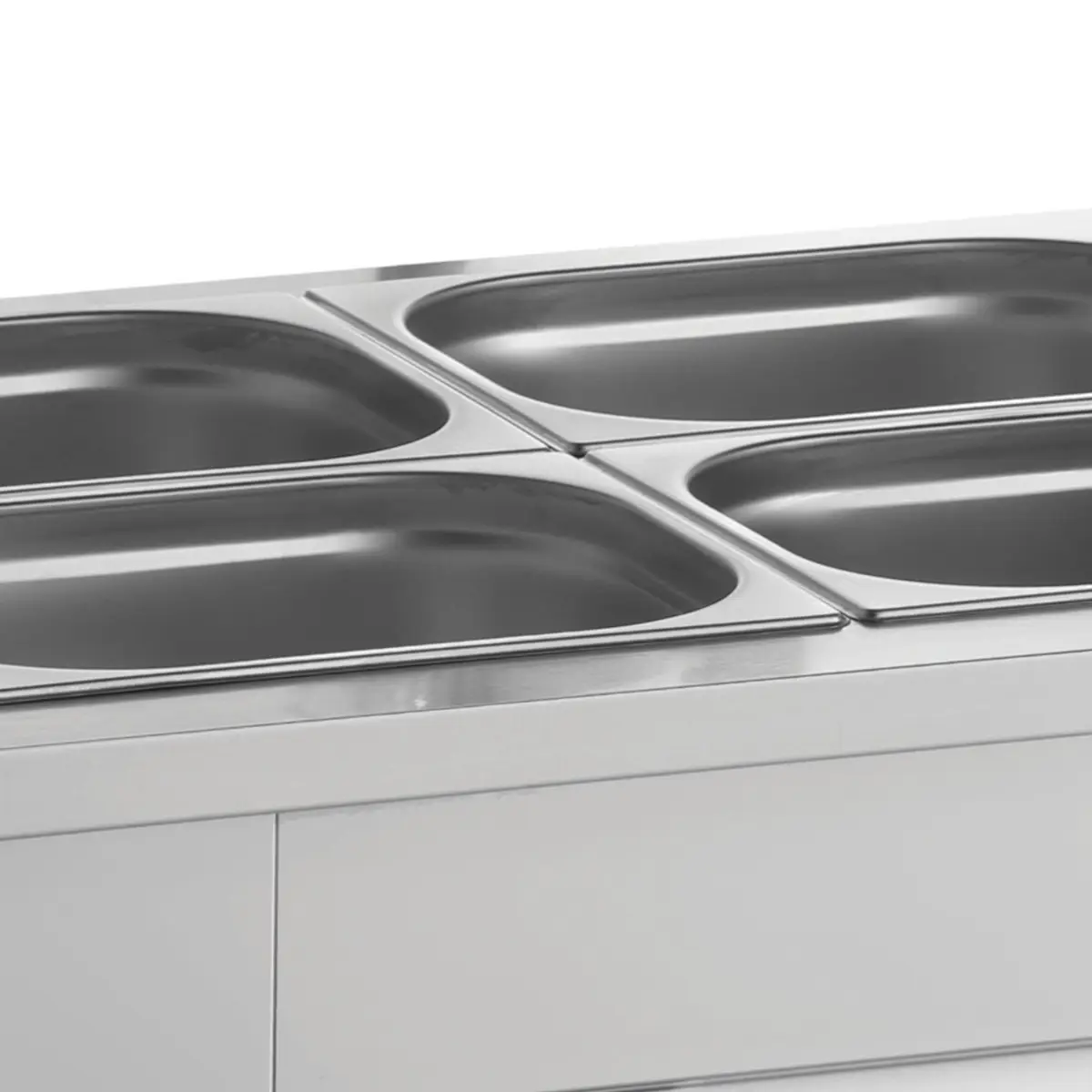

  • Wet well accepts GN1/1 upto 150mm deep (not supplied)
  • Digital controller with temperature display

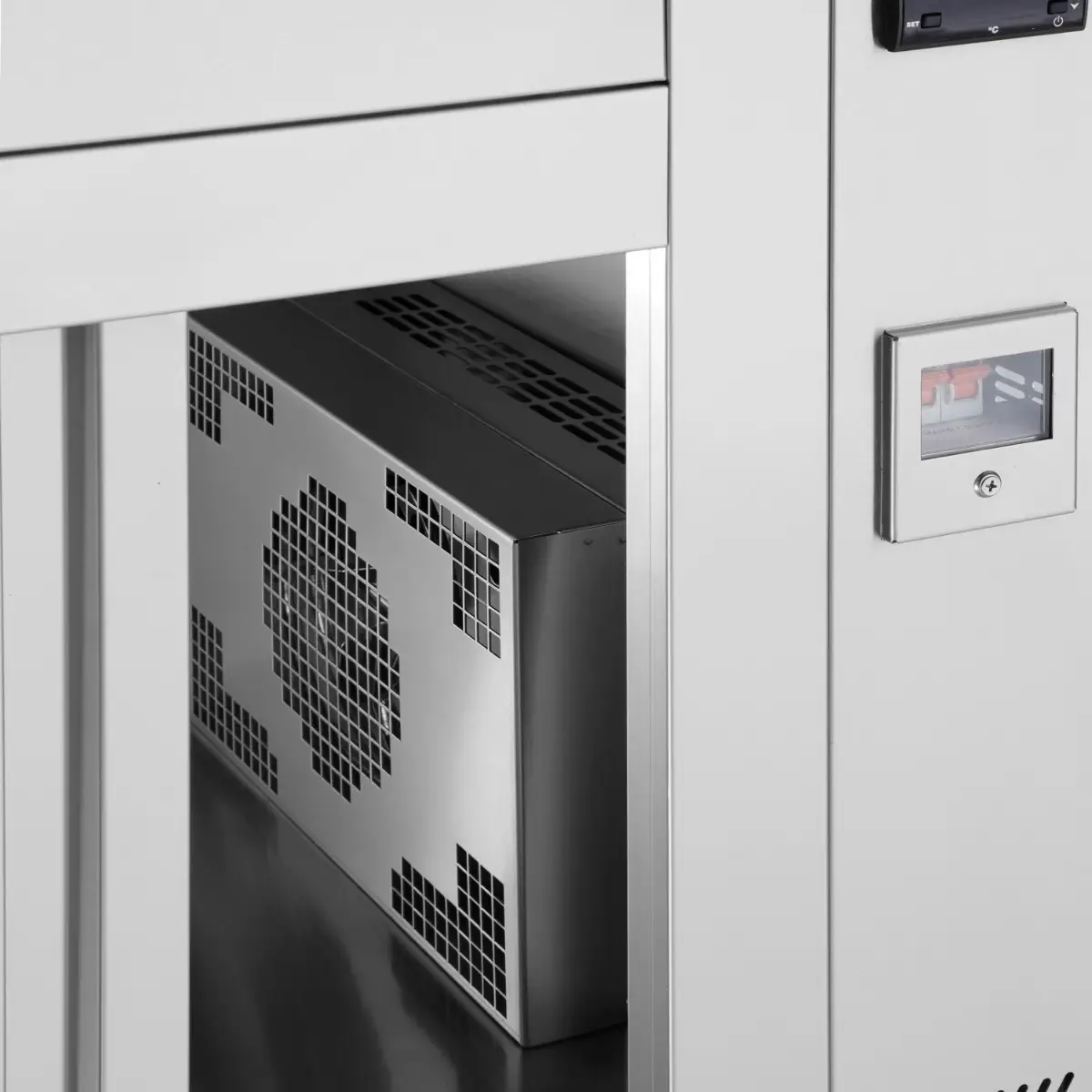

  • Fan assisted
  • Wet well bain marie with easy access drain tap¬†
  • Heater protection against low water level in the tank
  • Robust construction
  • Height adjustable stainless-steel legs
  • Tempered Glass Vitrines

A 1800mm double-shelf wet-well bain marie with top-mounted halogen heated box and dual-gantry design, offering maximum holding capacity and plate warming in one robust AISI 304 stainless-steel unit.

SPECIFICATION 17 facts · tap for all External W × D × H1795 x 700 x 1632Width1795 mmDepth700 mmHeight1632 mmVoltage / frequency3850WInput power30amp supply

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700736site
Product code MHVW-DHG18site
Type Wet Well Free Standing Bain Mariescatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 1795 × 700 × 1632 mmcatalogue
External W × D × H 1795 x 700 x 1632site
Height 1632 mmsite
Width 1795 mmsite

Performance2

Controller Digital controller with temperature displaysite
Temperature range Bain Marie Max. +90C / Heated Cupboard Max.+72Csite

Power & energy3

Input power 30amp supplysite
Rated input 3850 Wcatalogue
Voltage / frequency 3850Wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this wet well free standing bain marie earns its place

The MHVW-DHG18 is engineered for high-volume kitchens that need visible, accessible heated holding without compromise. The open-type design gives you clear access to the wet well below — holding multiple GN1/1 pans up to 150mm deep — whilst the double-shelf gantry structure supports an integral heated box mounted on the top shelf. The heated box runs 5 halogen lamps, delivering consistent warmth for plates, bowls or additional holding, all controlled via digital temperature display with easy readout.

Built in high-grade AISI 304 stainless steel inside and out, the MHVW-DHG18 is robust enough for round-the-clock operation. Tempered glass vitrines protect the contents while letting you see exactly what's being held. The wet well accepts GN1/1 pans up to 150mm deep, drains easily via the access tap, and includes automatic heater protection if water levels drop. Fan assistance keeps heating even throughout, and the double-shelf gantry structure creates workspace above and below, letting you layer your holding across multiple levels.

At 1795mm wide and 1632mm tall, the MHVW-DHG18 is a statement piece on the pass — a serious piece of equipment that communicates professional holding capability to every kitchen user. Height-adjustable stainless-steel legs let you level it on any floor, and the open design means zero dead corners when cleaning down.

BEFORE YOU BUY

Questions, answered straight

The wet well below holds your prepared components in GN1/1 pans up to 150mm deep. The heated box mounted on the top shelf (with 5 halogen lamps) is separate and typically used to warm plates and bowls or hold additional items. Both are temperature-controlled independently.

The wet well accepts GN1/1 pans up to 150mm deep — the exact number depends on pan size and layout. Because it's an open design, you have flexible arrangement. Pans are not supplied.

The unit measures 1795mm wide × 700mm deep × 1632mm tall. At this height, it creates a two-level holding system — the wet well for your prepared dishes and the top shelf for plate warming.

No — the open design and stainless-steel construction mean there are no enclosed spaces where food can hide. It's designed to be quick to wipe down at the end of service.

Built-in heater protection cuts out the heating automatically if water levels fall, preventing damage to the equipment. Always maintain adequate water during service.

This is an open-type unit, so there's no enclosed cupboard — just visible, accessible holding on shelves. This makes it ideal where you need to see exactly what you're holding and grab items quickly without opening doors.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1795 x 700 x 1632

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Input Power: 30amp supply
Voltage / Frequency: 3850W

Measures and Content

Design and Material

Exterior Finish: Stainless Steel

INOMAK 1800mm Wet Well Bain Marie With Heated Cupboard & Double Gantry MHVW-DHG18 Product Data

If you have any questions about the INOMAK 1800mm Wet Well Bain Marie With Heated Cupboard & Double Gantry MHVW-DHG18 then please get in touch.
