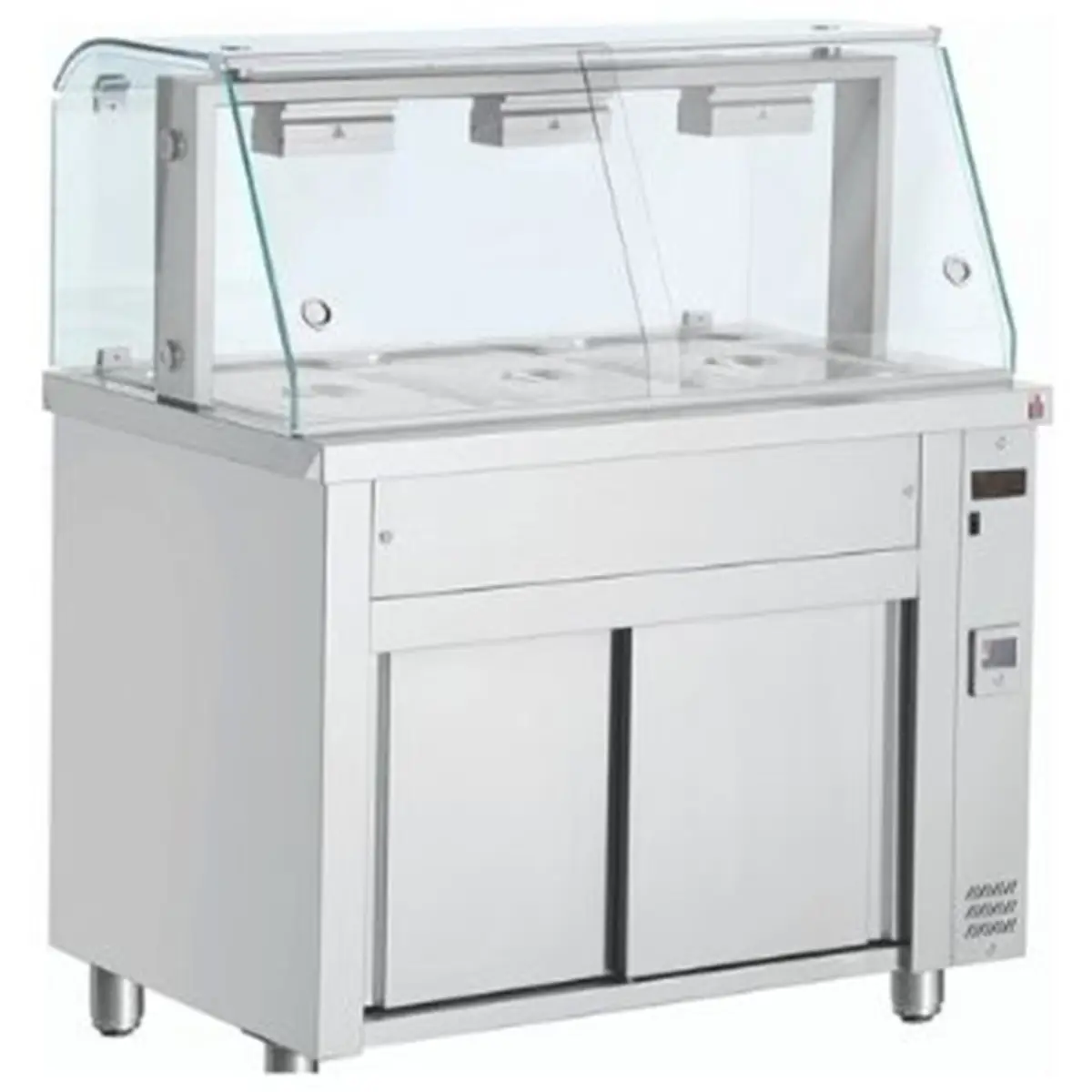

INOMAK Bain Marie With Glass Canopy 3x GN1/1 MFV711

£1,572.91

+vat

- +

Brand:

SKU: MFV711

Product summary

Size: 1105 x 700 x 1310

Product description

  • High grade AISI 304 stainless steel exterior & interior
  • With glass structure
  • Wet well accepts GN1/1 upto 150mm deep (not supplied)
  • Wet well bain marie with easy access drain tap
  • 130W halogen lamps
  • Supplied with perspex sliding doors to rear of display area
  • Ergonomically designed double ‚Äì walled sliding doors, insulated with polyurethane foam.
  • Versatile showcase design with conversion capability depending on the use & 8mm thick glasses.
  • Heater protection against low water level in the tank
  • Robust construction
  • Wet-well operation
  • Height adjustable stainless-steel legs
  • Tempered Glass Vitrines
  • Fitted with drain tap to allow easy emptying of the water

A compact three-pan wet bain marie with glass canopy, built from AISI 304 stainless steel with halogen heating and tempered-glass display — ideal for smaller service counters requiring full functionality without the footprint.

SPECIFICATION 18 facts · tap for all External W × D × H1105 x 700 x 1310Width1105 mmDepth700 mmHeight1310 mmGross weight98 kgVoltage / frequency2390W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700651site
Product code MFV711site
Type Wet Well Free Standing Bain Mariescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1105 × 700 × 1310 mmcatalogue
External W × D × H 1105 x 700 x 1310site
Gross weight 98 kgcatalogue
Height 1310 mmsite
Width 1105 mmsite

Performance2

Controller Digital controller with temperature displaysite
Temperature range Max. +90Csite

Power & energy3

Input power 13amp supplysite
Rated input 2390 Wcatalogue
Voltage / frequency 2390Wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this wet well free standing bain marie earns its place

This INOMAK bain marie holds three GN1/1 pans up to 150mm deep, making it perfect for outlets with limited counter space but the same need for reliable hot holding. The wet-well design with 130W halogen lamps maintains even heating across the display, with excellent visibility through the 8mm tempered-glass vitrines and glass canopy.

Built throughout from AISI 304 stainless steel, the construction is robust and corrosion-resistant. Height-adjustable legs fit most counter heights, and the ergonomically designed double-walled sliding doors (insulated with polyurethane foam) keep heat efficient and the presentation professional. An easy-access drain tap makes water changes and cleaning straightforward.

At 1105mm wide and 700mm deep, this is a genuine showcase piece — visibly professional, built to last, and compact enough to suit smaller kitchens or secondary service stations. The tempered-glass vitrines and glass canopy let you display hot components with pride. Low-water protection guards the heater, so there's no risk of running dry during service.

BEFORE YOU BUY

Questions, answered straight

This unit holds three GN1/1 pans up to 150mm deep. Pans aren't supplied, so you choose the depth to match your menu. Most operations run protein, vegetable, and sauce per pan, or mix shallow and deep pans depending on dish requirements. Capacity per pan depends on portion size and pan depth.

The glass canopy lets customers see what's hot and available, which speeds up ordering and reduces "what have you got?" queries. It also keeps heat contained and food visible without opening sliding doors. For self-service or buffet settings, it's a major convenience.

There's an easy-access drain tap to empty the wet well daily for cleaning. Water evaporates during service, so you'll top it up periodically. The AISI 304 interior resists corrosion and cleans quickly — wipe down the stainless surfaces and glasses at the end of service.

At 1105mm wide and 700mm deep, it's substantially narrower than the four-pan model. If space is tight, this is the professional option. Height-adjustable legs adapt to your counter height.

INOMAK make two-pan, three-pan, and four-pan versions in this range. If three pans doesn't quite fit your menu, talk to us about finding the right size for your operation.

Drain the tank daily, wipe stainless surfaces and glass, and check the water level during service. The heater has low-water protection, but don't let it run completely dry. For detailed maintenance, see the manual, or ring 01792 732702 for servicing advice.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1105 x 700 x 1310

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Temperature Range: Max. +90C °C
Input Power: 13amp supply
Voltage / Frequency: 2390W

Measures and Content

Temperature Range: Max. +90C °C

Design and Material

Exterior Finish: Stainless Steel

INOMAK Bain Marie With Glass Canopy 3x GN1/1 MFV711 Product Data

If you have any questions about the INOMAK Bain Marie With Glass Canopy 3x GN1/1 MFV711 then please get in touch.
