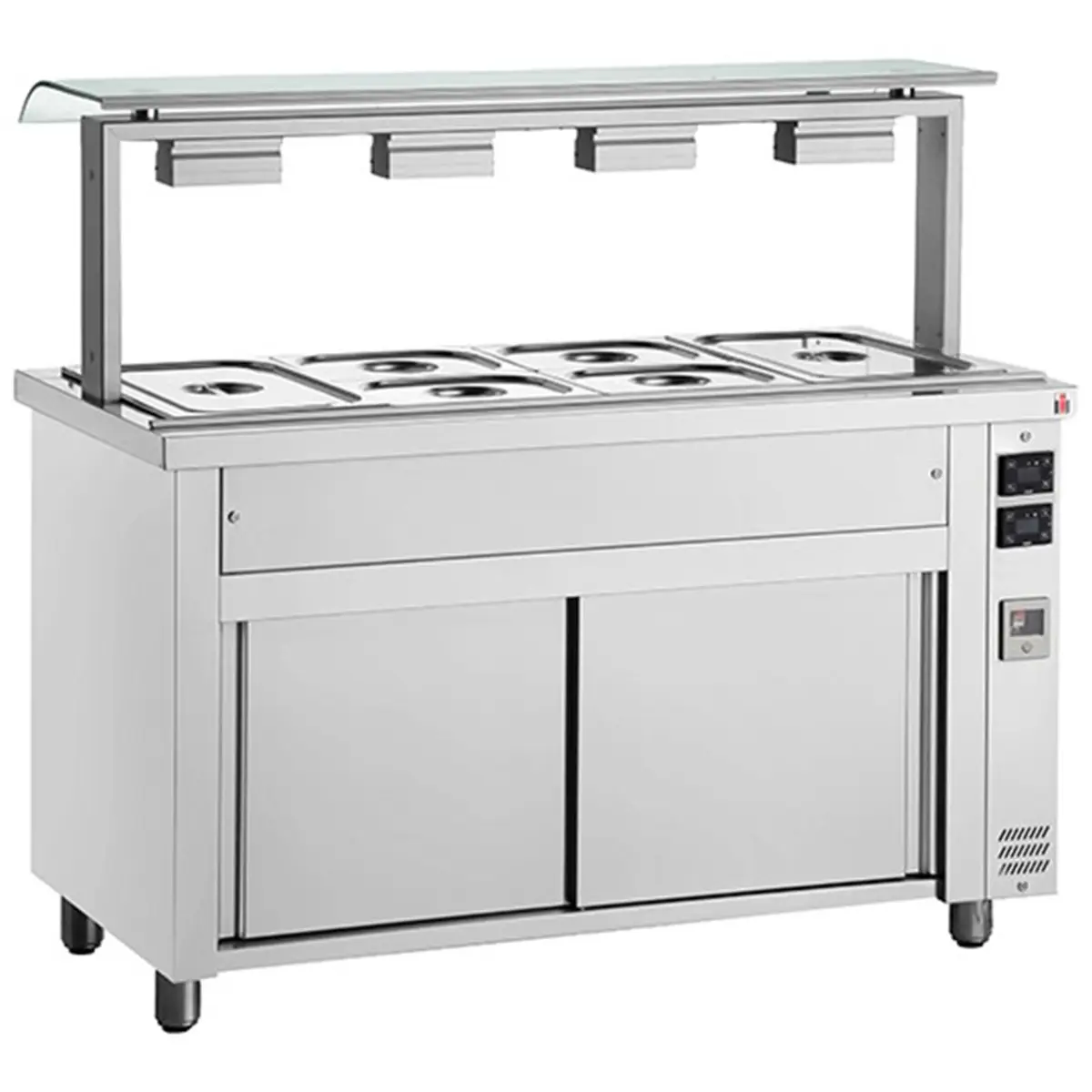

INOMAK Bain Marie With Heated Cupboard And Sneeze Guard 4x GN1/1 MJV714

£1,817.02

+vat

Brand:

SKU: MJV714

Product summary

Size: 1410 x 700 x 1310

Product description

  • <span style=”font-size: 16px;”>High grade AISI 304 stainless steel exterior & interior</span>
  • <span style=”font-size: 16px;”>Wet well bain marie with easy access drain tap</span>

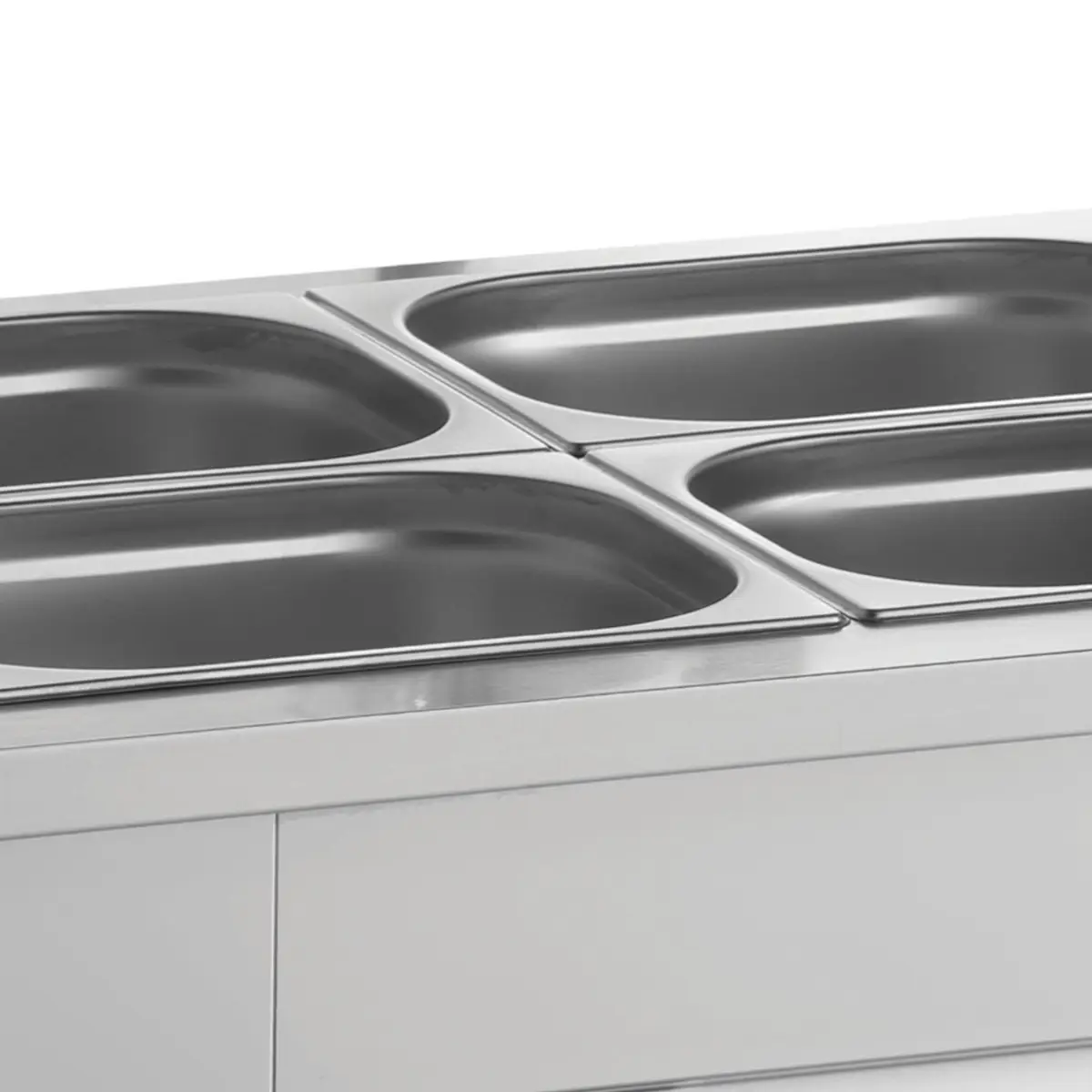

  • <span style=”font-size: 16px;”>Wet well accepts GN1/1 upto 150mm depth (not supplied)</span>

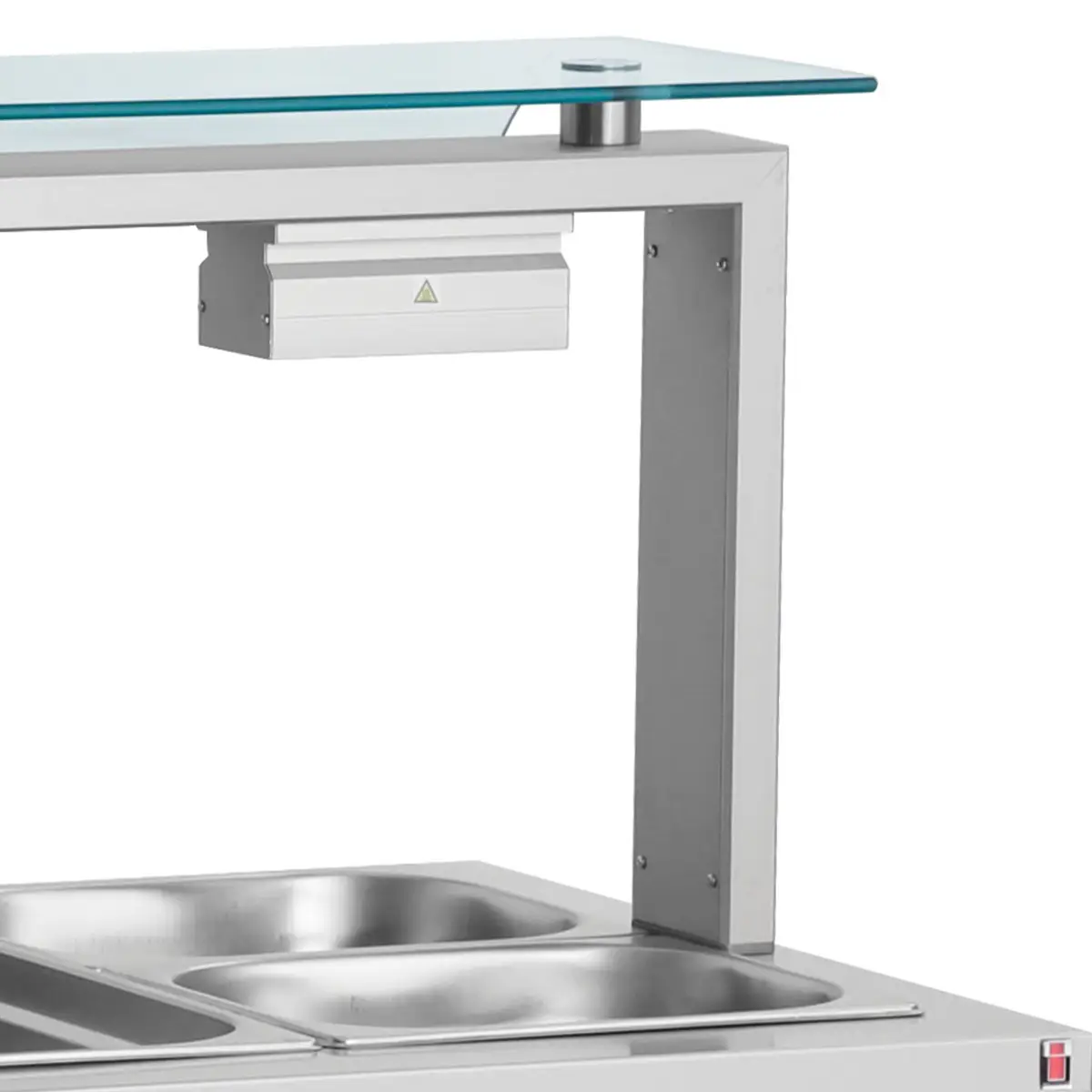

  • <span style=”font-size: 16px;”>Sneeze guard with 130w halogen lamps</span>
  • <span style=”font-size: 16px;”>Fan assisted</span>

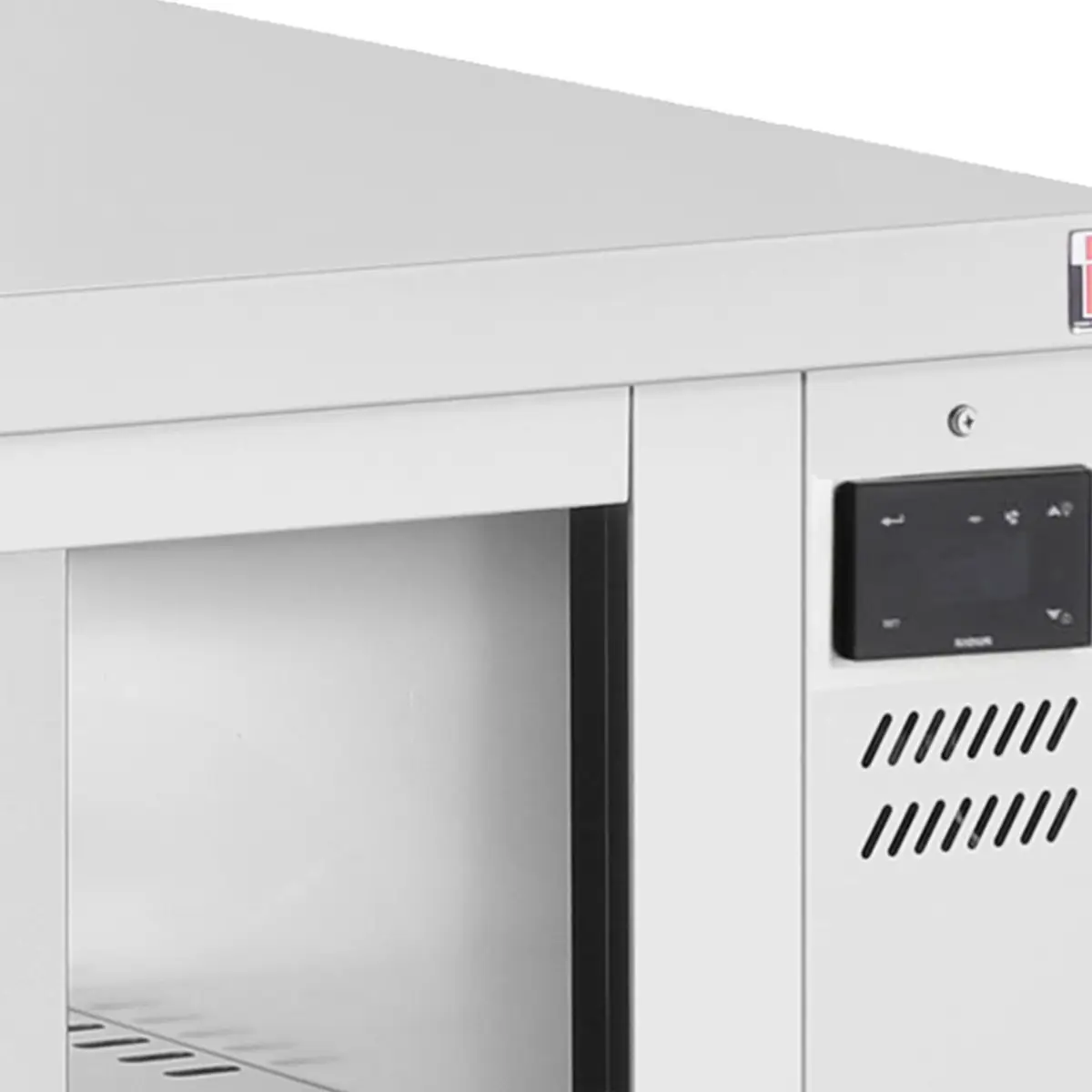

  • <span style=”font-size: 16px;”>Digital controller with temperature display</span>
  • <span style=”font-size: 16px;”>Ergonomically designed double ‚Äì walled sliding doors, insulated with polyurethane foam.</span>
  • <span style=”font-size: 16px;”>Versatile showcase design with conversion capability depending on the use & 8mm thick glasses.</span>
  • <span style=”font-size: 16px;”>Heater protection against low water level in the tank</span>
  • <span style=”font-size: 16px;”>Robust construction</span>
  • <span style=”font-size: 16px;”>Wet-well operation</span>
  • <span style=”font-size: 16px;”>Height adjustable stainless-steel legs</span>

A mid-format freestanding bain marie holding four GN1/1 pans with an integral heated cupboard, sized for high-street kitchens that need both display and warm storage.

SPECIFICATION 18 facts · tap for all External W × D × H1410 x 700 x 1310Width1410 mmDepth700 mmHeight1310 mmGross weight95 kgVoltage / frequency4370w

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700798site
Product code MJV714site
Type Wet Well Free Standing Bain Mariescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1410 × 700 × 1310 mmcatalogue
External W × D × H 1410 x 700 x 1310site
Gross weight 95 kgcatalogue
Height 1310 mmsite
Width 1410 mmsite

Performance2

Controller Digital controller with temperature displaysite
Temperature range Bain Marie Max. +90C / Heated Cupboard Max.+72Csite

Power & energy3

Input power 25amp supplysite
Rated input 4370 Wcatalogue
Voltage / frequency 4370wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this wet well free standing bain marie earns its place

The MJV714 hits the sweet spot for kitchens needing substantial display capacity plus integrated warm holding without the widest footprint. At 1,410 mm wide with four GN1/1 wells (each accepting pans up to 150 mm deep), it covers the core menu items while halogen lamps ensure vibrant front-of-house presentation. Below sits a heated cupboard — thermal storage that holds plates, backup pans, or sauces at temperature throughout service without drying them out.

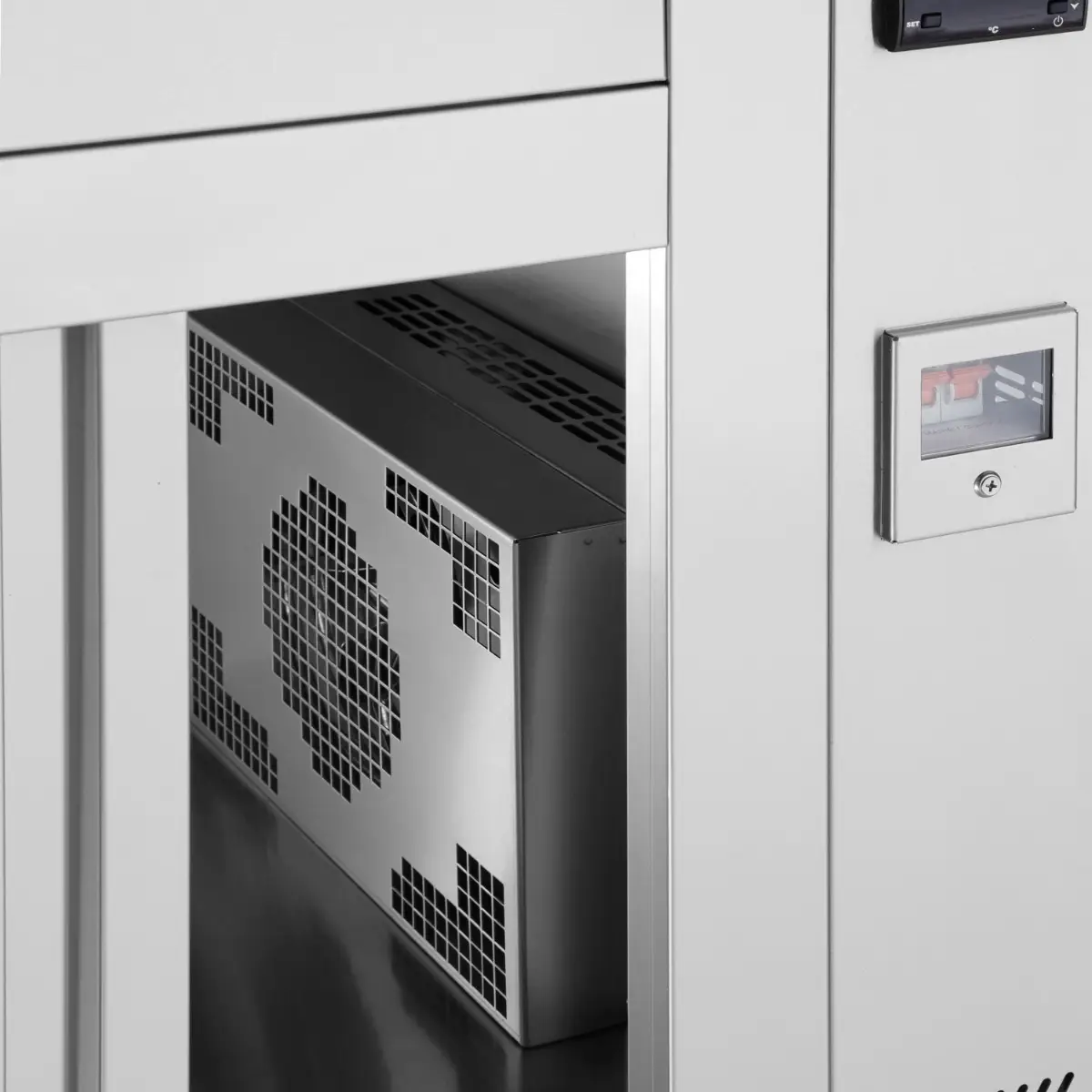

Heat is fan-assisted, distributing warmth evenly across all four display pans and the cupboard simultaneously. A digital controller lets you dial in the exact holding temperature and monitor it constantly. The double-walled sliding doors (insulated with polyurethane foam) minimise heat loss while protecting staff — both practical and safe. High-grade AISI 304 stainless steel construction (inside and out) withstands daily wash-downs and frequent refilling. Height-adjustable legs let you level the unit on any kitchen floor, and drain taps on both the well and cupboard make end-of-service emptying straightforward. At 95 kg, this is a genuinely solid installation — it anchors a counter without dominating the entire line.

This is the pragmatic choice for established venues that have grown beyond a basic bain marie but haven't yet expanded to a full-width installation. Four pans handle rotation and surge, the cupboard absorbs the plated items during peak service, and the footprint fits comfortably into a typical kitchen line.

BEFORE YOU BUY

Questions, answered straight

Four standard GN1/1 pans in the display well, each up to 150 mm deep. The heated cupboard below provides separate thermal storage. Pans are not supplied.

The cupboard underneath holds plated items, backup pans, or extra dishes — anything you want to keep at safe temperature without putting it in water. It's heated and insulated.

Yes. The digital controller displays and sets the well temperature, ensuring even holding across both the display pans and the cupboard.

The MJV714 is 1,410 mm wide by 700 mm deep by 1,310 mm tall. It's designed to slot into a mid-sized service counter or run as a standalone piece. Measure carefully before ordering.

Both the display well and the cupboard have easy-access drain taps at the base. Open these at the end of service to empty and cool the unit.

Wipe stainless steel surfaces with hot soapy water after each service. Empty and rinse both the well and cupboard daily. Check sliding doors weekly for smooth operation. For a detailed servicing schedule tailored to your kitchen, contact 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1410 x 700 x 1310

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Input Power: 25amp supply
Voltage / Frequency: 4370w

Measures and Content

Design and Material

Exterior Finish: Stainless Steel

INOMAK Bain Marie With Heated Cupboard And Sneeze Guard 4x GN1/1 MJV714 Product Data

If you have any questions about the INOMAK Bain Marie With Heated Cupboard And Sneeze Guard 4x GN1/1 MJV714 then please get in touch.
