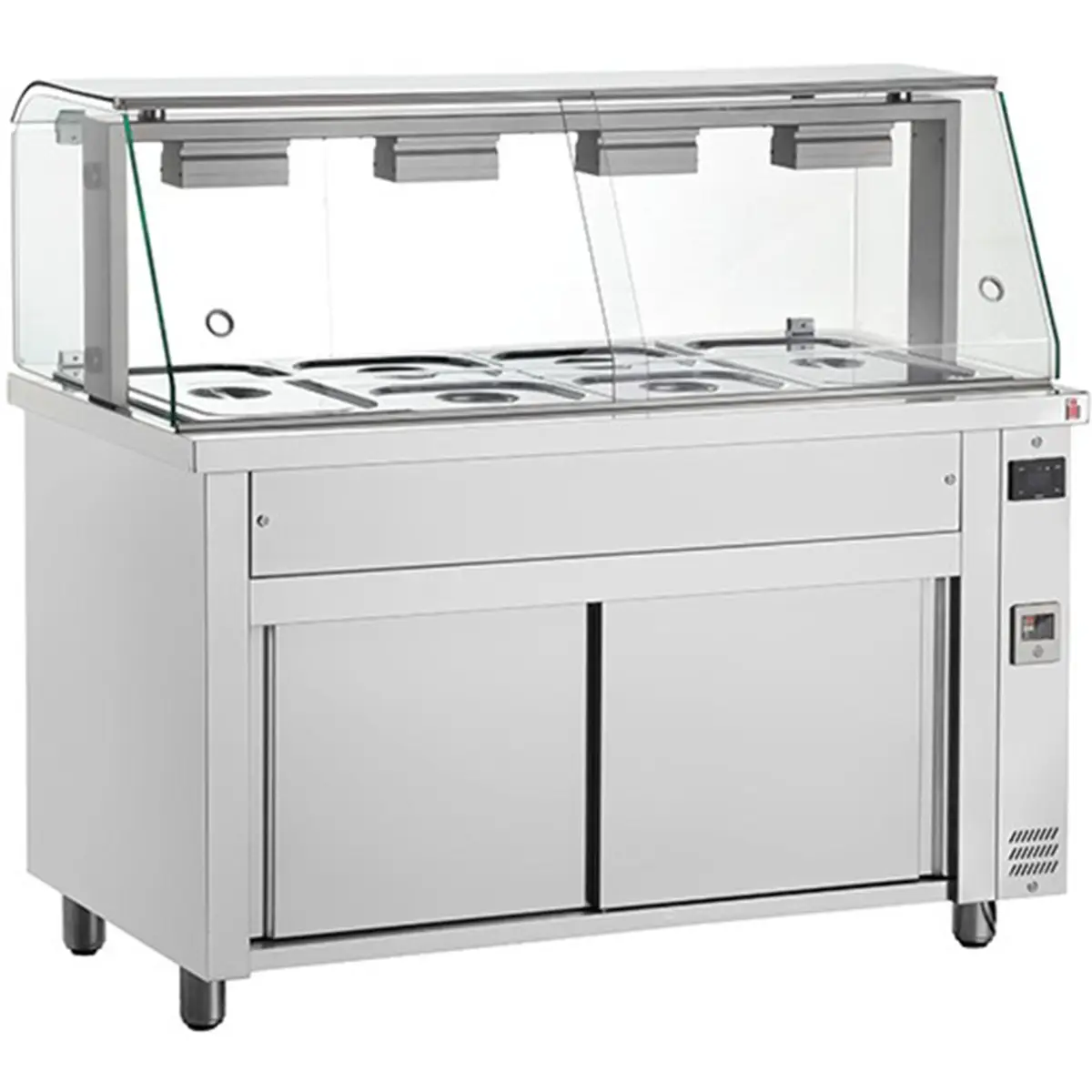

INOMAK Bain Marie With Glass Canopy 4x GN1/1 MFV714

£1,786.40

+vat

Brand:

SKU: MFV714

Product summary

Size: 1410 x 700 x 1310

Product description

  • High grade AISI 304 stainless steel exterior & interior
  • With glass structure
  • Wet well accepts GN1/1 upto 150mm deep (not supplied)
  • Wet well bain marie with easy access drain tap
  • 130W halogen lamps
  • Supplied with perspex sliding doors to rear of display area
  • Ergonomically designed double ‚Äì walled sliding doors, insulated with polyurethane foam.
  • Versatile showcase design with conversion capability depending on the use & 8mm thick glasses.
  • Heater protection against low water level in the tank
  • Robust construction
  • Wet-well operation
  • Height adjustable stainless-steel legs

A spacious four-pan wet bain marie with glass canopy showcase, built from AISI 304 stainless steel with heated displays and easy water drainage — designed for sustained food warming in high-traffic service areas.

SPECIFICATION 18 facts · tap for all External W × D × H1410 x 700 x 1310Width1410 mmDepth700 mmHeight1310 mmGross weight114 kgVoltage / frequency2520W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700668site
Product code MFV714site
Type Wet Well Free Standing Bain Mariescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1410 × 700 × 1310 mmcatalogue
External W × D × H 1410 x 700 x 1310site
Gross weight 114 kgcatalogue
Height 1310 mmsite
Width 1410 mmsite

Performance2

Controller Digital controller with temperature displaysite
Temperature range Max. +90Csite

Power & energy3

Input power 13amp supplysite
Rated input 2520 Wcatalogue
Voltage / frequency 2520Wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this wet well free standing bain marie earns its place

This INOMAK bain marie holds four GN1/1 pans up to 150mm deep, making it ideal for outlets serving a range of hot components throughout service. The wet-well design with halogen heating (130W lamps) keeps food at temperature with even heat distribution and excellent visibility through the 8mm tempered glass vitrines and canopy.

The stainless steel exterior and interior construction is robust enough for daily kitchen operation. Height-adjustable legs adapt to your counter height, and the double-walled sliding doors (insulated with polyurethane foam) keep heat in and cool air out. An easy-access drain tap makes emptying and cleaning straightforward.

At 1410mm wide and 700mm deep, this unit commands the front line without overwhelming a typical service counter. It's a statement piece — professional, reliable, and built to show off your food. The perspex sliding doors to the rear give back-of-house staff clean access while the glass canopy keeps the display prominent.

BEFORE YOU BUY

Questions, answered straight

This unit holds four GN1/1 pans up to 150mm deep. Portion counts depend on your pan configuration — pans aren't supplied, so you choose the depth and container type to match your menu. A single pan might hold 30–40 portions of single vegetables or sauces depending on portion size; most operations run one protein, two–three vegetables, and a sauce per service.

The bain marie operates in wet-well mode, heating the water bath that surrounds and warms the food pans. The system is designed to maintain food safely at service temperature (typically around 63°C). If you need precise temperature control, check the manual or contact our service team on 01792

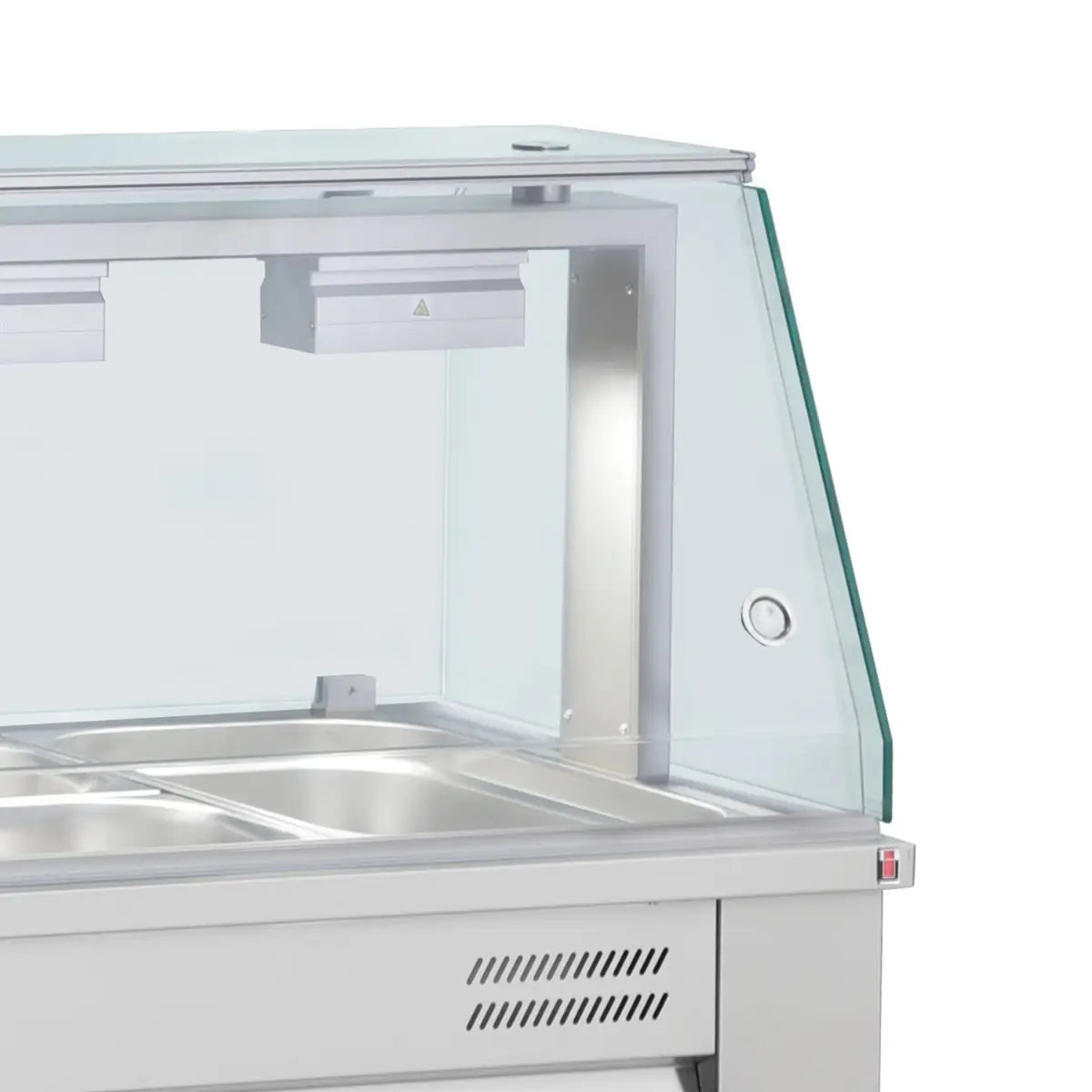

The glass canopy is a see-through display top, perfect for buffet and self-service settings. Perspex rear sliding doors let staff load, check, and refresh pans from the back without disrupting the front-of-house presentation.

There's an easy-access drain tap at the base of the wet well. Turn it to empty the water tank for daily cleaning. The interior is AISI 304 stainless steel, so it resists corrosion and cleans quickly. Glass panels are tempered for safety and durability.

This is a large display unit at 1410mm wide and 114kg when full. It's designed to sit on a fixed service counter or pass. Height-adjustable stainless-steel legs accommodate most counter heights, but it's not designed for frequent relocation.

The heater has low-water protection built in, so it won't run dry. However, as water evaporates during service, you'll need to top it up periodically. Check the manual for guidance, and contact 01792 732702 if you spot any leaks.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1410 x 700 x 1310

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Temperature Range: Max. +90C °C
Input Power: 13amp supply
Voltage / Frequency: 2520W

Measures and Content

Temperature Range: Max. +90C °C

Design and Material

Exterior Finish: Stainless Steel

INOMAK Bain Marie With Glass Canopy 4x GN1/1 MFV714 Product Data

If you have any questions about the INOMAK Bain Marie With Glass Canopy 4x GN1/1 MFV714 then please get in touch.
