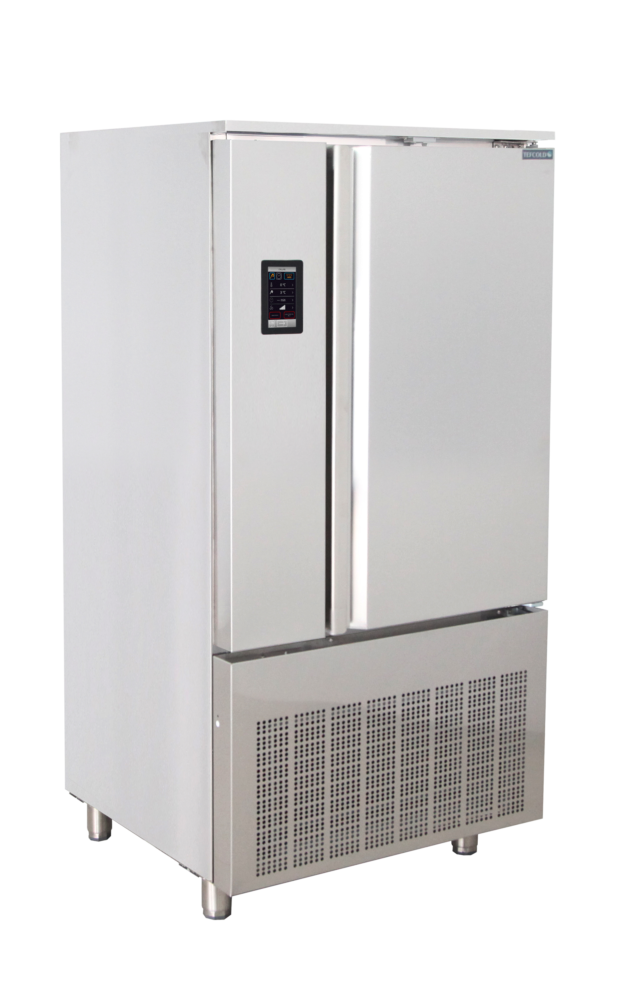

TEFCOLD BLCB10X1 Blast Chiller/Freezer

£2,579.00

+vat

- +

Brand:

SKU: 54823

Product summary

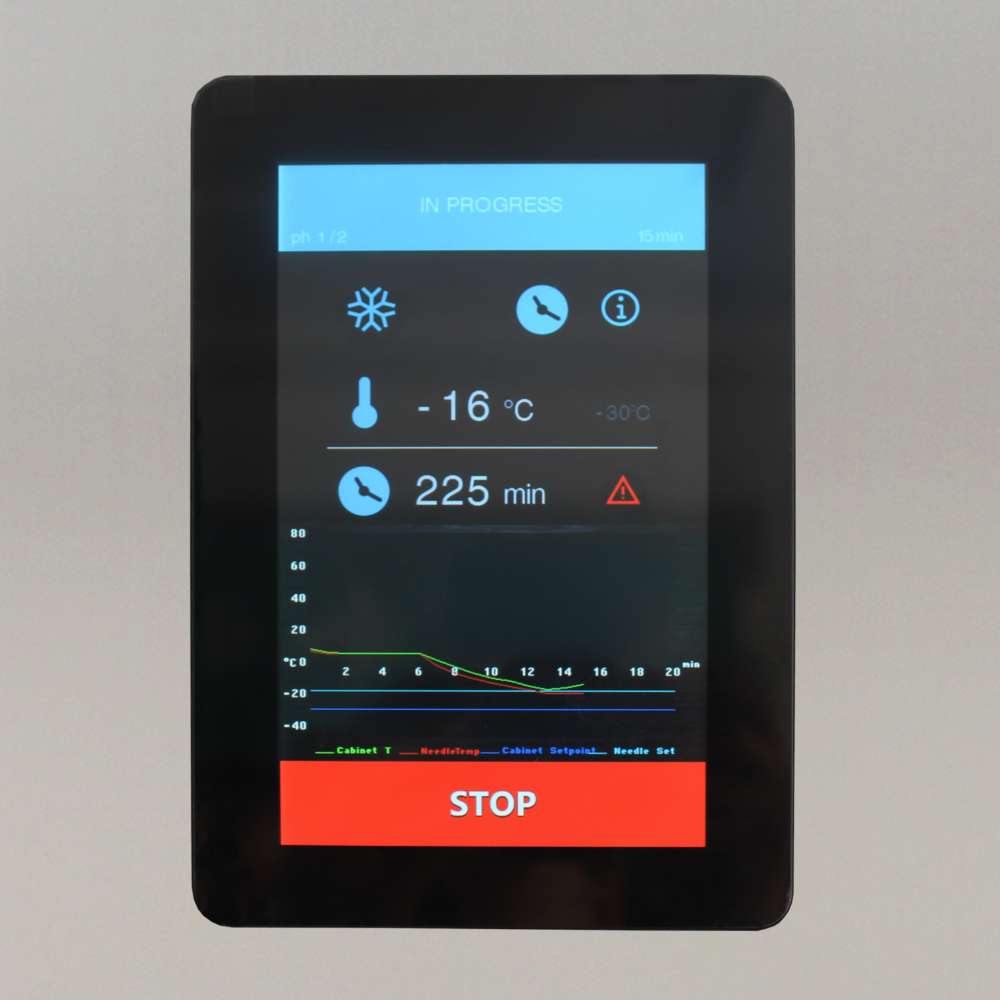

  • Touch screen controller
  • HACCP compliant data export
  • Upload or download data via USB
  • Stainless steel

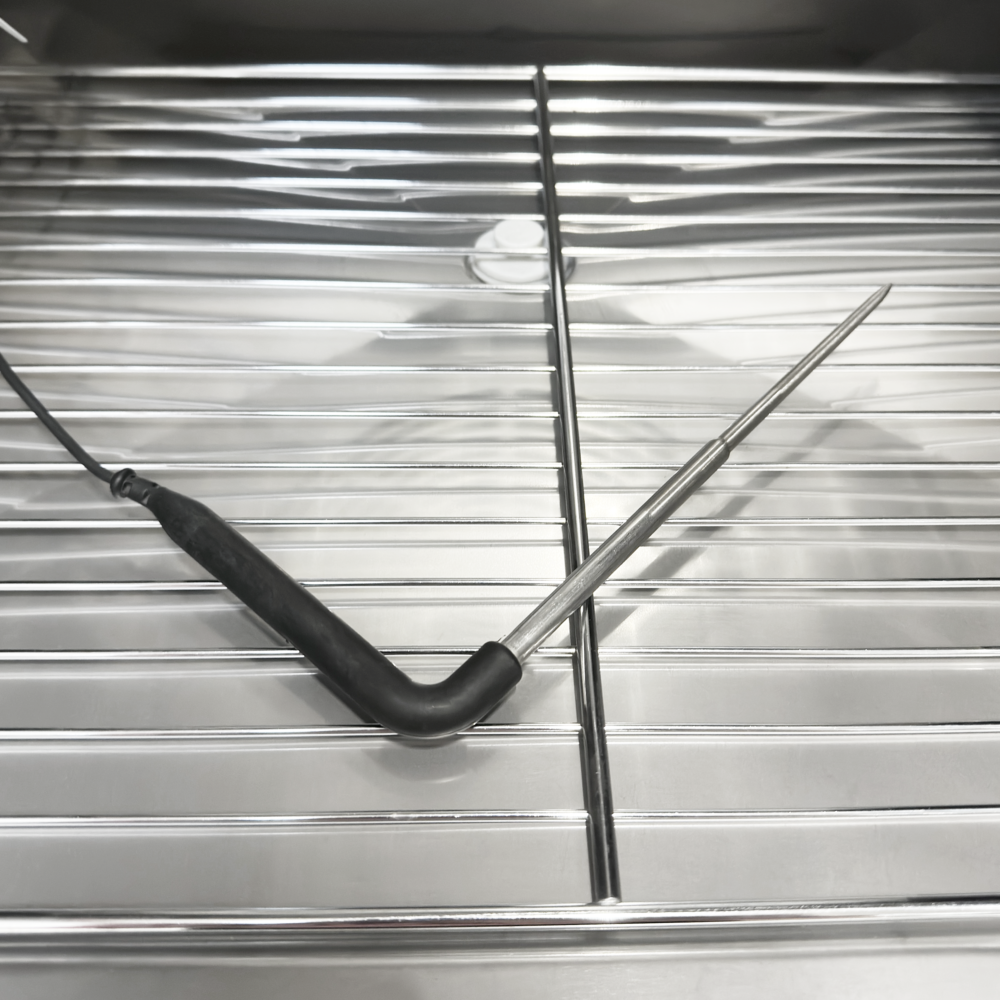

  • Temperature probe
  • Programmable thermostat
  • Accepts GN1/1 and 60×40 Euronorm pans (not supplied)
  • Adjustable legs
  • (Chill +70°C to +3°C) 40kg in 90 mins
  • (Freeze +70°C to -18°C) 28kg in 240 mins

Product description

Blast chiller/freezer with touch screen controller

The BLCB-X range of blast chillers is widely used in professional kitchens when food needs to be cooled rapidly and hygienically. Using blast chillers for chilling or freezing retains the colour, texture and taste of the food. Core temperature sensors included. Choose one of the pre-set programs or create your own on the easy-to-use touchscreen controller. Available in different sizes, all made in high-quality SS304 stainless steel and dimensioned for GN and Euronorm sizes (placed lengthwise).

The TEFCOLD BLCB10X1 is a dual-function commercial blast chiller and freezer with an SS304 stainless-steel cabinet, a -30 to +70 °C operating range, R290 refrigerant, automatic hot-gas defrost and a programmable touchscreen controller, holding 208 litres net in an 800 mm-wide floor-standing unit.

SPECIFICATION 37 facts · tap for all External W × D × H800 x 877 x 1665 mmWidth800 mmDepth877 mmGross / net weight190 / 150 kgGross weight190 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181740245site
Product code 54823site
Sub title Blast Chiller/Freezercatalogue
Type Blast Chillers & Blast Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 877 mmsite
External (W×D×H) 800 × 877 × 1665 mmcatalogue
External W × D × H 800 x 877 x 1665 mmsite
Gross / net weight 190 / 150 kgsite
Gross weight 190 kgcatalogue
Height 1665 mmsite
Internal (W×D×H) 440 × 695 × 870 mmcatalogue
Internal W × D × H 440 x 695 x 870 mmsite
Packed (W×D×H) 870 × 955 × 1730 mmcatalogue
Packed W × D × H 870 x 955 x 1730 mmsite
Width 800 mmsite

Capacity6

Capacity item specification 10 pcscatalogue
Cooling capacity 40site
Doors 1catalogue
Freezing capacity 28site
GN pan capacity 10site
Gross volume 368 litrescatalogue

Performance5

Controller Programmable Touchscreensite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -30 to +70site

Power & energy3

Input power 900 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish SS304site
Feet / legs 4 adjustable legssite
Reversible doors Nosite
THE WORKING VIEW

Why this blast chillers & blast freezer earns its place

The BLCB10X1 is a single-cabinet blast chiller and blast freezer built to pull freshly cooked food through the danger zone quickly and lock it down for later service. Finished in SS304 stainless steel inside and out, it takes a cook-chill or cook-freeze workflow without a second machine, with a single hinged self-closing solid door keeping the cold in through a busy service. Net capacity is 208 litres, gross 368 litres.

In use it works across a -30 to +70 °C band, driven by a programmable touchscreen controller that lets you set and repeat cycles rather than watch a dial. Defrost is automatic, using hot gas to clear the evaporator without a manual shutdown, and the unit runs on R290 hydrocarbon refrigerant with a 150 g charge. Working noise is rated at 60 dB, so it belongs in a prep area or back-of-house rather than front-of-house.

The cabinet measures 800 × 877 × 1665 mm (W×D×H) and ships packed at 870 × 955 × 1730 mm — worth checking against doorways and lift access before delivery, as it weighs 150 kg net and 190 kg gross. It draws 900 W on a 220-240 V / 50 Hz supply. Internal working space is 440 × 695 × 870 mm.

BEFORE YOU BUY

Questions, answered straight

It is a dual-function unit that both blast chills and blast freezes, working across a -30 to +70 °C range. That lets one cabinet handle cook-chill and cook-freeze workflows rather than needing separate machines.

Net capacity is 208 litres, with a gross volume of 368 litres. The internal working space measures 440 × 695 × 870 mm (W×D×H).

The cabinet is 800 mm wide, 877 mm deep and 1665 mm tall, and ships packed at 870 × 955 × 1730 mm. Measure your access route first, and plan for the 190 kg gross weight when moving it into position.

It runs on R290 hydrocarbon refrigerant with a 150 g charge. Working noise is rated at 60 dB, which suits a prep area or back-of-house rather than a customer-facing space.

It draws 900 W on a standard 220-240 V / 50 Hz supply. Check the socket and circuit at the intended location before install.

Yes. Our engineers cover TEFCOLD refrigeration for planned servicing and breakdowns — call the service team on 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 440 x 695 x 870 mm
External Dimension (WxDxH): 800 x 877 x 1665 mm
Packed Dimension (WxDxH): 870 x 955 x 1730 mm

Cooling and Functions

Type of Controller: Programmable Touchscreen
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 150 g

Power and Consumption

Temperature Range: -30 to +70 °C
Input Power: 900 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Capacity Cooling: 40
Capacity Freezing: 28
Capacity GN Pans: 10 pcs
Temperature Range: -30 to +70 °C
Gross / Net Weight: 190 / 150 kg
Gross / Net Volume: 368 / 208 l

Design and Material

Door Reversible: No
Feet / Legs: 4 adjustable legs
Exterior Finish: SS304
Interior Finish: SS304
If you have any questions about the TEFCOLD BLCB10X1 Blast Chiller/Freezer then please get in touch.
