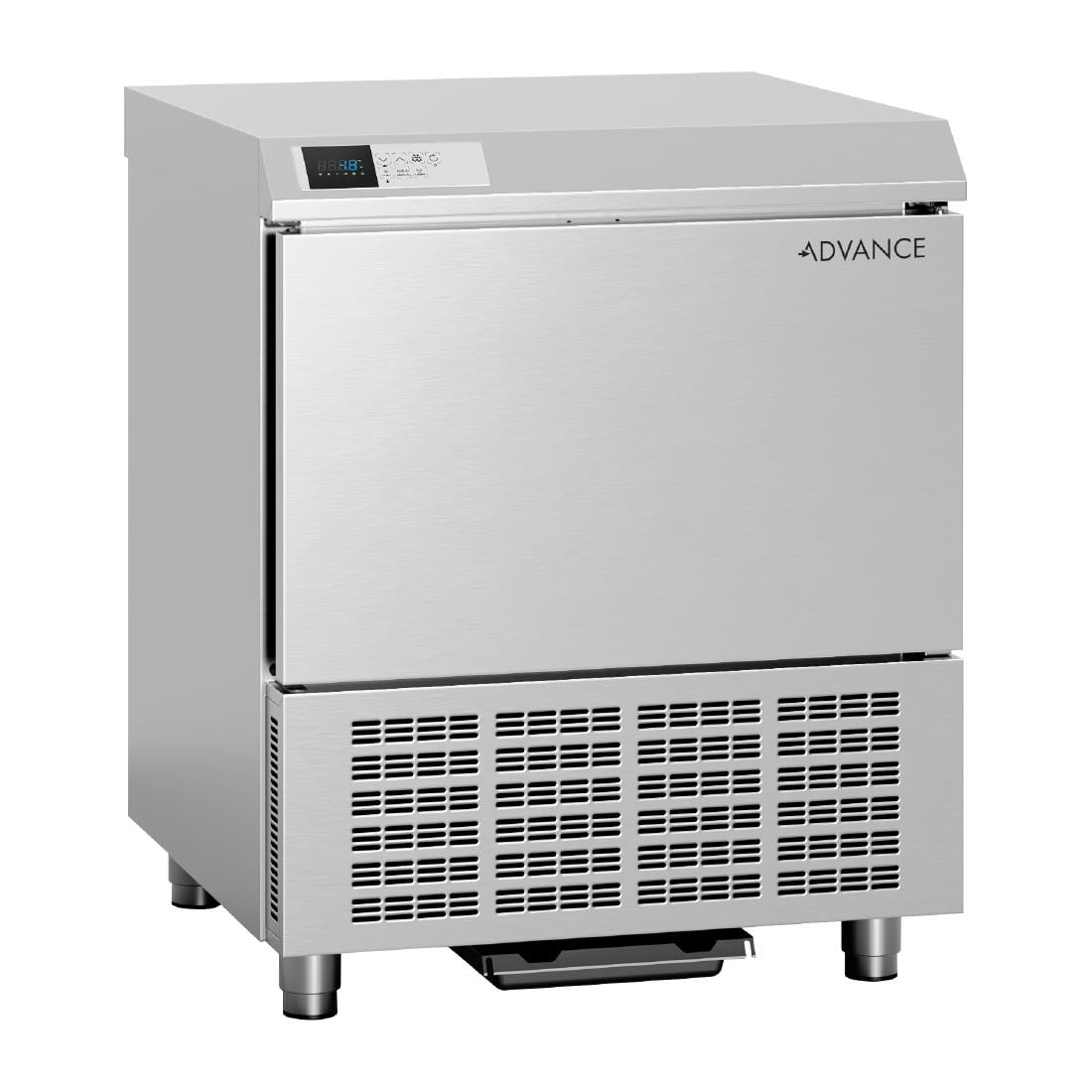

Hoshizaki Advance SBU-20-GTU Blast Chiller 20/12Kg 820W JK390

£3,879.56

+vat

Availability: 999 in stock

Brand:

SKU: JK390

Product summary

820W. Capacity: 5x 1/1GN

Product description

The Hoshizaki Advance SBU-20-GTU blast chiller delivers rapid, HACCP-compliant chilling and freezing for busy commercial kitchens. With a 20kg chill and 12kg freeze capacity, plus space for up to five 1/1GN or 600×400 mm trays, the unit safeguards food quality whilst maximising production flow. Operators can load hot batches straight from the oven, quickly dropping core temperatures and locking in flavour, texture and nutritional value.

An intuitive segment display offers pre-set favourites as well as fully customisable programmes, putting precise control at your fingertips. The single-point probe, HACCP alarm and Climate Class 5 refrigeration system guarantee accurate monitoring and consistent results, even in ambient temperatures up to 40°C. Finished in easy-clean stainless steel and mounted on adjustable 75-108mm legs, the Hoshizaki Advance SBU-20-GTU is easy to install where its needed, promoting food safety, reducing labour and freeing valuable prep space.

Gastronorm compatible. Capacity: 5x 1/1GN
Strong, easy-clean stainless steel construction
Intuitive digital controls
Single point probe for precise core temperature monitoring
HACCP Alarm
Climate Class 5 – effective performance up to +40°C ambient

The Hoshizaki Advance SBU-20-GTU JK390 is a 5-tray blast chiller handling 20kg (chill) or 12kg (freeze) per cycle on an 820W, 230V, R290 system rated Climate Class 5 to +40°C ambient — for kitchens that need HACCP-compliant chilling straight from the oven.

Downloads

SPECIFICATION 19 facts · tap for all Width746.5 mmDepth725 mmHeight931 mmGross weight101 kgVoltage230VMaterialStainless Steel

Identity5

Brand Hoshizakisite
Product code JK390site
Range / series Advancecatalogue
Type Blast Chillerscatalogue
Warranty 3 Years Parts & Labourcatalogue

Size & weight5

Depth 725 mmcatalogue
External (W×D×H) 931 × 746 × 725 mmcatalogue
Gross weight 101 kgcatalogue
Height 931 mmcatalogue
Width 746.5 mmsite

Capacity2

Doors 1catalogue
Gastronorm size 1/1 GN fullcatalogue

Performance1

Refrigerant R290catalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 820 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this blast chiller earns its place

The Hoshizaki Advance SBU-20-GTU JK390 delivers rapid, HACCP-compliant chilling and freezing for busy commercial kitchens without the footprint of a large-capacity blast unit. It handles a 20kg chill or 12kg freeze capacity across up to five 1/1GN or 600×400mm trays, letting operators load hot batches straight from the oven and drop core temperatures quickly enough to lock in flavour, texture and nutritional value rather than watching quality decline on a slow cool-down.

An intuitive segment display offers both pre-set favourite programmes and fully customisable cycles, putting precise control within reach without a lengthy training session. The single-point probe, automatic HACCP alarm and Climate Class 5 refrigeration system work together to guarantee accurate monitoring and consistent results, even at ambient temperatures up to 40°C.

Power draw is 820W on a 230V single-phase supply, with R290 refrigerant keeping the system efficient. Finished in easy-clean stainless steel and mounted on adjustable 75-108mm legs, the cabinet installs wherever it's needed in the kitchen, promoting food safety while reducing labour and freeing valuable prep space elsewhere.

BEFORE YOU BUY

Questions, answered straight

20kg per chilling cycle or 12kg per freezing cycle, across up to five 1/1GN or 600×400mm trays.

Yes — it's rated Climate Class 5, holding effective performance at ambient temperatures up to +40°C.

A single-point probe tracks core temperature precisely, with an automatic HACCP alarm if a load runs outside set limits.

230V single-phase, drawing 820W, on R290 refrigerant.

Adjustable 75-108mm legs let you align the cabinet with existing worktops.

3 years parts and labour comes as standard; Craven Cooling's service team can be reached on 01792 732702 for ongoing maintenance.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Hoshizaki Advance SBU-20-GTU Blast Chiller 20/12Kg 820W JK390 Product Data

Brand Hoshizaki
Type Blast Chillers
Range Advance
Dimensions 931(H) x 746.5(W) x 725(D)mm
Material Stainless Steel
Colour / Finish Silver
Refrigerant R290
Number of Doors 1
Power 820W
Voltage 230V
Fuel / Supply Plug
Warranty 3 Years Parts & Labour
Weight 101kg
Manufacturer Ref SBU 20 GTU
If you have any questions about the Hoshizaki Advance SBU-20-GTU Blast Chiller 20/12Kg 820W JK390 then please get in touch.
