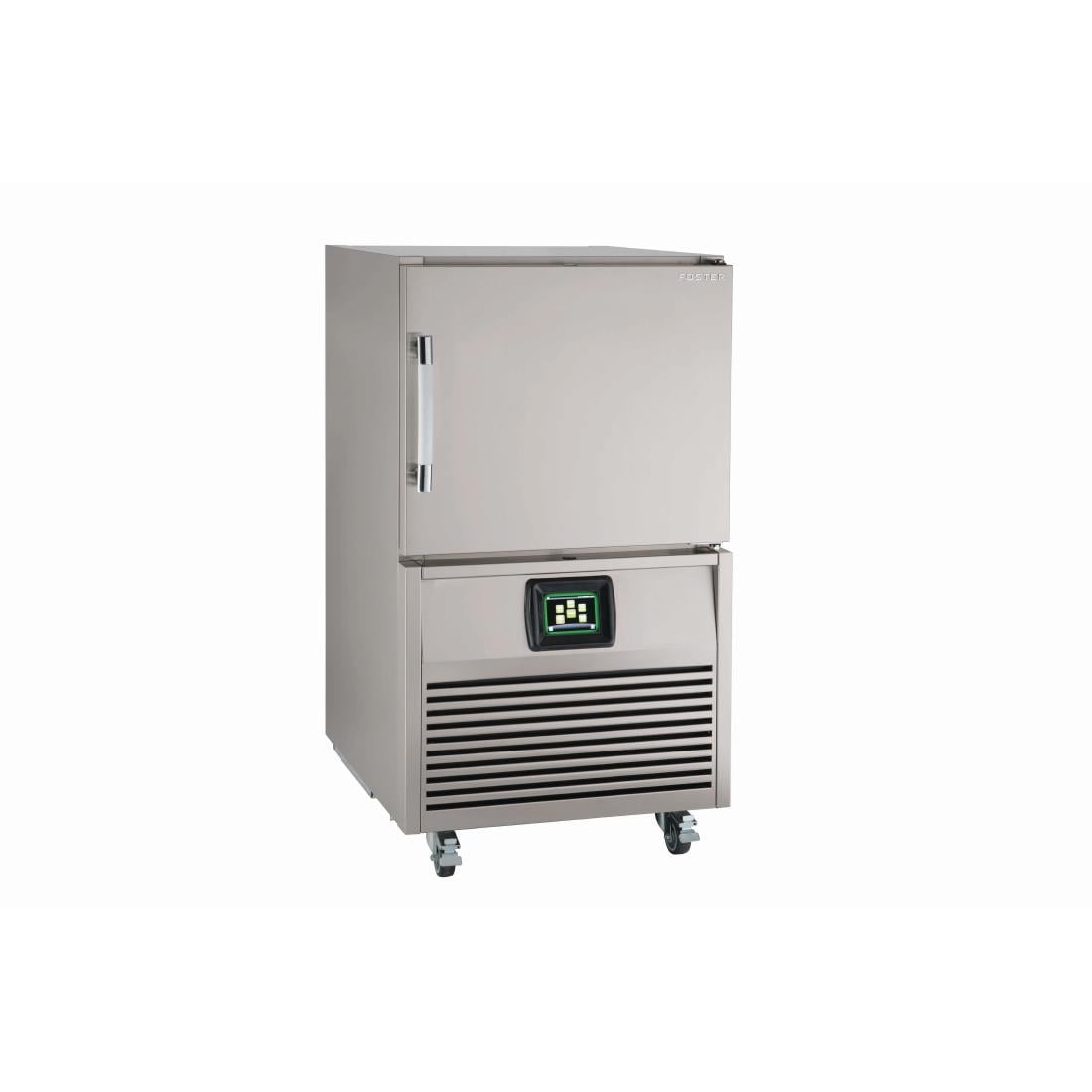

Foster 22Kg Blast Freezer/Chiller Cabinet BFT22-17/284 GJ183

£8,105.39

+vat

Availability: 999 in stock

SKU: GJ183

Product summary

St/St ext/int. Capacity: 6x 1/1 GN

Product description

The Foster tray loading blast chiller range provides the ideal way to ensure quality and food safety is maximised in every kitchen, large or small.

High quality 304 stainless steel interior & exterior
Temperature probe for precise temperature control
Undermount design ideal for low ceilings and/or high ambient temperatures taking cooler air from floor level
Right hand hinged solid door
Intuitive easy Blast Freezer Touchpad (BFT) – just press and go with easy to use colour coding to indicate cycle status
Overnight storage hold facility, so thawed food is ready when needed
Supplied on 4 x 80mm lockable castors for easy positioning
Freezing capacity: 22kg from +70°C to -18°C in less than 240 mins/4hr
Chilling capacity: 22kg from +70°C to +3°C in less than 90 min
6 x 1/1 GN capacity (no shelves supplied)

The Foster BFT22-17/284 GJ183 is a 6-shelf commercial blast freezer/chiller cabinet, rated for around 22kg per cycle, for kitchens that need controlled freezing and chilling within prep.

Downloads

SPECIFICATION 26 facts · tap for all Width755 mmDepth690 mmHeight1515 mmGross weight128 kgVoltage230VTemperature range-18 to +70 °C

Identity5

Brand Foster Refrigeratorsite
Product code GJ183site
Seo name Foster 22Kg Blast Chiller Freezer Cabinetcatalogue
Type Blast Chillerscatalogue
Warranty 2 Years On-Site Parts & Labourcatalogue

Size & weight6

Depth 690 mmcatalogue
External (W×D×H) 1515 × 755 × 690 mmcatalogue
Gross weight 128 kgcatalogue
Height 1515 mmcatalogue
Internal (W×D×H) 800 × 635 × 413 mmcatalogue
Width 755 mmsite

Capacity5

Capacity 22kgcatalogue
Door type Hingedcatalogue
Doors 1catalogue
Gastronorm size 1/1 GN fullcatalogue
Shelves 6catalogue

Performance2

Refrigerant R404a / 1400gcatalogue
Temperature range -18 to +70 °Ccatalogue

Power & energy2

Fuel type Plugcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Insulation 65 mmcatalogue
Material Stainless Steelcatalogue

Other stated facts3

Indoor / outdoor Freestandingcatalogue
Mobility Castorscatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this blast chiller earns its place

The Foster BFT22-17/284 GJ183 is a mid-sized cabinet in Foster's tray-loading blast range, set up primarily as a blast freezer with chilling capability for prep and production kitchens. It takes up to 6 shelves on a 1/1 gastronorm footprint and is rated at around 22kg per load, which places it between the compact countertop units and the larger floor-standing cabinets in the range.

Built in stainless steel with 65mm of insulation and an R404a circuit, it stands roughly 1515mm tall on a 755mm-wide, 690mm-deep footprint and weighs 128kg. It runs on a standard 230V supply, so it does not need the 400V connection the largest cabinet in the range requires — a useful point where the electrical supply at the intended position is limited.

As with any blast cabinet, the value depends on the cycle matching the food safety requirement, so plan around the 22kg load and 6-shelf capacity rather than fitting the busiest service to it. Craven Cooling can review the current supplier specification, confirm the freezing duty and flag the installation checks before the order is placed. It carries a 2-year on-site parts and labour warranty.

BEFORE YOU BUY

Questions, answered straight

It is listed as a blast freezer/chiller, so it is set up primarily for blast freezing with chilling capability. Confirm the exact operating programme and duty from supplier data before purchase.

It takes up to 6 shelves on a 1/1 gastronorm footprint and is rated at around 22kg per load. That suits steady prep-scale batches rather than very high-volume production.

It runs on a 230V supply, stands about 1515mm tall on a 755 × 690mm footprint and weighs 128kg. Confirm the delivery route and final position before ordering.

No — treat it as process equipment for bringing food down quickly, not for long-term holding. Check your storage freezer capacity separately.

It can suit controlled freezing/chilling for event and contract work at around 22kg a cycle. Match it to the actual batch pattern and food safety process before committing.

Craven Cooling can check the current supplier information and installation points. Call 01792 732702 if you need the model matched to a specific kitchen workflow.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Foster 22Kg Blast Freezer/Chiller Cabinet BFT22-17/284 GJ183 Product Data

Brand Foster Refrigerator
Type Blast Chillers
Dimensions 1515(H) x 755(W) x 690(D)mm
Capacity 22kg
Material Stainless Steel
Colour / Finish Silver
Temperature Range 70°C to -18°C
Refrigerant R404a / 1400g
Number of Doors 1
Number of Shelves 6
Power 230V, 13 Amps, Single Phase
Voltage 230V
Fuel / Supply Plug
Warranty 2 Years On-Site Parts & Labour
Weight 128kg
Manufacturer Ref BFT22 17/284
If you have any questions about the Foster 22Kg Blast Freezer/Chiller Cabinet BFT22-17/284 GJ183 then please get in touch.
