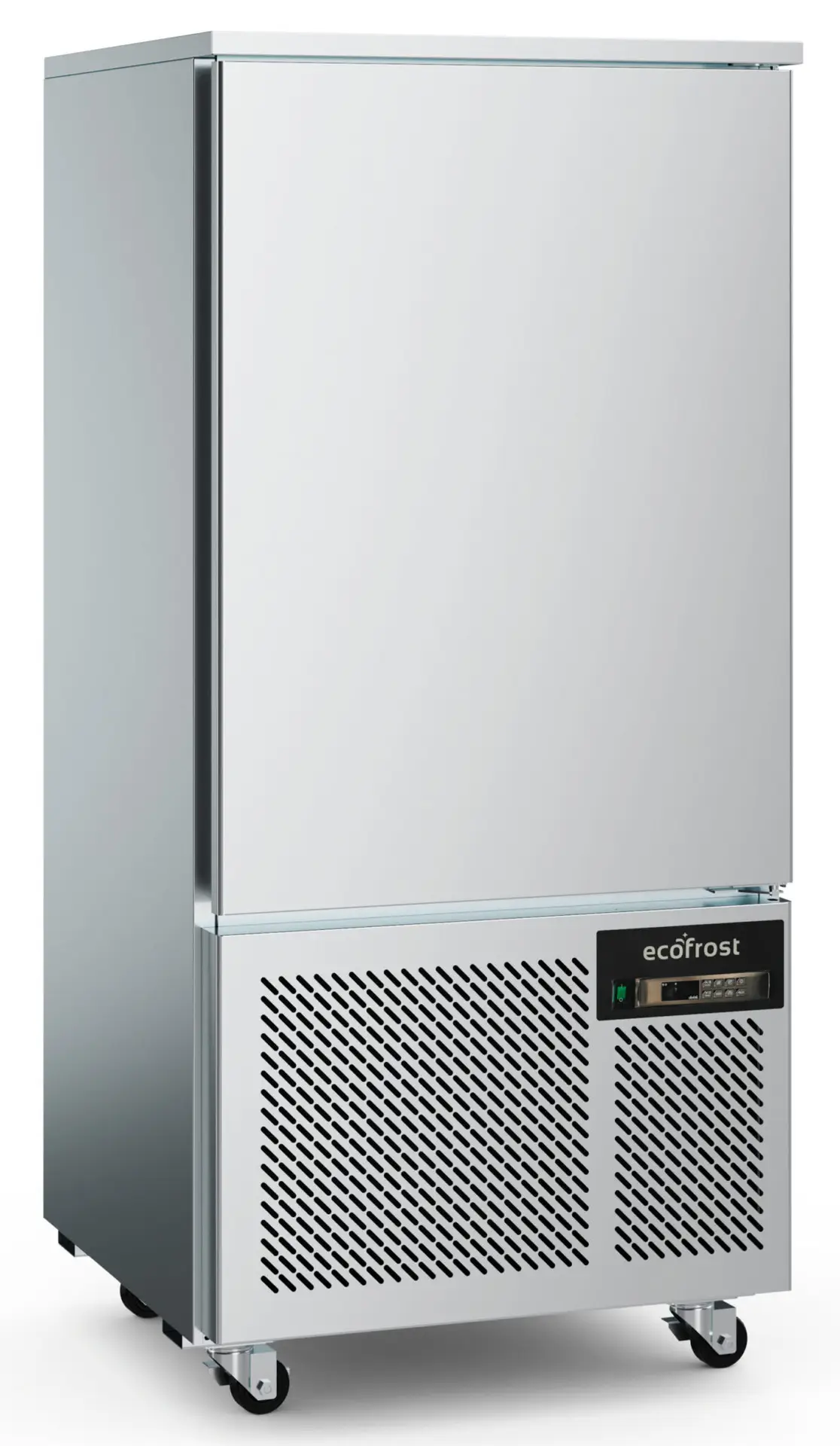

CombiSteel Blast Chiller 14x 1/1GN. 7950.5245

+vat

Brand:

SKU: 7950.5245

Product summary

Size W/D/H (mm) x x

Product description

4 pre-programmed programs, with core temperature probe

The Combisteel 7950.5245 is a commercial blast chiller that rapidly pulls freshly cooked food down through the danger zone to safe chilled storage, holding gastronorm trays so a cook-chill kitchen can batch, store and reheat with confidence.

Downloads

SPECIFICATION 26 facts · tap for all External W × D × H800 x 800 x 1763Width800 mmHeight1763 mmGross / net weight180 kgVoltage / frequency230 volts / 50 hzVoltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6017443150128site
Product code 7950.5245site
Type Blast Chillers & Blast Freezerscatalogue

Size & weight7

External (W×D×H) 800 × 800 × 1763 mmcatalogue
External W × D × H 800 x 800 x 1763site
Gross / net weight 180 kgsite
Height 1763 mmsite
Internal (W×D×H) 670 × 660 × 958 mmcatalogue
Internal W × D × H 670x660x958site
Width 800 mmsite

Capacity1

Gastronorm size 14x 1/1 GN / 400×600 EN (40 mm) of 9x 1/1 GN / 400×600 EN (65 mm)catalogue

Performance5

Cooling Ventilatedcatalogue
Defrost Automaticcatalogue
Max ambient 32 °Ccatalogue
Refrigerant R 290catalogue
Temperature range 32site

Power & energy5

Frequency 50 Hzcatalogue
Rated input 1200 Wcatalogue
Rated power 12 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 230 volts / 50 hzsite

Build & fittings4

Accessories 4 pre-programmed programs, with core temperature probecatalogue
Exterior finish Stainless steel Aisi 304site
Insulation 65 mmcatalogue
Temperature display Yes, digitalcatalogue
THE WORKING VIEW

Why this blast chillers & blast freezer earns its place

The Combisteel 7950.5245 is a commercial blast chiller — the foundation of a cook-chill or batch operation. Where a storage fridge only holds food that is already cold, a blast chiller actively drives hot cooked food down through the danger zone quickly, which is what keeps prepared food safe. This unit takes fourteen 1/1 gastronorm trays per cycle, built to chill from +80°C down to +3°C using R290 refrigerant in a ventilated cycle with automatic defrost.

In daily use it reduces loaded trays fast, locking in texture and moisture as well as safety, then holds the chilled load ready for storage or service. That lets the kitchen cook ahead and run service from prepared batches rather than cooking to order. It is rated at 12 kW on a 230V single-phase supply and draws considerably more power than a storage fridge, so it needs an appropriate circuit and clearance.

It is a floor-standing stainless steel Aisi 304 unit, 800×800 mm footprint and 1763 mm tall, with 65 mm insulation for efficiency. Confirm the doorway access, electrical supply and siting clearances on the spec panel before installation; the unit weighs 180 kg loaded.

BEFORE YOU BUY

Questions, answered straight

A storage fridge holds food that is already cold; a blast chiller actively drives hot cooked food down through the danger zone quickly. That speed is what keeps cook-chill food safe and protects its texture and moisture.

It is built around gastronorm trays, so you load standard GN pans straight in. The tray count for this model is in its name and on the spec sheet — match it to your typical batch size.

Yes. Rapid chilling after cooking is a core HACCP control, and a blast chiller is how commercial kitchens meet it. Pair it with our food-safe temperature checker for the bands and corrective actions.

This unit is rated at 12 kW on 230V single phase, so it draws considerably more than a storage fridge. Check the circuit against your available supply before installing; 16 amp may be marginal.

It is a floor-standing unit, so check the external dimensions on the spec panel against your doorways and delivery route. Measure the tightest point before delivery.

Yes. Craven Cooling installs and services the refrigeration we supply, including blast chillers — call 01792 732702 to arrange installation or a service visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Blast Chiller 14x 1/1GN. 7950.5245 Product Data

Brand CombiSteel
Dimensions (W×D×H) 800 × 800 × 1763 mm
Interior Dimensions 670x660x958
GN Capacity 14x 1/1 GN / 400×600 EN (40 mm) of 9x 1/1 GN / 400×600 EN (65 mm)
Material Stainless steel Aisi 304
Temperature Range +80/+3 (90 min.) / +80/-18 (240 min.)
Max. Ambient Temp. 32
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Electrical Power 1.2 kW
Voltage 230V / 50Hz
Insulation 65 mm
Weight 180 kg
If you have any questions about the CombiSteel Blast Chiller 14x 1/1GN. 7950.5245 then please get in touch.
