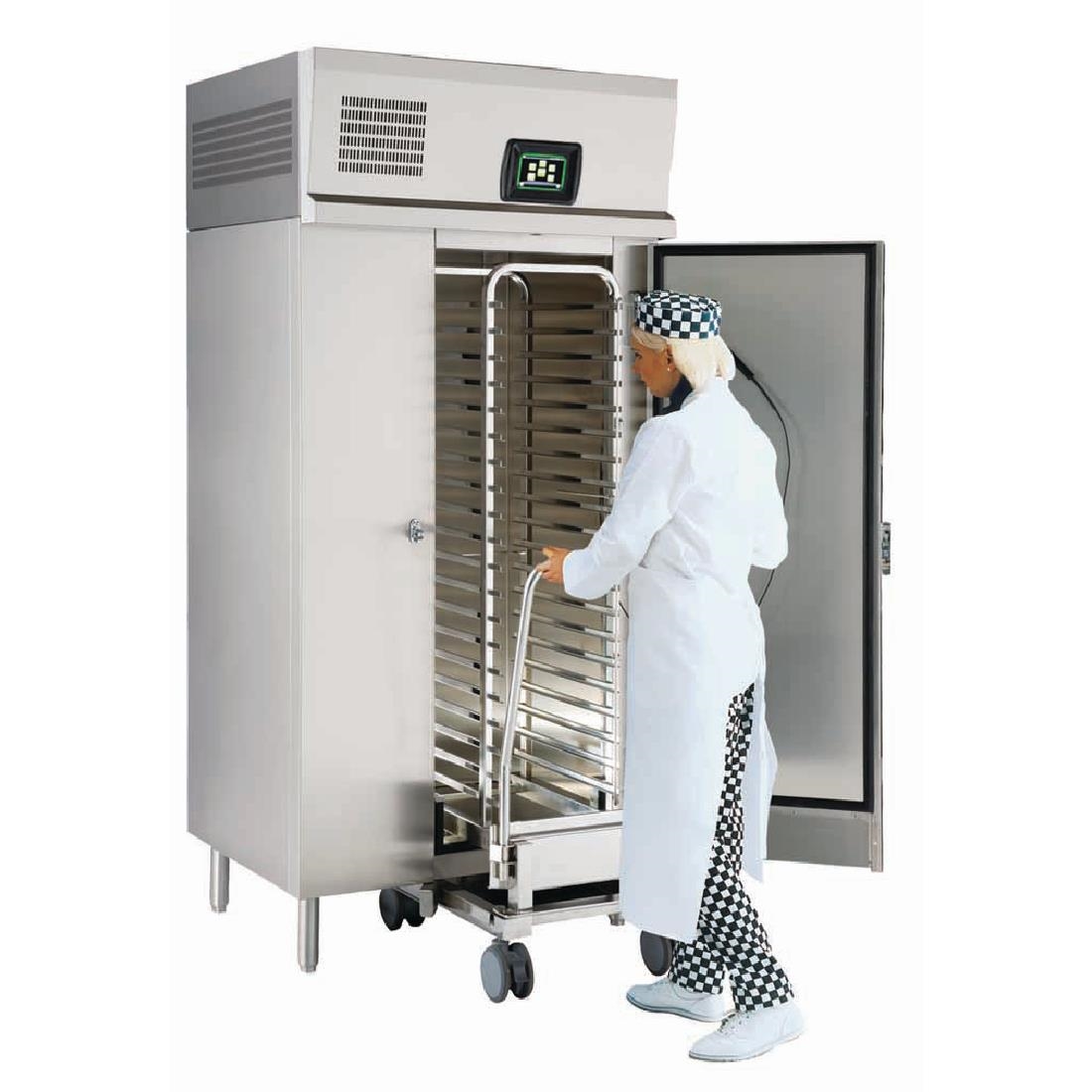

Foster 60Kg Roll-In Blast Chiller Remote Cabinet RBC20-60 17-119 GJ187

£14,002.99

+vat

Availability: 999 in stock

- +

SKU: GJ187

Product summary

St/St ext/int Capacity: 60kg

Product description

Specifically designed to accept Rational 201 Trolleys for type 201 Rational combination ovens, the Foster RBC20-60 blast chiller is easy to use, even for first time operators, thanks to the Foster ‘Surf Navigation System’ – simply turn the dial to select the desired programme and press to start. There is a programme for every type of product, from delicate patisserie items to large joints and stews.

Suitable for Rational 201 trolleys for quick loading (sold separately)
Easy ‘Surf Navigation’ menu driven dial lets you simply turn to select the programme and push to start
Automatic hold mode activated when programme ends to store food until needed (signalled by audible alarm)
This remote cabinet requires piping work installed connecting to a remote condensing unit (not included)”
Four 150mm legs
Coated coil – stops corrosion and prolongs refrigeration system life
Heavy duty easy grip door handle
Hard wearing, long life silicon gasket accommodates high in-going trolley temperatures
For ventilation and service access ensure 400mm minimum clearance is allowed above the unit
60Kg chilling capacity from +90°C to +3° C in less than 90 mins
Flexible probe-controlled or timed chilling programmes for consistent results
Foster Circulair for uniform chilling with ‘Automatic Surface Protection’ against frost burn & wind chill damage

Downloads

SPECIFICATION 26 facts · tap for all Width980 mmDepth862 mmHeight2187 mmGross weight281 kgVoltage400V/50Hz/3 PhaseTemperature range+3 to +90 °C

Identity5

Brand Foster Refrigeratorsite
Product code GJ187site
Seo name Foster 60Kg Roll In Blast Chiller Remote Cabinetcatalogue
Type Blast Chillerscatalogue
Warranty 1 Year On-Site Parts & Labourcatalogue

Size & weight5

Depth 862 mmcatalogue
External (W×D×H) 2187 × 980 × 862 mmcatalogue
Gross weight 281 kgcatalogue
Height 2187 mmcatalogue
Width 980 mmsite

Capacity5

Capacity 60kgcatalogue
Door type Hingedcatalogue
Doors 1catalogue
Gastronorm size 1/1 GN fullcatalogue
Shelves 20catalogue

Performance2

Refrigerant R452acatalogue
Temperature range +3 to +90 °Ccatalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 1596 Wcatalogue
Voltage 400V/50Hz/3 Phasecatalogue

Build & fittings3

Colour Silvercatalogue
Insulation 60 mmcatalogue
Material Stainless Steelcatalogue

Other stated facts3

Electrical safety notice Yescatalogue
Indoor / outdoor Freestandingcatalogue
Mobility Castors & Feetcatalogue
THE WORKING VIEW

Why this blast chiller earns its place

The RBC20-60 remote is the same roll-in blast chiller as Foster's integral RBC20-60, built around Rational 201 trolleys so a full load can roll straight out of a type 201 Rational combi oven and into the chiller without decanting onto trays. The difference is in how it's refrigerated: this is the remote cabinet, meaning the condensing unit is a separate piece of plant connected by pipework rather than built into the cabinet itself. That makes it the right choice where the compressor needs to sit outside the kitchen, away from heat and noise, but it does mean pipework installation and a remote condensing unit have to be budgeted for separately — neither is included. Operation is identical to the integral version: Foster's Surf Navigation dial lets you turn to select a programme and push to start, with dedicated programmes for everything from patisserie to large joints.

The core performance figure carries over too: 60kg chilled from +90°C to +3°C in under 90 minutes, run either probe-controlled or timed depending on the product. Foster's Circulair airflow system delivers uniform chilling across the trolley, with Automatic Surface Protection guarding against frost burn and wind chill on the outer surfaces of the load. The working range is +3°C to +90°C, refrigerant is R452a, and the cabinet itself draws 1596W on a 400V/50Hz/3-phase supply.

Build is 304 stainless steel on four 150mm legs, with a coated coil to resist corrosion and a heavy-duty easy-grip door handle. The door gasket is long-life silicon, specified to cope with the high in-going temperatures that come with loading straight from the oven. Gross weight of the cabinet is 281kg. Because the compressor is remote, Foster covers this configuration with a 1-year on-site parts and labour warranty, a shorter term than the integral cabinet reflects.

BEFORE YOU BUY

Questions, answered straight

This is the remote cabinet — the condensing unit is separate plant connected by pipework, rather than built into the cabinet. Pipework and the remote condensing unit itself are not included and need to be budgeted for and installed separately.

Rational 201 trolleys, used with type 201 Rational combination ovens, so a full oven load rolls straight into the chiller (trolleys sold separately).

60kg from +90°C to +3°C in under 90 minutes, run as a probe-controlled or timed programme.

1 year on-site parts and labour — shorter than the integral version, reflecting the separate remote condensing installation.

400V/50Hz/3-phase supply, running on R452a refrigerant.

A minimum of 400mm above the cabinet for ventilation and service access, plus proper routing for the remote condensing pipework. Craven Cooling's servicing team can advise on installation — call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Foster 60Kg Roll-In Blast Chiller Remote Cabinet RBC20-60 17-119 GJ187 Product Data

Brand Foster Refrigerator
Type Blast Chillers
Dimensions 2187(H) x 980(W) x 862(D)mm
Capacity 60kg
Material Stainless Steel
Colour / Finish Silver
Temperature Range 90°C to 3°C
Refrigerant R452a
Number of Doors 1
Number of Shelves 20
Power 1596W
Voltage 400V/50Hz/3 Phase
Fuel / Supply Three Phase
Warranty 1 Year On-Site Parts & Labour
Weight 281kg
Manufacturer Ref RBC20-60 17-119
If you have any questions about the Foster 60Kg Roll-In Blast Chiller Remote Cabinet RBC20-60 17-119 GJ187 then please get in touch.
