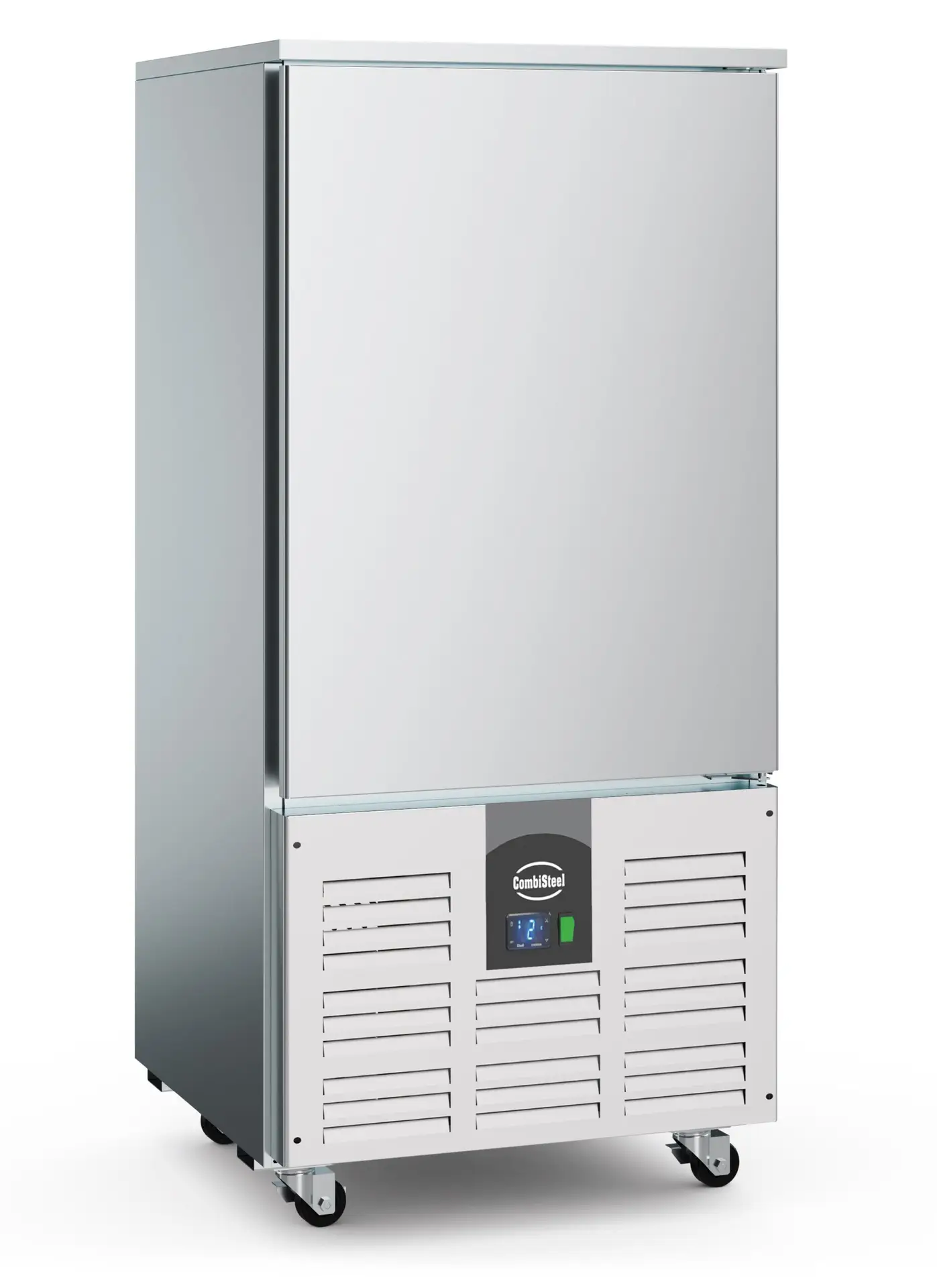

CombiSteel Blast Chiller 9x 1/1GN. 7450.1310

£2,973.38

+vat

- +

SKU: 7450.131

Product summary

Size W/D/H (mm) 800 x 800 x 1763

Product description

Downloads

SPECIFICATION 25 facts · tap for all Width800 mmHeight1763 mmGross / net weight180 kgVoltage / frequency23050Voltage230V / 50HzTemperature range+80/-18 (240 min.) / +80/+3 (90 min.)

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6153302628671catalogue
Range / series Standard Linecatalogue
Type Blast Chillers & Blast Freezerscatalogue

Size & weight6

External (W×D×H) 800 × 800 × 1763 mmcatalogue
Gross / net weight 180 kgsite
Height 1763 mmsite
Internal (W×D×H) 670 × 660 × 958 mmcatalogue
Internal W × D × H 670x660x958site
Width 800 mmsite

Capacity1

Gastronorm size 14x 1/1 GN / 400×600 EN (40 mm) of 9x 1/1 GN / 400×600 EN (65 mm)catalogue

Performance5

Cooling type R 290site
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range +80/-18 (240 min.) / +80/+3 (90 min.)site

Power & energy6

Energy consumption 1,2site
Frequency 50 Hzcatalogue
Rated input 1200 Wcatalogue
Rated power 12 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings3

Doors Rightsite
Exterior finish Stainless steelsite
Insulation 65 mmcatalogue
THE WORKING VIEW

Why this blast chillers & blast freezer earns its place

A blast chiller does one job and does it hard: it drives the temperature of hot, just-cooked food down fast, through the range where bacteria multiply, so a kitchen can cook in batches ahead of service rather than firing everything to order under pressure. The 7450.1310 is built to load 9 × 1/1 gastronorm trays and run a chill cycle that can bring food from +80 °C down to +3 °C or below, letting a morning's cooking become safely chilled, labelled stock ready for service.

In daily use it runs the cook-chill cycle on hot food, then holds it chilled until it moves to the walk-in or a counter. That takes the peak load off your storage fridges, which are built to keep cold food cold, not to haul hot food down. Chilling quickly also protects texture and moisture, so batch-cooked dishes plate up closer to fresh. Standing 1763 mm tall, 800 mm wide and deep, it drops into a prep area or cook line where the footprint suits your space.

A blast chiller draws a heavy electrical load — this model runs on 12 kW — and needs proper airflow and clearance around the condenser, so siting and power supply are worth planning before delivery. Our team can confirm the space and supply this unit needs for your kitchen, and handle installation and servicing across the region.

BEFORE YOU BUY

Questions, answered straight

A storage fridge is built to keep already-cold food cold, not to remove heat quickly. A blast chiller drives hot, freshly cooked food down through the bacterial danger zone fast, which protects both food safety and texture. Loading hot food into a standard fridge instead pushes its temperature up and risks everything inside.

The 7450.1310 is rated for 9 × 1/1 gastronorm trays, so you load a batch of nine trays of cooked food and run the chill cycle together. Check the spec panel on this page for the internal dimensions to confirm your tray sizes fit.

Cooling cooked food slowly leaves it sitting in the temperature range where bacteria multiply. Blast chilling brings food from +80 °C down quickly, moving it through that range fast and giving you a clear, repeatable cook-chill step to record. It is the standard way high-volume kitchens evidence safe cooling.

Yes. That is the point of a blast chiller: batch-cook when the kitchen is quiet, chill fast, then hold labelled stock for service. It frees your team from firing every dish to order and takes the hot-load strain off your storage fridges.

The unit is 1763 mm tall, 800 mm wide and deep, so check that height against your ceiling and that depth fits your layout. It draws 12 kW, so the electrical supply needs checking before delivery. Site it close to the range so hot food reaches it quickly, with clearance around it for airflow.

Yes. Craven Cooling handles installation and ongoing servicing across the region. For siting, power or a service booking, call our team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Blast Chiller 9x 1/1GN. 7450.1310 Product Data

Brand CombiSteel
Type Standard Line
Dimensions (W×D×H) 800 × 800 × 1763 mm
Interior Dimensions 670x660x958
GN Capacity 14x 1/1 GN / 400×600 EN (40 mm) of 9x 1/1 GN / 400×600 EN (65 mm)
Material Stainless steel
Colour / Finish Stainless steel
Temperature Range +80/-18 (240 min.) / +80/+3 (90 min.)
Max. Ambient Temp. 32
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Electrical Power 1.2 kW
Voltage 230V / 50Hz
Insulation 65 mm
Weight 180 kg
If you have any questions about the CombiSteel Blast Chiller 9x 1/1GN. 7450.1310 then please get in touch.
