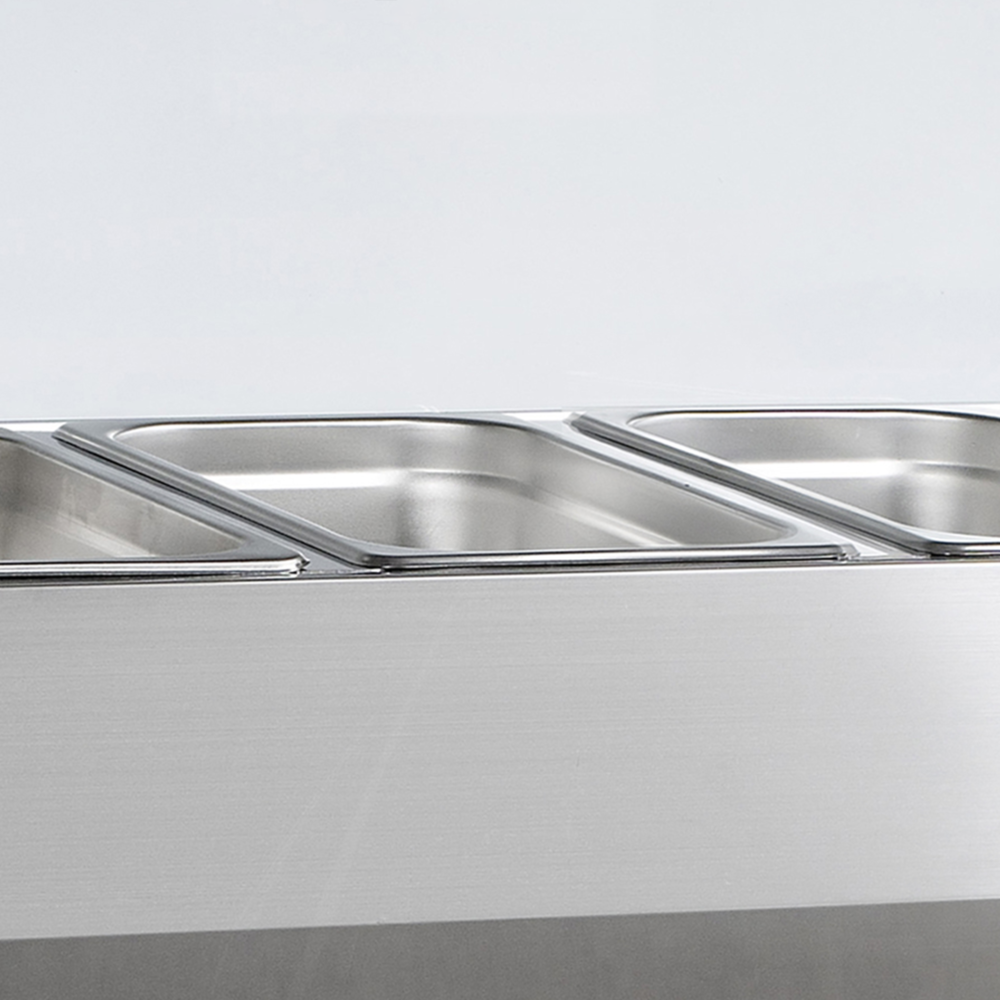

G-Line by TEFCOLD GVC33-180 Gastronorm Topping Shelf

£387.00

+vat

- +

SKU: 30823

Product summary

  • Stainless steel
  • Glass structure for protection of food
  • Accepts GN1/4 pan(s) (not supplied)
  • Digital controller and temperature display
  • Static cooling
  • Adjustable feet

Product description

Topping Shelves for Gastronorm Pans

Elevate your catering business with the GVC Gastronorm Topping Shelfs. Specifically designed for food service, these enhance your operations with advanced features. Options with glass guard ensuring hygiene and visibility. Organise and display toppings at optimal temperatures for quick food prep. Fully automatic, it maintains temperatures from 2°C to 8°C via a static cooling system, preserving freshness. Manual defrost prevents ice build-up.

SPECIFICATION 38 facts · tap for all External W × D × H1800 x 335 x 448 mmWidth1800 mmDepth335 mmGross / net weight37 / 32 kgGross weight37 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181365387site
Product code 30823site
Sub title Gastronorm Topping Shelfcatalogue
Type Glass Topping Unitscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 335 mmsite
External (W×D×H) 1800 × 335 × 448 mmcatalogue
External W × D × H 1800 x 335 x 448 mmsite
Gross / net weight 37 / 32 kgsite
Gross weight 37 kgcatalogue
Height 448 mmsite
Internal (W×D×H) 1450 × 245 × 150 mmcatalogue
Internal W × D × H 1450 x 245 x 150 mmsite
Packed (W×D×H) 1900 × 375 × 280 mmcatalogue
Packed W × D × H 1900 x 375 x 280 mmsite
Width 1800 mmsite

Capacity3

Capacity item specification 8 x GN1/4 pcscatalogue
GN pan capacity 8 x GN1/4site
Gross volume 53.2 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 45 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 1069 kWh/yearsite
Energy consumption 2.93 kWh/24hsite
Input power 122 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish SS201site
Feet / legs Adjustable Feetsite
THE WORKING VIEW

Why this glass topping unit earns its place

The G-Line by TEFCOLD GVC33-180 is a refrigerated topping shelf built to sit on top of a prep counter and hold garnishes and toppings chilled and within reach. Its SS201 stainless construction inside and out wipes down easily and stands up to constant handling on a busy line, and the gastronorm layout keeps prep pans standardised across the run.

Day to day it holds +2 to +8 °C on static cooling under an electronic controller, with a manual defrost routine to run down when the shift allows. At 40 dB it stays quiet enough to sit at the pass, and it uses R600a refrigerant with a 45 g charge. Rated at 1069.5 kWh a year, it costs about £267 a year at 25p/kWh.

The chilled well measures 1450 × 245 × 150 mm (W×D×H), a long, shallow run for lining toppings up along the counter. It runs on a standard 13A supply at 220–240 V, 50 Hz, and weighs 37 kg gross, 32 kg net, so it drops onto an existing bench without special provision.

BEFORE YOU BUY

Questions, answered straight

It holds +2 to +8 °C on static cooling under an electronic controller, keeping toppings within a safe chilled band during service.

Defrost is manual, so you run the cycle down when the shift allows rather than relying on an automatic routine. The electronic controller manages the setpoint the rest of the time.

It is rated at 1069.5 kWh a year, which is about £267 a year at 25p/kWh.

The refrigerated well measures 1450 × 245 × 150 mm (W×D×H), and the unit weighs 37 kg gross, 32 kg net, so it sits on an existing prep bench.

It uses R600a refrigerant with a 45 g charge and runs on a standard 13A supply at 220–240 V, 50 Hz.

Yes. Our service team looks after commercial refrigeration across the region — call 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1450 x 245 x 150 mm
External Dimension (WxDxH): 1800 x 335 x 448 mm
Packed Dimension (WxDxH): 1900 x 375 x 280 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 45 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.93 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1069 kWh/year m³
Input Power: 122 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Capacity GN Pans: 8 x GN1/4 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 37 / 32 kg
Gross / Net Volume: 53.2 / 41.6 l
Max Ambient: +30°C, 55% RH

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: SS201
Interior Finish: SS201
If you have any questions about the G-Line by TEFCOLD GVC33-180 Gastronorm Topping Shelf then please get in touch.
