CombiSteel Refrigerated Counter Top 5x 1/4GN 7450.0005

£378.00

+vat

Brand:

SKU: 7450.0005

Product summary

Size W/D/H (mm) x x

Product description

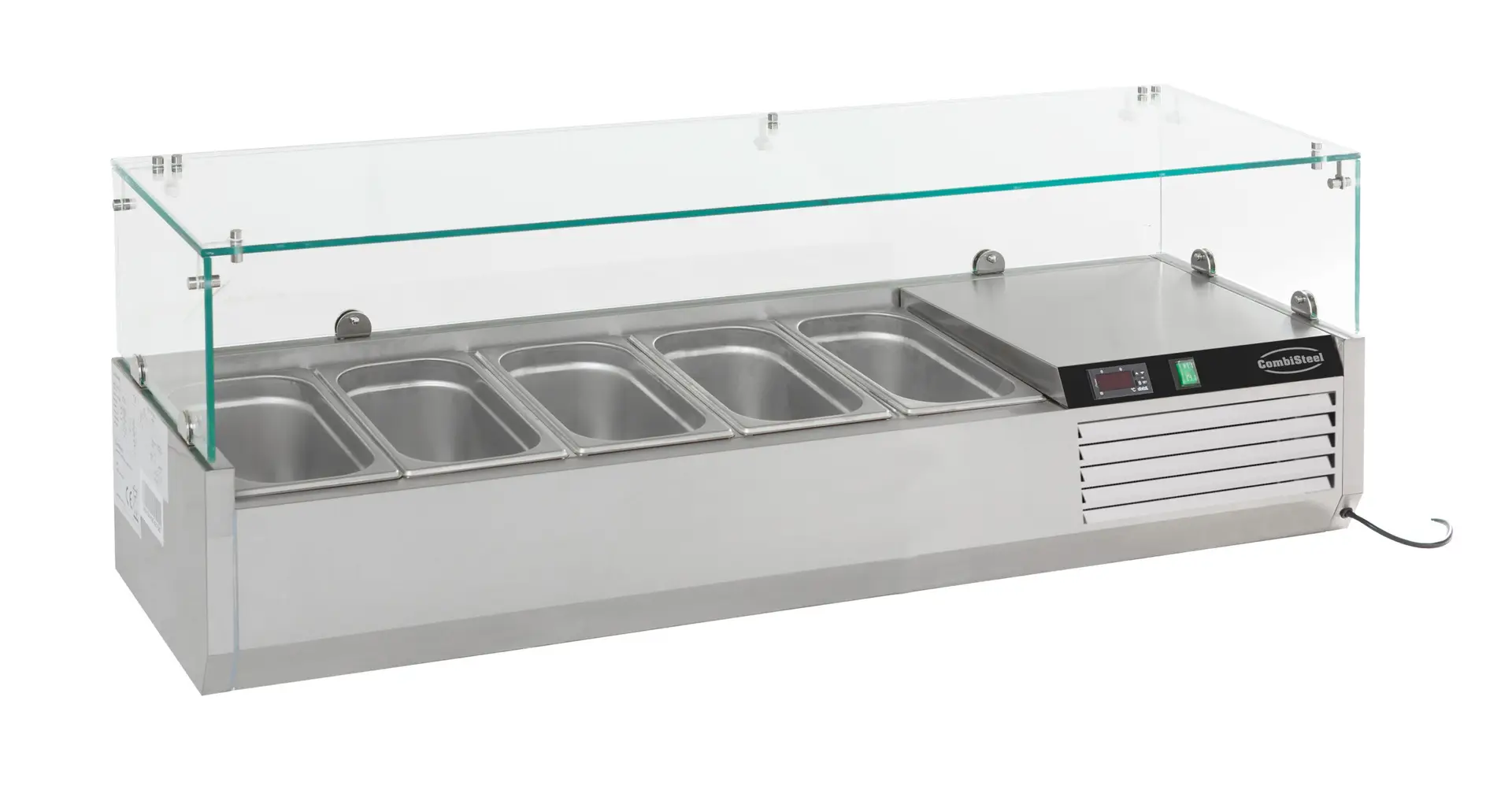

The Combisteel 7450.0005 is a 1200 mm wide refrigerated countertop topping unit for five 1/4 GN pans, holding pizza, salad and sandwich ingredients at +2 to +8 °C in a stainless steel 18/8, glass-topped service station.

Downloads

SPECIFICATION 23 facts · tap for all Width1200 mmDepth335 mmHeight435 mmGross / net weight47 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137889823catalogue
Type Glass Topping Unitscatalogue

Size & weight5

Depth 335 mmsite
External (W×D×H) 1200 × 335 × 435 mmcatalogue
Gross / net weight 47 kgsite
Height 435 mmsite
Width 1200 mmsite

Capacity1

Gastronorm size 5 x 1/4catalogue

Performance3

Cooling type R 600 Asite
Defrost type Automaticsite
Temperature range +2 / +8site

Power & energy7

Energy consumption 0,34site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 340 Wcatalogue
Rated power 34 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings4

Accessories 4x long GN bar, 1x short GN barcatalogue
Colour Stainless steelcatalogue
Exterior finish Stainless steel 18/8site
Interior finish Stainless steel 201site
THE WORKING VIEW

Why this glass topping unit earns its place

The 7450.0005 is a refrigerated countertop topping unit built to keep cold ingredients chilled at the point of assembly. It carries five 1/4 GN pans under a glass top, so a pizza, salad or sandwich line can work straight from the unit without walking back to the fridge between covers. This is a service-station fridge rather than bulk storage: the job is holding today's mise en place cold, visible and to hand through a busy shift.

It holds the pan line at +2 to +8 °C using static R600a refrigeration, automatic defrost and a stainless steel 18/8 body. The glass top helps shield open ingredients while keeping the contents visible for whoever is building the order, and the 40 dB(A) noise rating keeps it unobtrusive on a counter line. The gastronorm pans lift out individually for restocking and for washing down at the end of service, so the well stays clean without moving the unit.

As a countertop format it is designed to stand on an existing prep bench or pass, so it drops into a line without taking floor space. The footprint is 1200 x 335 mm with a 435 mm height, and the gross weight is 47 kg, so check both the bench run and the load before ordering. It is listed for a 230 V, 50 Hz supply; the supplier rated-power figure should be confirmed before installation rather than treated as a normal plug-in assumption.

BEFORE YOU BUY

Questions, answered straight

It is built around 1/4 GN pans and holds five of them under the glass top, making it a focused topping station rather than a bulk storage cabinet.

It is a service-station topping unit for holding cold ingredients at the point of assembly, not bulk storage. Keep your main stock in a fridge or cold room and top the pans up from there.

It is a countertop unit designed to sit on a prep bench or pass rather than on the floor. The external size is 1200 x 335 x 435 mm and the gross weight is 47 kg, so check the bench run and load capacity.

The supplier-stated temperature range is +2 to +8 °C, with static R600a cooling and automatic defrost. Match that band to the ingredients you plan to hold.

The gastronorm pans lift out individually, so the well and pans can be washed down at the end of service. The body is stainless steel 18/8, but it still needs a regular HACCP cleaning routine because it holds open food.

Yes — the team can advise on siting, the 230 V 50 Hz supply and servicing. Call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Counter Top 5x 1/4GN 7450.0005 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1200 × 335 × 435 mm
GN Capacity 5 x 1/4
Material Stainless steel 18/8
Interior Material Stainless steel 201
Colour / Finish Stainless steel
Temperature Range +2 / +8
Refrigerant R 600 A
Cooling Static
Defrost Automatic
Electrical Power 0.34 kW
Voltage 230V / 50Hz
Noise Level 40 dB
Weight 47 kg
If you have any questions about the CombiSteel Refrigerated Counter Top 5x 1/4GN 7450.0005 then please get in touch.
