CombiSteel Refrigerated Counter Top 7x 1/4GN 7450.0009

£478.00

+vat

Brand:

SKU: 7450.0009

Product summary

Size W/D/H (mm) x x

Product description

The Combisteel 7450.0009 is a countertop refrigerated topping unit holding seven 1/4 gastronorm pans, keeping prepared toppings, garnishes and fillings chilled and to hand along the pass for pizzerias, sandwich bars and salad stations.

Downloads

SPECIFICATION 23 facts · tap for all Width1600 mmDepth335 mmHeight435 mmGross / net weight56 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137889847catalogue
Type Glass Topping Unitscatalogue

Size & weight5

Depth 335 mmsite
External (W×D×H) 1600 × 335 × 435 mmcatalogue
Gross / net weight 56 kgsite
Height 435 mmsite
Width 1600 mmsite

Capacity1

Gastronorm size 7 x 1/4catalogue

Performance3

Cooling type R 600 Asite
Defrost type Automaticsite
Temperature range +2 / +8site

Power & energy7

Energy consumption 0,34site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 340 Wcatalogue
Rated power 34 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings4

Accessories 6x long GN bar, 1x short GN barcatalogue
Colour Stainless steelcatalogue
Exterior finish Stainless steel 18/8site
Interior finish Stainless steel 201site
THE WORKING VIEW

Why this glass topping unit earns its place

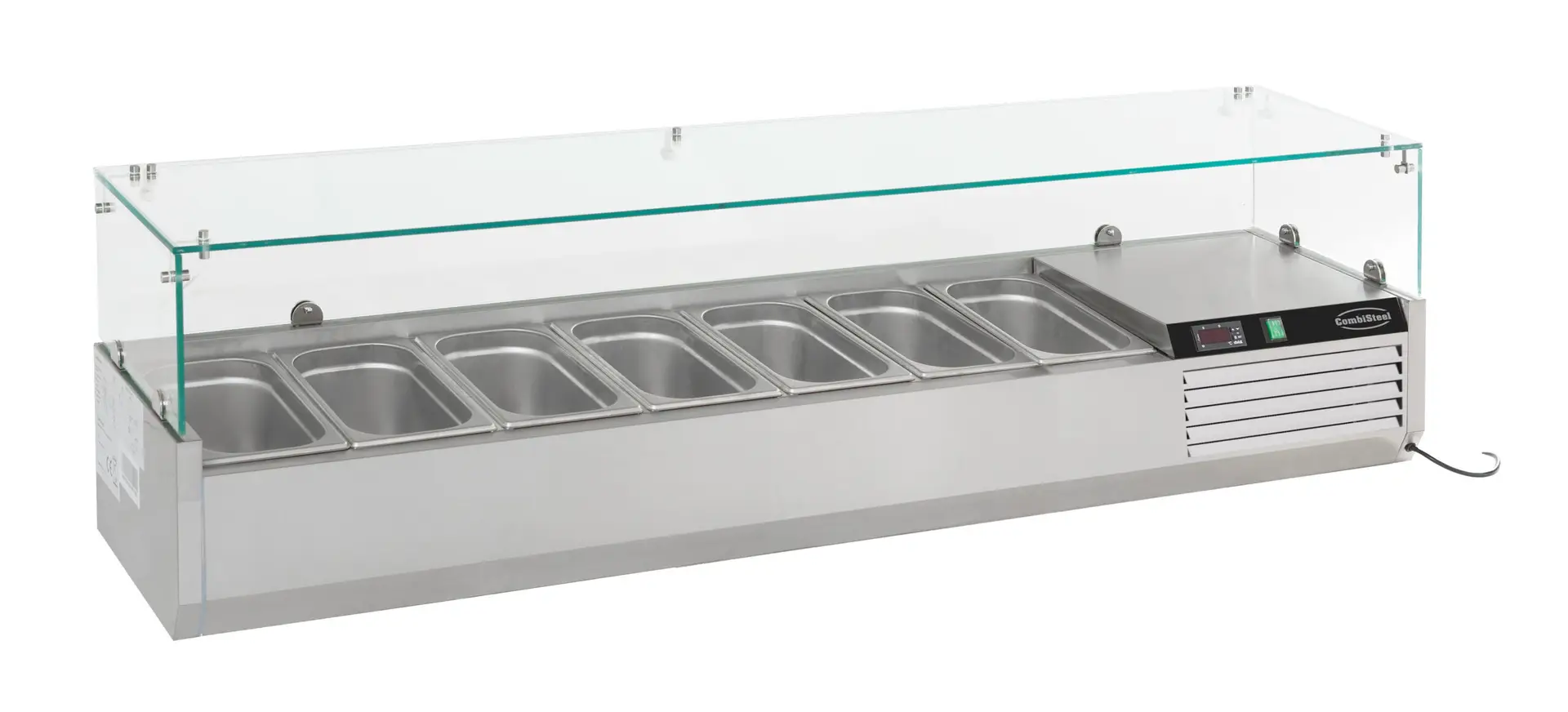

The 7450.0009 is a refrigerated topping unit that sits on the counter and keeps prepped ingredients cold at the point of assembly. It is built to hold seven 1/4 gastronorm pans in a row, so toppings, garnishes and fillings stay chilled at +2 to +8 °C and within reach while the team builds pizzas, sandwiches or salads to order. At 1600 mm wide and 435 mm tall, it gives you a full spread of ingredients at the make-line without overwhelming the pass. It is a topping and garnish station, not a general storage cabinet.

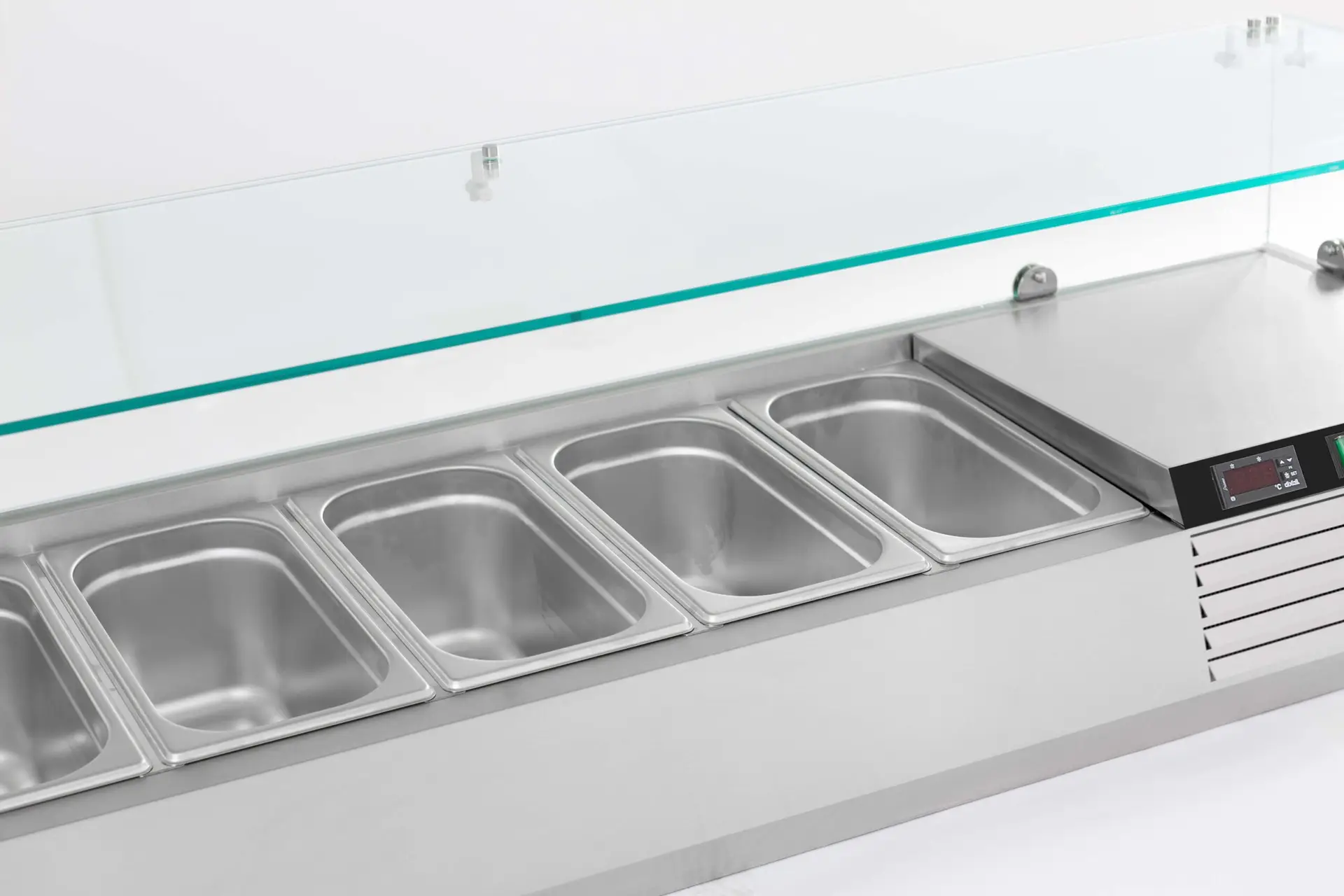

In service, the 1/4 gastronorm pans drop into the chilled top and pull out for refilling, keeping ingredients standardised with the rest of the kitchen. The stainless steel 18/8 construction handles daily washing and splashes without corrosion. Because everything is held cold and in front of the operator, prep stays fast and food stays at a safe holding temperature through a busy shift. Running at 40 dB(A), it won't compete with kitchen noise and till chimes.

The unit is stainless steel and designed to stand on an existing worktop rather than take floor space, running from a standard 230V mains supply. At 56 kg, it's solid enough to sit firmly on any sturdy counter. Check its footprint against your counter using the external dimensions in the specification table below, and confirm a socket is within reach of where it will sit.

BEFORE YOU BUY

Questions, answered straight

It is built for seven 1/4 gastronorm pans in a row. Exact dimensions and layout are in the specification table on this page.

It is a countertop unit — it sits on an existing worktop along the pass. Check its footprint against the external dimensions in the specification table on this page before ordering.

It is a refrigerated topping unit for chilled toppings, garnishes and fillings, not a freezer. Keep it stocked with prepped, ready-to-use ingredients held cold for service.

It takes standard 1/4 gastronorm, so pans you already run in the kitchen drop straight in and stay standardised across your prep.

It runs from a standard mains supply. Confirm the electrical rating in the specification table on this page and make sure there is a socket within reach of the counter position.

Yes. Craven Cooling services commercial refrigeration — call 01792 732702 to arrange a visit or talk a fault through. It's built with stainless steel 18/8 and automatic defrost, so with regular cleaning and airflow clearance it's reliable through years of service.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Counter Top 7x 1/4GN 7450.0009 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1600 × 335 × 435 mm
GN Capacity 7 x 1/4
Material Stainless steel 18/8
Interior Material Stainless steel 201
Colour / Finish Stainless steel
Temperature Range +2 / +8
Refrigerant R 600 A
Cooling Static
Defrost Automatic
Electrical Power 0.34 kW
Voltage 230V / 50Hz
Noise Level 40 dB
Weight 56 kg
If you have any questions about the CombiSteel Refrigerated Counter Top 7x 1/4GN 7450.0009 then please get in touch.
