G-Line by TEFCOLD GVC33-120 Gastronorm Topping Shelf

£319.00

+vat

- +

SKU: 30827

Product summary

  • Stainless steel
  • Glass structure for protection of food
  • Accepts GN1/4 pan(s) (not supplied)
  • Digital controller and temperature display
  • Static cooling
  • Adjustable feet

Product description

Topping Shelves for Gastronorm Pans

Elevate your catering business with the GVC Gastronorm Topping Shelfs. Specifically designed for food service, these enhance your operations with advanced features. Options with glass guard ensuring hygiene and visibility. Organise and display toppings at optimal temperatures for quick food prep. Fully automatic, it maintains temperatures from 2°C to 8°C via a static cooling system, preserving freshness. Manual defrost prevents ice build-up.

SPECIFICATION 38 facts · tap for all External W × D × H1200 x 335 x 448 mmWidth1200 mmDepth335 mmGross / net weight29 / 25 kgGross weight29 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181365349site
Product code 30827site
Sub title Gastronorm Topping Shelfcatalogue
Type Glass Topping Unitscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 335 mmsite
External (W×D×H) 1200 × 335 × 448 mmcatalogue
External W × D × H 1200 x 335 x 448 mmsite
Gross / net weight 29 / 25 kgsite
Gross weight 29 kgcatalogue
Height 448 mmsite
Internal (W×D×H) 850 × 245 × 150 mmcatalogue
Internal W × D × H 850 x 245 x 150 mmsite
Packed (W×D×H) 1300 × 375 × 280 mmcatalogue
Packed W × D × H 1300 x 375 x 280 mmsite
Width 1200 mmsite

Capacity3

Capacity item specification 5 x GN1/4 pcscatalogue
GN pan capacity 5 x GN1/4site
Gross volume 31 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 45 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 964 kWh/yearsite
Energy consumption 2.64 kWh/24hsite
Input power 110 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish SS201site
Feet / legs Adjustable Feetsite
THE WORKING VIEW

Why this glass topping unit earns its place

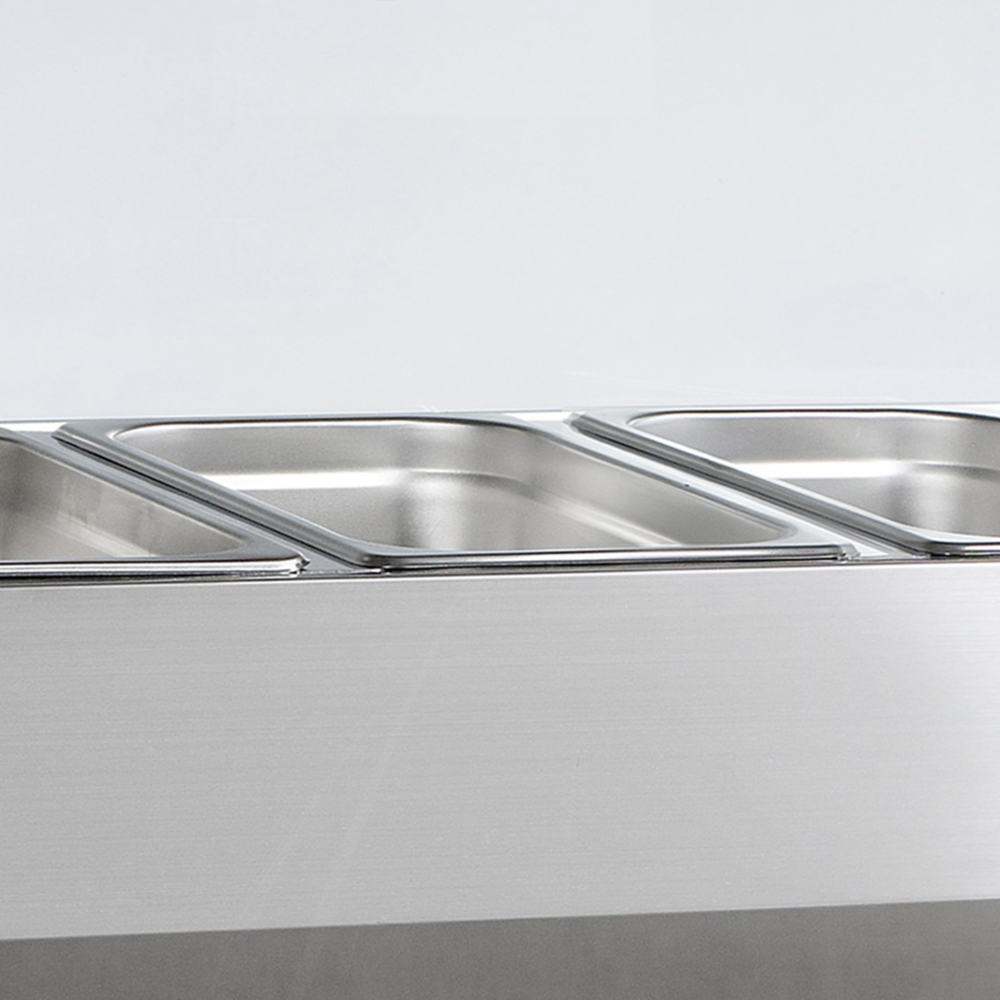

The GVC33-120 topping shelf sits above a prep counter and keeps ingredient pans chilled at the point of assembly. The chilled well runs 850 × 245 × 150 mm internally and gives 26 litres net, 31 litres gross, taking gastronorm pans so toppings, garnishes and made-up ingredients stay to hand and to temperature through service.

It holds a +2 to +8 °C band under electronic control using static cooling. Defrost is manual, so build a short defrost into the cleaning routine rather than leaving it to run continuously. At 40 dB it is quiet enough for an open pass, and on its verified figure of 963.6 kWh a year it costs about £241 a year to run at 25p/kWh.

The unit is finished in SS201 stainless steel inside and out and weighs 25 kg net, 29 kg gross, so it is light enough to reposition on the counter. It runs on a standard 13 A, 220–240 V supply and the sealed system holds 45 g of R600a refrigerant, needing no special installation beyond a suitable socket and a level surface.

BEFORE YOU BUY

Questions, answered straight

It sits above a prep counter and keeps ingredient pans chilled at the point of assembly. The GVC33-120 has an 850 × 245 × 150 mm well giving 26 litres net for gastronorm pans held at +2 to +8 °C.

It maintains a +2 to +8 °C band under electronic control using static cooling, suited to chilled toppings and made-up ingredients on the line.

No, defrost is manual. Build a short defrost into your cleaning schedule rather than relying on an automatic cycle.

On its verified figure of 963.6 kWh a year, that is about £241 a year at 25p/kWh. It runs at 40 dB.

It runs on a standard 13 A, 220–240 V supply, and the sealed system holds 45 g of R600a refrigerant. No special installation is required beyond a suitable socket.

Yes, our engineers service Craven Cooling equipment across the region. Call 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 850 x 245 x 150 mm
External Dimension (WxDxH): 1200 x 335 x 448 mm
Packed Dimension (WxDxH): 1300 x 375 x 280 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 45 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.64 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 964 kWh/year m³
Input Power: 110 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Capacity GN Pans: 5 x GN1/4 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 29 / 25 kg
Gross / Net Volume: 31 / 26 l
Max Ambient: +30°C, 55% RH

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: SS201
Interior Finish: SS201
If you have any questions about the G-Line by TEFCOLD GVC33-120 Gastronorm Topping Shelf then please get in touch.
