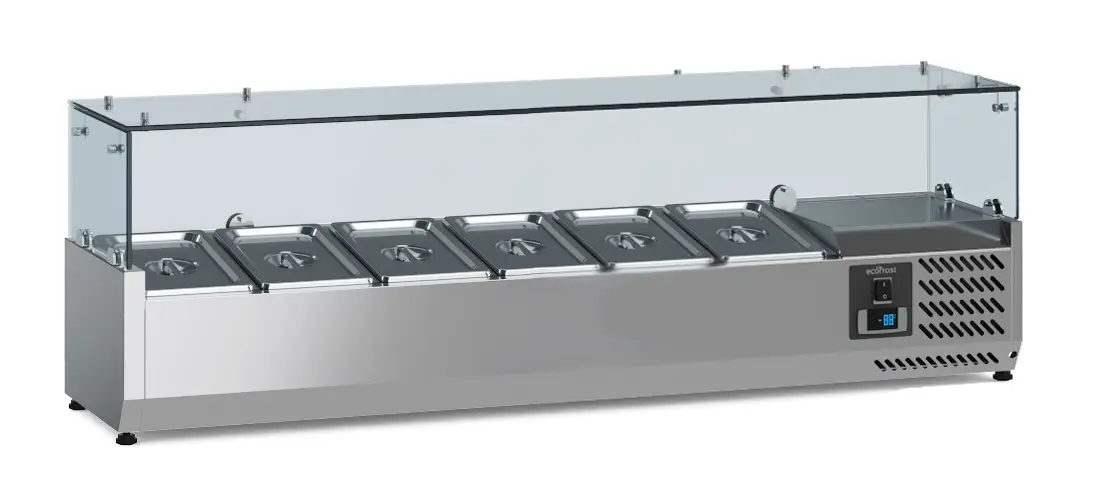

CombiSteel Refrigerated Counter Top 6x 1/4GN 7950.5117

+vat

Brand:

SKU: 7950.5117

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 25 facts · tap for all External W × D × H1400 x 335 x 435Width1400 mmDepth335 mmHeight435 mmGross / net weight50 kgVoltage / frequency230 volts / hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6017430723793site
Product code 7950.5117site
Type Glass Topping Unitscatalogue

Size & weight8

Depth 335 mmsite
External (W×D×H) 1400 × 335 × 435 mmcatalogue
External W × D × H 1400 x 335 x 435site
Gross / net weight 50 kgsite
Height 435 mmsite
Internal (W×D×H) 1050 × 251 × 165 mmcatalogue
Internal W × D × H 1050x251x165site
Width 1400 mmsite

Capacity1

Gastronorm size 6 x 1/4catalogue

Performance5

Cooling Staticcatalogue
Defrost Automaticcatalogue
Max ambient 32 °Ccatalogue
Refrigerant R 600 Acatalogue
Temperature range 32site

Power & energy4

Rated input 110 Wcatalogue
Rated power 0.11 kWcatalogue
Voltage 230Vcatalogue
Voltage / frequency 230 volts / hzsite

Build & fittings3

Accessories 5x GN barcatalogue
Exterior finish Stainless steel 18/8site
Interior finish Stainless steel 201site
THE WORKING VIEW

Why this glass topping unit earns its place

The 7950.5117 is a benchtop refrigerated topping unit that takes six 1/4 GN pans, sitting 1.4 m wide and 335 mm deep on an existing counter. It keeps prepped toppings, garnishes and cold ingredients chilled at 2–8 °C and within reach as staff build to order, weighing 50 kg and running on a standard 230 V socket at just 110 W.

The glass topping design keeps stock covered and on show while the line works. Standing on the worktop rather than under it, it suits prep and service points where chilled toppings need to be to hand but floor space is spoken for. Built from stainless steel 18/8, it resists the kitchen's salt and acid spray.

Check the electrical supply, weight and footprint in the spec table against your bench — it stands 435 mm high — and leave room around it for airflow. Use the calculators below to size and cost your setup.

BEFORE YOU BUY

Questions, answered straight

It is sized for six 1/4 GN pans, so you can split toppings and garnishes across six chilled compartments. Pan depths are your choice within the GN standard.

It is a countertop topping unit — it stands on an existing worktop rather than replacing it, so you keep chilled toppings at the point of service without giving up floor space. Check its footprint and weight in the spec table against your bench.

It holds ingredients at 2–8 °C, the safe service band for prepped toppings and garnishes through a shift. Full operating details are in the specification table on this page.

At 110 W, it runs on a domestic socket and costs very little to keep chilled. Feed the exact figures into the energy label decoder or finance calculator below to get pounds per year on your tariff.

Empty and wash the pan wells and glass regularly, and keep the ventilation grilles clear to protect performance. Craven Cooling covers installation and servicing on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Counter Top 6x 1/4GN 7950.5117 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1400 × 335 × 435 mm
Interior Dimensions 1050x251x165
GN Capacity 6 x 1/4
Material Stainless steel 18/8
Interior Material Stainless steel 201
Temperature Range +2 / +8
Max. Ambient Temp. 32
Refrigerant R 600 A
Cooling Static
Defrost Automatic
Electrical Power 0.11 kW
Voltage 230V
Weight 50 kg
If you have any questions about the CombiSteel Refrigerated Counter Top 6x 1/4GN 7950.5117 then please get in touch.
