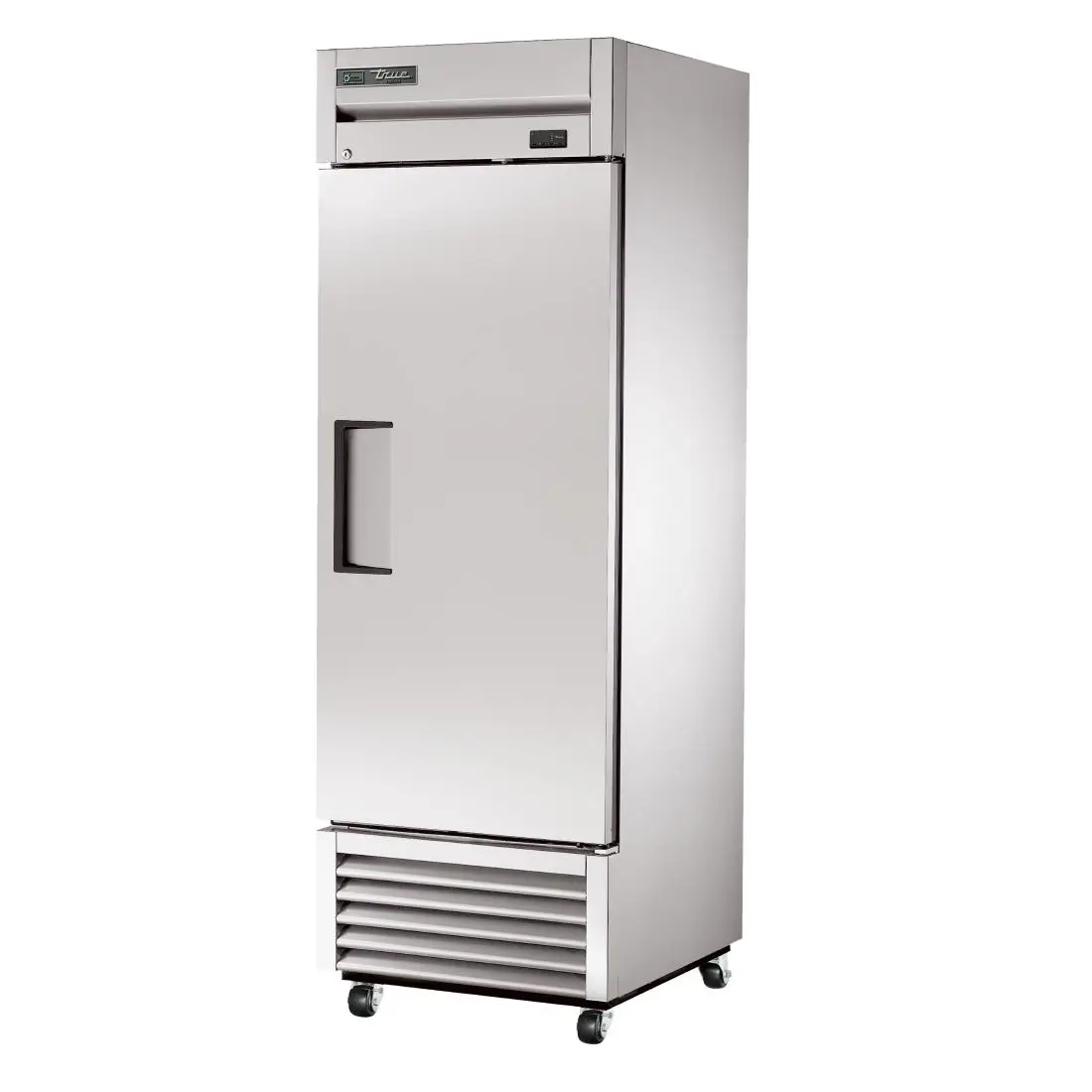

True 1 Door 651Ltr Cabinet Freezer T-23F-HC CW384

£3,081.41

+vat

Availability: 999 in stock

Brand:

SKU: CW384

Product summary

St/St Front. Alu Sides, Back and Int. R290

Product description

Reach-In Solid Swing Door Freezer with Hydrocarbon Refrigerant. True¿s solid door reach-in¿s are designed with enduring quality that protects your long term investment. Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today¿s food service marketplace.

Industry-leading comprehensive 7 Year Parts & Labour Warranty
True patented RCU Technology reverses the direction of the condenser fan during off cycles, to help keep condenser coil free from dirt, dust and debris.
Door locks as standard.
Digital control for state of the art temperature precision.
Supplied with 64 mm Castors
Bottom mount design places the Compressor in the coolest, most grease free area of kitchen for better performance, and easy accessibility for cleaning.
Entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
High tensile stainless steel front, for fewer dents and scratches.
Supplied with fully adjustable, heavy duty PVC coated wire shelves.
Climate Class 5 certified for efficient operation even in 40°C kitchen environments.
State of the art, True “HC” hydrocarbon refrigeration system holds -23°C, for the best in food preservation.
Lifetime guaranteed door hinges and torsion-type self closure system.

The True CW384 (T-23F-HC) is a single-door upright commercial cabinet freezer, giving busy back-of-house kitchens reach-in frozen storage in a single-door upright footprint that sits neatly in a commercial kitchen line-up.

Downloads

SPECIFICATION 39 facts · tap for all Width686 mmDepth750 mmHeight2074 mmGross weight107 kgVoltage230VTemperature range-23 to -18 °C

Identity5

Brand Truesite
Model ref T-23F-HCcatalogue
Product code CW384site
Type Upright Freezerscatalogue
Warranty 7 Years Parts & Labourcatalogue

Size & weight6

Depth 750 mmcatalogue
External (W×D×H) 2074 × 686 × 750 mmcatalogue
Gross weight 107 kgcatalogue
Height 2074 mmcatalogue
Internal (W×D×H) 1300(H) x 591(D)mmcatalogue
Width 686 mmsite

Capacity7

Capacity 80 kg per shelfcatalogue
Door type Hingedcatalogue
Doors 1catalogue
Gross volume 651 litrescatalogue
Net volume 438 litrescatalogue
Product capacity 651catalogue
Shelves 4catalogue

Performance4

Climate class 5catalogue
Cooling Forced Aircatalogue
Refrigerant R290 / GWP 3catalogue
Temperature range -23 to -18 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 506 Wcatalogue
Voltage 230Vcatalogue

Build & fittings6

Colour Silvercatalogue
Doorocation Frontcatalogue
Finish (exterior) Stainless Steelcatalogue
Finish (interior) Aluminiumcatalogue
Insulation 43 mmcatalogue
Material Stainless Steel & Aluminiumcatalogue

Other stated facts8

EEI 56.2 %catalogue
Energy (24h) 5.649 kWh/24hcatalogue
Energy class Dcatalogue
Energy consumption 2039 kWh/yearcatalogue
Mobility Castorscatalogue
Output per hour 897Wcatalogue
Plug notice Yescatalogue
Suitable for FOH/BOHcatalogue
THE WORKING VIEW

Why this upright freezer earns its place

The CW384 is True's T-23F-HC single-door cabinet freezer — an upright, reach-in unit for holding frozen stock back-of-house. It's built in stainless steel and aluminium and holds 438 litres of net storage across four shelves, each rated for 80 kg, keeping prepped batches and bought-in goods organised at arm's reach rather than buried in a chest.

A single full-height hinged door opens onto the frozen storage, so staff pull stock at standing height without two people waiting on each other. At -23 to -18°C with forced-air cooling and R290 refrigerant, it delivers the temperature bands commercial kitchens need. The unit weighs 107 kg, stands 2074 mm tall and takes a 686 mm width and 750 mm depth on the kitchen floor.

It's a free-standing upright built for a standard kitchen run. Running cost sits around 2039 kWh per year depending on your tariff and ambient conditions — plug the figures into the energy label decoder on this page. True's 7-year parts and labour warranty backs the build. Check the exact dimensions in the spec panel against your doorway and available floor space before you order.

BEFORE YOU BUY

Questions, answered straight

It's True's T-23F-HC single-door upright cabinet freezer — a reach-in unit that holds frozen stock at standing height in a commercial kitchen line-up.

The capacity and internal layout are listed in the spec panel on this page. As a single-door upright it's built for organised, dedicated frozen storage back-of-house.

The freezer temperature band, cooling method and energy figures are all listed in the spec panel. Check them against the stock you need to hold.

Check the width, depth and height in the spec panel against your doorway and the floor gap it needs to sit in. It's a free-standing upright designed for a standard kitchen run.

Warranty terms are shown in the spec panel, and Craven Cooling covers installation, servicing and breakdown support UK-wide — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

True 1 Door 651Ltr Cabinet Freezer T-23F-HC CW384 Product Data

Brand True
Type Upright Freezers
Dimensions 2074(H) x 686(W) x 750(D)mm
Capacity 80 kg per shelf
Material Stainless Steel & Aluminium
Colour / Finish Silver
Temperature Range -23°C to -18°C
Refrigerant R290 / GWP 3
Cooling Forced Air
Number of Doors 1
Number of Shelves 4
Energy Rating D
Annual Energy Use 2039kWh/annum
Power Electric
Voltage 230V
Fuel / Supply Plug
Suitable For FOH/BOH
Warranty 7 Years Parts & Labour
Weight 107kg
Manufacturer Ref T-23F-HC
If you have any questions about the True 1 Door 651Ltr Cabinet Freezer T-23F-HC CW384 then please get in touch.
