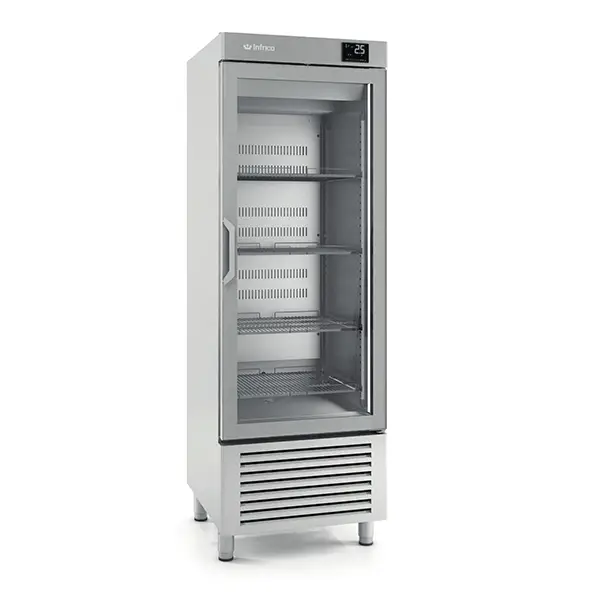

INFRICO Upright Single Hinged Glass Door Freezer AN501BT-CR

£3,329.72

+vat

Brand:

SKU: AN501BT-CR

Product summary

Size: 687 x 700 x 2060

Product description

  • High grade AISI 304 stainless steel exterior and interior
  • Heated triple glazed door
  • Supplied with 4 shelves per door (530 x 400)
  • Internal LED lighting
  • Glass may appear darker than images shown
  • Rounded internal corners for easy cleaning
  • Replaceable door gasket

The INFRICO AN501BT-CR is a single glass-door upright commercial freezer measuring 687 × 700 × 2060 mm, running on R290 refrigerant with automatic defrost and a climate class 4 rating for kitchens that run warm.

SPECIFICATION 24 facts · tap for all External W × D × H687 x 700 x 2060Width687 mmDepth700 mmHeight2060 mmGross weight156 kgVoltage / frequency947W

Manufacturer documents2

Identity3

Brand INFRICOsite
Product code AN501BT-CRsite
Type Single Door Commercial Upright Freezerscatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 687 × 700 × 2060 mmcatalogue
External W × D × H 687 x 700 x 2060site
Gross weight 156 kgcatalogue
Height 2060 mmsite
Width 687 mmsite

Capacity2

Doors 1catalogue
Gross volume 500 litrescatalogue

Performance5

Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range -18C/-22Csite

Power & energy3

Input power 13amp supplysite
Rated input 947 Wcatalogue
Voltage / frequency 947Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 4site

Other stated facts1

Energy consumption 2087 kWh/yearcatalogue
THE WORKING VIEW

Why this single door commercial upright freezer earns its place

The AN501BT-CR is a single glass-door upright freezer built for back-of-house frozen storage. The glass front lets staff read stock levels at a glance, so the door stays shut and the cold stays in through a busy service.

Day to day it runs on automatic defrost, so there is no manual scraping or scheduled shutdown to manage. It uses R290, a natural hydrocarbon refrigerant with low global warming potential, and carries a climate class 4 rating that keeps it holding temperature in kitchens that run warm.

The cabinet measures 687 × 700 × 2060 mm (W×D×H) and weighs 156 kg gross, so plan delivery and siting accordingly. At 687 mm wide it clears a standard doorway, which makes it straightforward to move into most kitchens and cellars.

BEFORE YOU BUY

Questions, answered straight

Yes. The cabinet is 687 mm wide, so it clears a standard doorway. Overall it measures 687 × 700 × 2060 mm (W×D×H), and it weighs 156 kg gross, so plan handling and siting before delivery.

It runs on R290, a natural hydrocarbon refrigerant with a low global warming potential.

No. The freezer uses automatic defrost, so there is no manual scraping or scheduled shutdown to manage.

It carries a climate class 4 rating, which means it is built to hold temperature in kitchens and back-of-house areas that run warm.

It weighs 156 kg gross. It is a floor-standing upright at 2060 mm tall, so make sure the floor and the route in can take the weight and the height.

Yes. Craven Cooling services commercial refrigeration across the UK. Call the team on 01792 732702 to arrange servicing or support.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 687 x 700 x 2060

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: -18C/-22C °C
Input Power: 13amp supply
Voltage / Frequency: 947W

Measures and Content

Temperature Range: -18C/-22C °C
Climate Class: 4
Gross / Net Volume: 500 ltr l

Design and Material

Shelves Number & Type: 4
Exterior Finish: Stainless Steel

INFRICO Upright Single Hinged Glass Door Freezer AN501BT-CR Product Data

If you have any questions about the INFRICO Upright Single Hinged Glass Door Freezer AN501BT-CR then please get in touch.
