INOMAK Upright 560L Slim Single Hinged Door Freezer CBP172SL

£1,945.28

+vat

- +

Brand:

SKU: CBP172SL

Product summary

Size: 720 x 768 x 2115

Product description

  • High grade AISI 304 stainless steel exterior & interior
  • Replaceable door gaskets
  • Reversible door
  • Lock as standard
  • Castors supplied only, to be fitted on site
  • With natural refrigerant¬†R290¬†(Zero ODP/GWP=3)
  • LED Light System
  • Hygienically designed interior
  • Material AISI 304¬†18/8-10
  • self-closing door at 90¬∞

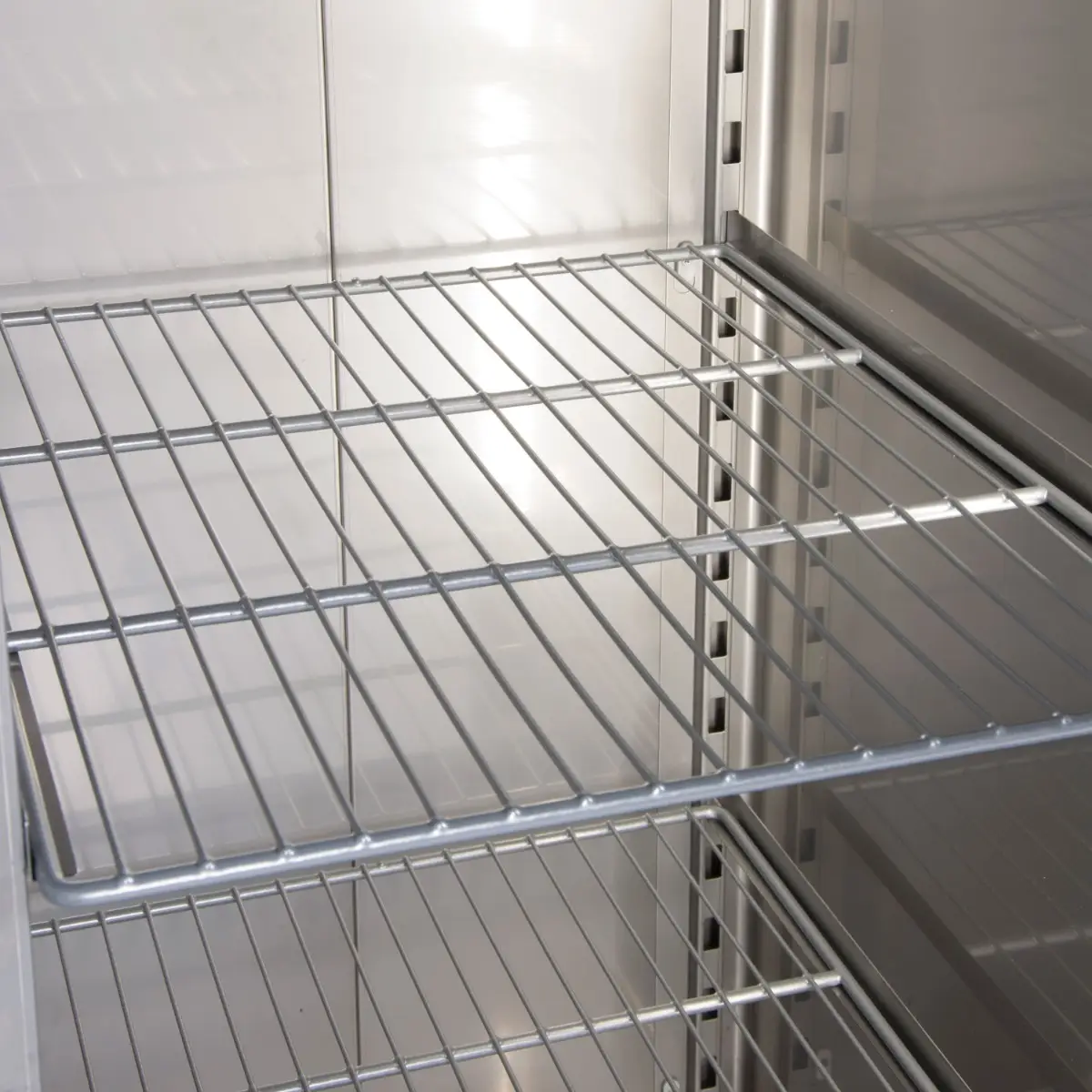

  • 3 shelves per door
  • Forced air circulation technology
  • Clip-On Guides for fast & easy cleaning
  • Embedded controller for easy operation and cleaning
  • Removable magnetic door gasket
  • One Lock per door as standard

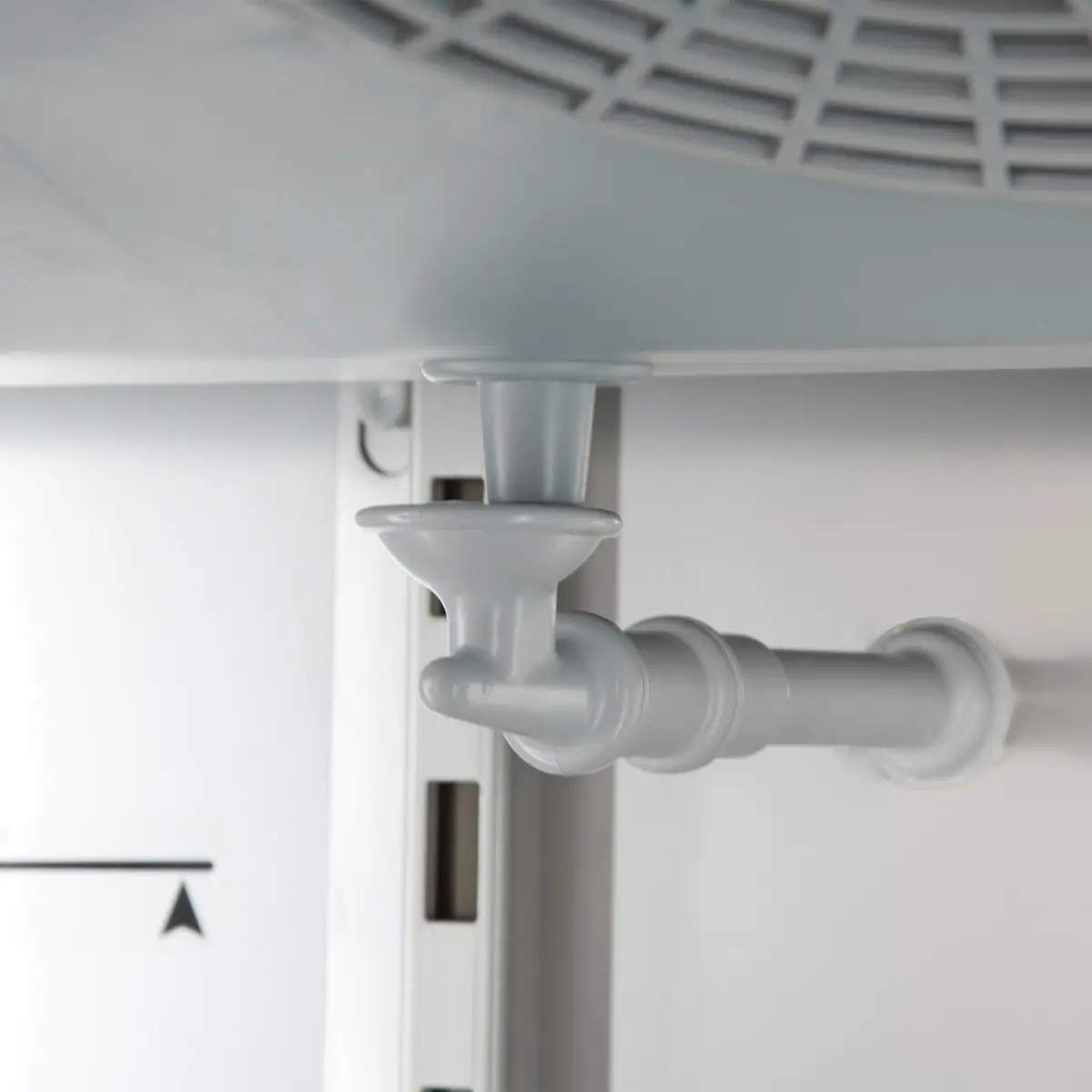

  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Automatic defrost
  • Compact Dimensions/Slim¬†for Smaller Spaces
  • Ambient temperature +43 C
  • Door thickness 70 mm
SPECIFICATION 24 facts · tap for all External W × D × H720 x 768 x 2115Width720 mmDepth768 mmHeight2115 mmGross weight144 kgVoltage / frequency598W

Manufacturer documents2

Identity3

Brand INOMAKsite
Product code CBP172SLsite
Type Single Door Commercial Upright Freezerscatalogue

Size & weight6

Depth 768 mmsite
External (W×D×H) 720 × 768 × 2115 mmcatalogue
External W × D × H 720 x 768 x 2115site
Gross weight 144 kgcatalogue
Height 2115 mmsite
Width 720 mmsite

Capacity2

Doors 1catalogue
Gross volume 560 litrescatalogue

Performance6

Climate class 5site
Controller Digital controller with temperature displaysite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range -10C / -22Csite

Power & energy3

Input power 13amp supplysite
Rated input 598 Wcatalogue
Voltage / frequency 598Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 4site
THE WORKING VIEW

Why this single door commercial upright freezer earns its place

The INOMAK CBP172SL is a slim upright freezer for kitchens that need a full-height frozen store without a wide footprint. It gives 560 litres of gross capacity behind a single hinged door, with four shelves for organising boxed, bagged and prepped frozen stock.

The cabinet operates from -10 to -22 °C with ventilated cooling, automatic defrost and a digital controller with temperature display. Climate class 5, plus the manufacturer's stated +43 °C ambient capability, makes it suitable for warm commercial kitchens where domestic-grade freezers struggle. It uses R290 refrigerant, described by the manufacturer as natural refrigerant with zero ODP and GWP 3.

The build is high-grade AISI 304 stainless steel with a hygienic interior, clip-on guides for faster cleaning, LED lighting, a removable magnetic gasket, a reversible self-closing door and a lock as standard. It measures 720 mm wide, 768 mm deep and 2115 mm high, weighs 144 kg and runs from a 13amp supply at 598 W. Castors are supplied for fitting on site, so plan the delivery route, final position and airflow clearance before it arrives.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 720 mm wide and 768 mm deep, so check those dimensions against your doorway and turning space. At 2115 mm high and 144 kg, it also needs headroom and suitable handling on the delivery route.

It runs on R290. The manufacturer describes this as a natural refrigerant with zero ODP and GWP 3.

No. The CBP172SL has automatic defrost, supported by ventilated cooling and automatic evaporation of condensate water.

Yes. It carries climate class 5, and the manufacturer states an ambient temperature capability of +43 °C.

The stated freezer range is -10 to -22 °C, controlled through a digital controller with temperature display.

The freezer weighs 144 kg. Castors are supplied but fitted on site, so plan for proper handling equipment and leave clearance around the cabinet for airflow.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 720 x 768 x 2115

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: -10C / -22C °C
Input Power: 13amp supply
Voltage / Frequency: 598W

Measures and Content

Temperature Range: -10C / -22C °C
Climate Class: 5
Gross / Net Volume: 560 ltr l

Design and Material

Shelves Number & Type: 4
Exterior Finish: Stainless Steel
