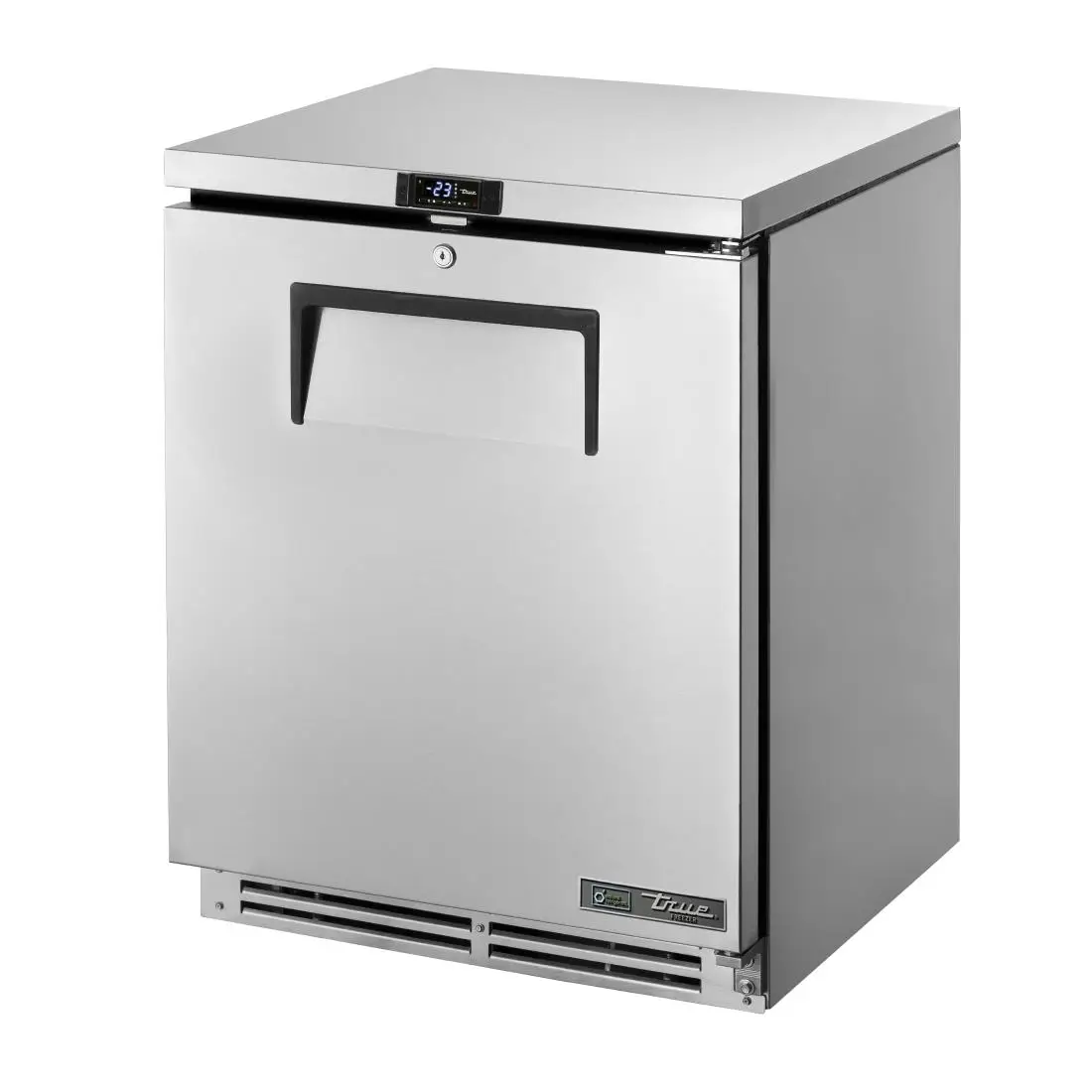

True 1 Solid Hinged Door Undercounter Freezer TUC-24F-HC CK308

£1,373.55

+vat

Availability: 999 in stock

Brand:

SKU: CK308

Product summary

Single Door Hinged

Product description

True 1 Solid Hinged Door Undercounter Freezer 147Ltr (Stainless Steel) (Direct)

Industry-leading comprehensive 7 Year Parts & Labour Warranty
Climate Class 5 certified for efficient operation even in 40°C kitchen environments.
Standard with Locks.
Large 93 Litre Net capacity.
Finished stainless steel countertop.
Built-in castors, for easy positioning.
High tensile stainless steel front, for fewer dents and scratches.
Supplied with fully adjustable, heavy duty PVC coated wire shelves.
Reversible door-hinging.
A fully commercial ‘forced air’ Refrigeration system within a small footprint unit.
100% front-breathing for zero clearance install.
State of the art, True “HC” hydrocarbon refrigeration system for the best in food preservation.

The True CK308 is a single solid-door undercounter freezer (model TUC-24F-HC), built to sit beneath a worktop and hold frozen stock at the point of use.

Downloads

SPECIFICATION 40 facts · tap for all Width610 mmDepth629 mmHeight802 mmGross weight57 kgVoltage230VTemperature range+0.5 to +3.3 °C

Identity6

Brand Truesite
Model ref TUC-24F-HCcatalogue
Product code CK308site
Seo name True Solid Hinged Door Undercounter Freezercatalogue
Type Under Counter Freezerscatalogue
Warranty 7 Years Parts & Labourcatalogue

Size & weight6

Depth 629 mmcatalogue
External (W×D×H) 802 × 610 × 629 mmcatalogue
Gross weight 57 kgcatalogue
Height 802 mmcatalogue
Internal (W×D×H) 600(H) x 352(D)mmcatalogue
Width 610 mmsite

Capacity7

Capacity 147Ltrcatalogue
Door type Hingedcatalogue
Doors 1catalogue
Gross volume 147 litrescatalogue
Net volume 94 litrescatalogue
Product capacity 147catalogue
Shelves 2catalogue

Performance4

Climate class 5catalogue
Cooling Forced Aircatalogue
Refrigerant R290 / GWP 3catalogue
Temperature range +0.5 to +3.3 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 368 Wcatalogue
Voltage 230Vcatalogue

Build & fittings6

Colour Silvercatalogue
Doorocation Frontcatalogue
Finish (exterior) Stainless Steelcatalogue
Finish (interior) Aluminiumcatalogue
Insulation 44.45 mmcatalogue
Material Stainless Steel & Aluminiumcatalogue

Other stated facts8

EEI 44.4 %catalogue
Energy (24h) 4.256 kWh/24hcatalogue
Energy class Ccatalogue
Energy consumption 1300 kWh/yearcatalogue
Indoor / outdoor Undercountercatalogue
Mobility Castorscatalogue
Plug notice Yescatalogue
Suitable for FOH/BOHcatalogue
THE WORKING VIEW

Why this under counter freezer earns its place

The CK308 is an undercounter freezer that fits within a standard worktop footprint: 802 mm wide and 629 mm deep. It holds 147 litres total (94 litres usable), so frozen components stay at the prep station rather than back in a walk-in. A single solid hinged door keeps the temperature between openings, and the unit weighs 57 kg when empty.

Day to day, the undercounter layout returns frozen stock to the line so staff are not crossing the kitchen. Two internal shelves let you sort stock rather than stack it on the floor. The worktop-height cabinet also works as usable bench space above the storage, and staff can see what's held when the door is open.

The CK308 runs on standard 230V power and holds frozen stock at -0.5°C to -3.3°C. It consumes around 1300 kWh per year and carries a 7-year parts-and-labour warranty. Confirm your under-counter aperture height and depth before installation, allow ventilation clearance for airflow, and site the unit on a level floor clear of ovens and other heat sources.

BEFORE YOU BUY

Questions, answered straight

It is designed as an undercounter cabinet: 802 mm wide and 629 mm deep. Measure your under-counter aperture height and depth, and allow ventilation clearance around the sides and back, before ordering.

A single solid hinged door. The solid door holds temperature well between openings and the hinge suits a fixed under-counter position. At 57 kg, it is a manageable unit for most kitchen installations.

It holds 147 litres total, with 94 litres of usable space across two internal shelves. That is enough for a prep section to stay stocked without walking back to the walk-in.

It holds frozen stock between -0.5°C and -3.3°C, which is the standard commercial freezer band. It consumes about 1300 kWh per year on standard 230V power.

Yes. We install and service commercial undercounter units across the range — the CK308 carries a 7-year parts-and-labour warranty, and our team can arrange installation or planned servicing on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

True 1 Solid Hinged Door Undercounter Freezer TUC-24F-HC CK308 Product Data

Brand True
Type Under Counter Freezers
Dimensions 802(H) x 610(W) x 629(D)mm
Capacity 147Ltr
Material Stainless Steel & Aluminium
Colour / Finish Silver
Temperature Range 0.5°C to 3.3°C
Refrigerant R290 / GWP 3
Cooling Forced Air
Number of Doors 1
Number of Shelves 2
Energy Rating C
Annual Energy Use 1300kWh/annum
Power 1.6 A
Voltage 230V
Fuel / Supply Plug
Suitable For FOH/BOH
Warranty 7 Years Parts & Labour
Weight 57kg
Manufacturer Ref TUC-24-F-HC
If you have any questions about the True 1 Solid Hinged Door Undercounter Freezer TUC-24F-HC CK308 then please get in touch.
