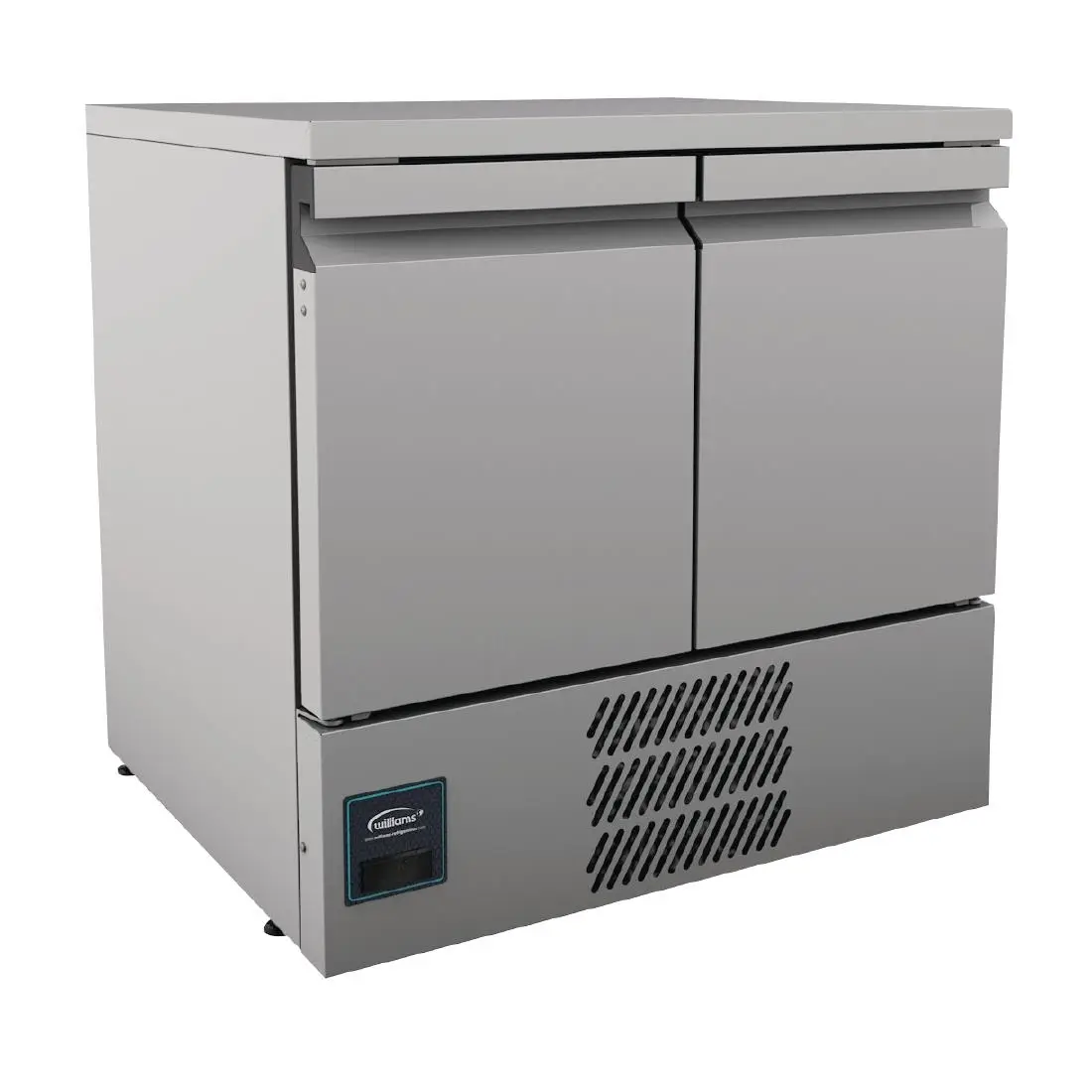

Williams Aztra Double Door Undercounter Freezer 234Ltr LAZ10CT-SA FD365

£2,747.62

+vat

Availability: 999 in stock

Brand:

SKU: FD365

Product summary

379W. Total usable capacity: 146Ltr. R290

Product description

The Aztra range of single and double door undercounter gastronorm cabinets save space while offering practical storage solutions, even in ambient up to 43°C.

Self-closing doors with integrated easy-grab handles
Four removable shelves offer adjustable storage space
1/1GN compatibility for easy transfer of gastronorms
146Ltr of usable capacity from an 885 x 6734mm footprint
CoolSmart controller for easy use and clear displays
Front-vented for easy installation into tight spaces
Rear castors with adjustable front feet for stability
Operates efficiently in ambient temperatures up to 40°C
Advanced airflow design eliminates potential warm spots
Stainless steel exterior with aluminium interior walls
75mm polyurethane insulation with low GWP and zero ODP
Magnetic balloon door gasket with 100% tight seal

The Williams Aztra LAZ10CT-SA is a 234Ltr double-door Aztra undercounter freezer with 146 litres net volume, four 1/1 GN shelves and a -18 to -22 °C operating range for frozen stock at the kitchen line.

Downloads

SPECIFICATION 31 facts · tap for all Width734 mmHeight885 mmGross weight86 kgVoltage230VTemperature range-22 to -18 °CCapacity234Ltr

Identity6

Brand Williamssite
Model ref LAZ10CTSA HC R3catalogue
Product code FD365site
Range / series Aztracatalogue
Type Under Counter Freezerscatalogue
Warranty 2 Yearscatalogue

Size & weight4

External (W×D×H) 870 × 885 × 734 mmcatalogue
Gross weight 86 kgcatalogue
Height 885 mmcatalogue
Width 734 mmsite

Capacity6

Capacity 234Ltrcatalogue
Doors 2catalogue
Gastronorm size 1/1 GN fullcatalogue
Net volume 146 litrescatalogue
Product capacity 234catalogue
Shelves 4catalogue

Performance4

Climate class 5catalogue
Cooling Aircatalogue
Refrigerant R290 / GWP 3catalogue
Temperature range -22 to -18 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 379 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steel & Aluminiumcatalogue

Other stated facts6

EEI 55.66 %catalogue
Energy (24h) 4.93 kWh/24hcatalogue
Energy class Dcatalogue
Energy consumption 1800 kWh/yearcatalogue
Mobility Feetcatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this under counter freezer earns its place

The Aztra LAZ10CT-SA is the double-door undercounter freezer in Williams' Aztra range, built for kitchens that need proper frozen holding in the counter run rather than a trip to an upright or walk-in every few minutes. It is listed as a 234Ltr cabinet with 146 litres of usable net volume, four shelves and 1/1 GN full-size compatibility, so it suits organised service stock rather than loose back-room storage.

The freezer works across -18 to -22 °C with air cooling and R290 refrigerant with GWP 3. Two doors let the team open one side while the other stays closed, which is useful when one section is being worked hard through service. Williams state the Aztra undercounter gastronorm cabinets are designed to save space and offer practical storage even in ambient conditions up to 43 °C; this model is climate class 5.

The cabinet is stainless steel and aluminium, with a silver finish, 230V supply and 379 W rated input. Its source-listed external size is 870 × 885 × 734 mm and gross weight is 86 kg, so check the route in, the final undercounter space and ventilation before delivery.

BEFORE YOU BUY

Questions, answered straight

It is built as an Aztra undercounter cabinet, with source-listed external dimensions of 870 × 885 × 734 mm and an 86 kg gross weight. Measure the delivery route, final opening and ventilation space before ordering.

The double-door layout lets you open one side while the other stays closed, which is useful when different sections are drawing stock from the same freezer through service.

The specified operating range is -18 to -22 °C, with air cooling and R290 refrigerant with GWP 3.

Yes. The specification lists 1/1 GN full compatibility and four shelves, so it can be organised around standard gastronorm workflow.

It is energy class D, with stated consumption of 1800 kWh/year or 4.93 kWh/24h. Use the energy label decoder with your tariff for a running-cost estimate.

Site it beside the section that draws frozen stock most often. It runs from a 230V supply with 379 W rated input, so make sure the socket and clearance are ready at the final position.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Williams Aztra Double Door Undercounter Freezer 234Ltr LAZ10CT-SA FD365 Product Data

Brand Williams
Type Under Counter Freezers
Range Aztra
Dimensions 870(H) x 885(W) x 734(D)mm
Capacity 234Ltr
Material Stainless Steel & Aluminium
Colour / Finish Silver
Temperature Range -18°C to -22°C
Refrigerant R290 / GWP 3
Cooling Air
Number of Doors 2
Number of Shelves 4
Energy Rating D
Annual Energy Use 1800kWh/annum
Power 379W
Voltage 230V
Fuel / Supply Plug
Warranty 2 Years
Weight 86kg
Manufacturer Ref LAZ10CT-SA
If you have any questions about the Williams Aztra Double Door Undercounter Freezer 234Ltr LAZ10CT-SA FD365 then please get in touch.
