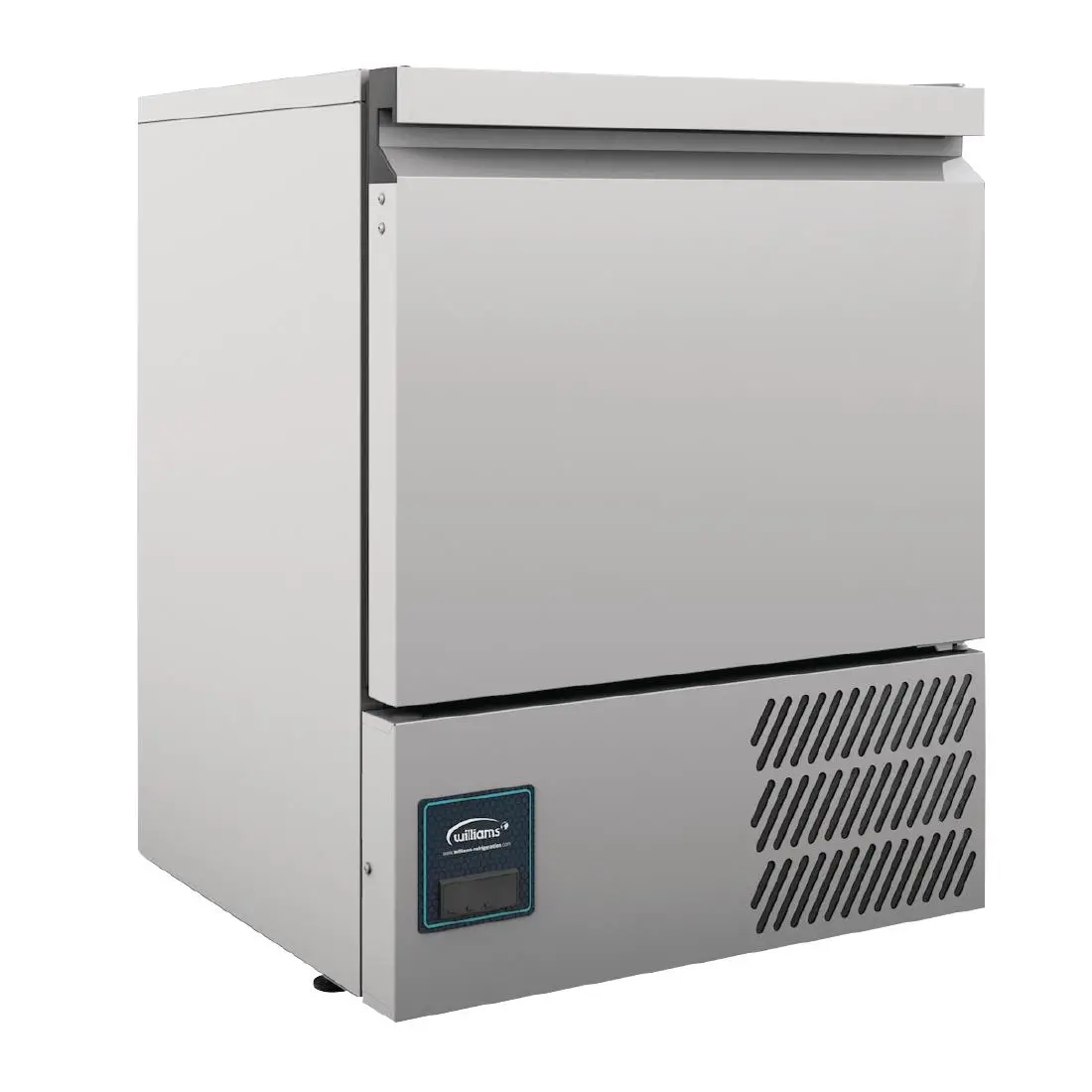

Williams Aztra Undercounter Freezer 131Ltr LAZ5UC-SA FD361

£1,847.19

+vat

Availability: 999 in stock

Brand:

SKU: FD361

Product summary

231W. Total usable capacity: 91Ltr. R290

Product description

The Aztra range of single and double door undercounter gastronorm cabinets save space while offering practical storage solutions, even in ambient up to 43°C.

Self-closing door with integrated easy-grab handle
Two removable shelves offer adjustable storage space
1/1GN compatibility for easy transfer of gastronorms
91Ltr of usable capacity from a 660 x 609mm footprint
CoolSmart controller for easy use and clear displays
Front-vented for easy installation into tight spaces
Rear castors with adjustable front feet for stability
Operates efficiently in ambient temperatures up to 30°C
Advanced airflow design eliminates potential warm spots
Stainless steel exterior with aluminium interior walls
75mm polyurethane insulation with low GWP and zero ODP
Magnetic balloon door gasket with 100% tight seal

The Williams Aztra LAZ5UC-SA is a 131Ltr undercounter freezer with 91 litres net capacity, two 1/1 GN shelves and a -18 to -22 °C range for frozen stock under the prep line.

Downloads

SPECIFICATION 31 facts · tap for all Width830 mmDepth609 mmGross weight66 kgVoltage230VTemperature range-22 to -18 °CCapacity131Ltr

Identity6

Brand Williamssite
Model ref LAZ5UC HC R2catalogue
Product code FD361site
Range / series Aztracatalogue
Type Under Counter Freezerscatalogue
Warranty 2 Yearscatalogue

Size & weight4

Depth 609 mmcatalogue
External (W×D×H) 830 × 660 × 609 mmcatalogue
Gross weight 66 kgcatalogue
Width 830 mmsite

Capacity6

Capacity 131Ltrcatalogue
Doors 1catalogue
Gastronorm size 1/1 GN fullcatalogue
Net volume 91 litrescatalogue
Product capacity 131catalogue
Shelves 2catalogue

Performance4

Climate class 4catalogue
Cooling Aircatalogue
Refrigerant R290 / GWP 3catalogue
Temperature range -22 to -18 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 231 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steel & Aluminiumcatalogue

Other stated facts6

EEI 53.66 %catalogue
Energy (24h) 4.28 kWh/24hcatalogue
Energy class Dcatalogue
Energy consumption 1563 kWh/yearcatalogue
Mobility Feetcatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this under counter freezer earns its place

The Williams Aztra LAZ5UC-SA is an undercounter commercial freezer built to put frozen holding in the counter run. It is listed as a 131Ltr model with 91 litres of usable net volume, giving a prep section more local frozen capacity than the smaller Aztra single-door unit while still keeping the worktop above free.

For day-to-day use, the -18 to -22 °C operating range, air cooling and two 1/1 GN full-size shelves make it a practical point-of-use freezer for portioned stock, par-baked items or batch-prepped ingredients. It uses R290 refrigerant with GWP 3 and is specified as climate class 4.

The cabinet is stainless steel and aluminium with a silver finish, a 230V supply and 231 W rated input. Its source-listed external size is 830 × 660 × 609 mm and gross weight is 66 kg, so check both the route in and the final undercounter aperture before ordering.

BEFORE YOU BUY

Questions, answered straight

It is an undercounter Aztra cabinet, with source-listed external dimensions of 830 × 660 × 609 mm and a 66 kg gross weight. Check the counter aperture, plinth, access route and ventilation space before fitting.

It is a commercial freezer for frozen stock kept at the prep line — portioned proteins, par-baked items and back-up stock. It keeps that stock frozen at the point of use, so the kitchen is not running to a walk-in mid-service.

Yes. It is a Williams Aztra commercial freezer with a -18 to -22 °C operating range, air cooling, R290 refrigerant and a listed two-year warranty.

It is listed as 131Ltr gross capacity with 91 litres net volume, two shelves and 1/1 GN full compatibility. The capacity calculator can help check that against your menu and covers.

The specification lists a 230V supply and 231 W rated input. Have the socket and final position checked before delivery.

The stated energy figures are class D, 1563 kWh/year and 4.28 kWh/24h. Use the energy label decoder with your tariff for a cost estimate.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Williams Aztra Undercounter Freezer 131Ltr LAZ5UC-SA FD361 Product Data

Brand Williams
Type Under Counter Freezers
Range Aztra
Dimensions 830(H) x 660(W) x 609(D)mm
Capacity 131Ltr
Material Stainless Steel & Aluminium
Colour / Finish Silver
Temperature Range -18°C to -22°C
Refrigerant R290 / GWP 3
Cooling Air
Number of Doors 1
Number of Shelves 2
Energy Rating D
Annual Energy Use 1563kWh/annum
Power 231W
Voltage 230V
Fuel / Supply Plug
Warranty 2 Years
Weight 66kg
Manufacturer Ref LAZ5UC-SA
If you have any questions about the Williams Aztra Undercounter Freezer 131Ltr LAZ5UC-SA FD361 then please get in touch.
