TEFCOLD SOCA-F37590B Serve Over Counter

£8,019.00

+vat

- +

Brand:

SKU: 68881

Energy Arrow

Product summary

  • Excellent product visibility
  • 50 mm deep tray for ice
  • Glass front lifts up for easy cleaning
  • Anti mist front glass
  • Black finish
  • Ventilated cooling
  • Temperature Class 3M1
  • LED top light
  • Stainless steel bumper bars
  • Stainless steel rear shelf
  • 2 x 220-240V sockets to rear
  • Can be multiplexed with kit (POA)

Product description

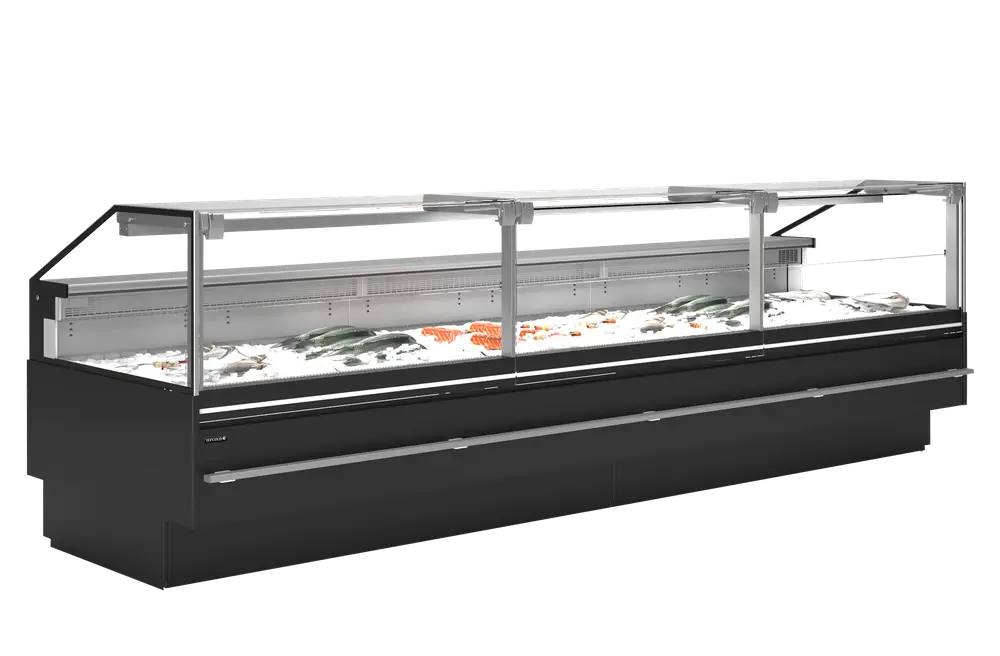

Premium serve over counter display ideal for fresh fish

The SOCA-F range of serve over counters is specifically designed to display fresh fish on ice. The stainless steel deck features a 50 mm deep tray, perfect for storing and layering the ice. The front glass lifts up for easy cleaning and the glass is anti-mist. You can also customise these units with accessories, with multiplexing options to create a full counter solution.

SPECIFICATION 39 facts · tap for all External W × D × H3798 x 1130 x 1190 mmWidth3798 mmDepth1130 mmGross / net weight565 / 470 kgGross weight565 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181754839site
Product code 68881site
Sub title Serve Over Countercatalogue
Type Flat Glass Serve Over Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1130 mmsite
External (W×D×H) 3798 × 1130 × 1190 mmcatalogue
External W × D × H 3798 x 1130 x 1190 mmsite
Gross / net weight 565 / 470 kgsite
Gross weight 565 kgcatalogue
Height 1190 mmsite
Internal (W×D×H) 3750 × 900 × 545 mmcatalogue
Internal W × D × H 3750 x 900 x 545 mmsite
Packed (W×D×H) 4000 × 1250 × 1400 mmcatalogue
Packed W × D × H 4000 x 1250 x 1400 mmsite
Width 3798 mmsite

Capacity1

Display area 2.97 m²site

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 150 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy5

Annual energy consumption 5256 kWh/yearsite
Energy consumption 14.4 kWh/24hsite
Input power 1000 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Black RAL9005site
Feet / legs Adjustable Feetsite
Interior light LEDsite
THE WORKING VIEW

Why this flat glass serve over fridge earns its place

The TEFCOLD SOCA-F37590B is a flat-glass serve-over counter with 2.97 m² of display area across a 3750 mm run. The flat glass and serve-over format put fresh product at eye level for counter service, making it a working display for delis, fish counters, butchers and patisserie sections where staff serve to order.

It holds -1 to +5 °C, a chilled band suited to fresh fish, meat and deli lines, using ventilated cooling for an even temperature across the length of the deck. Defrost is automatic and electric, control is electronic, and it carries a climate class 3 rating. Running noise is 60 dB. It uses 5256 kWh a year, which works out at about £1314 a year at 25p/kWh.

The counter measures 3750 × 1130 × 1190 mm (W×D×H) and ships packed at 4000 × 1250 × 1400 mm, so a wide access route and clear floor plan matter. It weighs 470 kg net (565 kg gross), cools by R290 natural refrigerant with a 150 g charge, and draws 1000 W from a 220–240 V/50 Hz supply.

BEFORE YOU BUY

Questions, answered straight

It holds -1 to +5 °C across 2.97 m² of display area, a chilled band suited to fresh fish, meat and deli lines served to order. Ventilated cooling keeps the temperature even along the full 3750 mm run.

The counter is 3750 × 1130 × 1190 mm (W×D×H) and ships packed at 4000 × 1250 × 1400 mm. Plan a wide access route for delivery, as it weighs 565 kg gross.

It uses 5256 kWh a year, which at 25p/kWh is about £1314 a year. Actual cost depends on ambient temperature, how often it is opened and how heavily it is loaded.

Defrost is automatic and electric, managed by the electronic controller, so frost is cleared without manual intervention. It carries a climate class 3 rating.

It runs at 60 dB. For servicing, installation planning or advice on positioning a counter of this size, contact Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 3750 x 900 x 545 mm
External Dimension (WxDxH): 3798 x 1130 x 1190 mm
Packed Dimension (WxDxH): 4000 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 2 x 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 14.4 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 5256 kWh/year m³
Input Power: 1000 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 565 / 470 kg
Gross / Net Volume: / 930 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.97 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD SOCA-F37590B Serve Over Counter then please get in touch.
