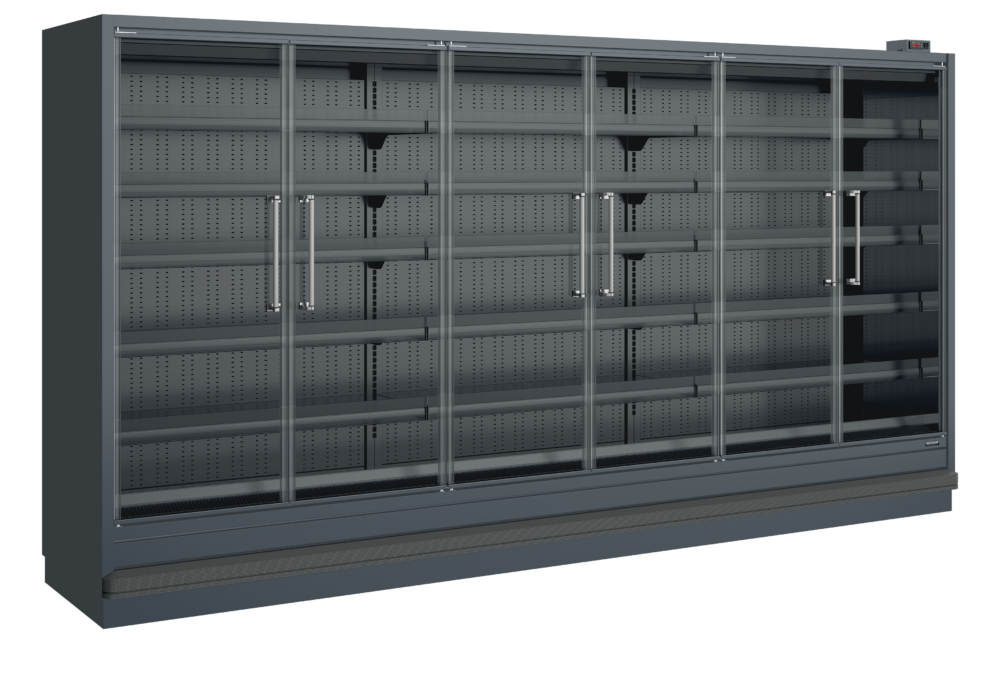

TEFCOLD Trojan T38 FGD EHA Remote Multideck – Extended Height

+vat

This product is currently out of stock and unavailable.

Brand:

SKU: 68215

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Requires remote refrigeration system (not supplied)
  • Horizontal LED lighting
  • Frameless glass doors for great product visibility
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • Solid 40 mm endwalls with mirrored interior
  • Digital controller and temperature display
  • Can be multiplexed with kit (POA)
  • EPOS Ticket strips & shelf risers
  • Extraction rate 650w/per metre
  • Fully automatic, fan assisted cooling

Product description

Remote Multideck – Extended Height

These remote multidecks are a great option for maximising your display space, helping to reduce the impact of both noise and heat. These come at an extended height. Available in 4 sizes. You can multiplex these units, with use of a kit, this allows you to create an even bigger display size. A large display area creates impressive product presentation with high-capacity vertical merchandising. Stock up with a variety of chilled products with even temperature distribution across all shelf levels. Illuminated by LED lighting. This also enhances the display impact, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Important – an additional remote refrigeration system is required. 2 year parts warranty only.

SPECIFICATION 38 facts · tap for all External W × D × H3834 x 784 x 2236 mmWidth3834 mmDepth784 mmGross / net weight750 / 695 kgGross weight750 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753528site
Product code 68215site
Sub title Remote Multideck – Extended Heightcatalogue
Type Tefcold Trojancatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 784 mmsite
External (W×D×H) 3834 × 784 × 2236 mmcatalogue
External W × D × H 3834 x 784 x 2236 mmsite
Gross / net weight 750 / 695 kgsite
Gross weight 750 kgcatalogue
Height 2236 mmsite
Internal (W×D×H) 3750 × 450 × 1738 mmcatalogue
Internal W × D × H 3750 x 450 x 1738 mmsite
Packed (W×D×H) 4000 × 850 × 2390 mmcatalogue
Packed W × D × H 4000 x 850 x 2390 mmsite
Width 3834 mmsite

Capacity3

Display area 6.03 m²site
Doors 6catalogue
Shelves 5catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R449asite
Refrigerant charge REMOTE gsite
Temperature range -1 to +5site

Power & energy4

Annual energy consumption 9965 kWh/yearsite
Energy consumption 27.3 kWh/24hsite
Energy efficiency index 37.1 %site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Reversible doors Nosite
Shelf dimensions 5 x 450 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this tefcold trojan earns its place

The Trojan T38 FGD EHA is an extended-height, full-glass-door remote multideck built for a long, deep chilled run. The extended-height build stacks more display into the same floor length, presenting 6.03 m² of glass-fronted display behind doors that keep the cold in rather than spilling it into the aisle. It is a fit for a main chilled wall where you need to merchandise a wide range at full height.

Because it is a remote cabinet, the refrigeration is handled by a separate condensing unit sited away from the shop floor, so there is no compressor heat or noise at the display. On energy it is rated class D with an efficiency index of 37.1%, drawing 9,964.5 kWh a year — about £2,491 a year at 25p per kWh, with the real figure moving on your tariff and how hard the doors are worked.

Being remote, this is not a plug-in cabinet: it connects to a remote condensing unit through pipework that a refrigeration engineer should size, install and commission. That makes it a fit for sites already running a central refrigeration pack, or planning one as part of a larger fit-out, rather than a standalone socket install. Our team can specify it against your existing plant and handle installation.

BEFORE YOU BUY

Questions, answered straight

The extended-height build stacks more chilled display into the same floor length, presenting 6.03 m² of glass-door display area. It suits a main chilled wall where you want to merchandise a deep range at full height.

It is a remote multideck with no built-in compressor. It connects to a separate remote condensing unit through pipework, which a refrigeration engineer should size, install and commission.

It is rated energy class D with an EEI of 37.1% and uses 9,964.5 kWh a year, which is about £2,491 a year at 25p per kWh. Your real figure depends on your tariff and door traffic.

Glass doors keep the cold inside the cabinet instead of spilling it into the aisle, which keeps the display tidy and the product on show. This T38 is a full-glass-door (FGD) format.

Yes. We supply Tefcold remote cabinets across the UK and can specify this one against your condensing plant. Call our service team on 01792 732702 for installation, commissioning or servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 3750 x 450 x 1738 mm
External Dimension (WxDxH): 3834 x 784 x 2236 mm
Packed Dimension (WxDxH): 4000 x 850 x 2390 mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R449a
Refrigerant Charge: REMOTE g

Power and Consumption

Energy Consumption: 27.3 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 9965 kWh/year m³
EEI: 37.1 %
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 750 / 695 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 6.03 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 5 x 450 mm
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
If you have any questions about the TEFCOLD Trojan T38 FGD EHA Remote Multideck – Extended Height then please get in touch.
