TEFCOLD Trojan T14 FGD EHA Remote Multideck – Extended Height

£2,518.00

+vat

Brand:

SKU: 68199

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Requires remote refrigeration system (not supplied)
  • Horizontal LED lighting
  • Frameless glass doors for great product visibility
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • Solid 40 mm endwalls with mirrored interior

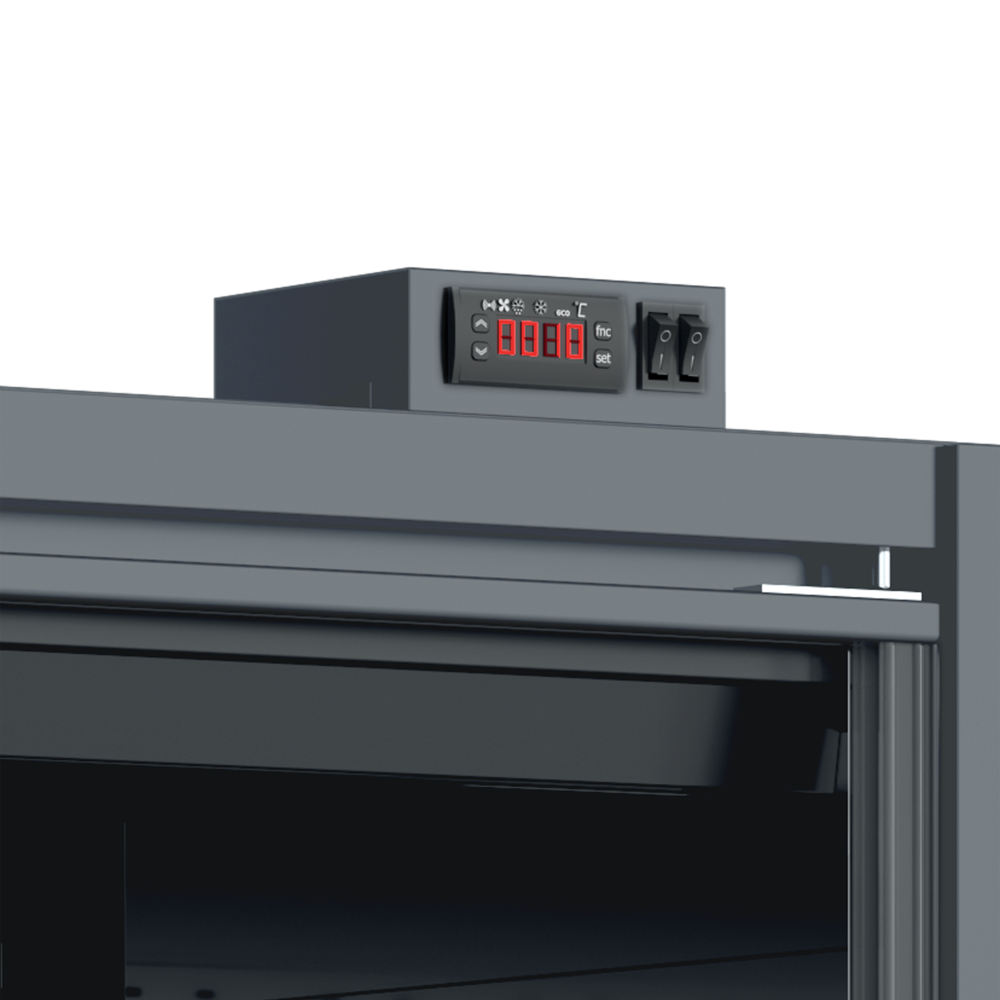

  • Digital controller and temperature display
  • Can be multiplexed with kit (POA)
  • EPOS Ticket strips & shelf risers
  • Extraction rate 650w/per metre
  • Fully automatic, fan assisted cooling

Product description

Remote Multideck – Extended Height

A great remote multideck option at an extended height is ideal for maximising your display space and product visibility whilst reducing the impact of heat and noise. Available in 4 sizes. This unit is multiplexable with a kit to allow you to create a bigger display size. It requires an additional remote refrigeration system. Trojans offer a large display area with high-capacity vertical merchandising. Ideal for an extensive range of chilled products with even temperature distribution across all shelving levels. What’s more the LED illumination enhances product presentation, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. 2 year parts warranty only.

The TEFCOLD Trojan T14 FGD EHA is an extended-height remote multideck display fridge with 2.01 m² of display area, rated energy class C at 3285 kWh a year — about £821 at 25p/kWh — running from a remote condensing unit.

SPECIFICATION 38 facts · tap for all External W × D × H1334 x 784 x 2236 mmWidth1334 mmDepth784 mmGross / net weight303 / 285 kgGross weight303 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753443site
Product code 68199site
Sub title Remote Multideck – Extended Heightcatalogue
Type Tefcold Trojancatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 784 mmsite
External (W×D×H) 1334 × 784 × 2236 mmcatalogue
External W × D × H 1334 x 784 x 2236 mmsite
Gross / net weight 303 / 285 kgsite
Gross weight 303 kgcatalogue
Height 2236 mmsite
Internal (W×D×H) 1250 × 450 × 1738 mmcatalogue
Internal W × D × H 1250 x 450 x 1738 mmsite
Packed (W×D×H) 1450 × 850 × 2390 mmcatalogue
Packed W × D × H 1450 x 850 x 2390 mmsite
Width 1334 mmsite

Capacity3

Display area 2.01 m²site
Doors 2catalogue
Shelves 5catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R449asite
Refrigerant charge REMOTE gsite
Temperature range -1 to +5site

Power & energy4

Annual energy consumption 3285 kWh/yearsite
Energy consumption 9 kWh/24hsite
Energy efficiency index 28.6 %site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Reversible doors Nosite
Shelf dimensions 5 x 450 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this tefcold trojan earns its place

The Trojan T14 FGD EHA is an extended-height remote multideck display fridge, presenting chilled product across 2.01 m² of display area at -1 to +5 °C. As a remote unit it runs from a separate condensing pack rather than a built-in compressor, keeping compressor heat and noise off the shop floor. The extended-height build raises the merchandising face for more vertical display in a compact 1334 mm-wide floor footprint, suited to high-value chilled categories where vertical shelf space drives sales.

On energy it is rated class C, drawing 3,285 kWh a year — about £821 a year at 25p/kWh with an energy efficiency index of 28.6. As a remote cabinet, the compressor sits in a separate condensing pack away from the display, so the load on the sales floor is just the fridge cabinet itself, with LED illumination to enhance product presentation. The 2236 mm height (external) brings stock up to eye level without needing a step.

At 303 kg and 1334 × 784 mm footprint, it slots into narrow aisles where a larger display would dominate. As a remote system, the T14 connects to an external condensing unit via refrigeration pipework — plan the run and condensing-unit siting alongside the cabinet location. For exact internal dimensions, connection detail and installation requirements, see the spec table below before arranging delivery and fit.

BEFORE YOU BUY

Questions, answered straight

At its rated 3285 kWh a year, it works out at about £821 a year at 25p/kWh. It carries a C energy class with an energy efficiency index of 28.6.

It offers 2.01 m² of display area in an extended-height format, raising the merchandising face for more vertical display.

Yes — it is a remote cabinet that connects to an external condensing pack rather than housing a built-in compressor. Factor the pipework and condensing-unit siting into your installation.

Check your access route and ceiling height against the spec table on this page, which lists full dimensions, weights and the temperature band.

It is rated energy class C with an energy efficiency index of 28.6, drawing 3285 kWh a year.

Yes — as a remote system it needs proper condensing-unit siting and pipework, and we can arrange installation and servicing on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1250 x 450 x 1738 mm
External Dimension (WxDxH): 1334 x 784 x 2236 mm
Packed Dimension (WxDxH): 1450 x 850 x 2390 mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R449a
Refrigerant Charge: REMOTE g

Power and Consumption

Energy Consumption: 9 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 3285 kWh/year m³
EEI: 28.6 %
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 303 / 285 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.01 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 5 x 450 mm
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
If you have any questions about the TEFCOLD Trojan T14 FGD EHA Remote Multideck – Extended Height then please get in touch.
