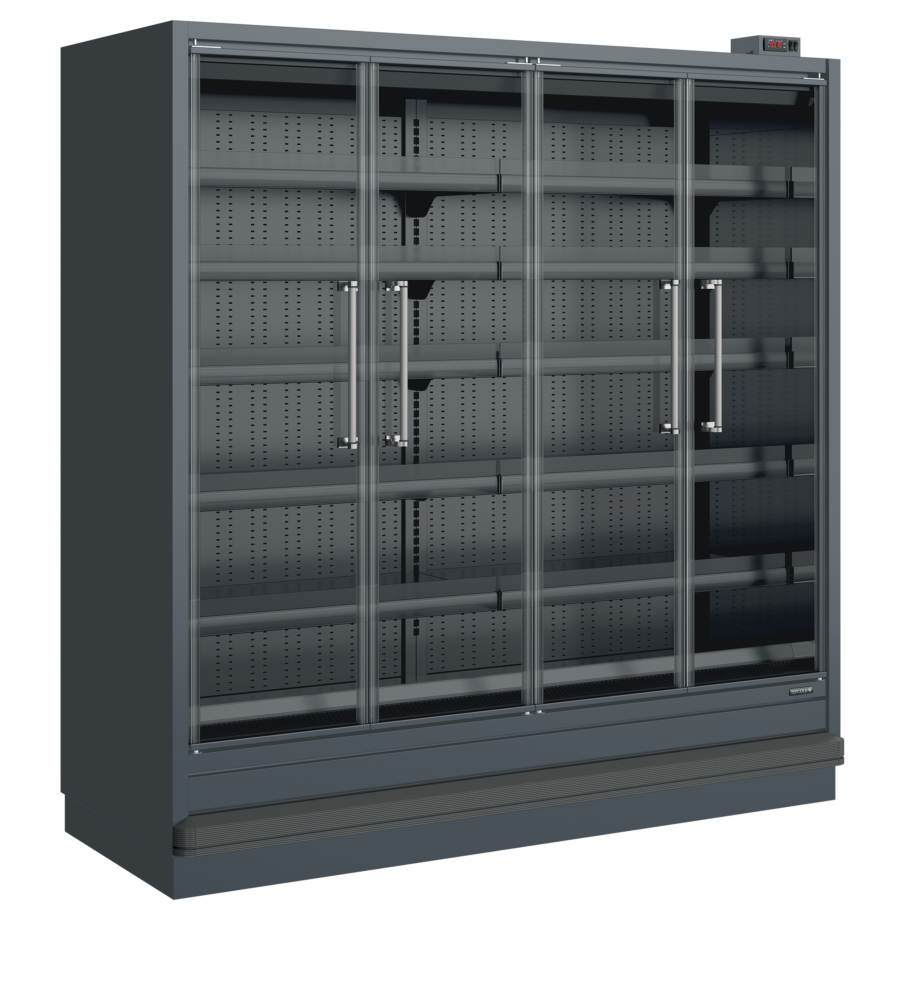

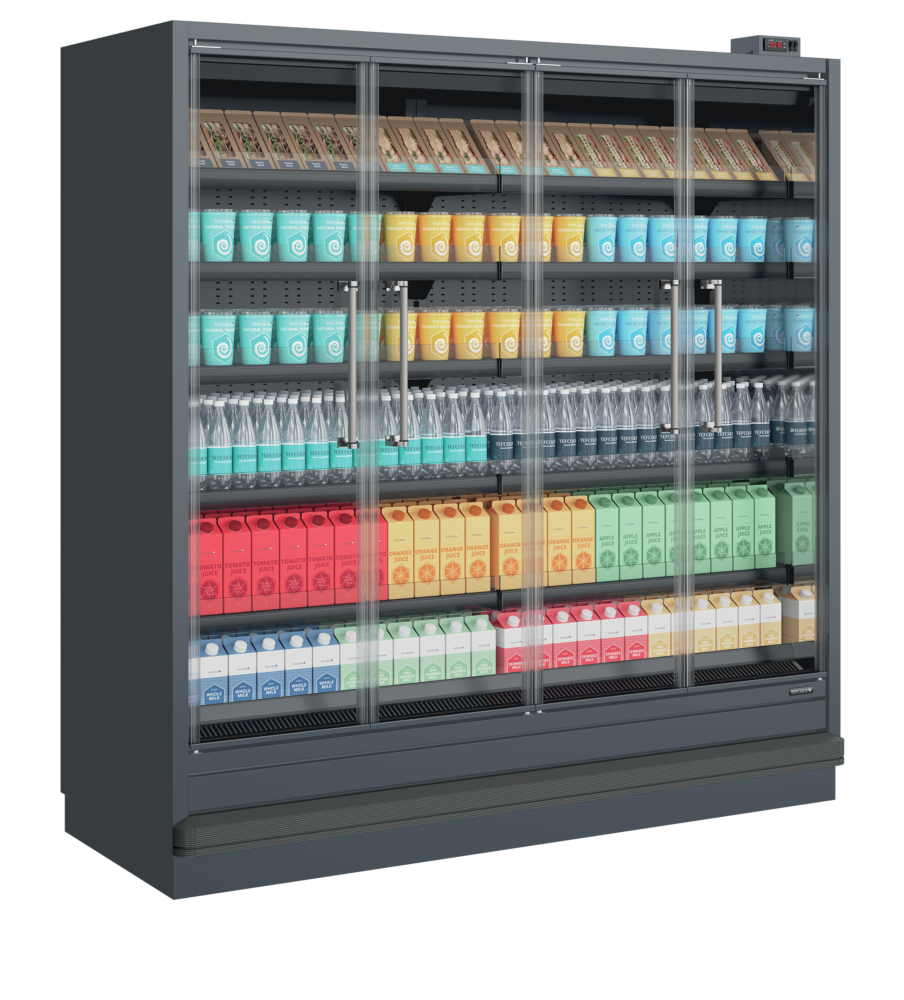

TEFCOLD Trojan T20 FGD A Remote Multideck

+vat

This product is currently out of stock and unavailable.

Brand:

SKU: 68187

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Requires remote refrigeration system (not supplied)

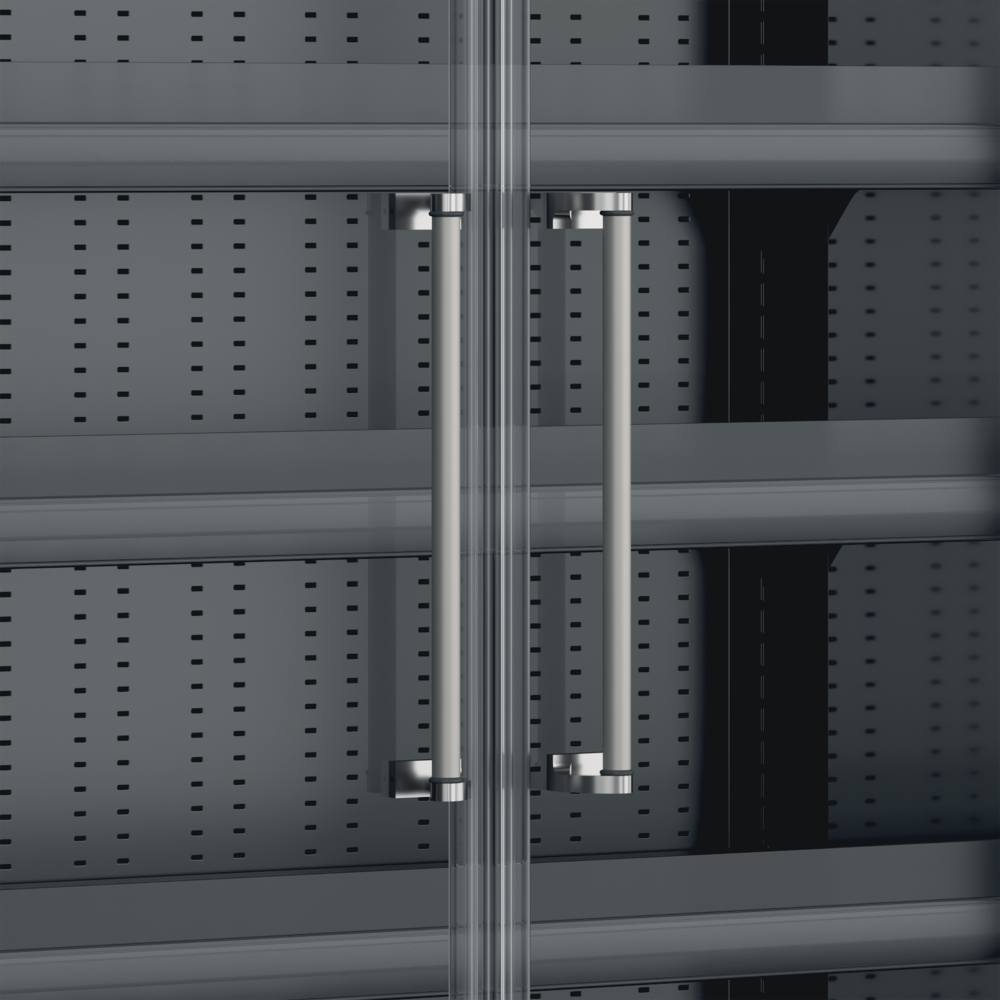

  • Frameless glass doors for great product visibility
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • Solid 40 mm endwalls with mirrored interior
  • Horizontal LED lighting

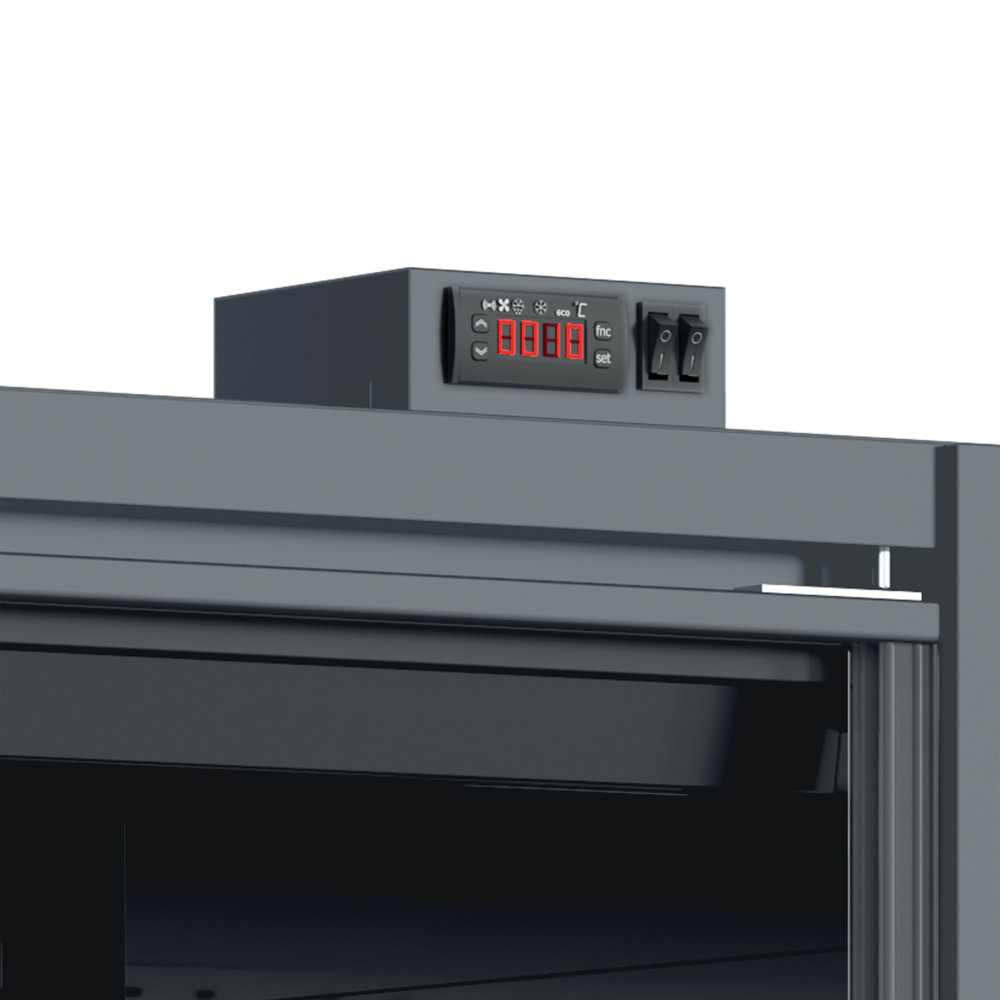

  • Digital controller and temperature display
  • EPOS Ticket strips & shelf risers
  • Extraction rate 650w/per metre
  • Can be multiplexed with kit (POA)
  • Also available in an extended height version

Product description

Remote Multideck

A highly useful remote multideck range that allows you to maximise your display space whilst reducing the impact of noise and heat. Available in 4 sizes. This unit is multiplexable with a kit, and allows you to create a larger display size. Trojans offer a large display area with high-capacity vertical merchandising, great for product presentation. Ideal for an extensive variety of chilled products with even temperature distribution across all shelf levels. Plus the LED illumination enhances the presentation of produce, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Please note this requires an additional remote refrigeration system. 2 year parts warranty only.

The TEFCOLD Trojan T20 FGD A is a remote multideck display cabinet offering 2.68 m² of display area in energy class C, drawing 3817.9 kWh a year — about £954 at 25p/kWh — for a measured energy efficiency index of 27.2%.

SPECIFICATION 38 facts · tap for all External W × D × H1959 x 784 x 2076 mmWidth1959 mmDepth784 mmGross / net weight398 / 375 kgGross weight398 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753368site
Product code 68187site
Sub title Remote Multideckcatalogue
Type Tefcold Trojancatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 784 mmsite
External (W×D×H) 1959 × 784 × 2076 mmcatalogue
External W × D × H 1959 x 784 x 2076 mmsite
Gross / net weight 398 / 375 kgsite
Gross weight 398 kgcatalogue
Height 2076 mmsite
Internal (W×D×H) 1875 × 450 × 1578 mmcatalogue
Internal W × D × H 1875 x 450 x 1578 mmsite
Packed (W×D×H) 2100 × 850 × 2390 mmcatalogue
Packed W × D × H 2100 x 850 x 2390 mmsite
Width 1959 mmsite

Capacity3

Display area 2.68 m²site
Doors 4catalogue
Shelves 5catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R449asite
Refrigerant charge REMOTE gsite
Temperature range -1 to +5site

Power & energy4

Annual energy consumption 3818 kWh/yearsite
Energy consumption 10.46 kWh/24hsite
Energy efficiency index 27.2 %site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Reversible doors Nosite
Shelf dimensions 5 x 450 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this tefcold trojan earns its place

The TEFCOLD Trojan T20 FGD A is a remote multideck display cabinet, built to merchandise a large run of chilled lines across 2.68 m² of display area. As a remote cabinet it runs from a separate condensing unit or central refrigeration pack rather than a built-in compressor, which keeps compressor noise and heat off the sales floor.

It sits in energy class C with a measured energy efficiency index of 27.2%, and uses 3817.9 kWh a year — about £954 at 25p/kWh on the cabinet alone. Because it is a remote system, whole-site running cost also depends on the condensing plant it connects to.

A remote cabinet needs its condensing unit and pipework specified and installed by a qualified refrigeration engineer. Plan the plant location, pipe runs and electrical supply as part of the install, and book a site survey before ordering so the system is sized correctly.

BEFORE YOU BUY

Questions, answered straight

The cabinet uses 3817.9 kWh a year, about £954 at 25p/kWh, in energy class C with an efficiency index of 27.2%. This covers the cabinet; a remote system also draws on its separate condensing plant.

2.68 m² of display area for merchandising chilled lines.

No. It is a remote cabinet designed to run from a separate condensing unit or central pack, which must be specified and installed alongside it.

It sits in energy class C with a measured energy efficiency index of 27.2%.

Yes. A remote cabinet needs its condensing unit and pipework fitted by a qualified engineer — call 01792 732702 to arrange a site survey, installation or servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1875 x 450 x 1578 mm
External Dimension (WxDxH): 1959 x 784 x 2076 mm
Packed Dimension (WxDxH): 2100 x 850 x 2390 mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R449a
Refrigerant Charge: REMOTE g

Power and Consumption

Energy Consumption: 10.46 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 3818 kWh/year m³
EEI: 27.2 %
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 398 / 375 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.68 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 5 x 450 mm
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
If you have any questions about the TEFCOLD Trojan T20 FGD A Remote Multideck then please get in touch.
