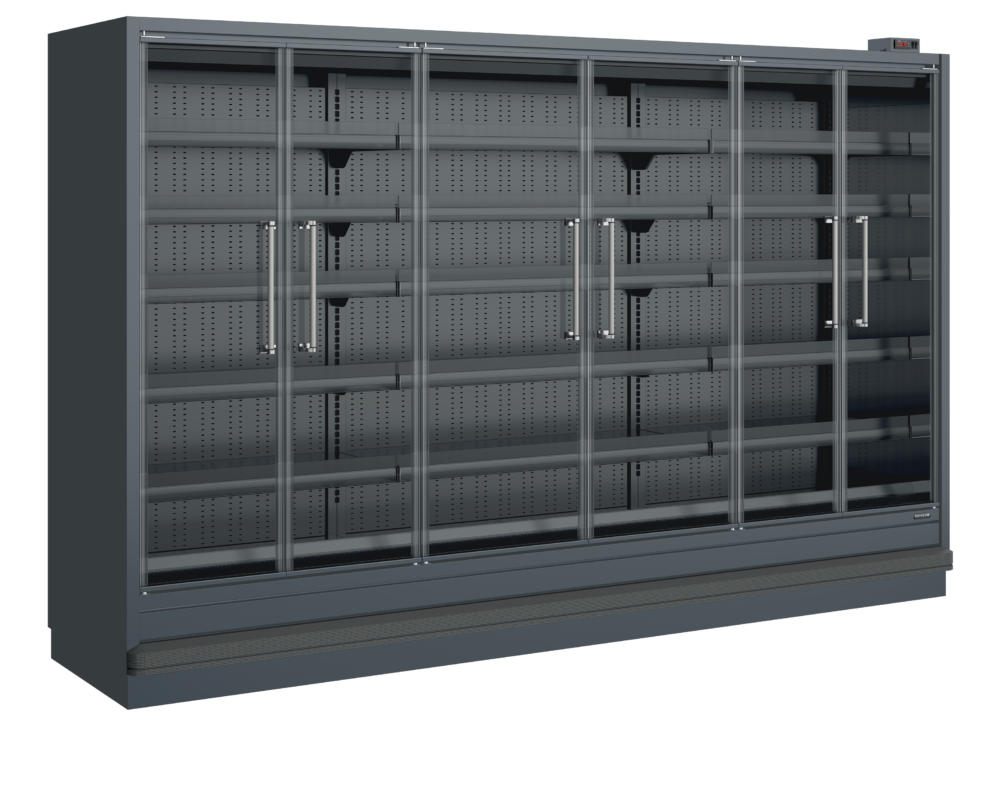

TEFCOLD Trojan T32 FGD EHA Remote Multideck – Extended Height

£5,325.00

+vat

Brand:

SKU: 68211

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Requires remote refrigeration system (not supplied)
  • Horizontal LED lighting

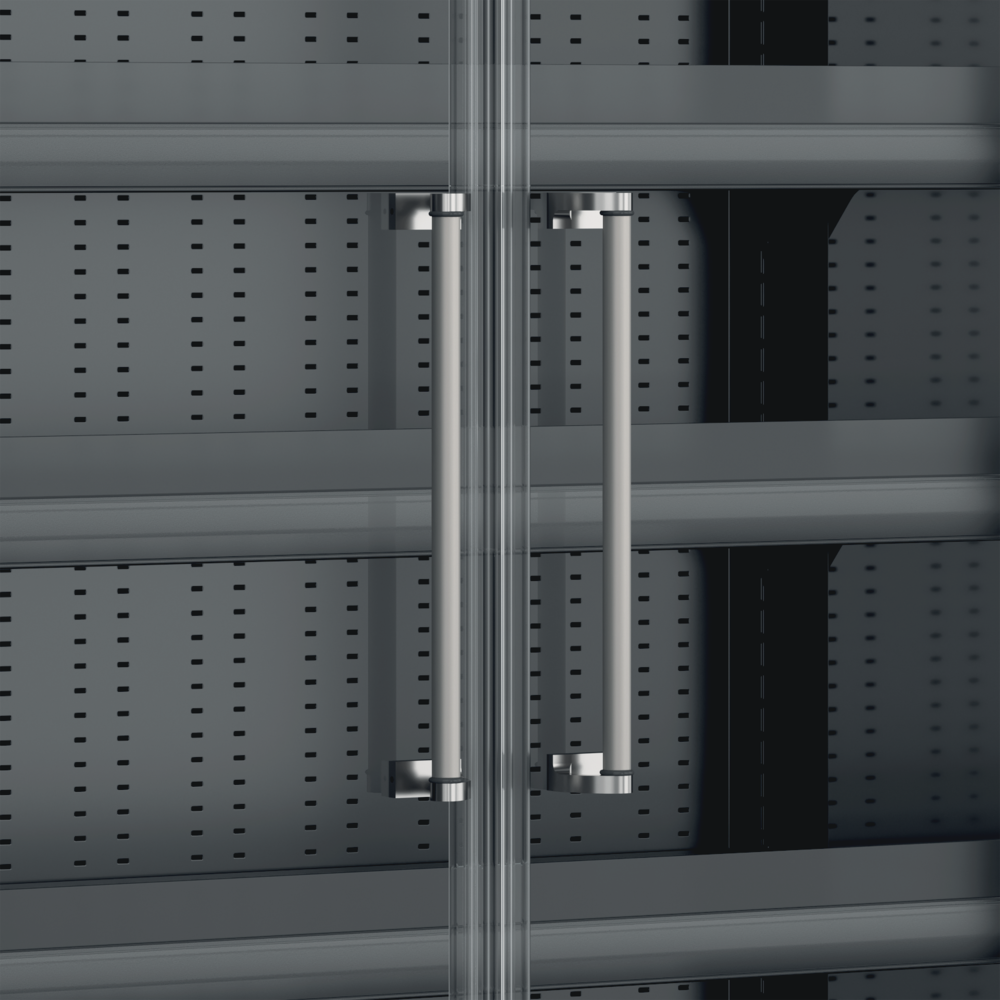

  • Frameless glass doors for great product visibility
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • Solid 40 mm endwalls with mirrored interior
  • Digital controller and temperature display
  • Can be multiplexed with kit (POA)
  • EPOS Ticket strips & shelf risers
  • Extraction rate 650w/per metre
  • Fully automatic, fan assisted cooling

Product description

Remote Multideck – Extended Height

These highly useful remote multidecks, at an extended height, which help to maximise your display space whilst also reducing the impact of both noise and heat. The units are available in 4 sizes. You can multiplex these units with a kit, which allows you to create a larger display size. The large display area creates exceptional product presentation with high-capacity vertical merchandising. For use with a huge variety of chilled products with even temperature distribution across all shelf levels.The LED illumination also enhances the display impact, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Important – this requires an additional remote refrigeration system. 2 year parts warranty only.

The TEFCOLD Trojan T32 FGD EHA is a remote, extended-height multideck with a 4.95 m² display area, energy class D and an energy efficiency index of 36.2%, running on a separate remote condensing unit rather than a built-in compressor.

SPECIFICATION 38 facts · tap for all External W × D × H3125 x 784 x 2236 mmWidth3125 mmDepth784 mmGross / net weight605 / 560 kgGross weight605 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753504site
Product code 68211site
Sub title Remote Multideck – Extended Heightcatalogue
Type Tefcold Trojancatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 784 mmsite
External (W×D×H) 3125 × 784 × 2236 mmcatalogue
External W × D × H 3125 x 784 x 2236 mmsite
Gross / net weight 605 / 560 kgsite
Gross weight 605 kgcatalogue
Height 2236 mmsite
Internal (W×D×H) 3125 × 450 × 1738 mmcatalogue
Internal W × D × H 3125 x 450 x 1738 mmsite
Packed (W×D×H) 3350 × 850 × 2390 mmcatalogue
Packed W × D × H 3350 x 850 x 2390 mmsite
Width 3125 mmsite

Capacity3

Display area 4.95 m²site
Doors 6catalogue
Shelves 5catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R449asite
Refrigerant charge REMOTE gsite
Temperature range -1 to +5site

Power & energy4

Annual energy consumption 8216 kWh/yearsite
Energy consumption 22.51 kWh/24hsite
Energy efficiency index 36.2 %site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Reversible doors Nosite
Shelf dimensions 5 x 450 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this tefcold trojan earns its place

The TEFCOLD Trojan T32 FGD EHA is a remote, extended-height multideck built to put a large volume of chilled stock on display. Its 4.95 m² display area gives a tall, deep merchandising face — sized for drinks, dairy, food-to-go and packaged fresh lines — so one cabinet carries a wide range of facings. The extended-height build makes the most of vertical space within the cabinet's footprint.

Being a remote cabinet, the T32 runs from a separate condensing unit sited away from the shop floor rather than a built-in compressor, which keeps compressor heat and noise out of the retail space. It carries an energy class of D with a measured energy efficiency index of 36.2%. On its rated consumption of 8216.2 kWh a year that works out at about £2054 a year at 25p/kWh — a figure worth putting through your own tariff before you commit.

As a remote model, the T32 is not plug-and-play: it runs on a compatible remote condensing unit with interconnecting pipework, commissioned and gas-charged by a refrigeration engineer. Plan the condenser location and pipe runs alongside the cabinet position when you specify the installation, so the display face sits where your customers walk and the plant sits where it will not intrude.

BEFORE YOU BUY

Questions, answered straight

No. It is a remote cabinet, so it runs from a separate condensing unit sited away from the display rather than a built-in compressor. That unit and the connecting pipework are specified and installed separately.

On its rated consumption of 8216.2 kWh a year, it works out at about £2054 a year at 25p/kWh. Check the figure against your own electricity tariff, as rates vary.

The cabinet offers a 4.95 m² display area. As an extended-height multideck it presents that space as a tall merchandising face, giving a large number of chilled facings.

It is rated energy class D, with a measured energy efficiency index (EEI) of 36.2%.

Remote means the refrigeration plant is not built into the cabinet. It connects to an external condensing unit through pipework that a refrigeration engineer installs, commissions and charges, so you need to plan a location for that unit.

Yes. Because a remote cabinet needs a condensing unit, pipework and commissioning, it pays to plan the install with us. Call the service team on 01792 732702 to discuss siting, commissioning and ongoing servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 3125 x 450 x 1738 mm
External Dimension (WxDxH): 3125 x 784 x 2236 mm
Packed Dimension (WxDxH): 3350 x 850 x 2390 mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R449a
Refrigerant Charge: REMOTE g

Power and Consumption

Energy Consumption: 22.51 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 8216 kWh/year m³
EEI: 36.2 %
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 605 / 560 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 4.95 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 5 x 450 mm
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
If you have any questions about the TEFCOLD Trojan T32 FGD EHA Remote Multideck – Extended Height then please get in touch.
