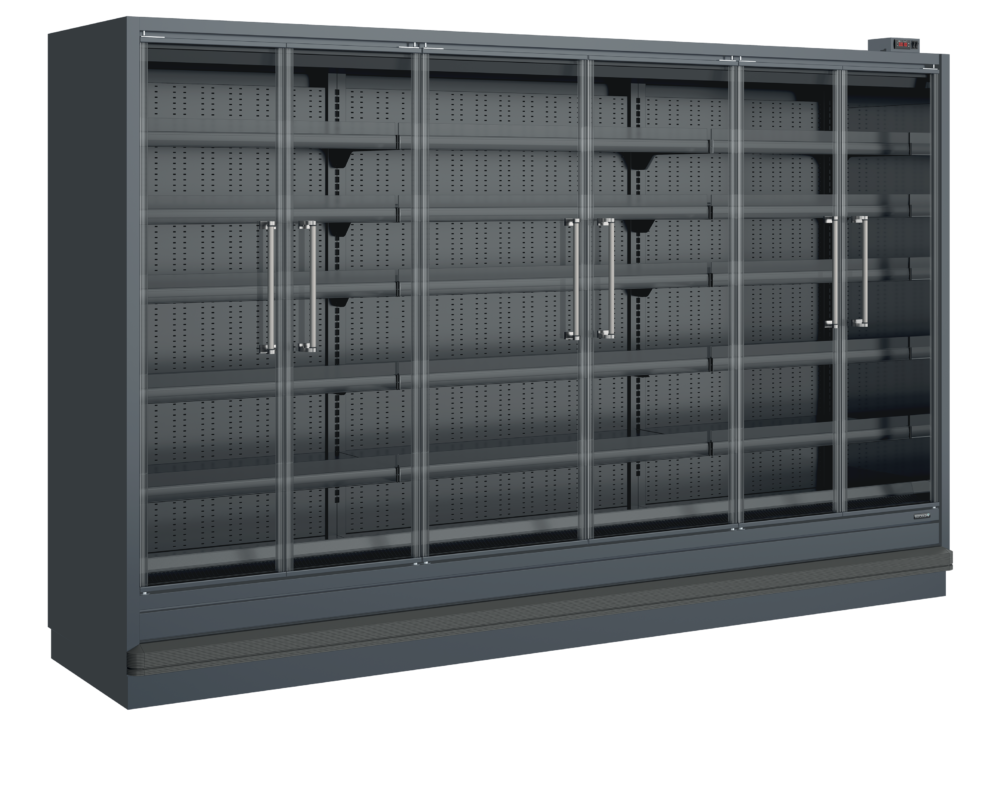

TEFCOLD Trojan T32 FGD A Remote Multideck

+vat

This product is currently out of stock and unavailable.

Brand:

SKU: 68191

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Requires remote refrigeration system (not supplied)

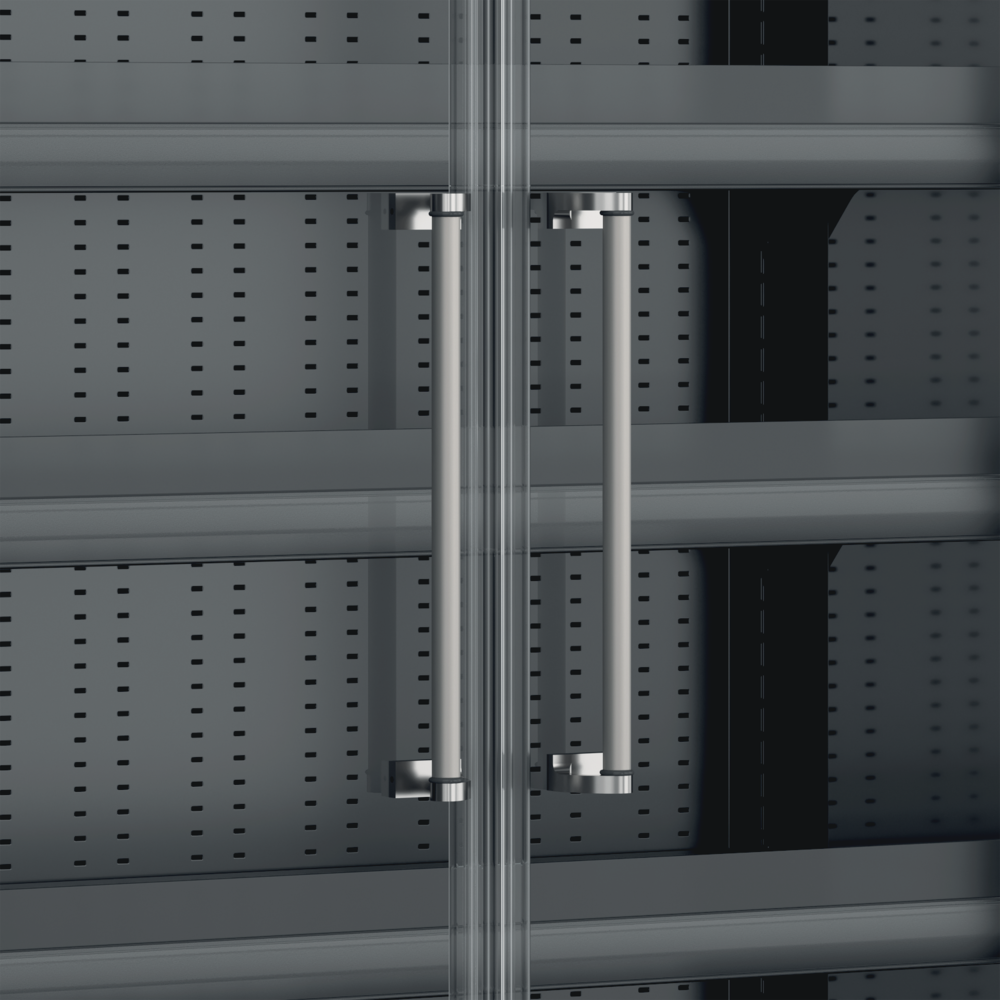

  • Frameless glass doors for great product visibility
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • Solid 40 mm endwalls with mirrored interior
  • Horizontal LED lighting
  • Digital controller and temperature display
  • EPOS Ticket strips & shelf risers
  • Extraction rate 650w/per metre
  • Can be multiplexed with kit (POA)
  • Also available in an extended height version

Product description

Remote Multideck

These highly useful remote multidecks help to maximise your display space whilst also reducing the impact of both noise and heat. The units are available in 4 sizes. You can multiplex these units with a kit, which allows you to create a larger display size. The large display area creates exceptional product presentation with high-capacity vertical merchandising. For use with a huge variety of chilled products with even temperature distribution across all shelf levels.The LED illumination also enhances the display impact, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Important – this requires an additional remote refrigeration system. 2 year parts warranty only.

The TEFCOLD Trojan T32 FGD A is a remote multideck display fridge offering 4.52 m² of display area, designed to run from a remote refrigeration pack, rated energy class D with an energy efficiency index of 36.7% and drawing 7741.7 kWh a year.

SPECIFICATION 38 facts · tap for all External W × D × H3125 x 784 x 2076 mmWidth3125 mmDepth784 mmGross / net weight565 / 520 kgGross weight565 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753405site
Product code 68191site
Sub title Remote Multideckcatalogue
Type Tefcold Trojancatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 784 mmsite
External (W×D×H) 3125 × 784 × 2076 mmcatalogue
External W × D × H 3125 x 784 x 2076 mmsite
Gross / net weight 565 / 520 kgsite
Gross weight 565 kgcatalogue
Height 2076 mmsite
Internal (W×D×H) 3125 × 450 × 1578 mmcatalogue
Internal W × D × H 3125 x 450 x 1578 mmsite
Packed (W×D×H) 3350 × 850 × 2390 mmcatalogue
Packed W × D × H 3350 x 850 x 2390 mmsite
Width 3125 mmsite

Capacity3

Display area 4.52 m²site
Doors 6catalogue
Shelves 5catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R449asite
Refrigerant charge REMOTE gsite
Temperature range -1 to +5site

Power & energy4

Annual energy consumption 7742 kWh/yearsite
Energy consumption 21.21 kWh/24hsite
Energy efficiency index 36.7 %site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Reversible doors Nosite
Shelf dimensions 5 x 450 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this tefcold trojan earns its place

The TEFCOLD Trojan T32 FGD A is a remote multideck display fridge with 4.52 m² of display area. As a large chilled retail display, it puts a wide face of stock in front of customers, suited to shops and food businesses merchandising chilled lines across a substantial run.

Being a remote unit, it is designed to run from a separate refrigeration pack rather than an onboard compressor. That keeps the heat and machinery of the refrigeration system away from the shop floor, with the cabinet connected to a remote condensing system installed and commissioned by a refrigeration engineer.

On energy, it is rated energy class D with an energy efficiency index of 36.7% and uses 7741.7 kWh a year, which works out at about £1935 a year at 25p/kWh for the cabinet itself. Because the format is remote, installation, exact dimensions and pack sizing should be confirmed with Craven Cooling before you order.

BEFORE YOU BUY

Questions, answered straight

No. The Trojan T32 FGD A is a remote multideck, designed to connect to a separate refrigeration pack rather than a self-contained compressor. The condensing system is installed remotely by a refrigeration engineer.

It offers 4.52 m² of display area, giving a wide, multi-shelf face for merchandising chilled stock. The remote design keeps the refrigeration machinery away from the shop floor.

The cabinet is rated energy class D with an energy efficiency index of 36.7% and uses 7741.7 kWh a year, about £1935 a year at 25p/kWh. This is the cabinet's figure; the remote pack it connects to has its own running cost.

As a remote unit it must be connected to a remote refrigeration pack and commissioned by a refrigeration engineer. Craven Cooling can advise on pack sizing, installation and servicing on 01792 732702.

It is rated energy class D with an energy efficiency index of 36.7%. The energy label decoder tool can turn that class and its 7741.7 kWh annual figure into a pounds-per-year cost on your own tariff.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 3125 x 450 x 1578 mm
External Dimension (WxDxH): 3125 x 784 x 2076 mm
Packed Dimension (WxDxH): 3350 x 850 x 2390 mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R449a
Refrigerant Charge: REMOTE g

Power and Consumption

Energy Consumption: 21.21 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 7742 kWh/year m³
EEI: 36.7 %
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 565 / 520 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 4.52 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 5 x 450 mm
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
If you have any questions about the TEFCOLD Trojan T32 FGD A Remote Multideck then please get in touch.
