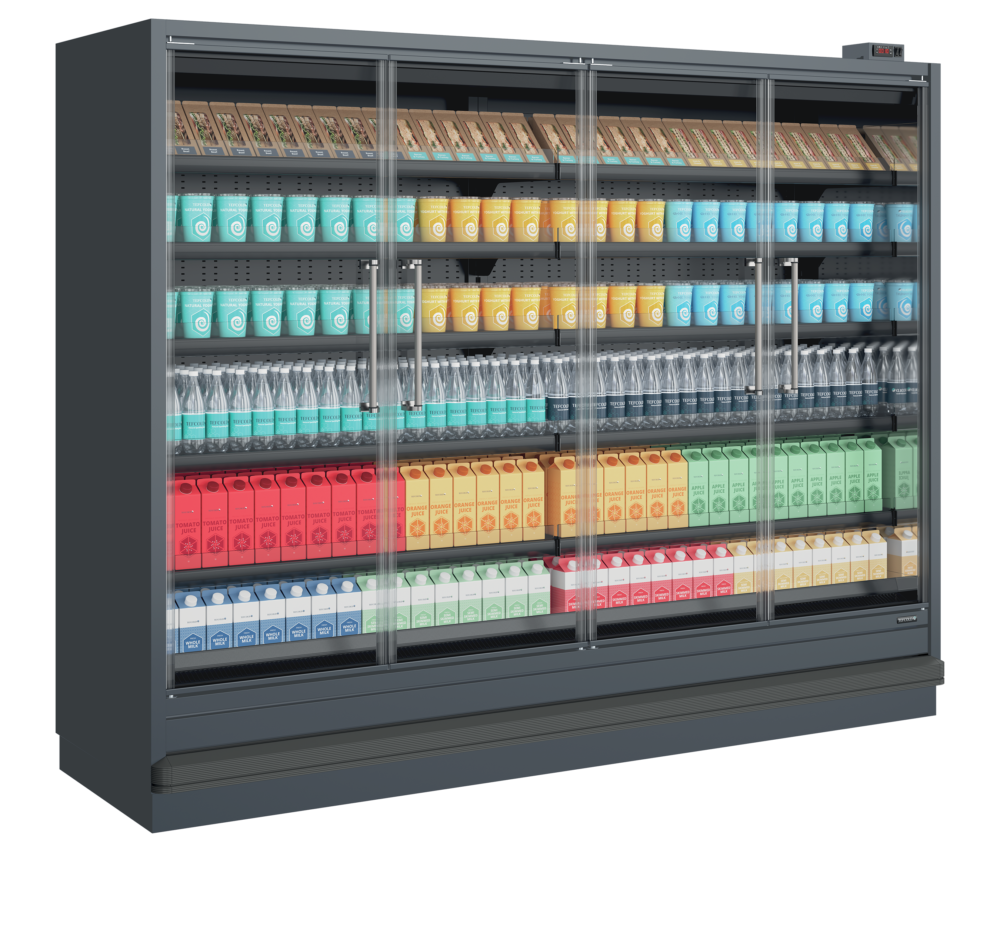

TEFCOLD Trojan T26 FGD A Remote Multideck

+vat

This product is currently out of stock and unavailable.

Brand:

SKU: 68188

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Requires remote refrigeration system (not supplied)

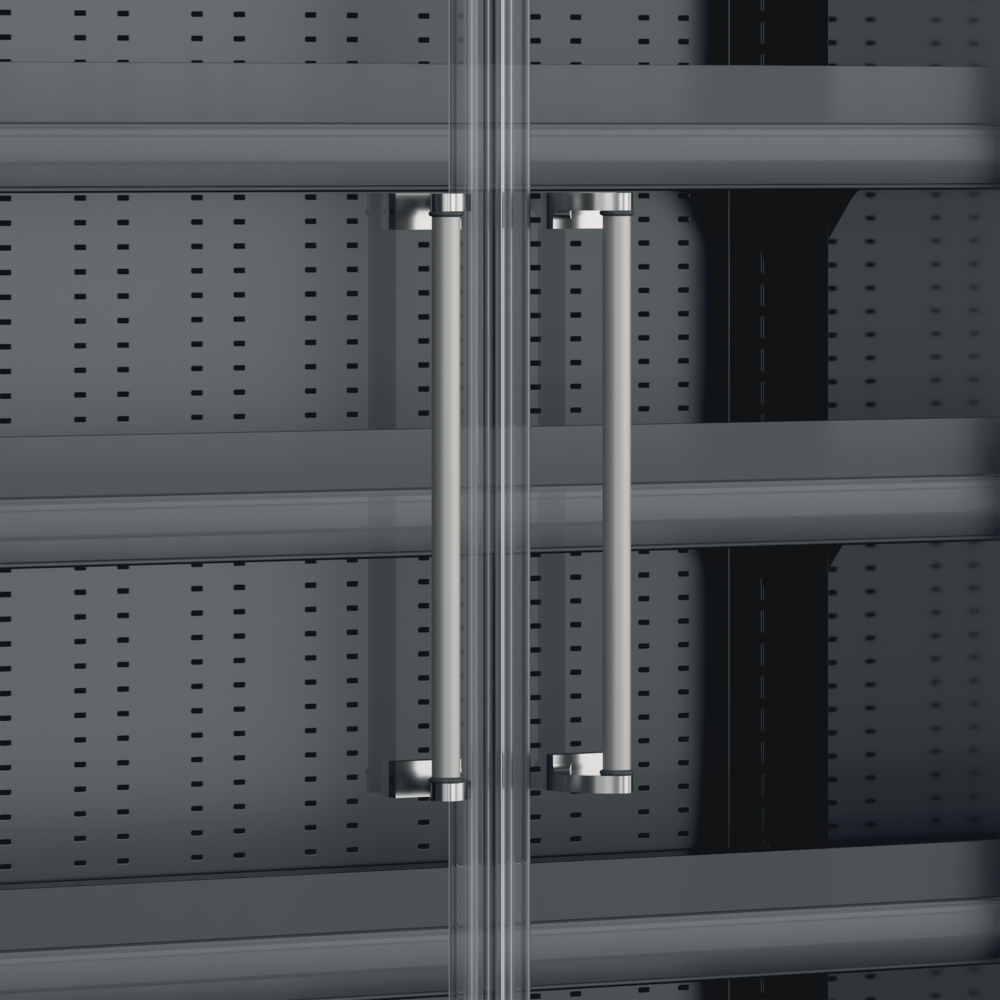

  • Frameless glass doors for great product visibility
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • Solid 40 mm endwalls with mirrored interior
  • Horizontal LED lighting
  • Digital controller and temperature display
  • EPOS Ticket strips & shelf risers
  • Extraction rate 650w/per metre
  • Can be multiplexed with kit (POA)
  • Also available in an extended height version

Product description

Remote Multideck

This popular remote multideck range allows you to maximise your display space whilst also reducing the impact of noise and heat. This unit is available in 4 sizes. Available for multiplexing, with a kit this allows you to create a larger display size. This unit offers a large display area with high-capacity vertical merchandising, great for product presentation. Ideal for a large range of chilled products with even temperature distribution across all shelf levels. Plus the LED illumination enhances the presentation of produce, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Please note this requires an additional remote refrigeration system. 2 year parts warranty only.

The TEFCOLD Trojan T26 FGD A is a remote multideck display fridge with 3.67 m² of display area, rated energy class C at 6212.3 kWh a year — about £1,553 at 25p/kWh — running from a remote condensing unit rather than a built-in compressor.

SPECIFICATION 38 facts · tap for all External W × D × H2584 x 784 x 2076 mmWidth2584 mmDepth784 mmGross / net weight511 / 480 kgGross weight511 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753375site
Product code 68188site
Sub title Remote Multideckcatalogue
Type Tefcold Trojancatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 784 mmsite
External (W×D×H) 2584 × 784 × 2076 mmcatalogue
External W × D × H 2584 x 784 x 2076 mmsite
Gross / net weight 511 / 480 kgsite
Gross weight 511 kgcatalogue
Height 2076 mmsite
Internal (W×D×H) 2500 × 450 × 1578 mmcatalogue
Internal W × D × H 2500 x 450 x 1578 mmsite
Packed (W×D×H) 2750 × 850 × 2390 mmcatalogue
Packed W × D × H 2750 x 850 x 2390 mmsite
Width 2584 mmsite

Capacity3

Display area 3.67 m²site
Doors 4catalogue
Shelves 5catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R449asite
Refrigerant charge REMOTE gsite
Temperature range -1 to +5site

Power & energy4

Annual energy consumption 6212 kWh/yearsite
Energy consumption 17.02 kWh/24hsite
Energy efficiency index 34.8 %site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Reversible doors Nosite
Shelf dimensions 5 x 450 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this tefcold trojan earns its place

The Trojan T26 FGD A is a remote multideck display fridge, built to merchandise chilled product across 3.67 m² of display area. As a remote unit it runs from a separate condensing pack rather than a built-in compressor, which keeps compressor heat off the shop floor and out of the sales area. It is a large-format cabinet for a substantial run of display.

On energy it is rated class C and draws 6212.3 kWh a year, which works out at about £1,553 a year at 25p/kWh. Its energy efficiency index is 34.8. Running cost on a multideck of this scale is driven largely by display area, and at 3.67 m² this is a big merchandising face to keep chilled.

As a remote cabinet, the T26 connects to an external condensing unit, so factor the remote pipework and condensing-unit siting into your installation alongside the cabinet itself. For exact dimensions, weights, temperature band and connection detail, check the spec table below before planning delivery and fit.

BEFORE YOU BUY

Questions, answered straight

At its rated 6212.3 kWh a year, it works out at about £1,553 a year at 25p/kWh. It carries a C energy class with an energy efficiency index of 34.8.

It offers 3.67 m² of display area. It is a large-format multideck for a substantial run of chilled product.

Yes — it is a remote cabinet, so it connects to an external condensing pack rather than housing a built-in compressor. Factor the pipework and condensing-unit siting into your installation.

Check your access route and floor loading against the spec table on this page, which lists full dimensions, weights and the temperature band.

It is rated energy class C with an energy efficiency index of 34.8, drawing 6212.3 kWh a year.

Yes — as a remote system it needs proper condensing-unit siting and pipework, and we can arrange installation and servicing on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2500 x 450 x 1578 mm
External Dimension (WxDxH): 2584 x 784 x 2076 mm
Packed Dimension (WxDxH): 2750 x 850 x 2390 mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R449a
Refrigerant Charge: REMOTE g

Power and Consumption

Energy Consumption: 17.02 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 6212 kWh/year m³
EEI: 34.8 %
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 511 / 480 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 3.67 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 5 x 450 mm
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
If you have any questions about the TEFCOLD Trojan T26 FGD A Remote Multideck then please get in touch.
