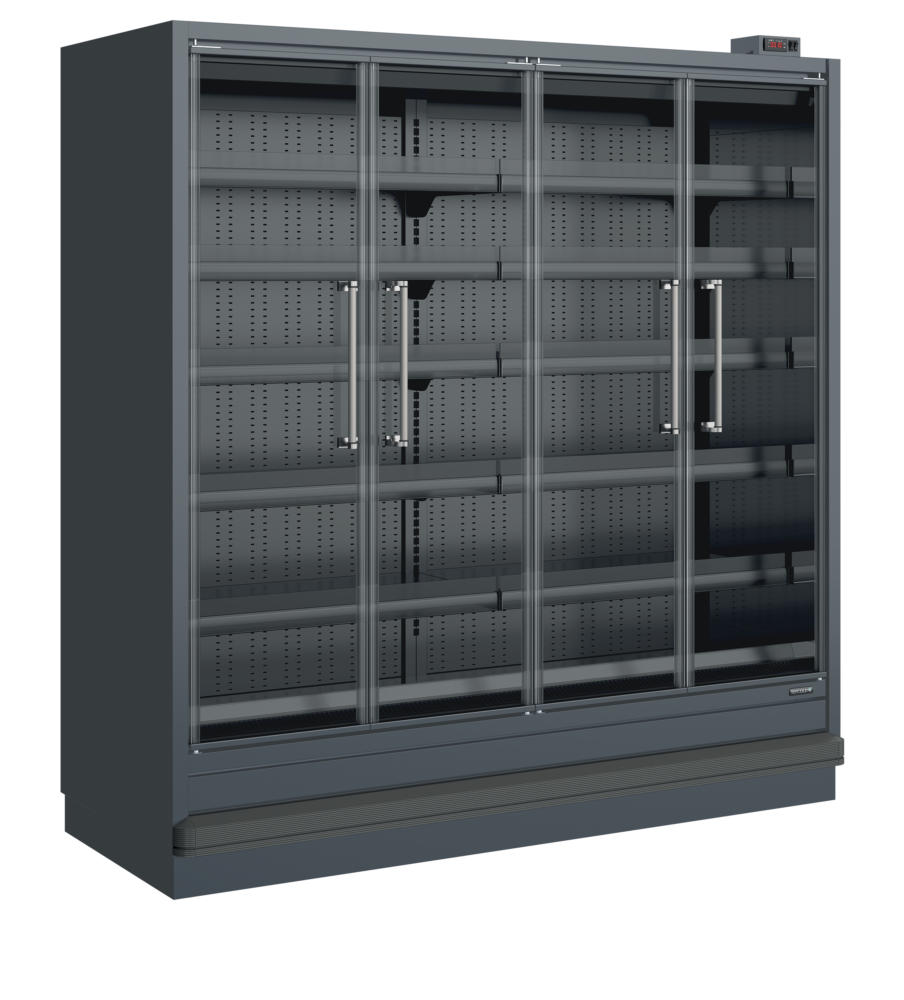

TEFCOLD Trojan T20 FGD EHA Remote Multideck – Extended Height

£3,515.00

+vat

Brand:

SKU: 68203

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Requires remote refrigeration system (not supplied)
  • Horizontal LED lighting

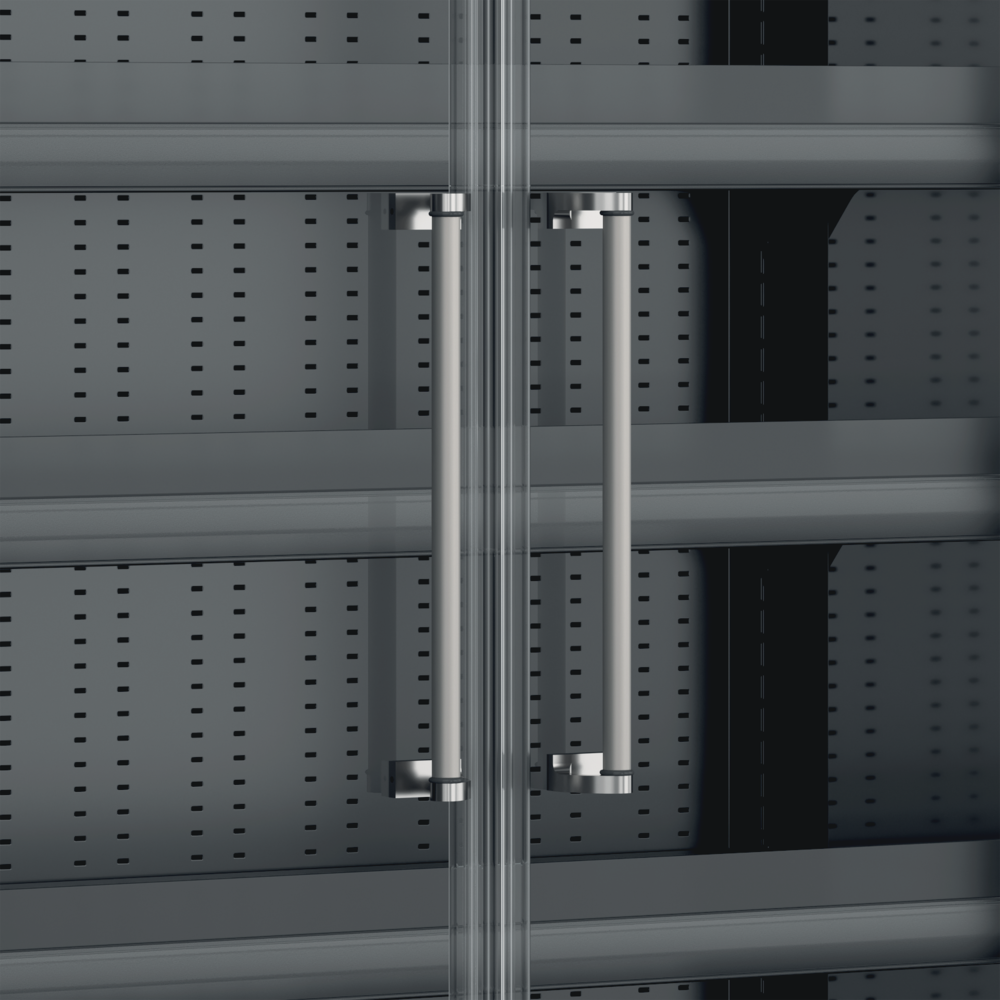

  • Frameless glass doors for great product visibility
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • Solid 40 mm endwalls with mirrored interior

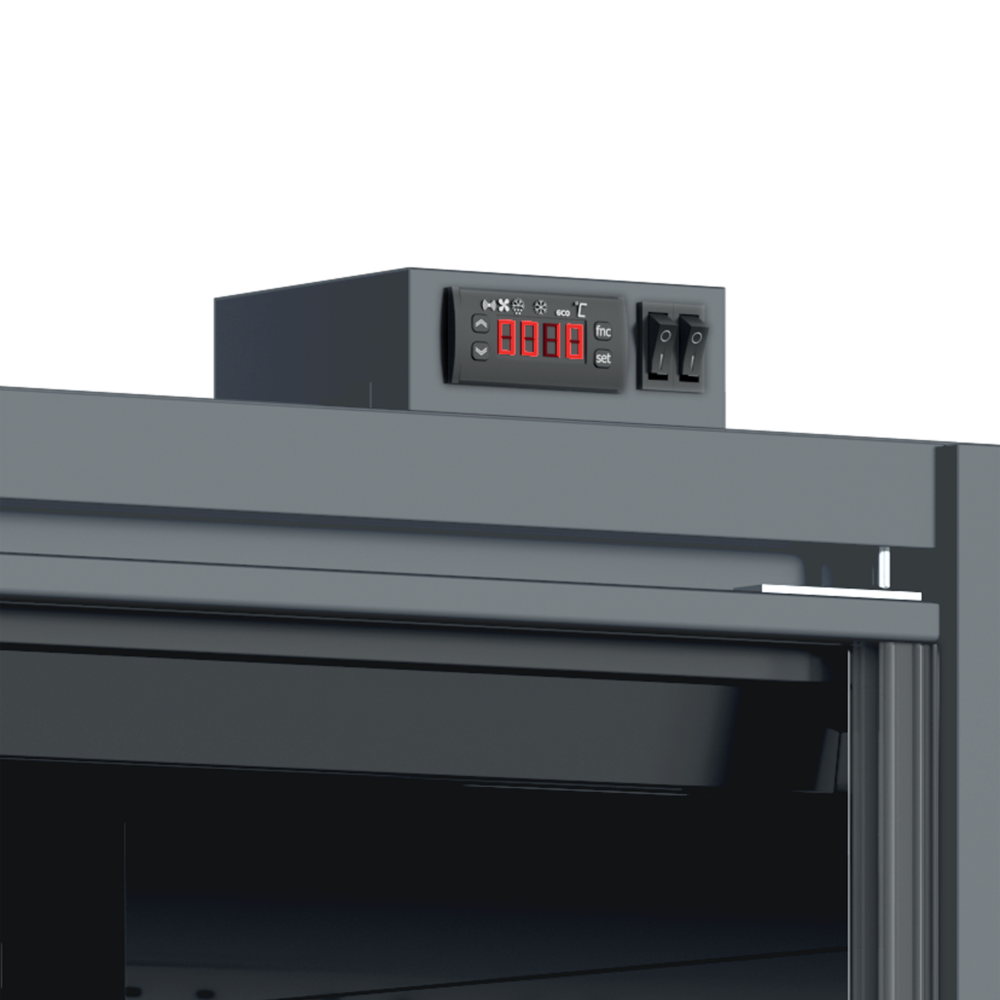

  • Digital controller and temperature display
  • Can be multiplexed with kit (POA)
  • EPOS Ticket strips & shelf risers
  • Extraction rate 650w/per metre
  • Fully automatic, fan assisted cooling

Product description

Remote Multideck – Extended Height

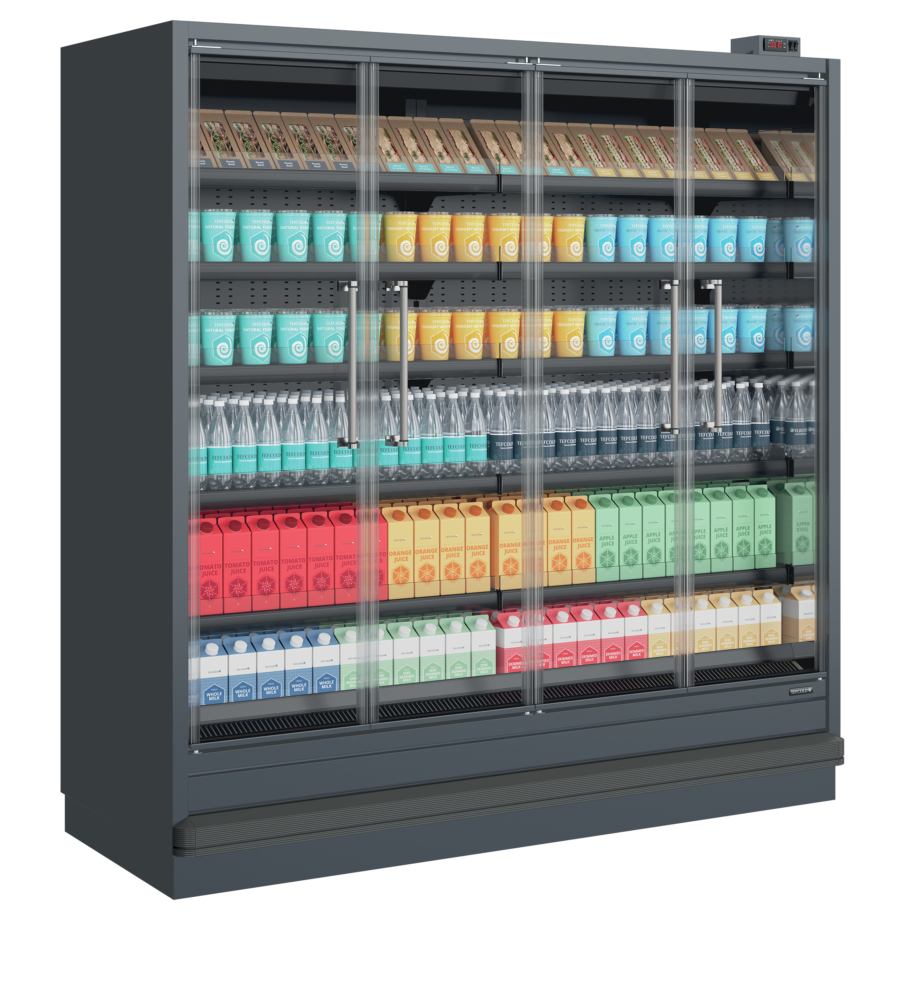

A highly useful remote multideck range (at an extended height) that allows you to maximise your display space whilst reducing the impact of noise and heat. Available in 4 sizes. This unit is multiplexable, with a kit, and allows you to create a more extensive display size. Trojans offers a large display area with high-capacity vertical merchandising, great for product presentation. Ideal for an extensive variety of chilled products with even temperature distribution across all shelf levels. Plus the LED illumination enhances the presentation of produce, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Please note this requires an additional remote refrigeration system. 2 year parts warranty only.

The TEFCOLD Trojan T20 FGD EHA is an extended-height remote full-glass-door multideck giving 2.94 m² of chilled display, rated energy class C with an EEI of 33.2% and using 4,989.6 kWh a year — about £1,247 a year at 25p/kWh — running off a remote condensing unit.

SPECIFICATION 38 facts · tap for all External W × D × H1959 x 784 x 2236 mmWidth1959 mmDepth784 mmGross / net weight428 / 405 kgGross weight428 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753467site
Product code 68203site
Sub title Remote Multideck – Extended Heightcatalogue
Type Tefcold Trojancatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 784 mmsite
External (W×D×H) 1959 × 784 × 2236 mmcatalogue
External W × D × H 1959 x 784 x 2236 mmsite
Gross / net weight 428 / 405 kgsite
Gross weight 428 kgcatalogue
Height 2236 mmsite
Internal (W×D×H) 1875 × 450 × 1738 mmcatalogue
Internal W × D × H 1875 x 450 x 1738 mmsite
Packed (W×D×H) 2100 × 850 × 2390 mmcatalogue
Packed W × D × H 2100 x 850 x 2390 mmsite
Width 1959 mmsite

Capacity3

Display area 2.94 m²site
Doors 4catalogue
Shelves 5catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R449asite
Refrigerant charge REMOTE gsite
Temperature range -1 to +5site

Power & energy4

Annual energy consumption 4990 kWh/yearsite
Energy consumption 13.67 kWh/24hsite
Energy efficiency index 33.2 %site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Reversible doors Nosite
Shelf dimensions 5 x 450 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this tefcold trojan earns its place

The Trojan T20 FGD EHA is an extended-height, full-glass-door remote multideck. The extended-height build stacks more chilled display into the same floor run, presenting 2.94 m² of glass-fronted display behind doors that keep the cold in rather than spilling it into the aisle. It suits a chilled bay where you want to carry more range without taking more floor width.

Because it is a remote cabinet, the refrigeration is handled by a separate condensing unit sited away from the shop floor, so there is no compressor heat or noise at the display. On energy it is rated class C with an efficiency index of 33.2%, drawing 4,989.6 kWh a year — about £1,247 a year at 25p per kWh, with the real figure moving on your tariff and door traffic.

Being remote, this is not a plug-in cabinet: it connects to a remote condensing unit through pipework that a refrigeration engineer should size, install and commission. That makes it a fit for sites already running a central refrigeration pack, or planning one, rather than a standalone socket install. Our team can specify the cabinet against your existing plant and handle installation and commissioning.

BEFORE YOU BUY

Questions, answered straight

The extended-height build stacks more chilled display into the same floor run, giving 2.94 m² of glass-door display area. It suits a bay where you want more range on show without taking more floor width.

It is a remote multideck with no built-in compressor. It connects to a separate remote condensing unit through pipework, which a refrigeration engineer should size, install and commission.

It is rated energy class C with an EEI of 33.2% and uses 4,989.6 kWh a year, which is about £1,247 a year at 25p per kWh. The real figure depends on your tariff and how often the doors are opened.

Glass doors keep the cold inside the cabinet rather than letting it spill into the aisle, which keeps the display tidy and product clearly on show. This T20 is a full-glass-door (FGD) format.

Yes. We supply Tefcold remote cabinets across the UK and can specify this one against your condensing plant. Call our service team on 01792 732702 to arrange installation, commissioning or servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1875 x 450 x 1738 mm
External Dimension (WxDxH): 1959 x 784 x 2236 mm
Packed Dimension (WxDxH): 2100 x 850 x 2390 mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R449a
Refrigerant Charge: REMOTE g

Power and Consumption

Energy Consumption: 13.67 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 4990 kWh/year m³
EEI: 33.2 %
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 428 / 405 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.94 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 5 x 450 mm
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
If you have any questions about the TEFCOLD Trojan T20 FGD EHA Remote Multideck – Extended Height then please get in touch.
