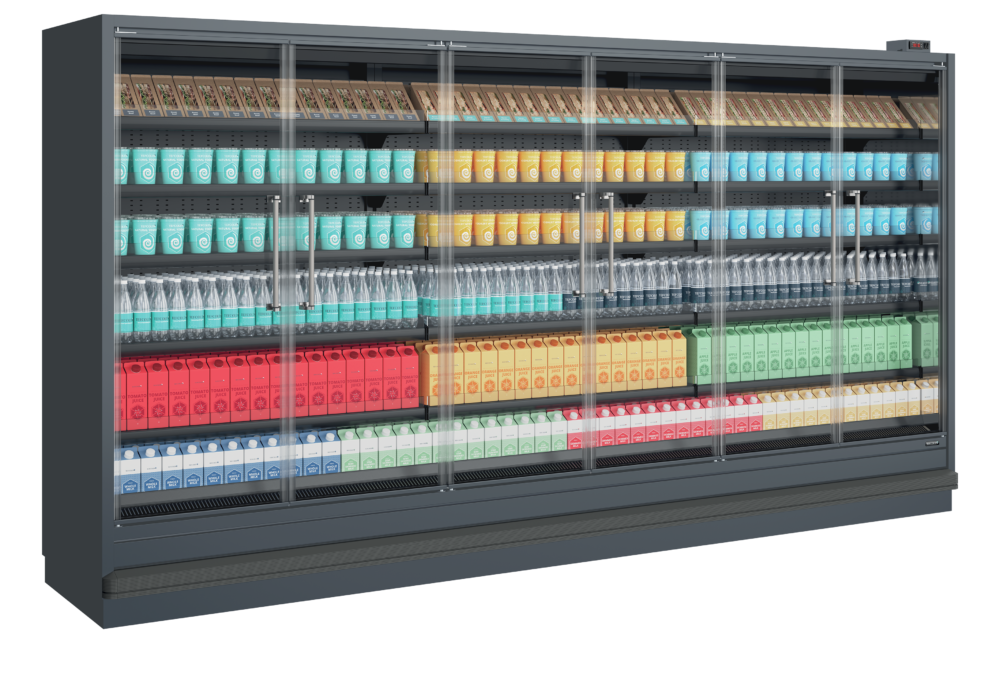

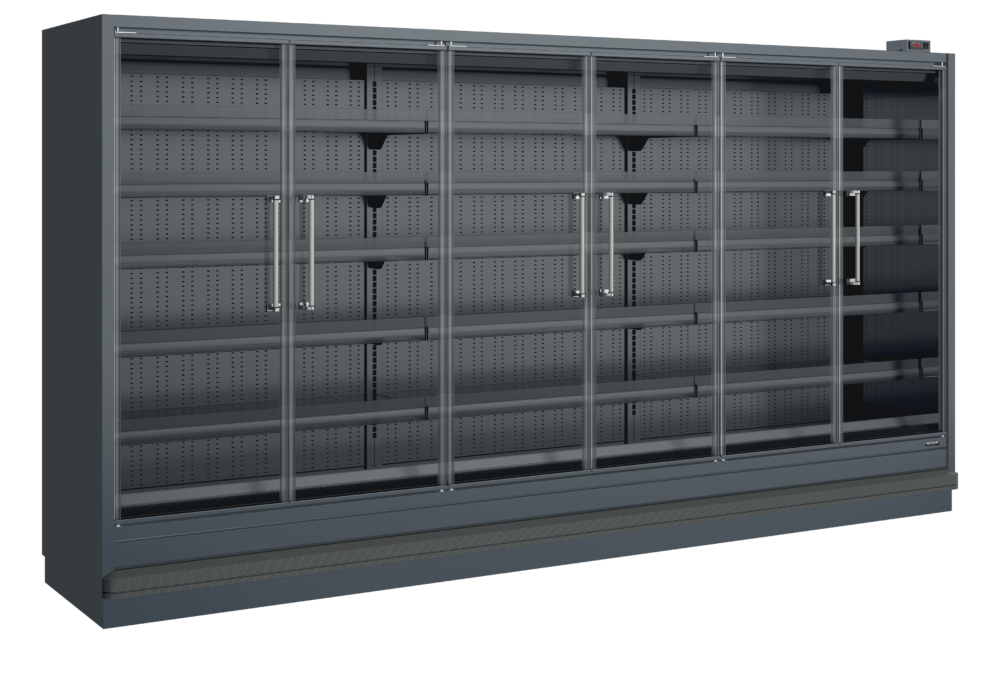

TEFCOLD Trojan T38 FGD A Remote Multideck

+vat

This product is currently out of stock and unavailable.

Brand:

SKU: 68195

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Requires remote refrigeration system (not supplied)

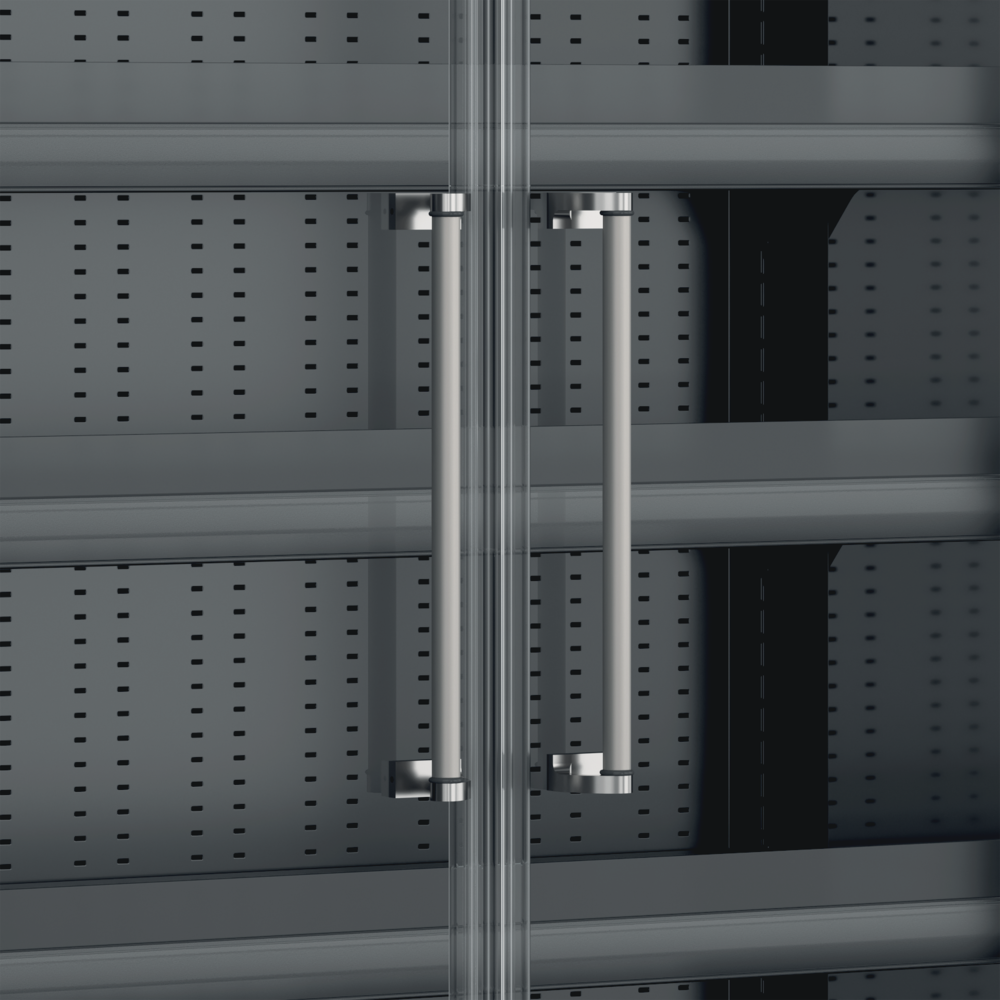

  • Frameless glass doors for great product visibility
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • Solid 40 mm endwalls with mirrored interior
  • Horizontal LED lighting

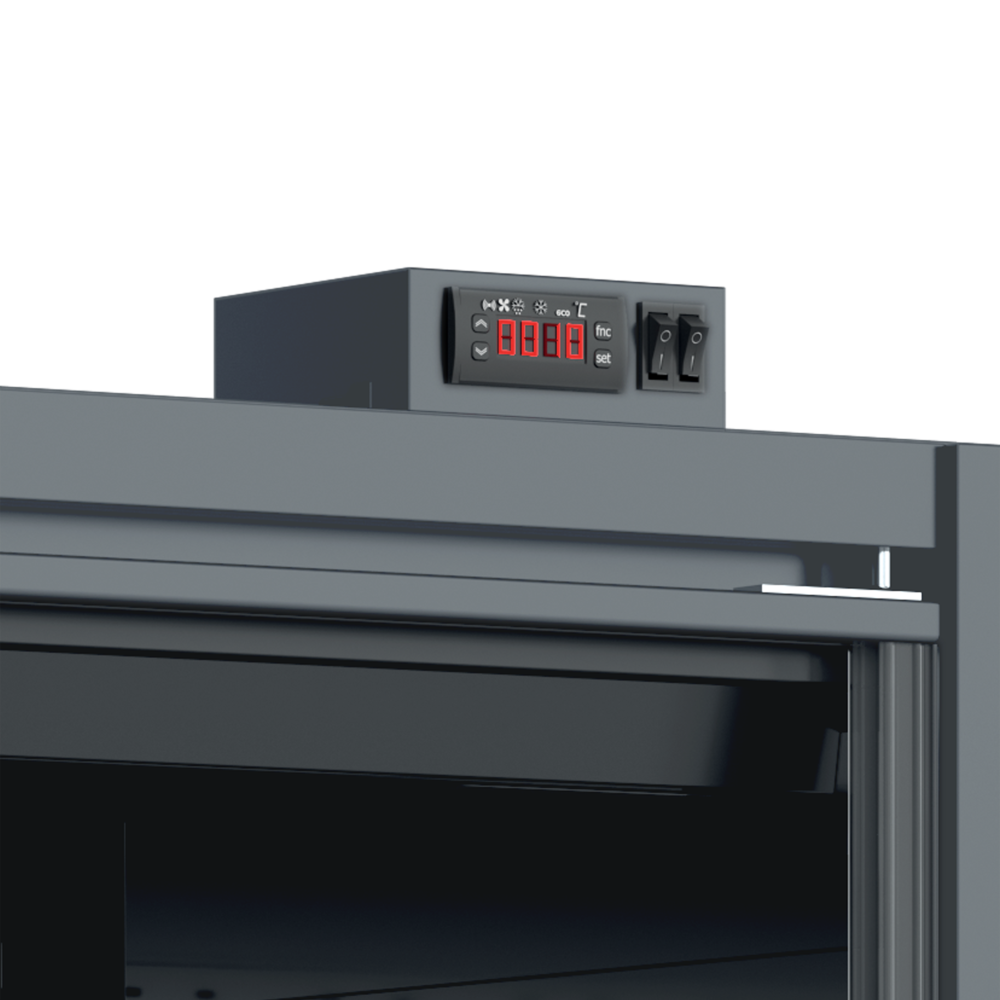

  • Digital controller and temperature display
  • EPOS Ticket strips & shelf risers
  • Extraction rate 650w/per metre
  • Can be multiplexed with kit (POA)
  • Also available in an extended height version

Product description

Remote Multideck

These remote multidecks are a great option for maximising your display space, helping to reduce the impact of both noise and heat. Available in 4 sizes. You can multiplex these units, with use of a kit, this allows you to create an even larger display size. A large display area creates impressive product presentation with high-capacity vertical merchandising. Stock up with a variety of chilled products with even temperature distribution across all shelf levels. Illuminated by LED lighting. This also enhances the display impact, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Important – an additional remote refrigeration system is required. 2 year parts warranty only.

The TEFCOLD Trojan T38 FGD A is a remote full-glass-door multideck giving 5.5 m² of chilled display, rated energy class D with an EEI of 37.3% and using 9,271 kWh a year — about £2,318 a year at 25p/kWh — running off a remote condensing unit rather than a built-in compressor.

SPECIFICATION 38 facts · tap for all External W × D × H3834 x 784 x 2076 mmWidth3834 mmDepth784 mmGross / net weight695 / 640 kgGross weight695 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753429site
Product code 68195site
Sub title Remote Multideckcatalogue
Type Tefcold Trojancatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 784 mmsite
External (W×D×H) 3834 × 784 × 2076 mmcatalogue
External W × D × H 3834 x 784 x 2076 mmsite
Gross / net weight 695 / 640 kgsite
Gross weight 695 kgcatalogue
Height 2076 mmsite
Internal (W×D×H) 3750 × 450 × 1578 mmcatalogue
Internal W × D × H 3750 x 450 x 1578 mmsite
Packed (W×D×H) 4000 × 850 × 2390 mmcatalogue
Packed W × D × H 4000 x 850 x 2390 mmsite
Width 3834 mmsite

Capacity3

Display area 5.5 m²site
Doors 6catalogue
Shelves 5catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R449asite
Refrigerant charge REMOTE gsite
Temperature range -1 to +5site

Power & energy4

Annual energy consumption 9271 kWh/yearsite
Energy consumption 25.4 kWh/24hsite
Energy efficiency index 37.3 %site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Reversible doors Nosite
Shelf dimensions 5 x 450 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this tefcold trojan earns its place

The Trojan T38 FGD A is a full-glass-door remote multideck built for a long chilled run. It presents 5.5 m² of glass-fronted display, enough to carry a substantial range behind doors while keeping the cold inside the cabinet rather than spilling it into the aisle as an open front would. It is a fit for a main chilled wall where the display has to look full and merchandise a wide range at once.

Because it is a remote cabinet, the refrigeration is handled by a separate condensing unit sited away from the shop floor, so there is no compressor heat or noise at the display. On energy it is rated class D with an efficiency index of 37.3%, drawing 9,271 kWh a year — about £2,318 a year at 25p per kWh, with the real figure moving on your tariff and how hard the doors are worked.

Being remote, this is not a plug-in cabinet: it connects to a remote condensing unit through pipework that a refrigeration engineer should size, install and commission. That makes it a fit for sites already running a central refrigeration pack, or planning one as part of a larger fit-out, rather than a standalone socket install. Our team can specify it against your existing plant and handle installation.

BEFORE YOU BUY

Questions, answered straight

It is a remote multideck with no built-in compressor. It connects to a separate remote condensing unit through pipework, which a refrigeration engineer should size, install and commission for your site.

It is rated energy class D with an EEI of 37.3% and uses 9,271 kWh a year, which is about £2,318 a year at 25p per kWh. Your real figure depends on your electricity tariff and door traffic.

The cabinet presents 5.5 m² of glass-door display area for chilled stock — a long run suited to a main chilled wall. Full glass doors keep the display looking full and hold temperature between customers.

Glass doors keep the cold inside the cabinet instead of spilling it into the aisle, which keeps the display tidy and the product on show. This T38 is a full-glass-door (FGD) format.

Yes. We supply Tefcold remote cabinets across the UK and can specify this one against your condensing plant. Call our service team on 01792 732702 for installation, commissioning or servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 3750 x 450 x 1578 mm
External Dimension (WxDxH): 3834 x 784 x 2076 mm
Packed Dimension (WxDxH): 4000 x 850 x 2390 mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R449a
Refrigerant Charge: REMOTE g

Power and Consumption

Energy Consumption: 25.4 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 9271 kWh/year m³
EEI: 37.3 %
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 695 / 640 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 5.5 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 5 x 450 mm.
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
If you have any questions about the TEFCOLD Trojan T38 FGD A Remote Multideck then please get in touch.
