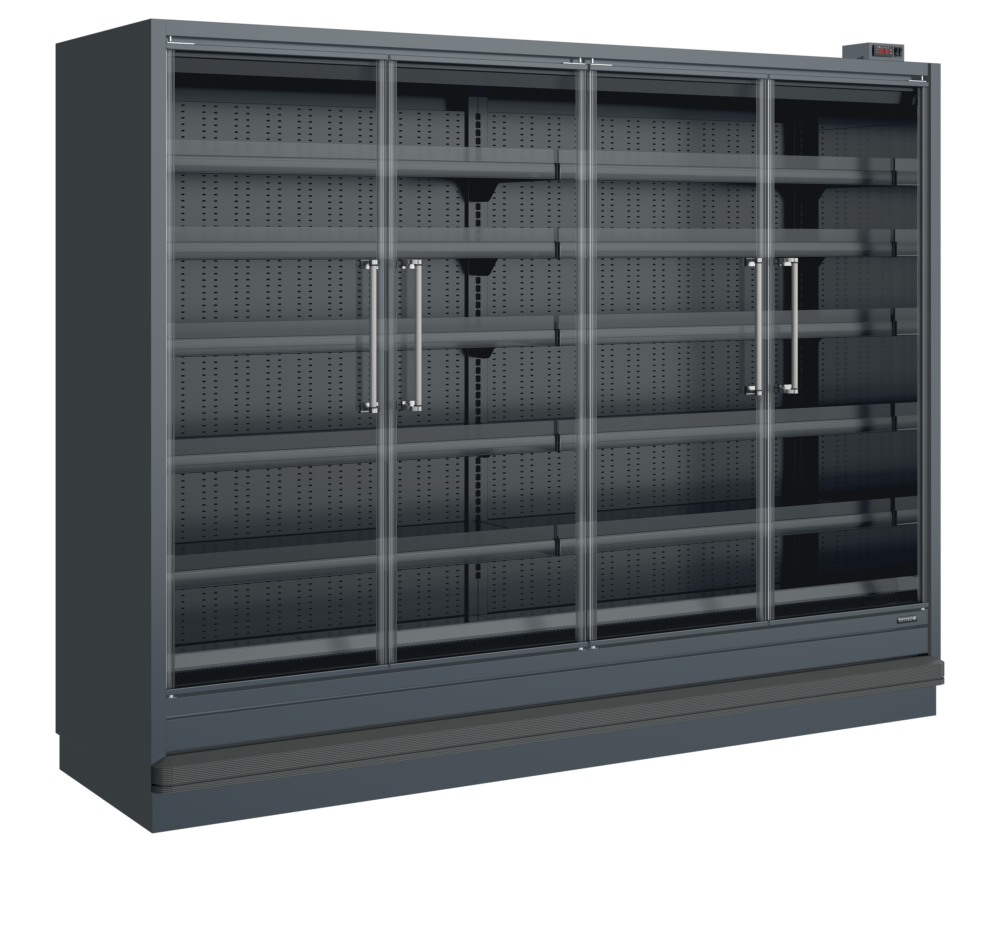

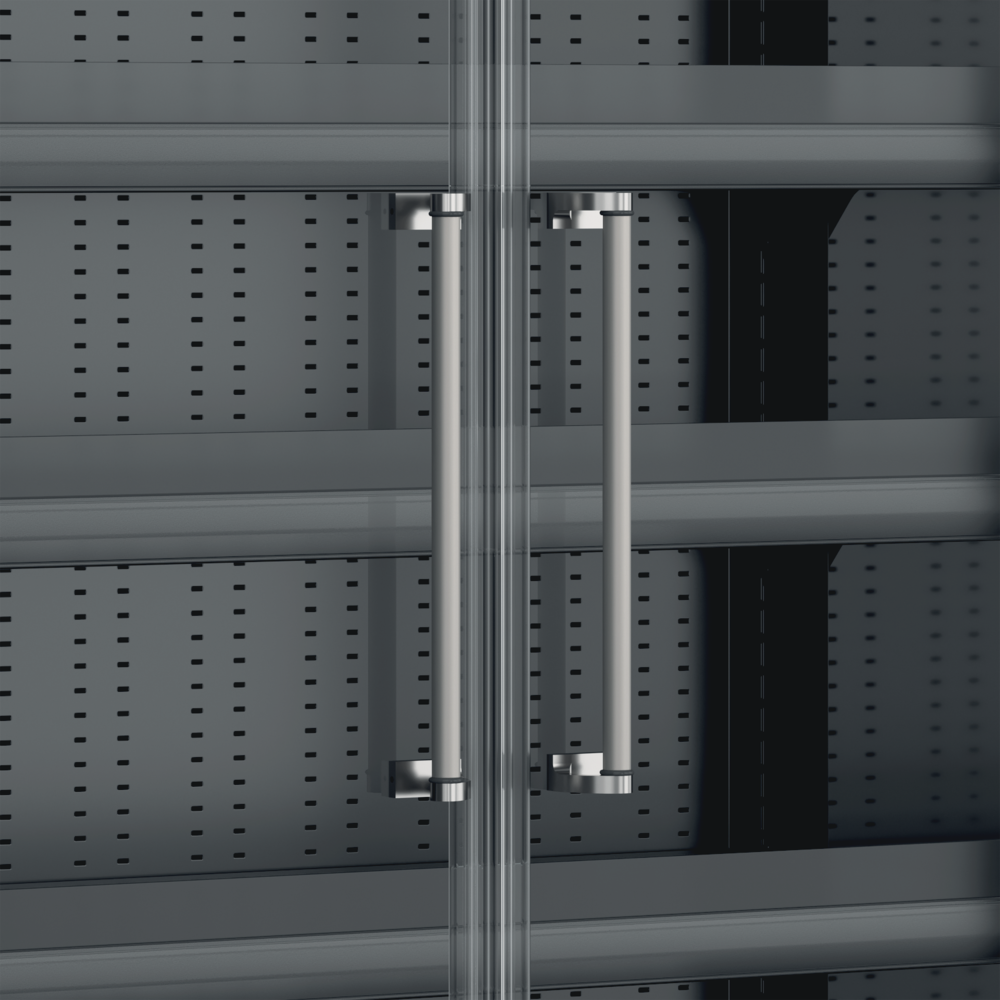

TEFCOLD Trojan T26 FGD EHA Remote Multideck – Extended Height

£4,131.00

+vat

Brand:

SKU: 68207

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Requires remote refrigeration system (not supplied)
  • Horizontal LED lighting
  • Frameless glass doors for great product visibility
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • Solid 40 mm endwalls with mirrored interior
  • Digital controller and temperature display
  • Can be multiplexed with kit (POA)
  • EPOS Ticket strips & shelf risers
  • Extraction rate 650w/per metre
  • Fully automatic, fan assisted cooling

Product description

Remote Multideck – Extended Height

This popular remote multideck range, at an extended height, allows you to maximise your display space whilst also reducing the impact of noise and heat. This unit is available in 4 sizes. Available for multiplexing, with a kit this allows you to create a bigger display size. This unit offers a large display area with high-capacity vertical merchandising, great for product presentation. Ideal for a large range of chilled products with even temperature distribution across all shelf levels. Plus the LED illumination enhances the presentation of produce, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Please note this requires an additional remote refrigeration system. 2 year parts warranty only.

The TEFCOLD Trojan T26 FGD EHA is an extended-height remote multideck with 4.95 m² of open display, rated energy class D at 8,216.1 kWh a year, built to run from a separate remote condensing pack for high-volume chilled retail display.

SPECIFICATION 38 facts · tap for all External W × D × H2584 x 784 x 2236 mmWidth2584 mmDepth784 mmGross / net weight546 / 515 kgGross weight546 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753481site
Product code 68207site
Sub title Remote Multideck – Extended Heightcatalogue
Type Tefcold Trojancatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 784 mmsite
External (W×D×H) 2584 × 784 × 2236 mmcatalogue
External W × D × H 2584 x 784 x 2236 mmsite
Gross / net weight 546 / 515 kgsite
Gross weight 546 kgcatalogue
Height 2236 mmsite
Internal (W×D×H) 2500 × 450 × 1738 mmcatalogue
Internal W × D × H 2500 x 450 x 1738 mmsite
Packed (W×D×H) 2750 × 850 × 2390 mmcatalogue
Packed W × D × H 2750 x 850 x 2390 mmsite
Width 2584 mmsite

Capacity3

Display area 4.02 m²site
Doors 4catalogue
Shelves 5catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R449asite
Refrigerant charge REMOTE gsite
Temperature range -1 to +5site

Power & energy4

Annual energy consumption 6468 kWh/yearsite
Energy consumption 17.72 kWh/24hsite
Energy efficiency index 33.7 %site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Reversible doors Nosite
Shelf dimensions 5 x 450 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this tefcold trojan earns its place

The TEFCOLD Trojan T26 FGD EHA is a remote multideck display cabinet in the Trojan range, giving 4.95 m² of open, front-facing display for chilled grab-and-go retail. The extended-height build stacks more product facings into the same floor footprint, putting a large range in front of customers on open shelves.

As a remote cabinet it is designed to connect to a separate condensing pack rather than housing its own compressor, which keeps compressor heat and noise off the shop floor. It is rated energy class D and uses 8,216.1 kWh a year — about £2,054 a year at 25p/kWh — with an energy efficiency index of 36.2%.

A remote installation needs the cabinet piped and commissioned to a condensing pack by a refrigeration engineer, so factor the pack and pipework into the fit-out rather than treating it as a plug-in unit. Craven Cooling can advise on specification and installation.

BEFORE YOU BUY

Questions, answered straight

4.95 m² of open multideck display.

It is rated energy class D and uses 8,216.1 kWh a year — about £2,054 a year at 25p/kWh — with an energy efficiency index of 36.2%.

Yes. As a remote cabinet it connects to a separate condensing pack rather than housing its own compressor, so pipework and a pack are part of the installation.

It is a taller multideck build that stacks more product facings into the same floor footprint.

Yes. Craven Cooling can advise on specification and installation — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2500 x 450 x 1738 mm
External Dimension (WxDxH): 2584 x 784 x 2236 mm
Packed Dimension (WxDxH): 2750 x 850 x 2390 mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R449a
Refrigerant Charge: REMOTE g

Power and Consumption

Energy Consumption: 17.72 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 6468 kWh/year m³
EEI: 33.7 %
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 546 / 515 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 4.02 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 5 x 450 mm
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
If you have any questions about the TEFCOLD Trojan T26 FGD EHA Remote Multideck – Extended Height then please get in touch.
