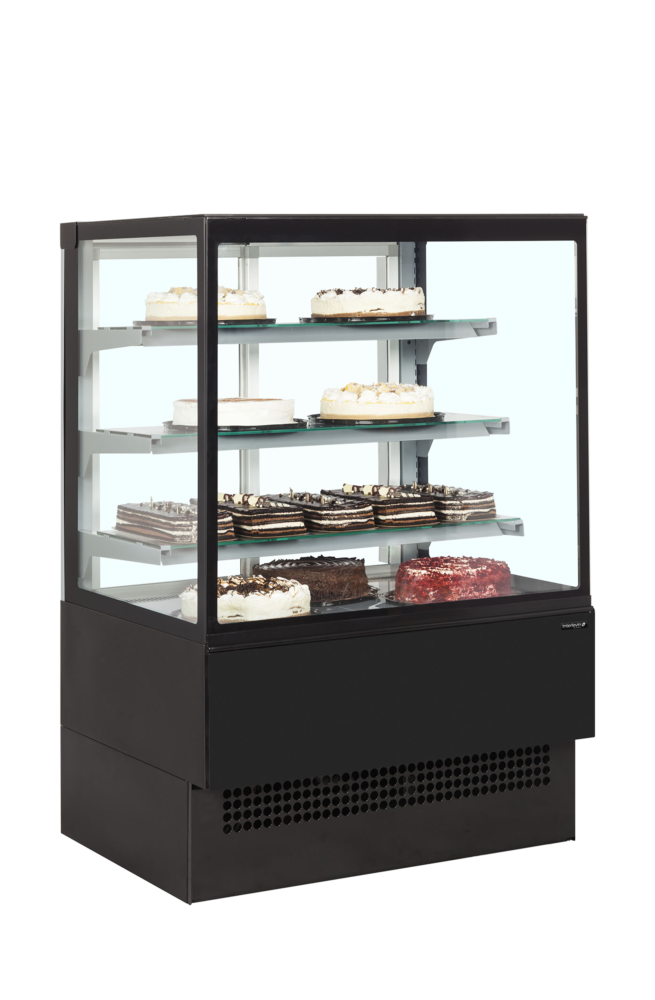

TEFCOLD EVOK1202 Patisserie and Deli Display

£3,460.00 £2,201.00

+vat

Brand:

SKU: 38320

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet
  • Interior light with switch
  • Digital controller and temperature display
  • Individually illuminated glass shelves
  • Glass rear sliding doors

Product description

Inject a blend of sophistication and practicality with the EVOK Patisserie Display Cabinet, ideal of high-end patisseries and cafés. Great for showcasing products with operation efficiency. The fully automatic system simplifies operations by managing defrosting and temperature control effortlessly. Fan-assisted cooling ensures an even temperature distribution throughout the cabinet, keeping pastries fresh and delectable all day.

The TEFCOLD EVOK1202 is a black flat-glass patisserie and deli display fridge that holds +1 to +10 °C across 1.62 m² of display on three glass shelves behind two sliding glass doors, measuring 1200 × 755 × 1400 mm on a standard 13 amp supply.

Sale!
SPECIFICATION 39 facts · tap for all External W × D × H1200 x 755 x 1400 mmWidth1200 mmDepth755 mmGross / net weight165 / 145 kgGross weight165 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181999957site
Product code 38320site
Sub title Patisserie and Deli Displaycatalogue
Type Flat Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 755 mmsite
External (W×D×H) 1200 × 755 × 1400 mmcatalogue
External W × D × H 1200 x 755 x 1400 mmsite
Gross / net weight 165 / 145 kgsite
Gross weight 165 kgcatalogue
Height 1400 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1320 × 850 × 1540 mmcatalogue
Packed W × D × H 1320 x 850 x 1540 mmsite
Width 1200 mmsite

Capacity2

Display area 1.62 m²site
Doors 2catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 140 gsite
Temperature range +1 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2915 kWh/yearsite
Energy consumption 7.99 kWh/24hsite
Energy efficiency index 36.6 %site
Input power 687 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Blacksite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this flat glass cake display fridge earns its place

The EVOK1202 is a flat-glass patisserie and deli display cabinet built to put chilled cakes, pastries and deli lines in full view. A black exterior and grey interior frame 1.62 m² of display area, arranged over three glass shelves plus the base, so you can build height without hiding stock. Two sliding glass doors keep the front open to the customer while holding the chill inside.

Day to day it runs a +1 to +10 °C band under an electronic controller, with automatic defrost clearing ice build-up so staff don't have to. Cooling uses R290 refrigerant with a 140 g charge, and the cabinet is rated climate class 3 at 55 dB. At energy class D and 2916.3 kWh a year, running cost works out at about £729 a year at 25p/kWh.

The cabinet measures 1200 × 755 × 1400 mm (W×D×H) and ships packed at 1320 × 850 × 1540 mm, so check doorways, corridors and lifts against the crated size before delivery. It weighs 165 kg gross and 145 kg net, and plugs into a standard 13 amp, 220–240 V supply — no dedicated electrics required.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 1200 mm wide and 755 mm deep, but it ships crated at 1320 × 850 × 1540 mm. Measure your doorways, corridors and any lift against the packed size before delivery day.

It runs a chilled band of +1 to +10 °C under an electronic controller. That suits patisserie and deli display rather than long-term cold storage.

At energy class D and 2916.3 kWh a year, running cost is about £729 a year at 25p/kWh. Your actual figure depends on your tariff and how often the doors are opened.

No. It runs from a standard 13 amp, 220–240 V socket, so no dedicated electrical work is needed on most sites.

Defrost is automatic, so ice clearing is handled by the cabinet without staff intervention, managed by the electronic controller.

It uses R290, a natural hydrocarbon refrigerant, with a 140 g charge. For servicing or spares, Craven Cooling's team is on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1200 x 755 x 1400 mm
Packed Dimension (WxDxH): 1320 x 850 x 1540 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 140 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.99 kWh/24h
Temperature Range: +1 to +10 °C
Annual Energy Consumption: 2915 kWh/year m³
EEI: 36.6 %
Input Power: 687 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: +1 to +10 °C
Climate Class: 3
Gross / Net Weight: 165 / 145 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.62 m² m²

Design and Material

Shelf Color: Glass
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
If you have any questions about the TEFCOLD EVOK1202 Patisserie and Deli Display then please get in touch.
