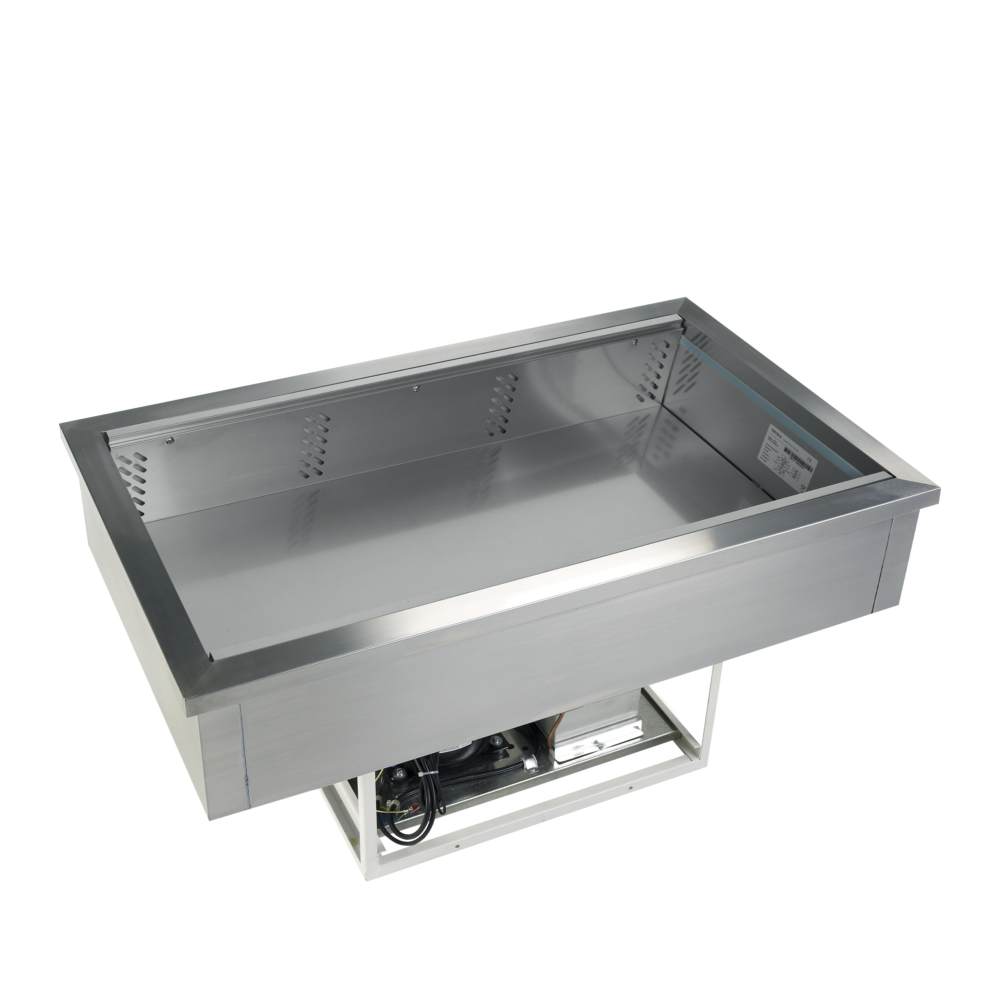

TEFCOLD CW3V Buffet Display

£706.00

+vat

Brand:

SKU: 20020

Product summary

  • Digital controller and temperature display
  • Stainless steel construction
  • Suitable for building into counters
  • Accepts Gastronorm pans (not supplied)
  • Accepts GN1/1 pan(s) (not supplied)
  • Ventilated cooling

Product description

The TEFCOLD CW3V is a drop-in buffet display well holding +2 to +8 °C over a 1014 mm-wide chilled surface, with automatic defrost and electronic control in a stainless steel body, drawing just 122 W.

SPECIFICATION 38 facts · tap for all External W × D × H1122 x 688 x 636 mmWidth1122 mmDepth688 mmGross / net weight52 / 42 kgGross weight52 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181361150site
Product code 20020site
Sub title Buffet Displaycatalogue
Type Drop-In Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 688 mmsite
External (W×D×H) 1122 × 688 × 636 mmcatalogue
External W × D × H 1122 x 688 x 636 mmsite
Gross / net weight 52 / 42 kgsite
Gross weight 52 kgcatalogue
Height 636 mmsite
Internal (W×D×H) 1014 × 576 × 186 mmcatalogue
Internal W × D × H 1014 x 576 x 186 mmsite
Packed (W×D×H) 1176 × 760 × 742 mmcatalogue
Packed W × D × H 1176 x 760 x 742 mmsite
Width 1122 mmsite

Capacity3

Capacity item specification 3 x GN1/1 pcscatalogue
GN pan capacity 3 x GN1/1site
Gross volume 166 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 100 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 1402 kWh/yearsite
Energy consumption 3.84 kWh/24hsite
Input power 122 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Stainless steelsite
THE WORKING VIEW

Why this drop-in display fridge earns its place

The CW3V is a drop-in buffet display that recesses into a serving counter to present chilled food for self-service. The stainless steel well runs 1014 mm across the internal display, a compact chilled surface for salads, platters and cold dishes at the counter.

It holds +2 to +8 °C under electronic control with automatic defrost. It runs on R290 with a 100 g charge, draws just 122 W and runs at 42 dB. Rated energy use is 1401.6 kWh a year — about £350 a year at 25p/kWh.

The internal display measures 1014 × 576 mm with a 186 mm depth, recessing into a counter aperture sized to the unit. It offers 164 litres net against 166 litres gross, weighs 52 kg gross, and runs from a standard 13 amp supply.

BEFORE YOU BUY

Questions, answered straight

The CW3V is a drop-in unit that recesses into a counter cutout, with the stainless steel well sitting in the worktop. Size the aperture to the unit.

It holds +2 to +8 °C under electronic control with automatic defrost, suited to chilled buffet and self-service food.

The chilled well is 1014 × 576 mm with a 186 mm depth, giving 164 litres net and 166 litres gross for salads, platters and cold dishes.

Rated energy use is 1401.6 kWh a year, about £350 a year at 25p/kWh. It draws just 122 W and runs at 42 dB.

It uses R290 with a 100 g charge. For servicing or install advice, call Craven Cooling on 01792 732702.

It runs from a standard 13 amp supply and draws just 122 W in use, weighing 52 kg gross.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1014 x 576 x 186 mm
External Dimension (WxDxH): 1122 x 688 x 636 mm
Packed Dimension (WxDxH): 1176 x 760 x 742 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 100 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.84 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1402 kWh/year m³
Input Power: 122 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Capacity GN Pans: 3 x GN1/1 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 52 / 42 kg
Gross / Net Volume: 166 / 164 l
Max Ambient: +30°C, 55% RH

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD CW3V Buffet Display then please get in touch.
