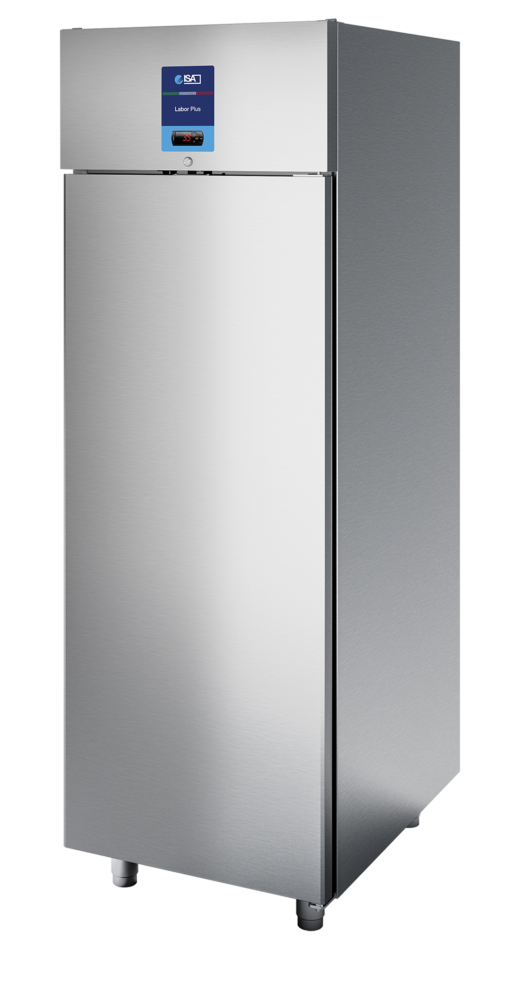

ISA Labor 70 Ice Cream Tempering Freezer

£2,807.00

+vat

Brand:

SKU: 20303

Energy Arrow

Product summary

  • For storage and tempering of ice cream and gelato
  • Adjustable shelves

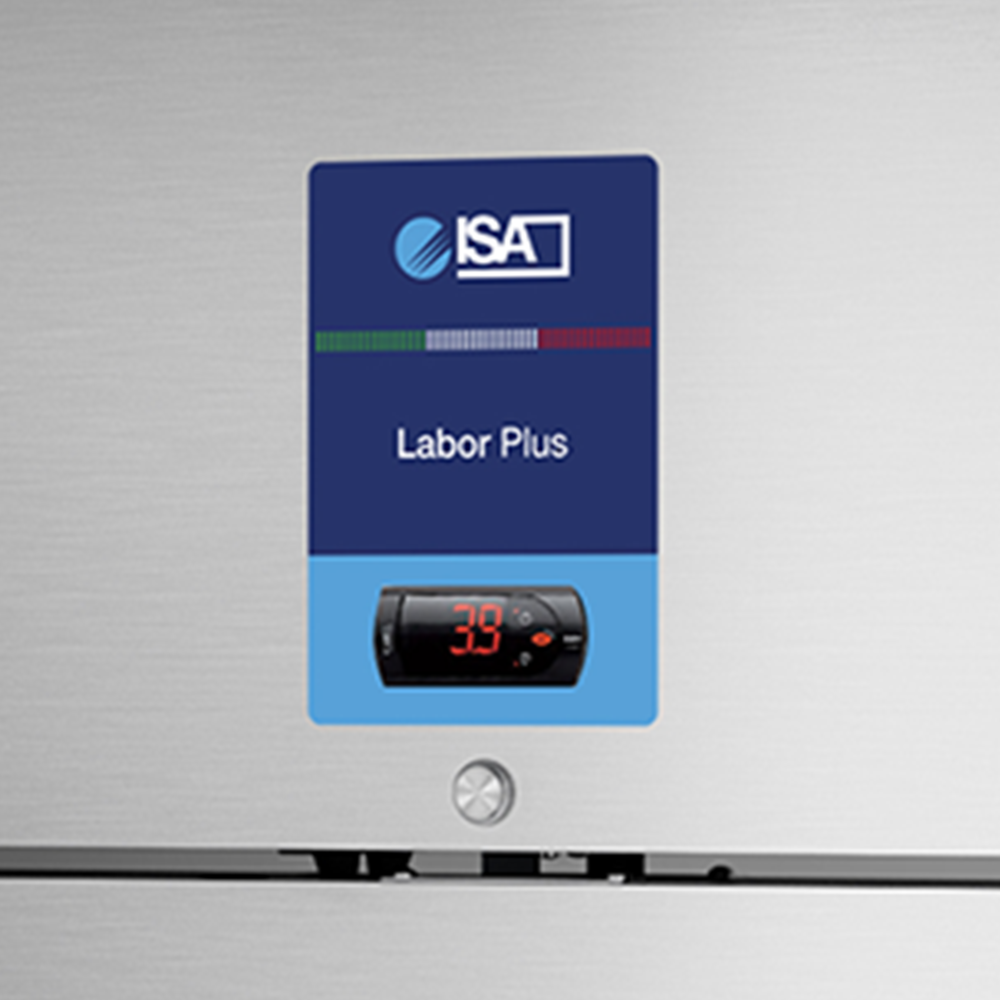

  • Digital controller and temperature display
  • Adjustable feet
  • Lock
  • Replaceable door gasket
  • Self-closing door

Product description

The ISA Labor static cooled freezer is ideal for storage and tempering of ice cream and gelato. The unit allows storage of up to 66 x 5 litre Napoli pans. It can also be used to store ice cream at ready to serve temperature, ready to go straight into the ice cream display. Ideal for busy ice cream or gelato parlours.

The ISA Labor 70 is a solid-door tempering freezer that holds scoop ice cream tubs at -18 to -14 °C, ready to bring forward for serving, giving parlours and kiosks 522 litres of net back-up storage on a standard 13 A supply.

Downloads

SPECIFICATION 38 facts · tap for all External W × D × H710 x 951 x 2092 mmWidth710 mmDepth951 mmGross / net weight172 / 148 kgGross weight172 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents2

Identity6

Brand ISAsite
GTIN / EAN 7001107031001site
Product code 20303site
Sub title Ice Cream Tempering Freezercatalogue
Type Ventilated Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 951 mmsite
External (W×D×H) 710 × 951 × 2092 mmcatalogue
External W × D × H 710 x 951 x 2092 mmsite
Gross / net weight 172 / 148 kgsite
Gross weight 172 kgcatalogue
Height 2092 mmsite
Internal (W×D×H) 535 × 795 × 1467 mmcatalogue
Internal W × D × H 535 x 795 x 1467 mmsite
Packed W × D × H mmsite
Width 710 mmsite

Capacity2

Doors 1catalogue
Gross volume 641 litrescatalogue

Performance8

Climate class 5site
Cooling type Fan assistedsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Temperature range -18 to -14site
Thermometer Yessite

Power & energy5

Annual energy consumption 2241 kWh/yearsite
Energy consumption 6.14 kWh/24hsite
Input power 450 Wsite
Noise level 52 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors Optionsite
Exterior finish SS304site
Feet / legs 4 adjustable legssite
Shelf dimensions 530×720site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this ventilated cooled ice cream display freezer earns its place

The Labor 70 is a solid-door tempering freezer for scoop ice cream — a back-of-service cabinet that holds tubs at a workable temperature so they are ready to bring forward onto the display. With 641 litres gross and 522 litres net behind a single hinged, self-closing door, it gives a parlour or kiosk somewhere to keep back-up flavours cold and consistent. Inside and out it is SS304 stainless steel, which stands up to a wet, high-turnover ice cream environment and wipes down easily.

In use it holds -18 to -14 °C, the band that keeps tubs firm while staying close to scooping condition. Defrost is manual, so factor a defrost into the cleaning routine rather than expecting an automatic cycle. It is rated energy class D at 2241.1 kWh a year, which is about £560 a year at 25p/kWh, and it runs at a measured 52 dB — quiet enough to sit near a service area without dominating it.

Electrically it needs only a standard 13 A supply at 220-240 V, 50 Hz, drawing 450 W, so no dedicated circuit is required. The refrigerant is R290, a low-GWP hydrocarbon. It is a heavy cabinet at 172 kg gross and 148 kg net, so plan the delivery route and its final standing position before it arrives, and note the self-closing door helps hold temperature through a busy service.

BEFORE YOU BUY

Questions, answered straight

It holds -18 to -14 °C, keeping scoop ice cream firm while close to a workable serving condition. Defrost is manual, so build a defrost into the cleaning routine.

Gross capacity is 641 litres and net usable capacity is 522 litres, behind a single hinged, self-closing solid door.

It is energy class D with a rated consumption of 2241.1 kWh a year. At 25p/kWh that is about £560 a year, varying with ambient conditions and how often the door is opened.

It runs at a measured 52 dB, quiet enough to stand near a service point without dominating the space.

A standard 13 A supply at 220-240 V, 50 Hz. It draws 450 W and uses R290 refrigerant, so no dedicated commercial circuit is required.

Yes. We can arrange servicing and support for the cabinet — call 01792 732702 to book a maintenance visit or discuss a service plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 535 x 795 x 1467 mm
External Dimension (WxDxH): 710 x 951 x 2092 mm
Packed Dimension (WxDxH): mm

Cooling and Functions

Type of Cooling: Fan assisted
Type of Defrost: Manual
Refrigerant: R290
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.14 kWh/24h
Temperature Range: -18 to -14 °C
Annual Energy Consumption: 2241 kWh/year m³
Input Power: 450 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 52 dB(A)

Measures and Content

Temperature Range: -18 to -14 °C
Climate Class: 5
Gross / Net Weight: 172 / 148 kg
Gross / Net Volume: 641 / 522 l
Max Ambient: +40°C, 40% RH

Design and Material

Door Reversible: Yes
Shelf Dimensions: 530×720
Feet / Legs: 4 adjustable legs
Castors: Option
Exterior Finish: SS304
Interior Finish: SS304
Lock: Yes
If you have any questions about the ISA Labor 70 Ice Cream Tempering Freezer then please get in touch.
