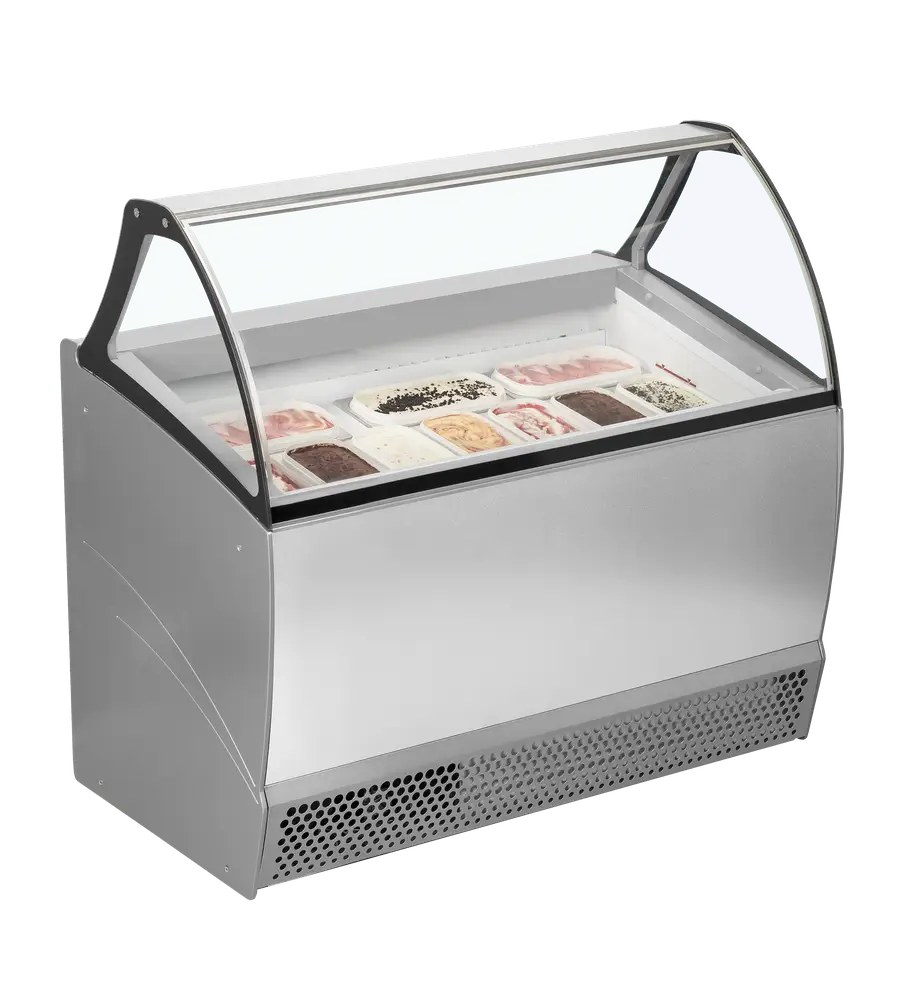

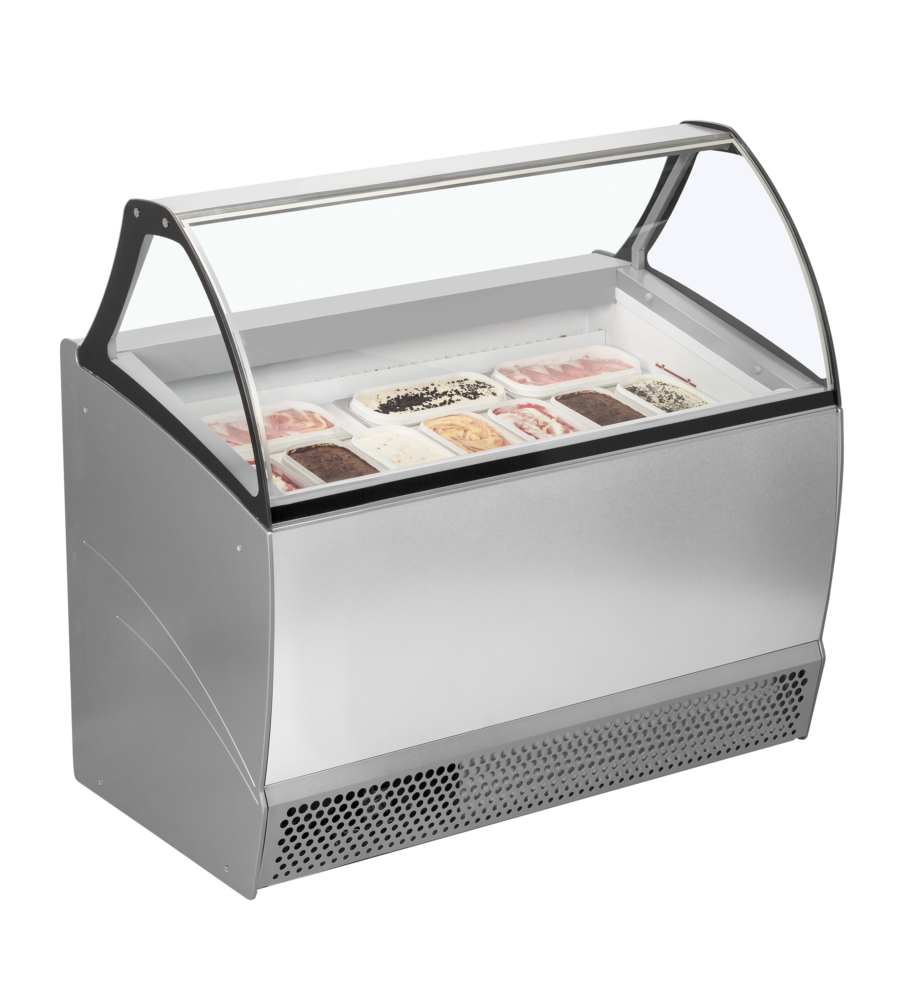

ISA BERMUDA RV10 Ventilated Scoop Ice Cream Display

£3,935.00

+vat

- +

Brand:

SKU: 19413

Energy Arrow

Product summary

  • Accepts Napoli pans (not supplied)
  • Heated glass to help prevent condensation
  • Easy access understorage
  • Interior light with switch
  • Digital controller and temperature display
  • Rear night curtain to maintain temperature
  • Castors
  • Automatic defrost
  • Ventilated cooling
  • Optional scoop wash

Product description

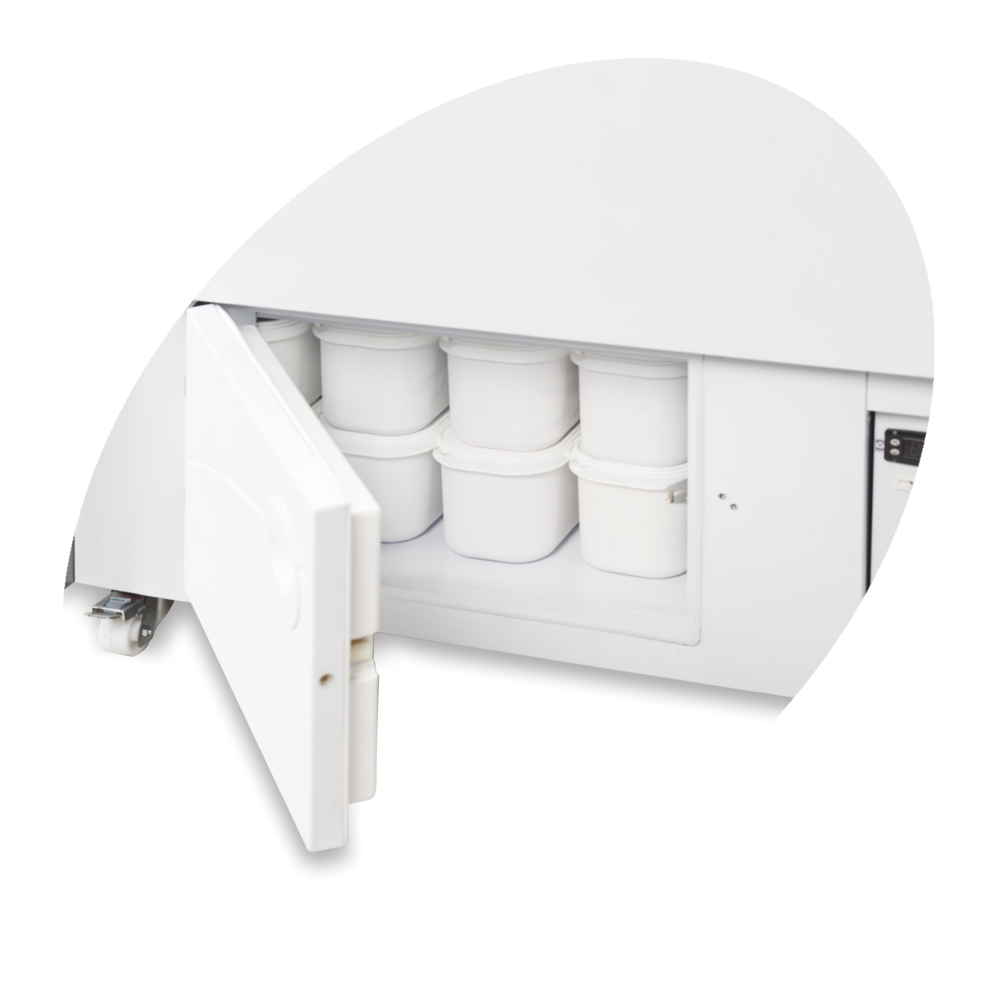

Ventilated 10 scoop ice cream display with under-storage

The Bermuda range is available in two display sizes, 10 or 13 pans, with a ventilated cooling system ensuring your ice cream or gelato is kept at at the ideal serving temperature. The Bermuda unit also features separate refrigerated under storage, allowing for efficient display restocking. The Bermuda’s sleek curved glass design is elegant and practical, featuring a heated surface to prevent condensation. Standard castors for easy mobility, and an internal LED light that illuminates products. Attractive combination of quality and affordability.

The ISA Bermuda RV10 is a ventilated scoop ice cream display freezer holding 255 litres net across a 0.59 m² display area, running at -20 to -14 °C on natural R290 refrigerant with automatic hot-gas defrost, in a 1340 mm-wide cabinet.

SPECIFICATION 42 facts · tap for all External W × D × H1340 x 800 x 1340 mmDepth800 mmGross / net weight200 / 180 kgGross weight200 kgVoltage / frequency220-240/50 V/HzInput power1500 W

Identity6

Brand ISAsite
GTIN / EAN 5708181608262site
Product code 19413site
Sub title Ventilated Scoop Ice Cream Displaycatalogue
Type Ventilated Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight9

Depth 800 mmsite
External (W×D×H) 1340 × 800 × 1340 mmcatalogue
External W × D × H 1340 x 800 x 1340 mmsite
Gross / net weight 200 / 180 kgsite
Gross weight 200 kgcatalogue
Internal W × D × H 1200 x 517 mmsite
Packed (W×D×H) 1440 × 870 × 1420 mmcatalogue
Packed W × D × H 1440 x 870 x 1420 mmsite
Width 1340 mmsite

Capacity3

Display area 0.59 m²site
Gross volume 300 litrescatalogue
Serving capacity / 10 Napoli Pans (5L)site

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, hot gassite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 95 / 35 gsite
Temperature range -20 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 8103 kWh/yearsite
Energy consumption 22.2 kWh/24hsite
Energy efficiency index 51.6 %site
Input power 1500 Wsite
Noise level 54 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors 4 castorssite
Exterior finish Greysite
Interior light LEDsite
Lock Nosite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this ventilated cooled ice cream display freezer earns its place

The ISA Bermuda RV10 is a ventilated scoop ice cream display freezer built to merchandise open tubs at the point of sale. It offers 300 litres gross and 255 litres net across a 0.59 m² display area, so a full range of flavours sits in front of the customer while the counter footprint stays contained. The grey exterior and white interior keep the focus on the product on show.

In use the cabinet holds -20 to -14 °C, the band scoop ice cream needs to stay firm without freezer burn, and ventilated cooling moves cold air evenly across the display so tubs at the front chill as hard as those at the back. Automatic hot-gas defrost clears frost without a manual routine, an electronic controller governs temperature, and it is rated to climate class 4 for warm rooms. Running noise is 54 dB, and at energy class E and 8103 kWh a year it costs about £2026 a year at 25p/kWh.

The cabinet measures 1340 × 800 × 1340 mm (W×D×H) and weighs 200 kg, so plan the delivery route and check the 800 mm depth clears your doorways before it arrives. It runs from a standard 13 amp supply on 220-240 V, draws 1500 W, and uses natural R290 refrigerant. Ventilated cooling means it needs clear air around the condenser, so leave the manufacturer's clearances when you site it.

BEFORE YOU BUY

Questions, answered straight

It holds -20 to -14 °C, the range that keeps scooping ice cream firm enough to serve cleanly without freezer burn. An electronic controller manages the setting.

The cabinet is 1340 × 800 × 1340 mm (W×D×H), so its 800 mm depth clears most standard doorways. Check your access route for the 1340 mm width and 200 kg weight before delivery.

At energy class E and 8103 kWh a year, it works out at about £2026 a year at 25p/kWh. Your actual cost depends on your tariff and how warm the room is.

No. It runs from a standard 13 amp socket on 220-240 V and draws 1500 W.

Defrost is automatic and uses hot gas, so frost is cleared without a manual routine or switching the cabinet off.

Running noise is rated at 54 dB. For siting or servicing advice, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1200 x 517 mm
External Dimension (WxDxH): 1340 x 800 x 1340 mm
Packed Dimension (WxDxH): 1440 x 870 x 1420 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 95 / 35 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 22.2 kWh/24h
Temperature Range: -20 to -14 °C
Annual Energy Consumption: 8103 kWh/year m³
EEI: 51.6 %
Input Power: 1500 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 54 dB(A)

Measures and Content

Temperature Range: -20 to -14 °C
Climate Class: 4
Gross / Net Weight: 200 / 180 kg
Gross / Net Volume: 300 / 255 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.59 m² m²

Design and Material

Serving Capacity: / 10 Napoli Pans (5L)
Storage capacity (under): / 10 Napoli Pans (5L)
Castors: 4 castors
Exterior Finish: Grey
Interior Finish: Grey
Interior Light: LED
Lock: No
If you have any questions about the ISA BERMUDA RV10 Ventilated Scoop Ice Cream Display then please get in touch.
