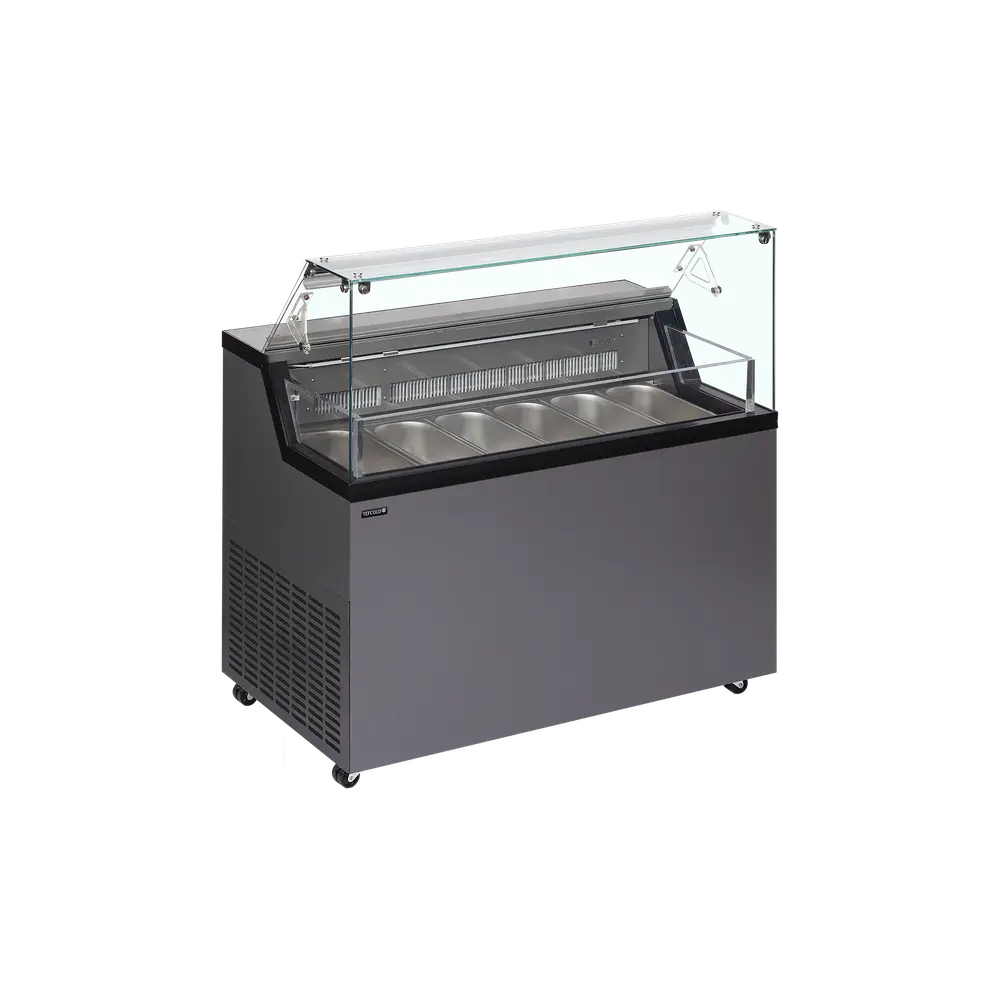

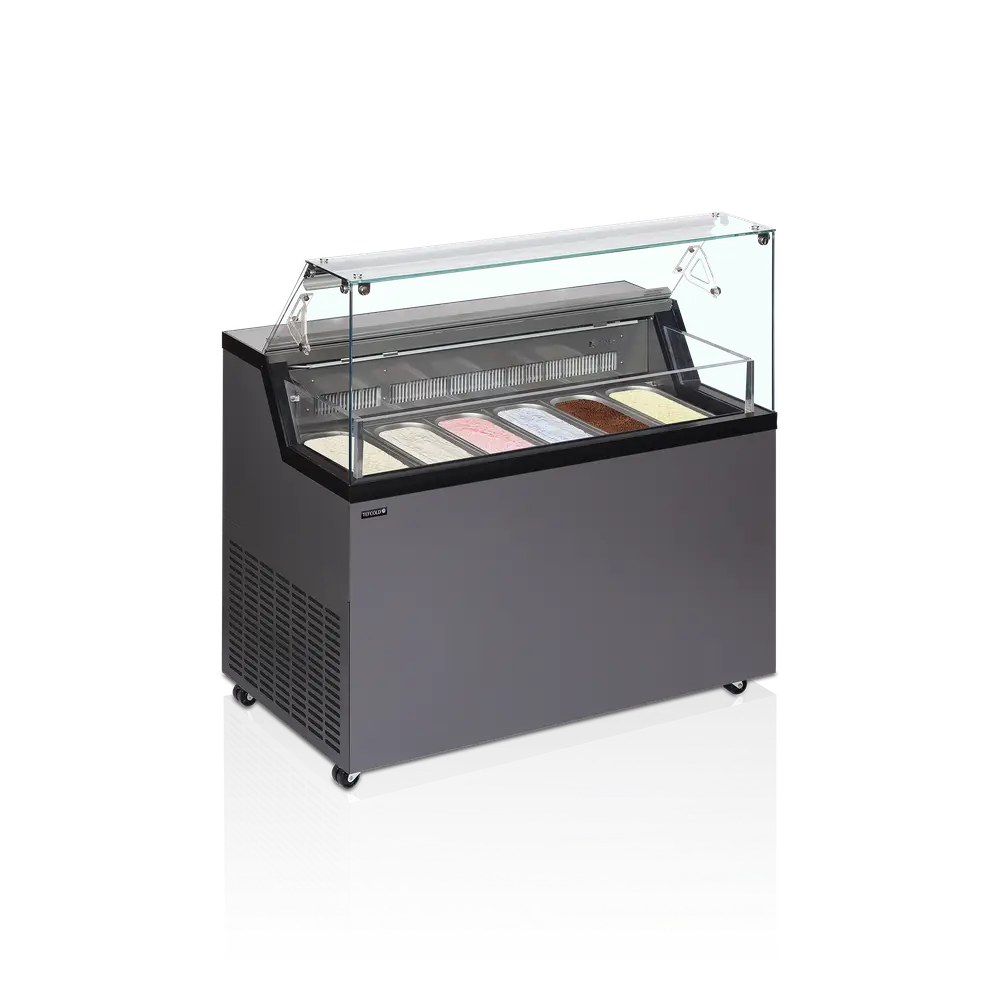

TEFCOLD MIRABELLA 6 Scoop Ice Cream Display

£1,976.00

+vat

- +

Brand:

SKU: 20326

Energy Arrow

Product summary

  • Static cooling
  • Fully automatic
  • Flat glass top
  • Accepts Napoli pans (not supplied)
  • Lift up rear lid (2 can serve)
  • LED interior light with switch

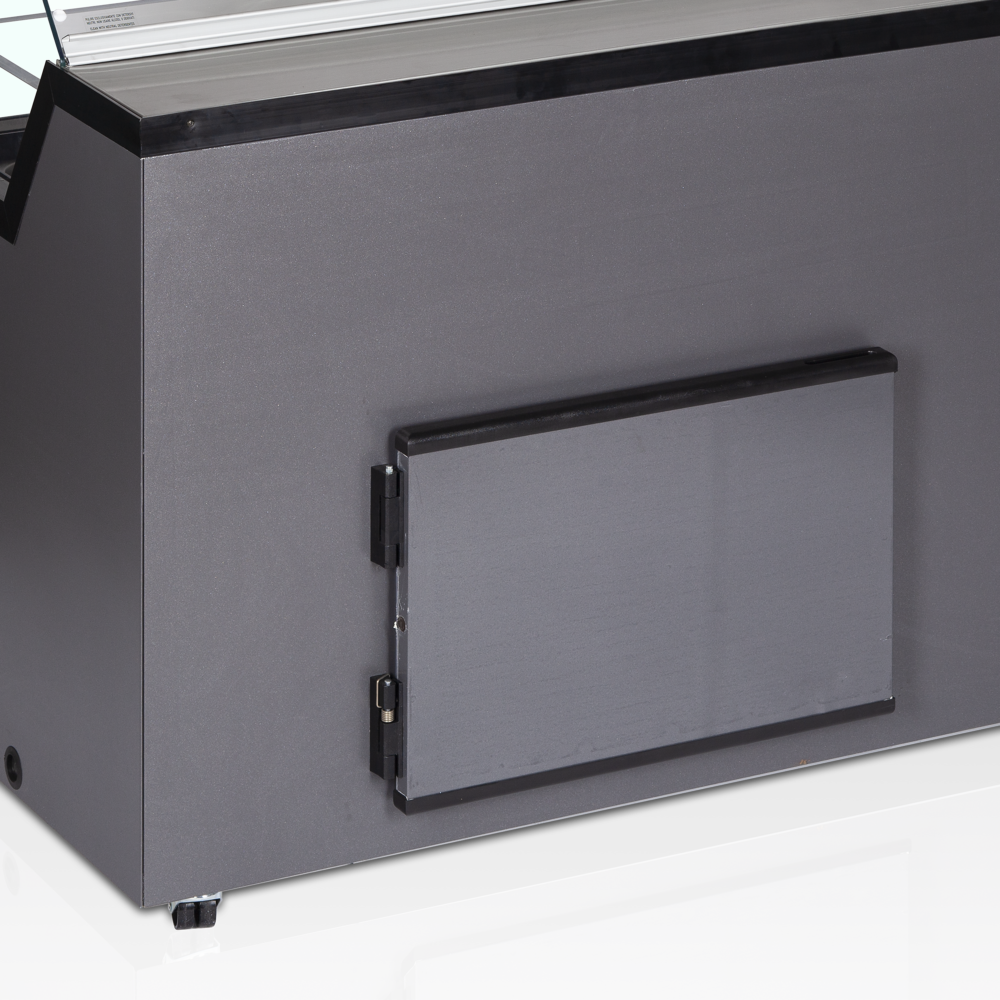

  • Easy access understorage
  • Digital controller and temperature display
  • Castors

Product description

Scoop ice cream freezer with serveover

The Framec Mirabella ice cream scooping display is a leap forward in design and presentation. The Mirabella is designed to hold the ice cream as high as possible in the display giving the easiest view of the product to the customer. Traditional scooping units hold the ice cream further down within the cabinet making it harder (especially for children) to see the ice cream. It also ensures the ice cream is visible from further away, helping to draw customers in. Maximise sales and profits by maximising your display. Available in 6, 7 and 9 pan versions, the Mirabella represents value, proven reliability and a class leading display.

The Tefcold Mirabella 6 is a compact scoop ice cream display freezer working across a -20 to -5 °C range with 184 litres net, running on a standard 13 A supply with an anthracite exterior and R290 refrigerant.

SPECIFICATION 42 facts · tap for all External W × D × H1187 x 677 x 1190 mmWidth1187 mmDepth677 mmGross / net weight137 / 117 kgGross weight137 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181617554site
Product code 20326site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 677 mmsite
External (W×D×H) 1187 × 677 × 1190 mmcatalogue
External W × D × H 1187 x 677 x 1190 mmsite
Gross / net weight 137 / 117 kgsite
Gross weight 137 kgcatalogue
Height 1190 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1270 × 740 × 1290 mmcatalogue
Packed W × D × H 1270 x 740 x 1290 mmsite
Width 1187 mmsite

Capacity4

Display area 0.36 m²site
Gross volume 276 litrescatalogue
Serving capacity / 6 Napoli Pans (5L)site
Under-counter storage / 12 Napoli Pans (5L)site

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range -20 to -5site
Thermometer Yessite

Power & energy5

Annual energy consumption 3924 kWh/yearsite
Energy consumption 10.75 kWh/24hsite
Input power 500 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 castorssite
Exterior finish Anthracite RAL7016site
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The Tefcold Mirabella 6 is a compact scoop ice cream display freezer for counters where floor space is limited but product needs to be on show. Its 0.36 m² of display area presents tubs behind glass at the front of house, and with 184 litres net it holds a working selection of flavours. The anthracite (RAL7016) exterior gives a dark, modern finish that suits a café, deli or kiosk serving line.

The cabinet works across a -20 to -5 °C range under an electronic controller, giving you room to set it for firm scooping or harder storage. Static cooling and automatic defrost keep it running steadily without a manual shutdown. It carries a C energy rating and runs at just 42 dB, quiet enough for a counter close to customers. On verified consumption of 3,923.8 kWh a year, that is about £981 a year at 25p/kWh.

The Mirabella 6 measures 1187 × 677 × 1190 mm (W×D×H); packed it is 1270 × 740 × 1290 mm, so it clears standard doorways with room to spare — measure your route to confirm. It runs from a standard 13 A supply at 220–240 V and cools with R290 refrigerant. It is rated to climate class 4. Net weight is 117 kg, so one or two people can position it.

BEFORE YOU BUY

Questions, answered straight

It works across a -20 to -5 °C range, set through an electronic controller. That gives you room to keep ice cream firm for scooping or colder for storage.

On verified consumption of 3,923.8 kWh a year, that is roughly £981 a year at 25p/kWh. It carries a C energy rating. Your actual cost depends on your tariff and how hard the cabinet works.

The cabinet is 1187 × 677 × 1190 mm (W×D×H) and ships packed at 1270 × 740 × 1290 mm, so it clears standard doorways with room to spare. Measure your access route before delivery to confirm.

A standard 13 A supply at 220–240 V, so it plugs into an ordinary socket. Give it its own socket rather than sharing a busy circuit.

It runs at 42 dB, so it is unobtrusive at a serving counter where staff and customers are close by. Static cooling keeps the running steady.

It uses R290 refrigerant with static cooling and automatic defrost under an electronic controller. For servicing, spares or installation advice, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1187 x 677 x 1190 mm
Packed Dimension (WxDxH): 1270 x 740 x 1290 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 10.75 kWh/24h
Temperature Range: -20 to -5 °C
Annual Energy Consumption: 3924 kWh/year m³
Input Power: 500 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -20 to -5 °C
Climate Class: 4
Gross / Net Weight: 137 / 117 kg
Gross / Net Volume: 276 / 184 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.36 m² m²

Design and Material

Serving Capacity: / 6 Napoli Pans (5L)
Storage capacity (under): / 12 Napoli Pans (5L)
Castors: 4 castors
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD MIRABELLA 6 Scoop Ice Cream Display then please get in touch.
