TEFCOLD MINI CREAM 2V Counter Top Scoop Ice Cream Display

£865.00

+vat

Brand:

SKU: 20238

Energy Arrow

Product summary

  • Accepts Napoli pans (not supplied)
  • Static cooling
  • Adjustable feet
  • Hinged low E glass lid

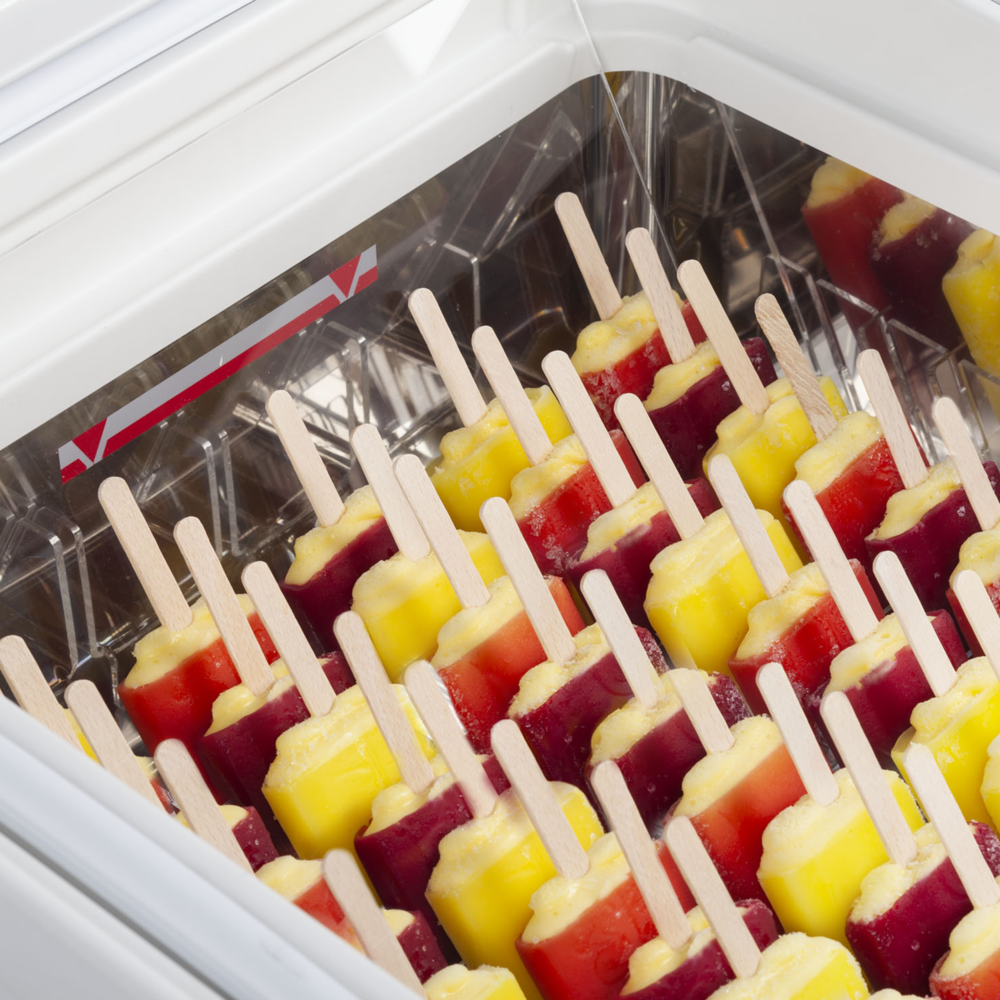

  • Optional lolly tray

Product description

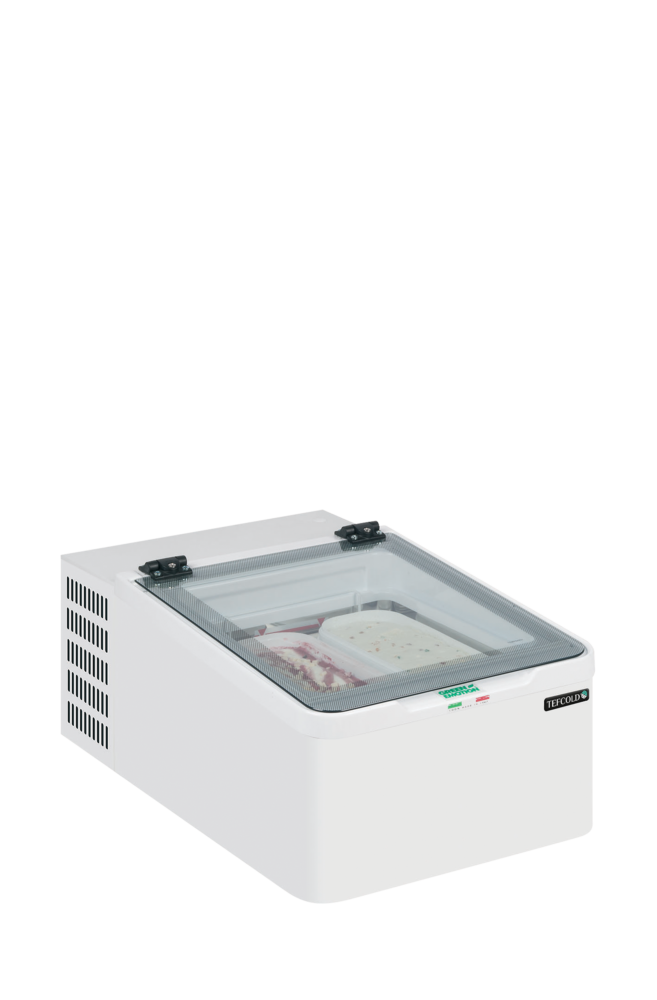

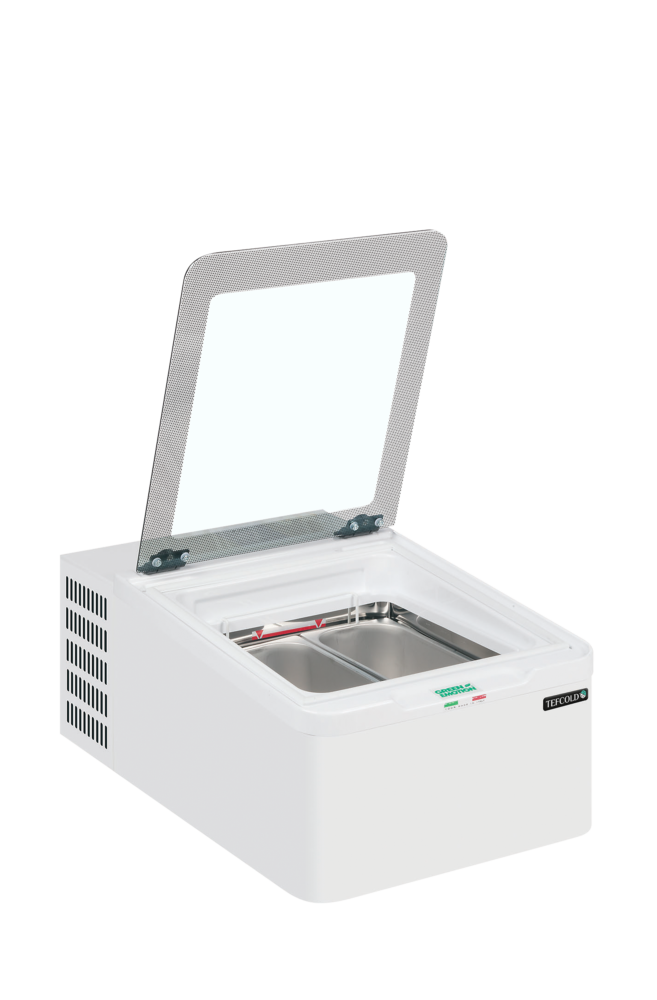

2 scoop counter top ice cream display

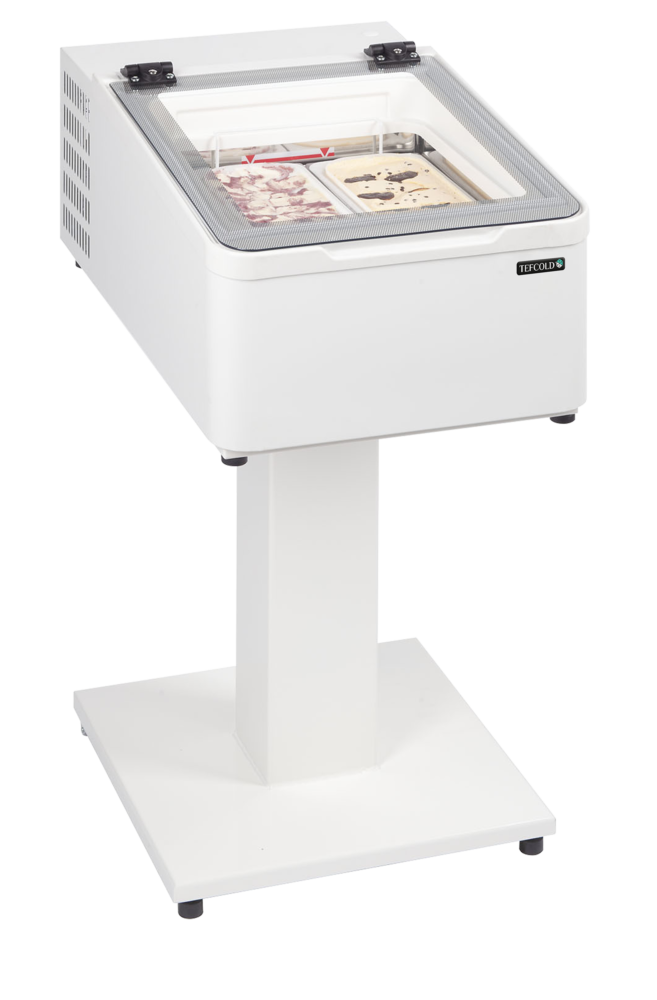

The Mini-Cream product line is perfect for businesses with limited space, yet aiming to maximise their scooping ice cream sales. The Mini-Cream is designed for convenient countertop placement and is available in either a 2 or 3 Napoli pan configuration. It can be used in both front or back-of-house settings, allowing for speedy and efficient service of popular ice cream flavours. Lolly tray and stand are available as an optional extra.

The TEFCOLD MINI CREAM 2V is a counter-top static-cooled scoop ice cream display measuring 490 × 790 × 345 mm (W×D×H), holding -25 to -10 °C over a 0.12 m² display area, running from a 13 A supply drawing 90 W and using R600a refrigerant.

SPECIFICATION 38 facts · tap for all External W × D × H490 x 790 x 345 mmWidth490 mmDepth790 mmGross / net weight32 / 28 kgGross weight32 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181616670site
Product code 20238site
Sub title Counter Top Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 790 mmsite
External (W×D×H) 490 × 790 × 345 mmcatalogue
External W × D × H 490 x 790 x 345 mmsite
Gross / net weight 32 / 28 kgsite
Gross weight 32 kgcatalogue
Height 345 mmsite
Internal (W×D×H) 364 × 389 × 170 mmcatalogue
Internal W × D × H 364 x 389 x 170 mmsite
Packed (W×D×H) 590 × 890 × 375 mmcatalogue
Packed W × D × H 590 x 890 x 375 mmsite
Width 490 mmsite

Capacity3

Display area 0.12 m²site
Serving capacity / 2 Napoli Pans (5L)site
Under-counter storage / No Under Storagesite

Performance9

Climate class 4site
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 22 gsite
Temperature range -25 to -10site
Thermometer Yessite

Power & energy4

Annual energy consumption 1047 kWh/yearsite
Energy consumption 2.87 kWh/24hsite
Input power 90 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Whitesite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The MINI CREAM 2V is a counter-top scoop ice cream display that adds a serving point to a café, kiosk or shop counter without taking any floor space. Its 0.12 m² display area shows a small run of tubs at eye level where customers queue and order, turning spare counter space into an impulse ice cream point. The white exterior and stainless steel interior keep it clean-looking and easy to wipe down in a busy service area.

In use it holds -25 to -10 °C, cold enough to keep scoop ice cream firm and workable across its display band. Cooling is static and defrost is manual, so build a defrost into the regular cleaning routine. It is rated energy class B at 1047.5 kWh a year, which comes to about £262 a year at 25p/kWh — and being a small unit it draws just 90 W.

The cabinet measures 490 mm wide, 790 mm deep and 345 mm high, so it needs a counter with enough depth to take it and clearance above for loading. It runs from a standard 13 A supply at 220-240 V, 50 Hz, uses R600a refrigerant with a 22 g charge, and is rated to climate class 4. At 32 kg gross and 28 kg net it is light enough to reposition when the counter layout changes.

BEFORE YOU BUY

Questions, answered straight

It holds -25 to -10 °C, cold enough to keep scoop ice cream firm and workable. Cooling is static and defrost is manual, so include a defrost in the cleaning routine.

The cabinet is 490 mm wide, 790 mm deep and 345 mm high, so it needs a counter deep enough to take it plus clearance above for loading. It weighs 32 kg gross and 28 kg net.

It is energy class B with a rated consumption of 1047.5 kWh a year, drawing just 90 W. At 25p/kWh that is about £262 a year, varying with ambient conditions and use.

It uses R600a with a 22 g charge. R600a is a hydrocarbon refrigerant with a low global warming potential, and the cabinet is rated to climate class 4.

A standard 13 A supply at 220-240 V, 50 Hz. It draws only 90 W, so no dedicated commercial circuit is required.

Yes. We can arrange servicing and support for the cabinet — call 01792 732702 to book a maintenance visit or discuss a service plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 364 x 389 x 170 mm
External Dimension (WxDxH): 490 x 790 x 345 mm
Packed Dimension (WxDxH): 590 x 890 x 375 mm

Cooling and Functions

Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 22 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.87 kWh/24h
Temperature Range: -25 to -10 °C
Annual Energy Consumption: 1047 kWh/year m³
Input Power: 90 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -25 to -10 °C
Climate Class: 4
Gross / Net Weight: 32 / 28 kg
Gross / Net Volume: / l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.12 m² m²

Design and Material

Serving Capacity: / 2 Napoli Pans (5L)
Storage capacity (under): / No Under Storage
Exterior Finish: White
Interior Finish: White
If you have any questions about the TEFCOLD MINI CREAM 2V Counter Top Scoop Ice Cream Display then please get in touch.
