TEFCOLD IC402SC-SO Scoop Ice Cream Freezer

£794.00

+vat

Brand:

SKU: 71500

Energy Arrow

Product summary

  • Curved glass canopy
  • LED interior light
  • Castors with brake
  • Flat sliding glass lids with lock
  • Storage under baskets
  • Great branding possibilities

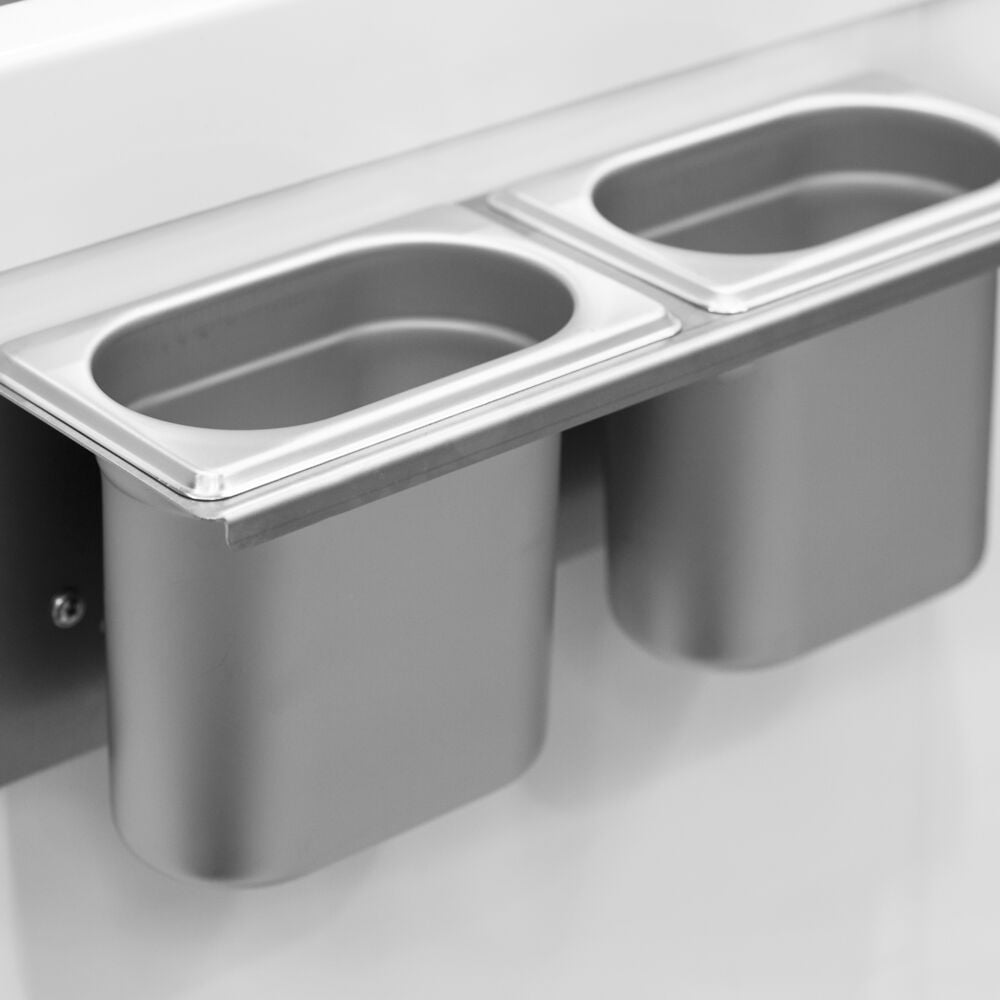

  • Accepts plastic napoli size tubs. Stainless napoli pans not required
  • Climate class 5 for high performance in warm surroundings

Product description

Scoop ice cream freezer with canopy

The IC-SC-SO canopy range is an ideal way to add scooping ice cream sales to your business even if you are on an budget. This is one of our most popular ranges. A curved glass canopy makes an attractive display for scooping tubs (Baskets which fit 5 litre tubs, with the option for 4 ltr baskets/tubs if required). Flat glass sliding lids (with lock) allow access to the ice cream for serving and help insulate the unit when not in use.

The TEFCOLD IC402SC-SO is a scoop ice cream display freezer for serving loose ice cream at the counter, holding 401 litres gross at -24 to -14 °C and costing around £219 a year to run at 25p/kWh.

SPECIFICATION 44 facts · tap for all External W × D × H1300 x 630 x 1250 mmWidth1300 mmDepth630 mmGross / net weight130 / 120 kgGross weight130 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181760779site
Product code 71500site
Sub title Scoop Ice Cream Freezercatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 630 mmsite
External (W×D×H) 1300 × 630 × 1250 mmcatalogue
External W × D × H 1300 x 630 x 1250 mmsite
Gross / net weight 130 / 120 kgsite
Gross weight 130 kgcatalogue
Height 1250 mmsite
Internal (W×D×H) 1180 × 510 × 655 mmcatalogue
Internal W × D × H 1180 x 510 x 655 mmsite
Packed (W×D×H) 1400 × 750 × 960 mmcatalogue
Packed W × D × H 1400 x 750 x 960 mmsite
Width 1300 mmsite

Capacity3

Gross volume 401 litrescatalogue
Serving capacity 10 Plastic Tubs (5L) / 12 Plastic Tubs (4L)site
Under-counter storage 19 Plastic Tubs (5L) / 19 Plastic Tubs (4L)site

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 105 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 877.095 kWh/yearsite
Energy consumption 2.403 kWh/24hsite
Energy efficiency index 43.9 %site
Input power 320 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The TEFCOLD IC402SC-SO is a scoop ice cream display freezer built for served sales. At 1180 mm wide with 401 litres of gross volume, it fronts a spread of tubs for scooping straight from the cabinet, holding a working range through a busy trading day without constant restocking, in a plain white finish.

It holds -24 to -14 °C with a mechanical controller and manual defrost, running at 45 dB, and is rated to climate class 5. The cabinet uses R290 refrigerant with a 105 g charge. At energy class D on 877.1 kWh a year, that works out at about £219 a year at 25p/kWh, subject to how heavily it is opened for service.

The internal dimensions are 1180 × 510 × 655 mm (W×D×H) and the gross weight is 130 kg, so it is worth positioning before loading. It draws 320 W on a standard 13 A supply. The refrigerant is hydrocarbon R290 with a 105 g charge.

BEFORE YOU BUY

Questions, answered straight

It runs between -24 and -14 °C on a mechanical controller with manual defrost. That band keeps scooping ice cream at a workable serving consistency.

It is energy class D and uses 877.1 kWh a year. At 25p/kWh that is about £219 a year, depending on how often it is opened for service.

It draws 320 W and runs off a standard 13 A supply, so it plugs into an ordinary socket without a dedicated circuit.

Gross volume is 401 litres across a 1180 mm wide cabinet, giving a served front for scooping tubs.

It runs at 45 dB, quiet enough for a customer-facing service counter.

It uses R290 hydrocarbon refrigerant with a 105 g charge. Craven Cooling can arrange servicing — call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1180 x 510 x 655 mm
External Dimension (WxDxH): 1300 x 630 x 1250 mm
Packed Dimension (WxDxH): 1400 x 750 x 960 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 105 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.403 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 877.095 kWh/year m³
EEI: 43.9 %
Input Power: 320 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 130 / 120 kg
Gross / Net Volume: 401 / 350 l
Max Ambient: +40°C, 40% RH

Design and Material

Serving Capacity: 10 Plastic Tubs (5L) / 12 Plastic Tubs (4L)
Storage capacity (under): 19 Plastic Tubs (5L) / 19 Plastic Tubs (4L)
Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD IC402SC-SO Scoop Ice Cream Freezer then please get in touch.
