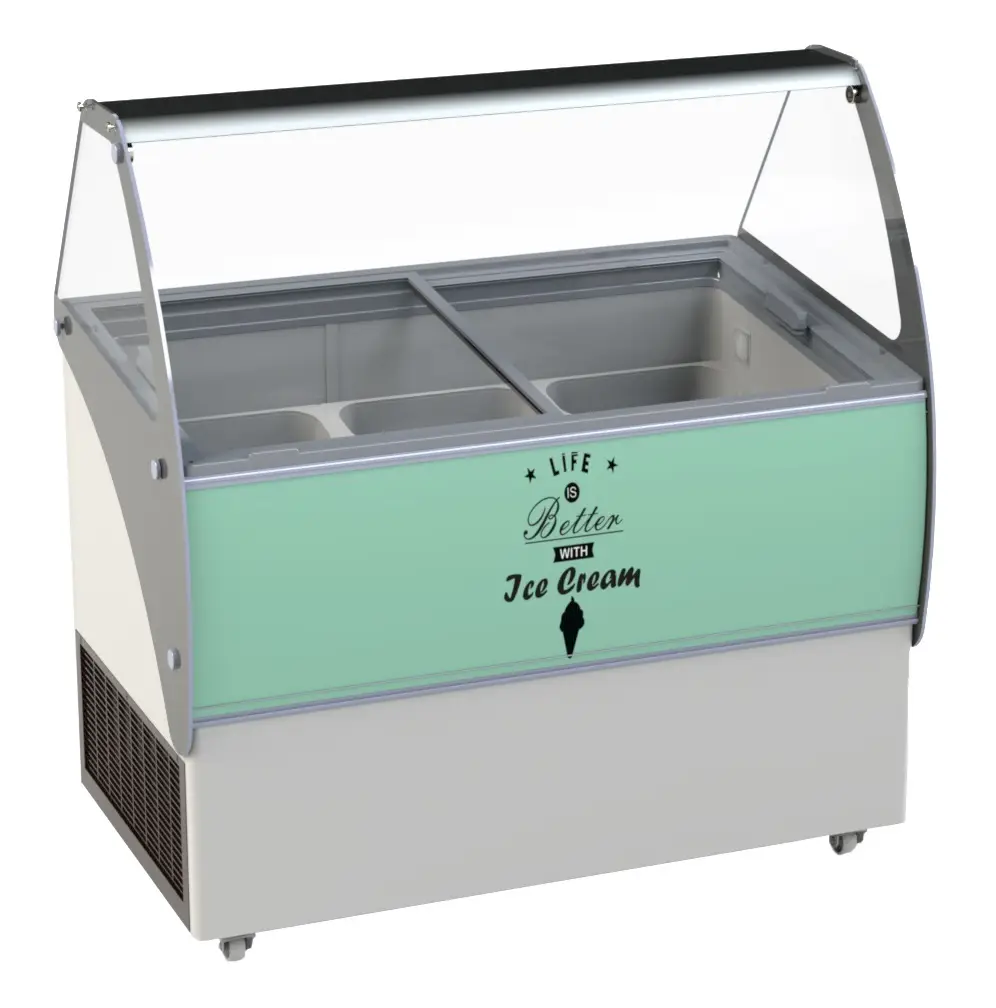

CombiSteel Bali 9x5L Ice Cream Display Freezer 7472.0100

£1,328.00

+vat

SKU: 7472.01

Product summary

Size W/D/H (mm) 1192 x 825 x 1257

Product description

The Ice Cream Display Bali 7472.0100 is a white static-cooled scooping display freezer for nine 5-litre pans, with 354 litres gross volume, interior lighting and a -22 to -15 °C operating range.

Downloads

SPECIFICATION 26 facts · tap for all Width1192 mmDepth825 mmHeight1257 mmGross / net weight99 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137797753catalogue
Type Static Cooled Ice Cream Display Freezerscatalogue

Size & weight7

Depth 825 mmsite
External (W×D×H) 1192 × 825 × 1257 mmcatalogue
Gross / net weight 99 kgsite
Height 1257 mmsite
Internal (W×D×H) 1060 × 560 × 687 mmcatalogue
Internal W × D × H 1060x560x687site
Width 1192 mmsite

Capacity2

Capacity 354 Ltrcatalogue
Gross volume 354 litrescatalogue

Performance5

Cooling type R 290site
Defrost type Manualsite
Max ambient 3030 °Ccatalogue
Maximum ambient 3030site
Temperature range -22/-15site

Power & energy6

Energy consumption 0,37site
Frequency 50 Hzcatalogue
Rated input 370 Wcatalogue
Rated power 37 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings3

Colour Whitecatalogue
Insulation 60 mmcatalogue
Interior light Yessite
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The Ice Cream Display Bali is the nine-pan model in this Combisteel static ice cream display range, suited to counters that need a compact served-scoop offer rather than a long parlour cabinet. It is finished in white, holds 354 litres gross and provides 1060 × 560 × 687 mm of internal space, enough to put a tight core range of flavours directly in front of the customer.

Cooling is static rather than fan-forced, with a supplier-stated -22 to -15 °C temperature range. For scooping service, that means the cabinet is doing two jobs at once: keeping product frozen for trading and making the flavours visible enough to sell. Interior lighting helps the range read clearly through the display, while manual defrost keeps the setup straightforward as long as cleaning and defrosting are part of the operating routine.

The Bali is 1192 mm wide, 825 mm deep and 1257 mm high, with a 99 kg gross weight, 60 mm insulation, R290 refrigerant and a 230V, 50Hz connection. Position it where the queue forms, but leave clearance around the refrigeration gear so it can shed heat through a busy summer afternoon. It is specified for up to 30 °C ambient; keep it away from direct sun, draughty doorways and hot equipment so the cabinet is not fighting its own environment.

BEFORE YOU BUY

Questions, answered straight

It is a static-cooled display freezer for scooping ice cream, sized for nine 5-litre pans. The 354 litre gross volume is for presenting a served range at the counter rather than storing bulk stock.

Static cooling holds the cabinet without fan-forced air blowing across the product surface. The stated operating range is -22 to -15 °C, so give it time to pull down before loading and manage the display as a service freezer, not deep storage.

It is built as a scooping display, presenting open tubs for staff to scoop to order at the counter. If your main offer is sealed tubs or lollies, a retail display freezer may be the better format.

Put it at the point of sale where customers queue, leave clearance around the refrigeration gear, and keep it out of direct sun and away from hot equipment. The external size is 1192 × 825 × 1257 mm and the gross weight is 99 kg, so measure the access route before delivery.

The supplier lists a 230V, 50Hz connection. Have the socket position and local circuit checked before installation, especially if the cabinet will sit alongside other refrigeration.

Yes, it has interior lighting. Defrost is manual, so plan regular defrost and cleaning during quieter periods to keep the display working properly.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Bali 9x5L Ice Cream Display Freezer 7472.0100 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1192 × 825 × 1257 mm
Interior Dimensions 1060x560x687
Capacity 354 Ltr
Colour / Finish White
Temperature Range -22/-15
Max. Ambient Temp. 30
Refrigerant R 290
Cooling Static
Defrost Manual
Electrical Power 0.37 kW
Voltage 230V / 50Hz
Installation Freestanding
Mobile Yes
Insulation 60 mm
Weight 99 kg
If you have any questions about the CombiSteel Bali 9x5L Ice Cream Display Freezer 7472.0100 then please get in touch.
