TEFCOLD IDB400-W1 Ice Cream Freezer

£571.00

+vat

Brand:

SKU: 71160

Energy Arrow

Product summary

  • Great product visibility
  • Ideal for branding
  • Curved sliding lids with lock
  • Includes full set of baskets

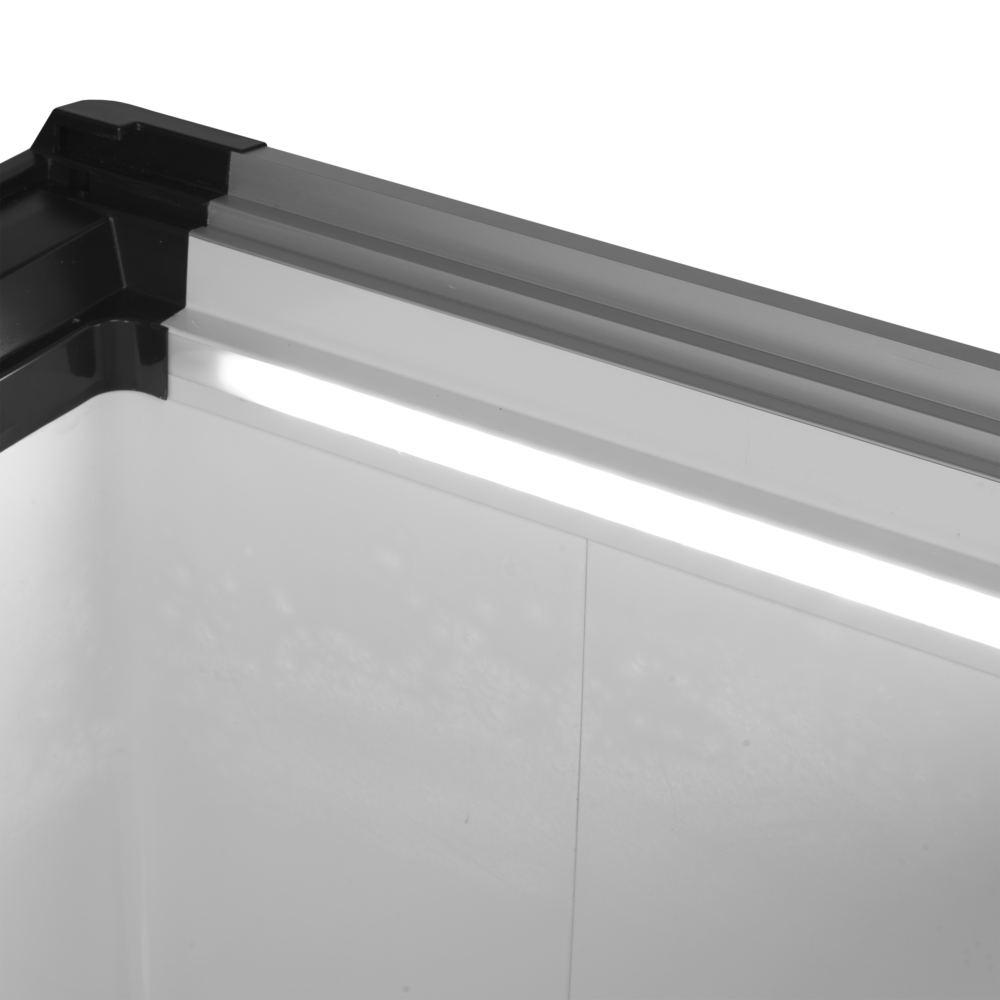

  • LED interior light with switch
  • Ticket strip included
  • Castors with brake

Product description

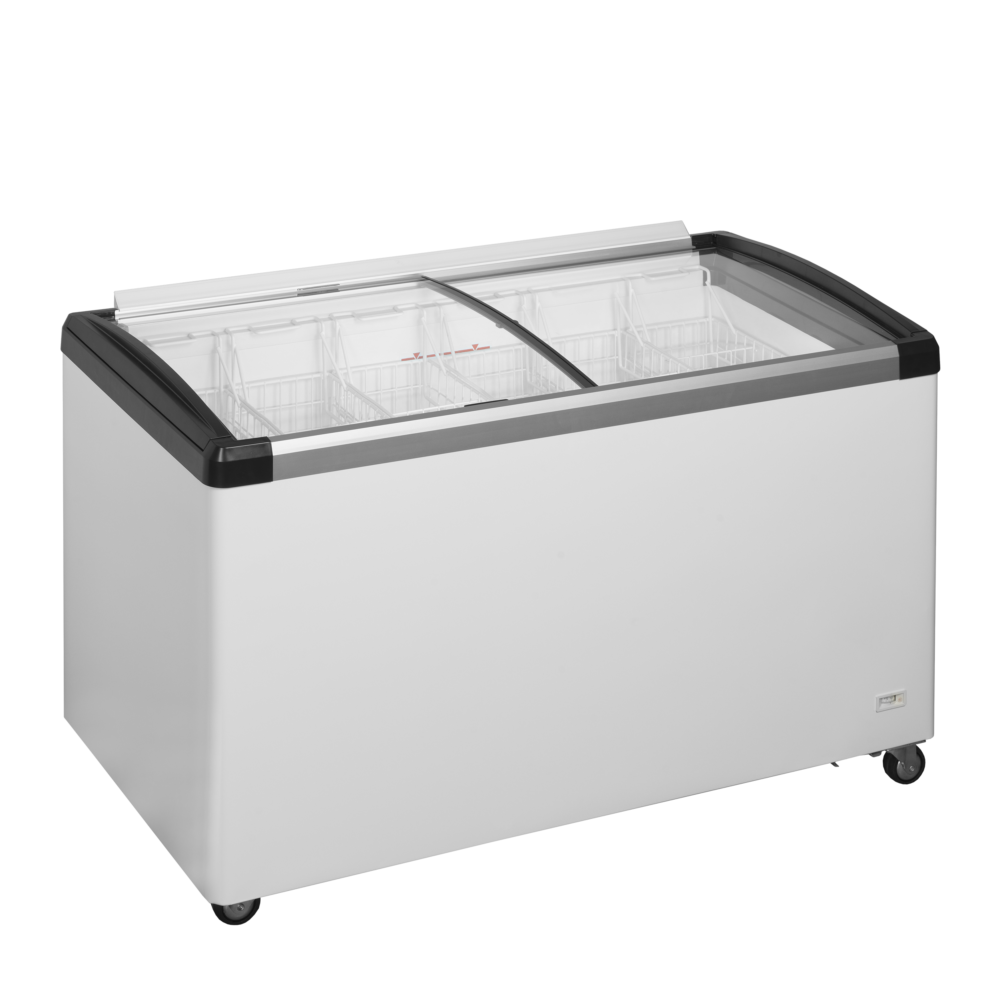

Modern display chest freezer

The IDB range of ice cream freezers is a solid build with an aluminium frame to the front and back. The slightly curved glass sliding lids come with sturdy handles that double as the ends of the top frame, sealing the chest freezer effectively and preventing air slipping in and out. The impressive LED lighting to the front highlights the frozen goods. It comes equipped with a full set of baskets with dividers.

The Tefcold IDB400-W1 is a display chest ice cream freezer with 435 litres gross capacity, cooled by natural R290 refrigerant with manual defrost, rated energy class D with an energy efficiency index of 49.4 % at about £229 a year at 25p/kWh.

SPECIFICATION 42 facts · tap for all External W × D × H1350 x 695 x 780 mmWidth1350 mmDepth695 mmGross / net weight87 / 78 kgGross weight87 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181759360site
Product code 71160site
Sub title Ice Cream Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 695 mmsite
External (W×D×H) 1350 × 695 × 780 mmcatalogue
External W × D × H 1350 x 695 x 780 mmsite
Gross / net weight 87 / 78 kgsite
Gross weight 87 kgcatalogue
Height 780 mmsite
Internal (W×D×H) 1210 × 550 × 617 mmcatalogue
Internal W × D × H 1210 x 550 x 617 mmsite
Packed (W×D×H) 1436 × 776 × 890 mmcatalogue
Packed W × D × H 1436 x 776 x 890 mmsite
Width 1350 mmsite

Capacity1

Gross volume 435 litrescatalogue

Performance10

Climate class 7site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 35 °Ccatalogue
Maximum ambient +35°C, 75% RHsite
Refrigerant R290site
Refrigerant charge 115 gsite
Temperature range -30 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 917 kWh/yearsite
Energy consumption 2.51 kWh/24hsite
Energy efficiency index 49.4 %site
Input power 253 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 castors, 2 with brakesite
Exterior finish White RAL9016site
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The Tefcold IDB400-W1 is a display chest ice cream freezer built for merchandising frozen tubs and pre-packed lines at the point of sale. It carries 435 litres gross, giving a deep chest of storage where stock stays cold and within easy reach of customers.

Day to day it is rated energy class D with an energy efficiency index of 49.4 % and a measured consumption of 916.1 kWh a year, which works out at about £229 a year at 25p/kWh. Defrost is manual, so clearing ice build-up periodically keeps it running efficiently. It runs at 55 dB and is built to climate class 7, meaning it is rated to hold temperature in warmer shop-floor ambients.

The internal space measures 1210 × 550 × 617 mm (W×D×H), and the cabinet draws 253 W. Cooling is handled by natural R290 refrigerant with a 115 g charge, a low-carbon hydrocarbon gas.

BEFORE YOU BUY

Questions, answered straight

It carries 435 litres gross, with an internal space of 1210 × 550 × 617 mm (W×D×H). That gives a deep chest for frozen tubs and pre-packed lines.

It is rated energy class D with an energy efficiency index of 49.4 % and a measured 916.1 kWh a year. That works out at about £229 a year at 25p/kWh.

It uses natural R290 refrigerant with a 115 g charge, a low-carbon hydrocarbon gas.

Defrost is manual. Clearing ice build-up periodically keeps the cabinet running efficiently.

It is built to climate class 7, which means it is rated to hold temperature in warmer shop-floor ambients rather than only cool back-of-house rooms.

It draws 253 W and runs at 55 dB. For servicing or spares, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1210 x 550 x 617 mm
External Dimension (WxDxH): 1355 x 695 x 850 mm
Packed Dimension (WxDxH): 1430 x 776 x 1070 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 115 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.51 kWh/24h
Temperature Range: -30 to -10 °C
Annual Energy Consumption: 917 kWh/year m³
EEI: 49.4 %
Input Power: 253 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -30 to -10 °C
Climate Class: 7
Gross / Net Weight: 87 / 78 kg
Gross / Net Volume: 435 / 312 l
Max Ambient: +35°C, 75% RH

Design and Material

Castors: 4 castors, 2 with brake
Exterior Finish: White RAL9016
Interior Finish: White RAL9016
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD IDB400-W1 Ice Cream Freezer then please get in touch.
