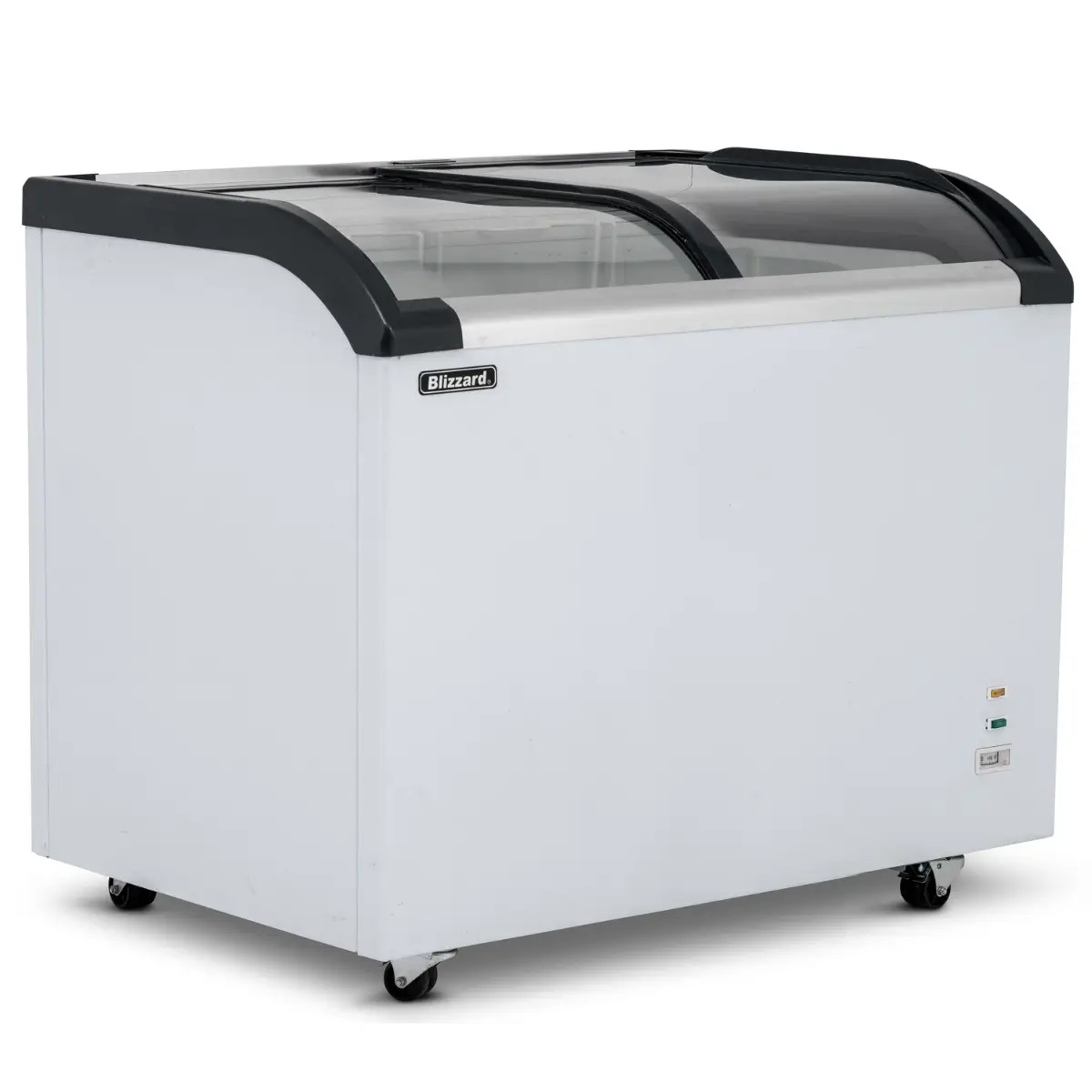

BLIZZARD 220L Curved Glass Lid Freezer BDF22

£486.79

+vat

- +

Brand:

SKU: BDF22

Product summary

Size: 740 x 680 x 850

Product description

  • White laminaterd exterior¬†
  • White painted aluminium interior¬†
  • Aluminium/ABS plastic door frame¬†
  • Curved glass Lid
  • Internal LED illumination
  • Defrost water drain hole¬†
  • Lockable castor wheels
  • Full capacity wire framed baskets
  • Manual temperature adjustment wheel
  • Low profile branding
  • SImple plug and play 13amp 3 pin plug

The Blizzard BDF22 is a curved glass lid display chest freezer measuring 740 × 680 × 850 mm (W×D×H) and weighing 58 kg, running on R290 refrigerant at 48 dB and climate class 4 with manual defrost, built to display and sell frozen product such as ice cream from the lid.

SPECIFICATION 25 facts · tap for all External W × D × H740 x 680 x 850Width740 mmDepth680 mmHeight850 mmGross weight58 kgVoltage / frequency186W

Manufacturer documents2

Identity4

Brand BLIZZARDsite
GTIN / EAN 5060486684663site
Product code BDF22site
Type Sliding Lid Ice Cream Freezerscatalogue

Size & weight6

Depth 680 mmsite
External (W×D×H) 740 × 680 × 850 mmcatalogue
External W × D × H 740 x 680 x 850site
Gross weight 58 kgcatalogue
Height 850 mmsite
Width 740 mmsite

Capacity1

Gross volume 220 litrescatalogue

Performance6

Climate class 4site
Controller Manual thermostatsite
Cooling type Staticsite
Defrost type Manualsite
Refrigerant R290site
Temperature range -18C/-22Csite

Power & energy3

Input power 13amp supplysite
Rated input 186 Wcatalogue
Voltage / frequency 186Wsite

Build & fittings1

Exterior finish Whitesite

Other stated facts2

Energy consumption 978 kWh/yearcatalogue
Noise level 48 dB(A)catalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The BDF22 is Blizzard's curved glass lid display chest freezer — a compact frozen display where the curved glass lid lets customers see the stock from above. That makes it a merchandising unit as much as a freezer: ice cream tubs, frozen impulse lines and packaged frozen product all stay on show through the glass. At 740 mm wide it drops into a corner, a counter end or a kiosk without eating much floor.

Day to day it runs quietly for a front-of-house position, rated at 48 dB, and uses R290, a natural hydrocarbon refrigerant. It carries a climate class 4 rating — a higher band that suits warmer, harder-working environments such as a summer kiosk or a busy shop floor. Defrost is manual, so you periodically switch the freezer off and clear the ice as part of routine cleaning; the full temperature and energy figures are in the specification table below.

Installation is straightforward given the size: 740 × 680 × 850 mm and 58 kg, light enough for a two-person lift and a normal doorway. The 680 mm depth keeps it tight to a wall or counter, and at 850 mm high the curved glass lid sits at a comfortable height for customers to look in and reach product. Because it uses a hydrocarbon refrigerant, servicing should be done by an engineer familiar with R290 systems.

BEFORE YOU BUY

Questions, answered straight

Yes — it measures 740 × 680 × 850 mm (W×D×H) and weighs 58 kg, which fits a normal doorway and a two-person lift, and the 680 mm depth keeps it tight to a wall or counter.

It is rated at 48 dB, which suits a customer-facing position such as a kiosk, café or shop floor rather than being tucked away in a back room.

Manual defrost means you periodically switch the freezer off and clear the built-up ice as part of routine cleaning, rather than the unit doing it automatically. Build it into your cleaning schedule.

It carries a climate class 4 rating, a higher band built for warmer, harder-working conditions such as a summer kiosk or busy shop floor. Keep it out of direct sun and clear of heat sources for best results.

R290, a natural hydrocarbon refrigerant. Any engineer servicing it should be competent with hydrocarbon refrigerant systems.

Yes. Craven Cooling handles servicing and breakdown support on the cabinets we supply — call the team on 01792 732702 to arrange a visit or discuss a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 740 x 680 x 850

Cooling and Functions

Type of Controller: Manual thermostat
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290

Power and Consumption

Temperature Range: -18C/-22C °C
Input Power: 13amp supply
Voltage / Frequency: 186W

Measures and Content

Temperature Range: -18C/-22C °C
Climate Class: 4
Gross / Net Volume: 220 ltr l

Design and Material

Exterior Finish: White

BLIZZARD 220L Curved Glass Lid Freezer BDF22 Product Data

If you have any questions about the BLIZZARD 220L Curved Glass Lid Freezer BDF22 then please get in touch.
