TEFCOLD IC501SC Sliding Flat Glass Lid Chest Freezer

£639.00

+vat

Brand:

SKU: 49768

Energy Arrow

Product summary

  • Includes full set of baskets
  • Flat sliding glass lids with lock
  • Great branding possibilities
  • Digital thermometer
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings

Product description

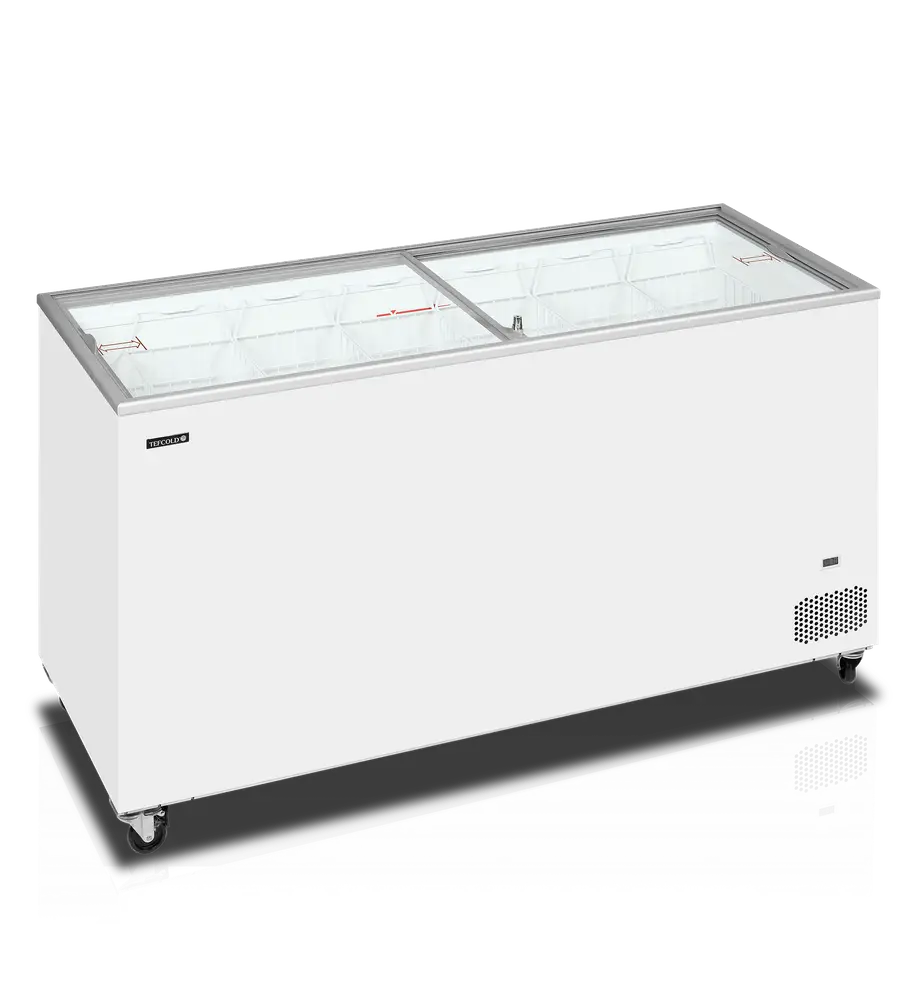

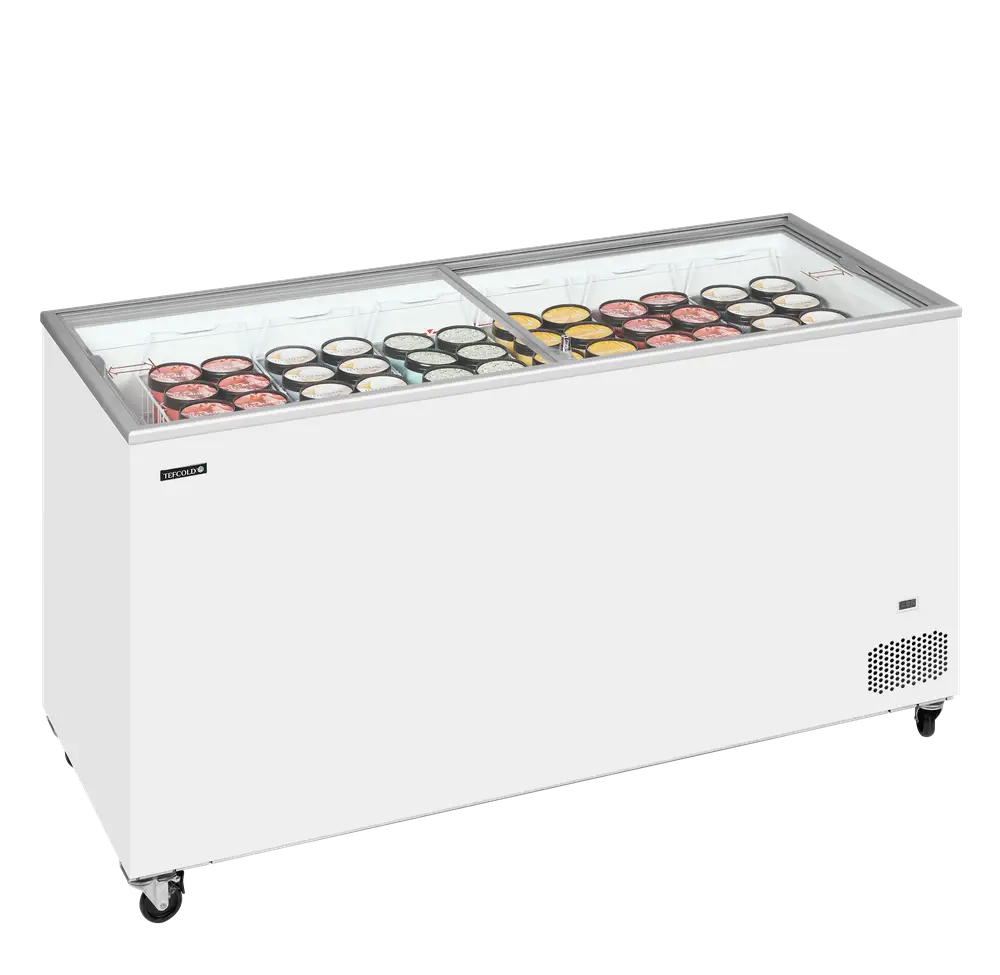

Chest freezer with flat sliding glass lids

The IC-SC range of sliding glass lid chest freezers is ideal for display of ice creams, lollies, or other frozen goods. The units come with a full set of baskets with ample storage underneath. Units come fitted with castors. There are 5 different sizes to suit a range of requirements. Ideal for convenience stores, cafés and small shops.

The TEFCOLD IC501SC is a 1550 mm-wide sliding flat glass lid chest freezer holding 430 litres net, running at -24 to -14 °C on R290 refrigerant with static cooling, manual defrost and mechanical control, rated energy class D in a white cabinet.

SPECIFICATION 41 facts · tap for all External W × D × H1550 x 630 x 892 mmWidth1550 mmDepth630 mmGross / net weight90 / 72 kgGross weight90 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733339site
Product code 49768site
Sub title Sliding Flat Glass Lid Chest Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 630 mmsite
External (W×D×H) 1550 × 630 × 892 mmcatalogue
External W × D × H 1550 x 630 x 892 mmsite
Gross / net weight 90 / 72 kgsite
Gross weight 90 kgcatalogue
Height 892 mmsite
Internal (W×D×H) 1430 × 510 × 655 mmcatalogue
Internal W × D × H 1430 x 510 x 655 mmsite
Packed (W×D×H) 1640 × 750 × 940 mmcatalogue
Packed W × D × H 1640 x 750 x 940 mmsite
Width 1550 mmsite

Capacity1

Gross volume 491 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 997 kWh/yearsite
Energy consumption 2.73 kWh/24hsite
Energy efficiency index 45.3 %site
Input power 191 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The IC501SC is a flat glass lid chest freezer built to display frozen impulse stock — ice cream, lollies and frozen packs — through sliding glass lids. It holds 491 litres gross and 430 litres net, a larger display bed than a compact impulse cabinet, giving room to face multiple frozen lines side by side. The white exterior suits a parlour, shop floor or forecourt position where frozen stock needs to be seen.

It runs at -24 to -14 °C, cold enough for ice cream at both storage and scooping temperatures, with static cooling and a mechanical controller. Defrost is manual, so plan a periodic defrost into your routine to keep it clear of ice. Sound output is 45 dB, and it is rated climate class 5 for warmer ambient conditions. At energy class D it is rated at 996.5 kWh a year, about £249 a year at 25p/kWh.

The cabinet measures 1550 × 630 × 892 mm externally and ships packed at 1640 × 750 × 940 mm, so check doorway and access clearance for the 1640 mm packed length before delivery. Internally it offers 1430 × 510 × 655 mm of frozen space. It runs from a standard 13 A supply at 220-240 V, 50 Hz, draws 191 W, and uses R290 refrigerant with a 110 g charge. Net weight is 72 kg.

BEFORE YOU BUY

Questions, answered straight

It ships packed at 1640 × 750 × 940 mm, so allow for a 1640 mm packed length and 750 mm width on the access route. Measure before delivery; the cabinet itself is 1550 mm wide.

It runs between -24 and -14 °C, suitable for ice cream at both storage and scooping temperatures. A mechanical controller sets the point and cooling is static.

At energy class D it is rated at 996.5 kWh a year, about £249 a year at 25p/kWh. Your actual figure depends on tariff and siting.

Gross volume is 491 litres and net usable volume is 430 litres, across an internal bed of 1430 × 510 × 655 mm.

Yes. It uses static cooling with manual defrost, so build a periodic defrost into your cleaning routine to keep the interior clear of ice.

Yes. Craven Cooling can arrange servicing and support. The cabinet uses R290 refrigerant with a 110 g charge and a mechanical controller. Call our team on 01792 732702 to discuss servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1430 x 510 x 655 mm
External Dimension (WxDxH): 1550 x 630 x 892 mm
Packed Dimension (WxDxH): 1640 x 750 x 940 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.73 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 997 kWh/year m³
EEI: 45.3 %
Input Power: 191 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 90 / 72 kg
Gross / Net Volume: 491 / 430 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Lock: Yes
If you have any questions about the TEFCOLD IC501SC Sliding Flat Glass Lid Chest Freezer then please get in touch.
