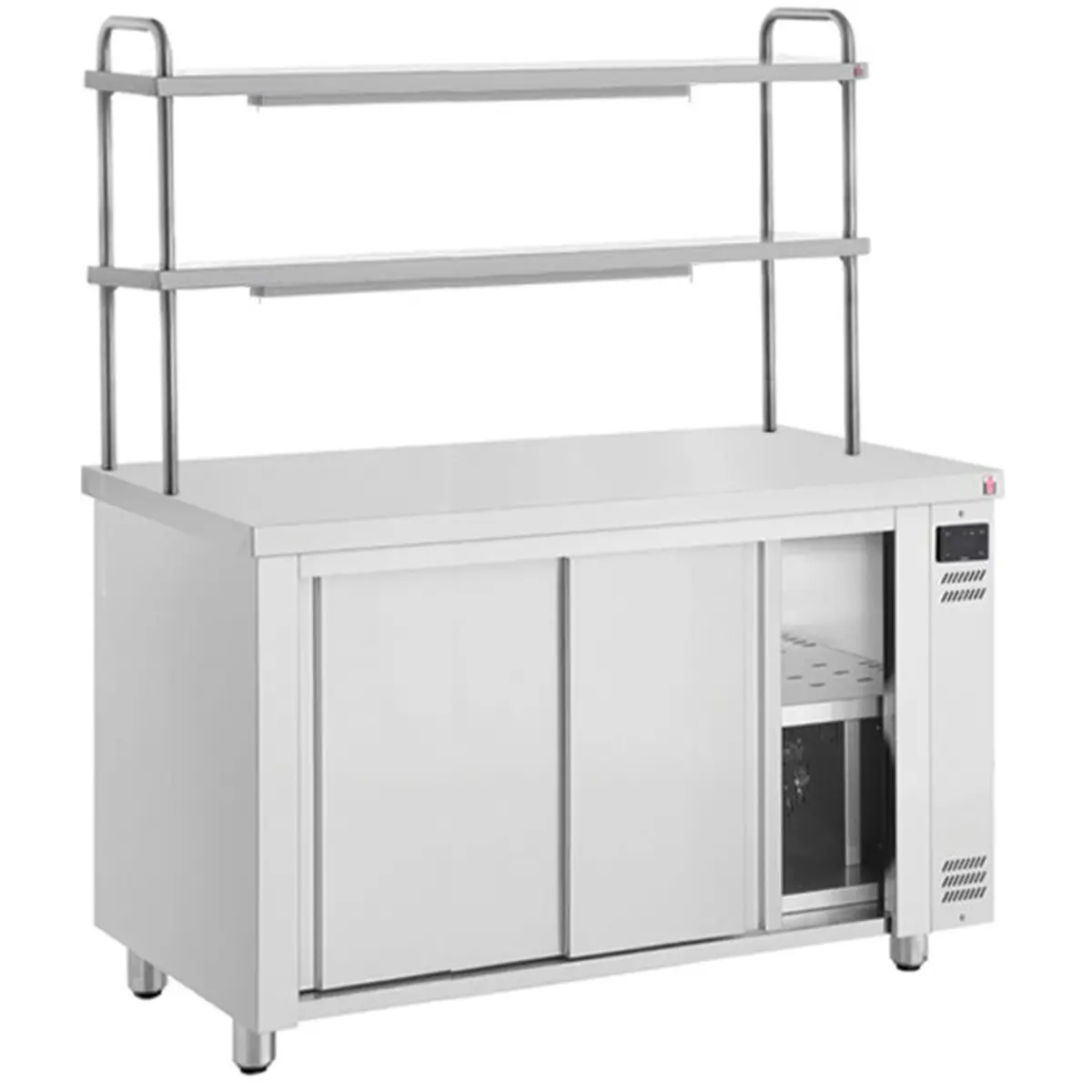

INOMAK 1400mm Hot Cupboard With Double Heated Gantry HCPW-DHG14

£2,259.80

+vat

Brand:

SKU: HCPW-DHG14

Product summary

Size: 1390 x 700 x 1632

Product description

  • Double shelf gantry
  • 2 Halogen heated boxes – 3 lamps each
  • High grade AISI 304 stainless steel exterior and interior
  • Double wall doors insulated with pressurized polyurethane foam
  • Fan assisted heating
  • Adjustable legs
  • 1 fixed perforated shelf
  • Operating temperature (max. 72¬∞C) is controlled by Thermostat
  • Robust construction

A 1400 mm stainless steel hot cupboard with dual heated gantries and six halogen lamps, holding food at up to 72°C with independent temperature control for high-volume service environments.

SPECIFICATION 19 facts · tap for all External W × D × H1390 x 700 x 1632Width1390 mmDepth700 mmHeight1632 mmVoltage / frequency1450WInput power13amp supply

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700101site
Product code HCPW-DHG14site
Type Hot Cupboardscatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 1390 × 700 × 1632 mmcatalogue
External W × D × H 1390 x 700 x 1632site
Height 1632 mmsite
Width 1390 mmsite

Capacity1

Gross volume 695 litrescatalogue

Performance2

Controller Digital controller with temperature displaysite
Temperature range +30C/+72Csite

Power & energy3

Input power 13amp supplysite
Rated input 1450 Wcatalogue
Voltage / frequency 1450Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 1site
THE WORKING VIEW

Why this hot cupboard earns its place

The INOMAK HCPW-DHG14 brings both storage and heated display together—a hot cupboard with a double heated gantry overhead. The cabinet sits on adjustable legs, built from high-grade AISI 304 stainless steel inside and out, with a single perforated shelf for flexible loading. The double-wall doors are insulated with pressurized polyurethane foam, keeping the heat where you need it.

Two separate halogen heated boxes hang above, each fitted with three lamps (six overall), so you've got real heating coverage across the full 1400 mm width. Both zones run off a single thermostat, so you dial in one temperature—up to 72°C—and the fan-assisted heating holds it. The robust construction and quality stainless steel mean it's built to take a shift in a busy kitchen without complaint.

This is the unit for kitchens running high-volume service: carveries keeping plates hot while the pass fills, banqueting operations warming up courses mid-service, or schools plating up lunch for a rush. The heated gantry means you're not just storing plates—you're displaying them warm and ready. The thermostatic control keeps everything consistent without micromanaging, and the double-wall insulation means steady temperatures even when doors are opening and closing.

BEFORE YOU BUY

Questions, answered straight

It does both. The cabinet holds stock on the perforated shelf, and the overhead gantry keeps plates hot. You're not choosing one or the other—you're getting storage underneath and heat radiating from above.

The thermostat controls operation up to 72°C, which is within food-safety holding temperatures. Fan-assisted heating means the temperature stays consistent across the whole cabinet, not hot spots and cold corners.

High-grade AISI 304 stainless steel is the commercial kitchen standard for a reason. It handles service wear, cleans quickly, and resists corrosion. Kitchen life will show, but it's built for that.

Yes. The pressurized polyurethane foam does the heavy lifting—keeping heat in is the whole point. You won't waste power heating a leaky cabinet. On cold mornings, the fan-assisted heating gets up to temperature efficiently.

The halogen lamps are the heat source. You can wipe down the stainless framework, and cleaning the interior shelf is routine—it's perforated so nothing traps. For detailed gantry maintenance, check the manual or ring servicing on 01792

At 1390 mm wide and 1632 mm tall, measure your doorways and passages. Most commercial kitchens accommodate it, but narrow Victorian pubs or converted spaces might need checking. The adjustable legs give some footprint flexibility once it's in place.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1390 x 700 x 1632

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Temperature Range: +30C/+72C °C
Input Power: 13amp supply
Voltage / Frequency: 1450W

Measures and Content

Temperature Range: +30C/+72C °C
Gross / Net Volume: 695 plates l

Design and Material

Shelves Number & Type: 1
Exterior Finish: Stainless Steel
