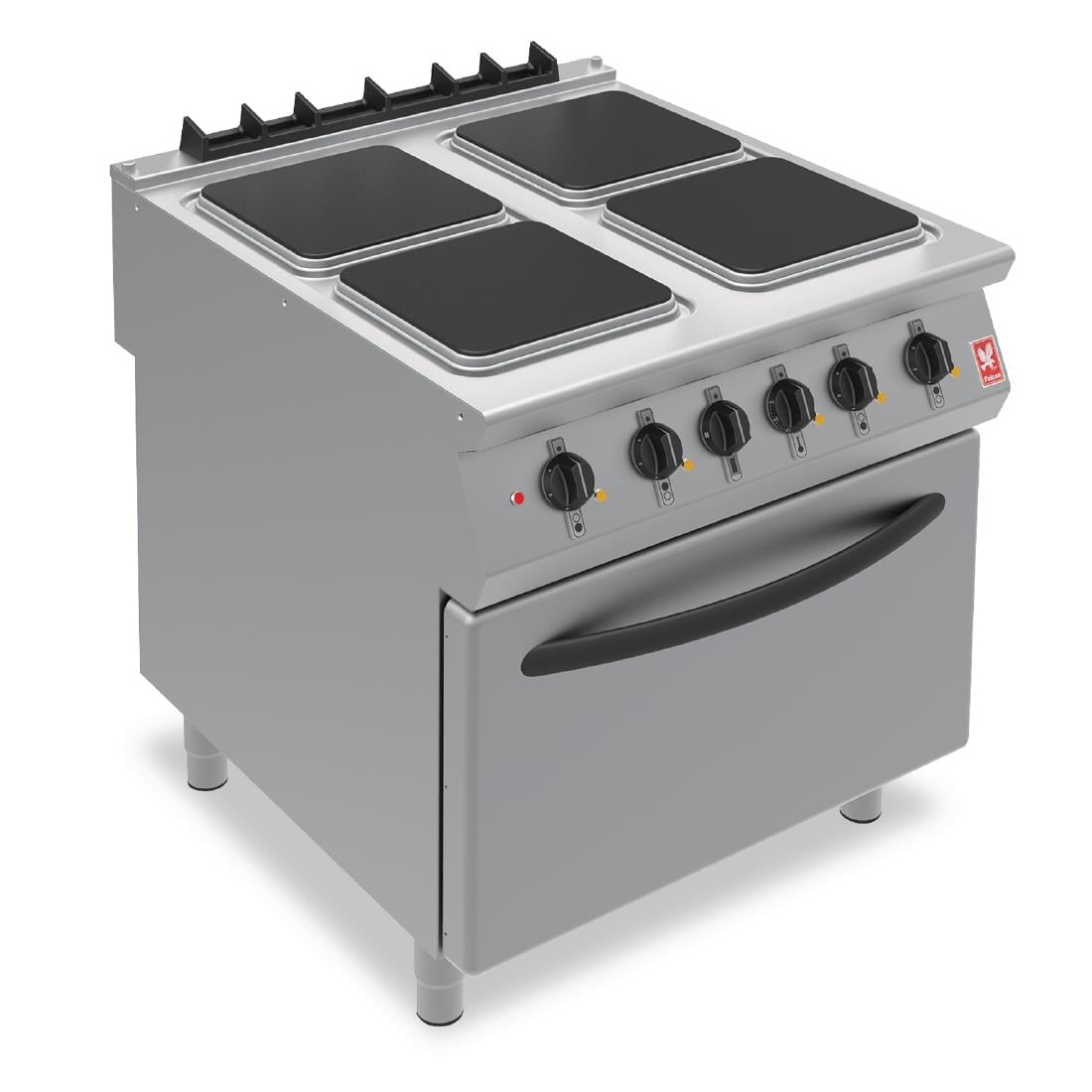

Falcon F900 Four Hotplate Electric Oven Range E9184 HC087

£5,734.19

+vat

Availability: 999 in stock

Brand:

SKU: HC087

Product summary

22.3kW. 4 hotplates. Single or 3 phase

Product description

The E9184 features four high performance 4kW cast iron hotplates. The deep drawn pressed wells in the one piece hob contain spillages and wide raised corners prevent grease and grime build up and are easy to clean and keep clean. The hotplates are 300mm square and have 6 heat positions. 2mm thick 304 culinary grade stainless steel construction provide robustness and longevity. The laser cut hob enables edge to edge joining of equipment, providing the benefits of a cooking suite with the advantages of separate units. The large 2/1 gastronorm compatible oven features five shelf positions, with two shelves supplied as standard and metal to metal door seal, to ensure heat is retained exactly where it is needed – in the oven chamber. This unit is IPX5 rated and is supplied on adjustable castors.

Square hotplates offer fast heat up and large surface area
IPX5 rated for deep cleaning
Available in 400V three phase, L1: 34.6, L2: 34.6, L3: 27.6 or 230V single phase 98A
DLS compatible so can be seamlessly linked to any other Falcon F900 model
5 positions, 1 shelf supplied
Pressed hob wells contain spillages and are easy to clean
Large 2/1 GN oven makes it easy to transfer trays to and from other kitchen or serving equipment
Oven features metal to metal door seal to retain heat

A 900 mm stainless-steel oven range with four 4 kW cast-iron hotplates and a 2/1 GN oven, holding 80–280 °C with five shelf positions for high-output cooking lines.

Downloads

SPECIFICATION 22 facts · tap for all Width800 mmDepth900 mmGross weight134 kgVoltage230/240VTemperature range+80 to +280 °CMaterialStainless Steel & Cast Iron

Identity6

Brand Falconsite
Extended warranty 1 Year Parts Onlycatalogue
Product code HC087site
Range / series F900 Seriescatalogue
Type Electric Rangescatalogue
Warranty 2 Year Parts & Labour Commercial Only Warrantycatalogue

Size & weight5

Depth 900 mmcatalogue
External (W×D×H) 900 × 800 × 900 mmcatalogue
Gross weight 134 kgcatalogue
Internal (W×D×H) 300 × 565 × 730 mmcatalogue
Width 800 mmsite

Capacity2

Gastronorm size 2/1 GN doublecatalogue
Shelves 2catalogue

Performance1

Temperature range +80 to +280 °Ccatalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 22300 Wcatalogue
Voltage 230/240Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steel & Cast Ironcatalogue

Other stated facts3

Electrical safety notice Yescatalogue
Mobility Feetcatalogue
Output per hour 22.3kWcatalogue
THE WORKING VIEW

Why this electric range earns its place

The Falcon F900 E9184 combines a serious cooking suite and oven in one freestanding unit. Four independent cast-iron hotplates—each 300 mm square with six heat positions—give you granular control over simmering, fast boil and plate finishing. The deep wells trap spillage; the wide raised corners shed grease without trapping grime, cutting cleaning time in half.

The oven cavity is built around a 2/1 gastronorm pan—the industry standard for batch work. Five shelf positions take two metal shelves as standard, and the metal-to-metal door seal locks heat in the chamber; you run cooler exterior, better energy, faster recovery. The unit steps up to 22.3 kW total, so if you're running a busy kitchen line—frying, sautéing, simmering, baking all at once—this machine has the headroom.

Build quality marks it out: 304 culinary-grade stainless steel, 2 mm thick, laser-cut edges that meet adjacent equipment with zero gaps via the Dynamic Link System. The whole unit sits on adjustable castors for repositioning, and it's IPX5 rated—spray it down at the end of service. At 900 × 800 × 900 mm (134 kg), it's designed for the real kitchen, not the showroom.

BEFORE YOU BUY

Questions, answered straight

The oven holds 2/1 GN pans—two metal shelves included, room for five total. Hotplates are separate controls, so you run both in parallel: frying eggs at 150 °C while the oven bakes at 220 °C.

22.3 kW, three-phase 230/240V. Confirm your supply before install; most kitchens built from 2000 onward have it.

Yes—the laser-cut edges and Dynamic Link System join it to Falcon F900 modules with zero gaps. That's how you build a cooking suite.

The raised hob corners don't trap grease; the oven door seals tight so splatter stays contained. Spray it down daily with hot water (it's IPX5 rated). The grease trough on the hob is your daily swab point.

2-year warranty on parts and labour. Falcon's got service depots across the UK; call your supplier for the service number.

If you're doing 150+ covers a night, all on hotplate and oven work—yes. The 22.3 kW and five-shelf oven are built for that pace. If you're regularly overshooting, you're choosing the right machine.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Falcon F900 Four Hotplate Electric Oven Range E9184 HC087 Product Data

Brand Falcon
Type Electric Ranges
Range F900 Series
Dimensions 900(H) x 800(W) x 900(D)mm
Material Stainless Steel & Cast Iron
Colour / Finish Silver
Temperature Range 80°C to 280°C
Number of Shelves 2
Power Electric
Voltage 230/240V
Fuel / Supply Three Phase
Warranty 2 Year Parts & Labour Commercial Only Warranty
Weight 134kg
Manufacturer Ref E9184
If you have any questions about the Falcon F900 Four Hotplate Electric Oven Range E9184 HC087 then please get in touch.
